Showtec Photon Wash 16x 20 W RGBM LEDs
Showtec Photon Wash 16x 20 W RGBM LEDs
Showtec Photon Wash16x 20 W RGBM LEDs

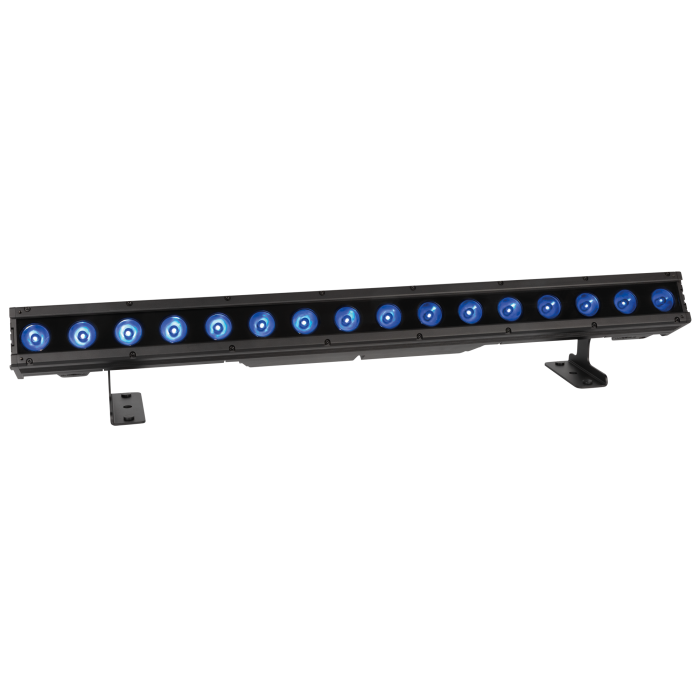

The Photon Wash is an IP65-rated LED bar with 16 individually controllable 20-watt RGBM LEDs that make it possible to create powerful, dynamic, colourful wash effects at indoor and outdoor events. Precise low-end dimming also makes the Photon Wash ideal for applications that require excellent control over brightness. The bar has a horizontal beam angle of 10° and a vertical beam angle of 33°, which can be changed using one of the optional beam shapers. Control options include DMX (+ RDM) and Auto modes, as well as manual control via the OLED display and buttons. The Photon Wash is equipped with Power Pro True and 5-pin XLR inputs and outputs.
The bar features two innovative sliding parts on the underside of the housing that make it easy to work around truss bracings during installation, while the two standard brackets included can be used for hanging the bar or positioning it on the floor. An optional fixed bracket is available for those who want to hang or stack the bar closer to the truss. For vertical hanging and stacking, the optional Vertical Bracket and Baseplate is the way to go. A barndoor is also available.
Specifications
Source
Light Source Type LED
Light Source Quantity 16
Light Source Power 20W
LED Color Type RGBM
Refresh Rate 1000Hz
Refresh Rate (Max.) 12 kHz
Luminous Flux (Total) 16543 lm
CRI 61 CCT
4300K Optical
Beam Angle (Horizontal) 10°
Beam Angle (Vertical) 33°
Control and Programming
Control Mode Auto, DMX, Manual, RDM
DMX Channels 4, 7, 10, 32, 64, 74
Protocols DMX, RDM
Display OLED
Dynamic Effects
Dimmer 0-100%
Strobe 0-20 Hz
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 350W
Power Connector In Power Pro True
Power Connector Out Power Pro True
DMX Connector XLR 5P In/Out
Mechanical Specifications
Length (mm) 1000mm (39.37″)
Width (mm) 140mm (5.512″)
Height (mm) 200mm (7.874″)
Weight 9.9 kg (21,826 lb)
IP Rating IP65
Housing Aluminum
Color Black
Product Properties
Cooling Convection
Rigging
Mounting Options Bracket, Clamp, Quick-Lock
Thermal Specifications
Maximum Ambient Temperature 45°C (113°F)
Minimum Operating Temperature -5 °C (23 °F)
Product Compliance
Energy efficiency class T/B/D
Included Items
Included Cables Power Pro True Cable
