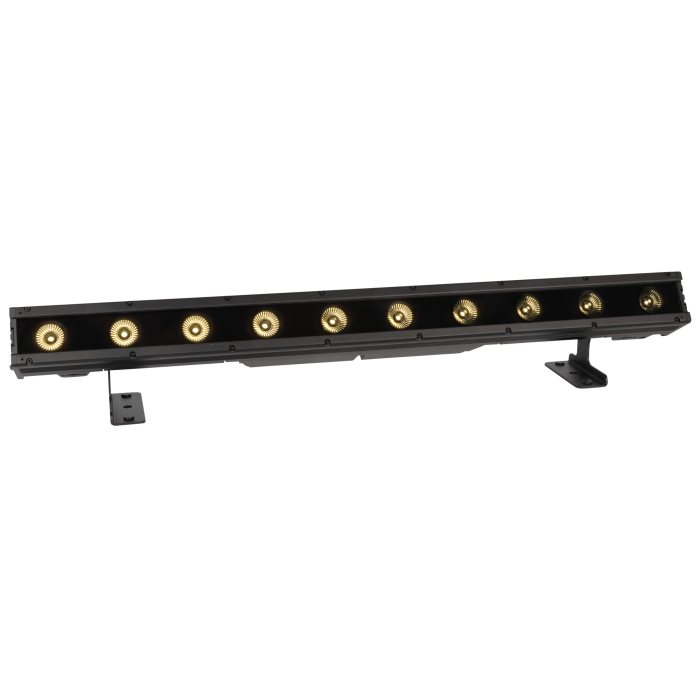

Showtec Photon Sunstrip With tungsten simulation

The Photon Sunstrip is an IP65-rated LED bar with 10 individually controllable 20-watt white/amber/red LEDs that make it possible to create powerful, dynamic, colourful light effects with convincing tungsten simulation at indoor and outdoor events. Precise low-end dimming also makes the Photon Sunstrip ideal for applications that require excellent control over brightness. The bar has a horizontal beam angle of 46° and a vertical beam angle of 33°, which can be changed using one of the optional beam shapers. Adding the optional 6x6 Hatch Cover gives the Photon Sunstrip the look of a more traditional Active Sunstrip. Control options include DMX (+ RDM) and Auto modes, as well as manual control via the OLED display and buttons. The Photon Sunstrip is equipped with Power Pro True and 5-pin XLR inputs and outputs.

The bar features two innovative sliding parts on the underside of the housing that make it easy to work around truss bracings during installation, while the two standard brackets included can be used for hanging the bar or positioning it on the floor. An optional fixed bracket is available for those who want to hang or stack the bar closer to the truss. For vertical hanging and stacking, the optional Vertical Bracket and Baseplate is the way to go. A barndoor is also available.

Specifications

Source
Light Source Type LED
Light Source Quantity 10
Light Source Power 20W
LED Color Type R, A, WW
Refresh Rate 1000Hz
Refresh Rate (Max.) 12 kHz
Luminous Flux (Total) 5203 lm
CRI 94
CCT 3200K
Optical
Beam Angle (Horizontal) 46°
Beam Angle (Vertical) 33°

Control and Programming
Control Mode Auto, DMX, Manual, RDM
DMX Channels 1, 2, 5, 10, 14, 36
Protocols DMX, RDM
Display OLED
Dynamic Effects
Dimmer 0-100%
Strobe 0-20 Hz

Electrical Specifications and Connections
Power Supply 100 V AC
Power Consumption 185W
Power Connector In Power Pro True
Power Connector Out Power Pro True
DMX Connector XLR 5P In/Out
DMX Connector In XLR 5P
DMX Connector Out XLR 5P

Mechanical Specifications
Length (mm) 1000mm (39.37″)
Width (mm) 140mm (5.512″)
Height (mm) 200mm (7.874″)
Weight 9.7 kg (21,385 lb)
IP Rating IP65
Housing Aluminum
Color Black
Product Properties Cooling
Convection Rigging
Mounting Options Bracket, Clamp, Quick-Lock

Thermal Specifications
Maximum Ambient Temperature 45°C (113°F)
Minimum Operating Temperature -5 °C (23 °F)

Product Compliance
Energy efficiency class T/B/D

Included Items
Included Cables Power Pro True Cable
