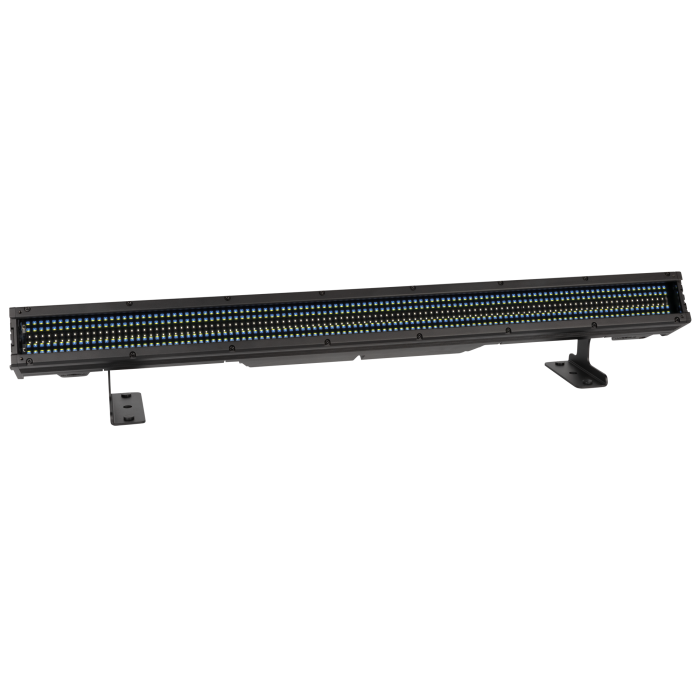

Showtec Photon Strobe 448x 1.5 W RGBM LEDs + 224x 3 W CW LEDs
Showtec Photon Strobe 448x 1.5 W RGBM LEDs + 224x 3 W CW LEDs
Showtec Photon Strobe 448x 1.5 W RGBM LEDs + 224x 3 W CW LEDs
The Photon Strobe is an IP65-rated LED bar with 448x 1.5 W RGBM LEDs and 224x 3 CW LEDs that make it possible to create powerful, dynamic, colourful strobe effects at indoor and outdoor events. With 32 RGBM and 16 CW sections, elaborate patterns and effects are possible. Control options include DMX (+ RDM) and Auto modes, as well as manual control via the OLED display and buttons. The Photon Strobe is equipped with Power Pro True and 5-pin XLR inputs and outputs.
The bar features two innovative sliding parts on the underside of the housing that make it easy to work around truss bracings during installation, while the two standard brackets included can be used for hanging the bar or positioning it on the floor. An optional fixed bracket is available for those who want to hang or stack the bar closer to the truss. For vertical hanging and stacking, the optional Vertical Bracket and Baseplate is the way to go. A barndoor is also available.
Specifications
Source
Light Source Type LED
Light Source Quantity 448
Light Source Power 1.5W
LED Color Type CW, RGBM
Refresh Rate 1000Hz
Refresh Rate (Max.) 12 kHz
Luminous Flux (Total) 20798 lm
CRI 89
CCT 9000K
LED Strobe Quantity 224
LED Strobe Power
3W Optical
Beam Angle (Horizontal) 160°
Beam Angle (Vertical) 120°
Control and Programming
Control Mode Auto, DMX, Manual, RDM
DMX Channels 4, 13, 145, 158, 34, 72
Protocols DMX, RDM
Display OLED
Dynamic Effects
Dimmer 0-100%
Strobe 0-20 Hz
Electrical Specifications and Connections
Power Supply 100-240 VAC 50/60 Hz
Power Consumption 367W
Power Connector In Power Pro True
Power Connector Out Power Pro True
DMX Connector XLR 5P In/Out
Mechanical Specifications
Length (mm) 1000mm (39.37″)
Width (mm) 140mm (5.512″)
Height (mm) 200mm (7.874″)
Weight 9.7 kg (21,385 lb)
IP Rating IP65
Housing Aluminum
Color Black
Product Properties
Cooling Convection
Rigging
Mounting Options Bracket, Clamp, Quick-Lock
Safety Attachment Yes
Thermal Specifications
Maximum Ambient Temperature 45°C (113°F)
Minimum Operating Temperature -5 °C (23 °F)
Product Compliance
Energy efficiency class T/B/D
Included Items
Included Cables Power Pro True Cable
