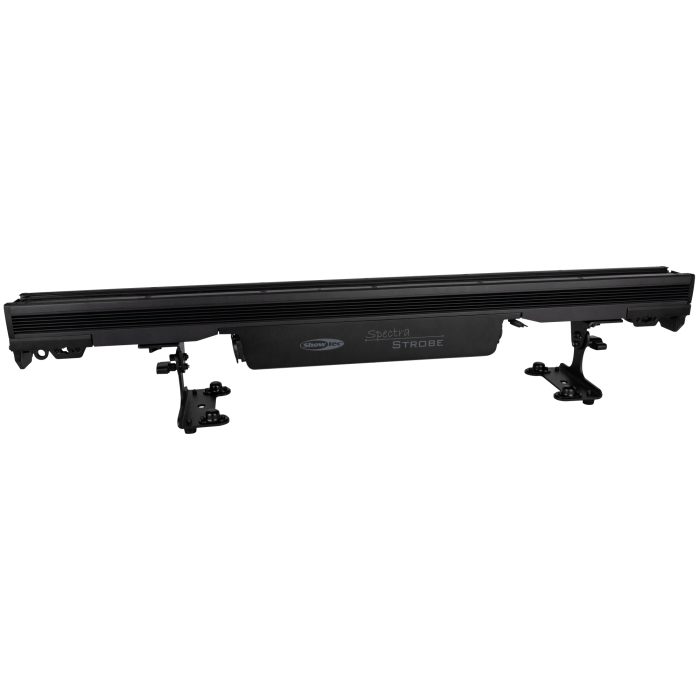

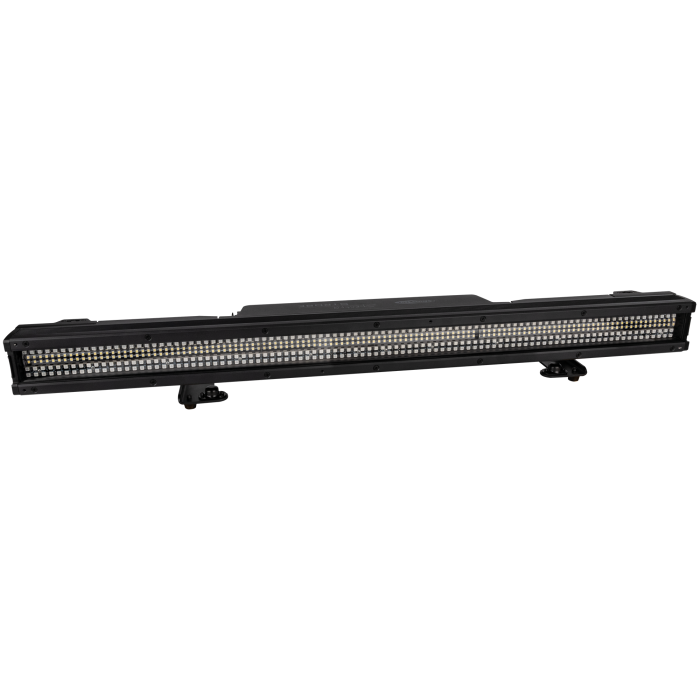

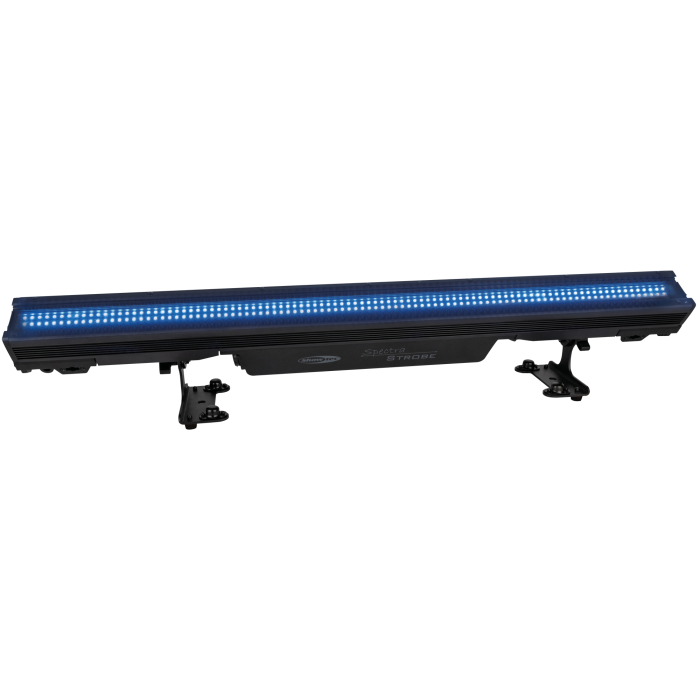

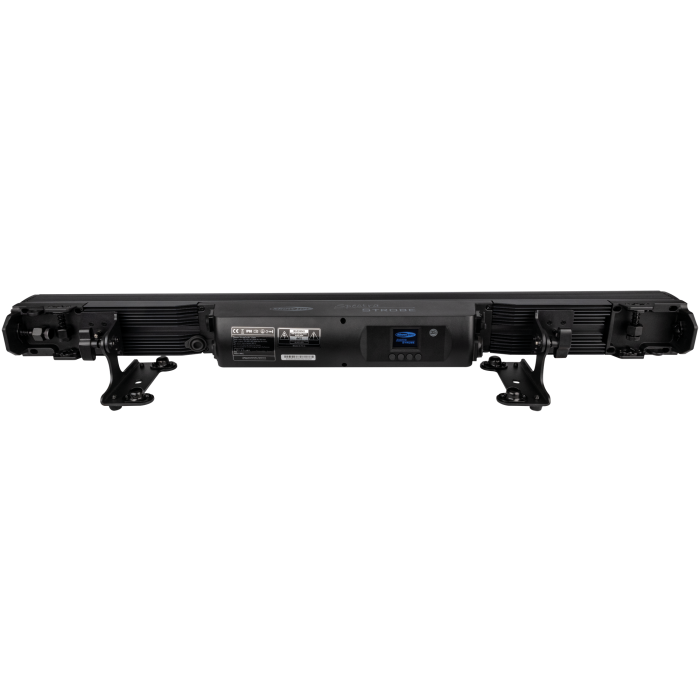

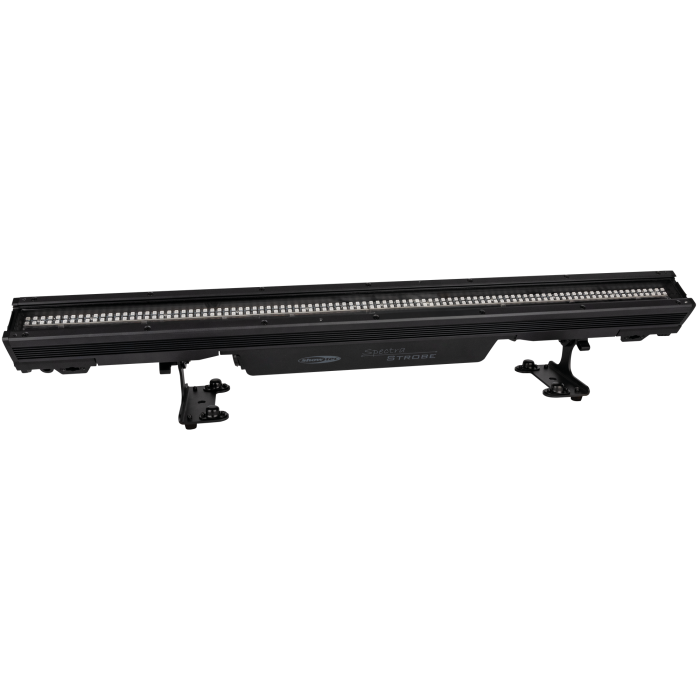

Showtec Spectra Strobe 360x 1W white and 384x 0.5W RGB LED bar - IP65

Optional beam shapers (15°, 25°, 10° x 40°) and barndoors

The Showtec Spectra Strobe is a 1-metre-long, IP65-rated strobe bar for temporary outdoor use.

It has 360 1W white LEDs and 384 0.5W RGB LEDs to create powerful and colourful flash and wash effects.

It allows you to control 12 sections of white LEDs and 24 sections of RGB LEDs via DMX. The LED bar has a wide beam angle.

The optionally available beam shapers enable you to change the beam angle to 15°, 20° or 10° x 40°.
The Spectra Strobe runs stand-alone with multiple built-in presets and effects, in master/slave mode and in 3-, 9-, 21-, 35-, 49- and 91-channel DMX mode with RDM support.

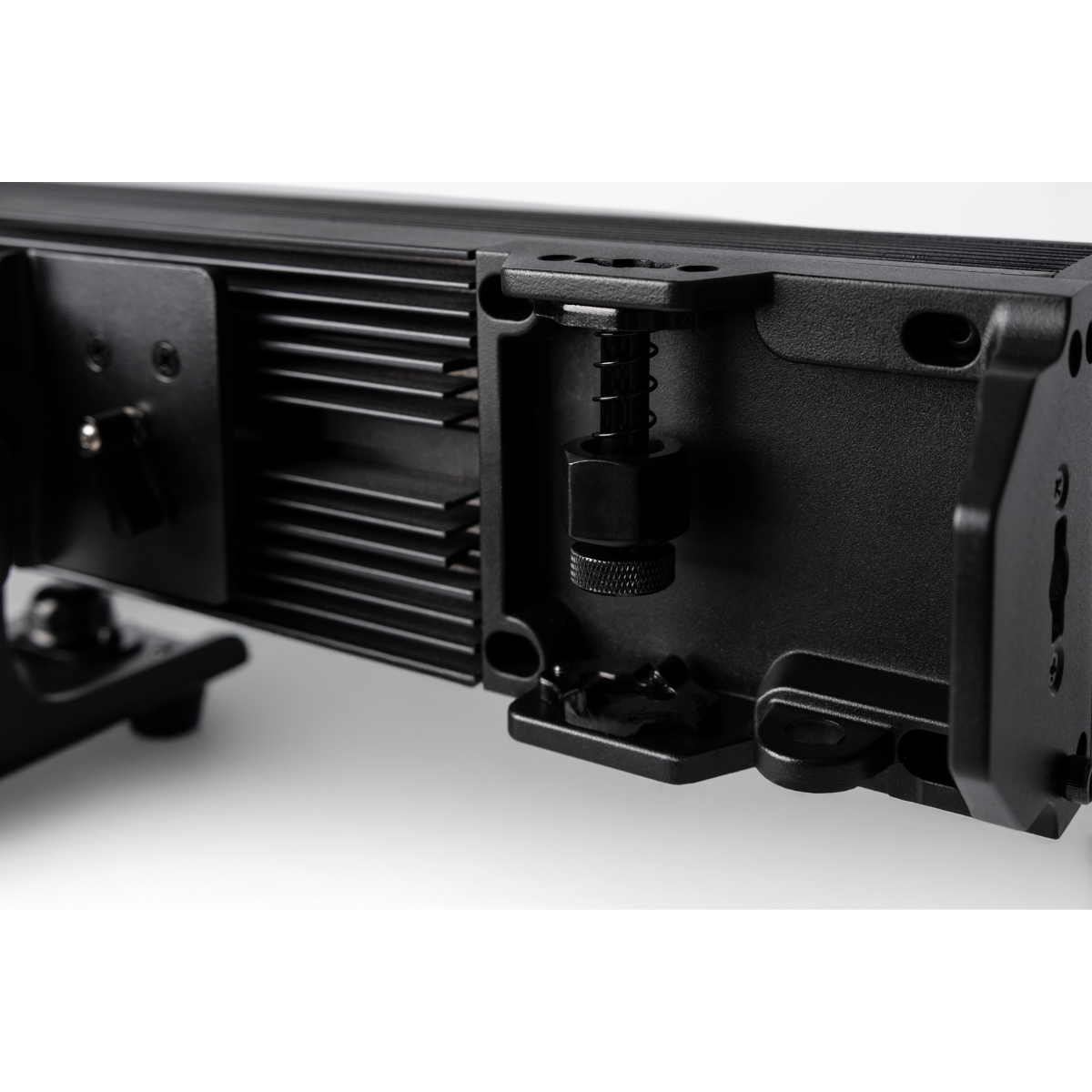

The quick lock system allows you to easily connect multiple units in horizontal or vertical direction, or suspend the LED bar horizontally under a truss.

For vertical mounting the optional Vertical Bracket for Showtec Spectra series is required.

With the optional Base Plate for Showtec Spectra series and one Vertical Bracket you can stack up to two Spectra fixtures vertically on the stage floor.

It is also possible to stack two LED bars or attach them to the Showtec Spectra Wash using the quick lock system.

Two quick lock brackets and a Power Pro True cable are included. Barndoors are available as an option.

Source

Light Source Type LED

Light Source Quantity 384

Light Source Power 0.5 W

LED Colour Type RGB

Refresh Rate 12400 Hz

LED Strobe Quantity 360

LED Strobe Power 1 W

Optical

Beam Angle (Horizontal) °

Beam Angle (Vertical) °

Control and Programming

Control Mode Built-in Program, DMX, Manual, Stand Alone

DMX Channels 3, 9, 21, 35, 49, 91

Protocols DMX, RDM

Display LCD

Dynamic Effects

Dimmer 0-100 %

Strobe 0-20 Hz

Electrical Specifications and Connections

Power Supply 100-240 V AC 50/60 Hz

Power Consumption 362 W

Power Connector In Power Pro True

Power Connector Out Power Pro True

DMX Connector In XLR 5P

DMX Connector Out XLR 5P

Mechanical Specifications

Length (mm) 1025 mm (40.354″)

Width (mm) 140 mm (5.512″)

Height (mm) 192 mm (7.559″)

Weight 9.5 kg (20.944 lb)

IP Rating IP65

Housing Aluminium die-cast

Colour  Black

Product Properties

Cooling Passive

Rigging

Mounting Options Baseplate, Bracket, Quick-Lock

Safety Attachment Yes

Thermal Specifications

Maximum Ambient Temperature 40 °C (104 °F)

Minimum Operating Temperature  -5 °C (23 °F)

Included Items

Included Cables Power Pro True Cable

Included Rigging  Quick-Lock Bracket
