Showtec Phantom 65 Spot

Showtec Phantom 65 Spot

• 7 Bi-Rotating gobo's & 8 colours
• Powercon In- & Output
• Gobo shake, gobo rotate and 3-facet prism
• Quick Lock Brackets

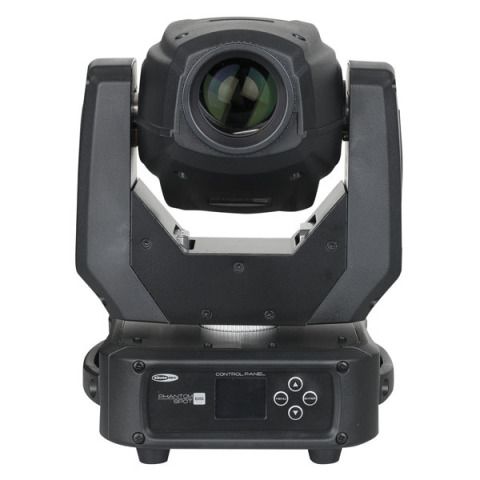

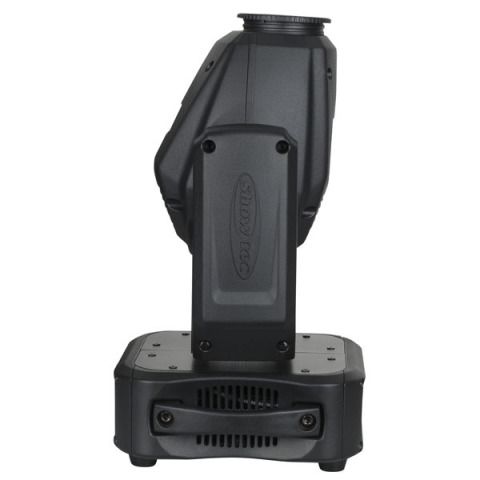

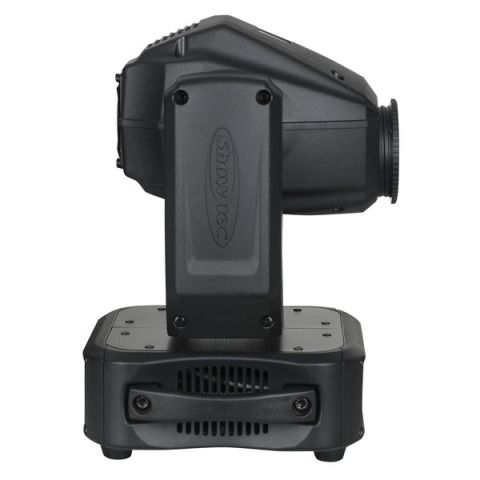

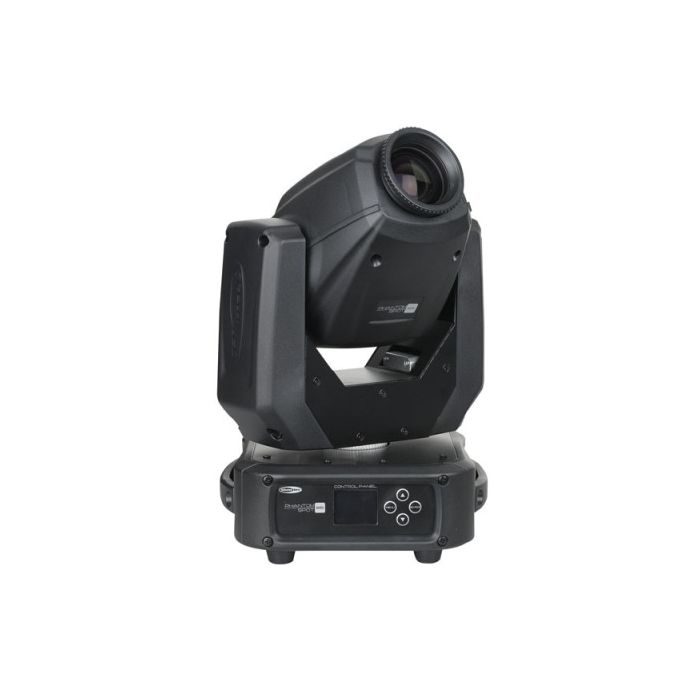

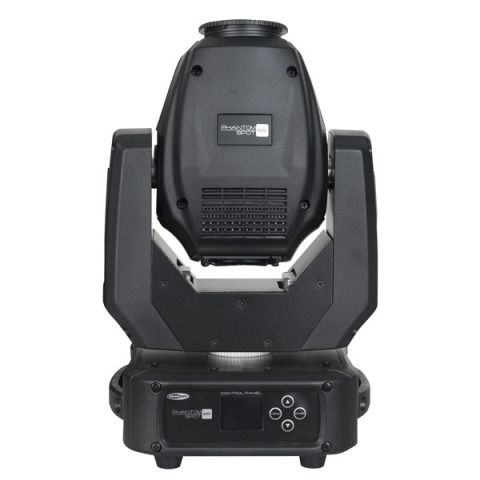

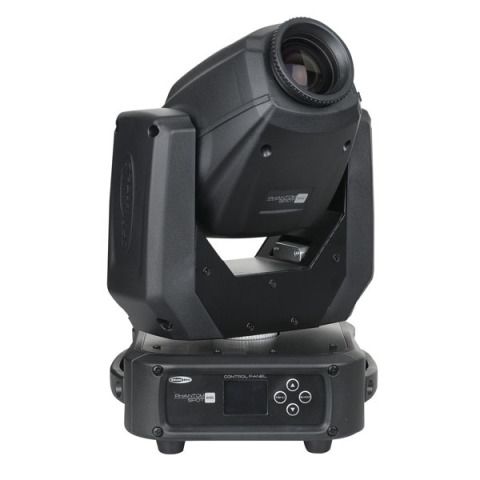

The Phantom 65 Spot is a very compact multifunctional moving light with a 65W white LED light source. It's the ultimate successor of the Spot 50 and comes with a complete package of features. It has 1 colour wheel, 1 rotating gobo wheel, prism and great optics with adjustable manual focus. The small size and light weight make the fixture easy to mount in every position with 1 clamp. With both powercon and dmx in- and output, the Phantom 65 spot is easy to daisychain.
The Phantom series are very reliable and sustainable lighting fixtures with low power consumption and high output. The Phantom Series are going perfectly hand in hand with the lighting demands these days, and give you a total package of modern lighting fixtures such as Spot, wash, beam, matrix FX, and Hybrid. This gives you the opportunity to fill the needs of the most extensive lighting designs.

Specifications

Output
Beam Angle: 16°
Light Source: 1 x 65W White LED
Lux @ 5m: 1870

Electrical
Input voltage: 100~240VAC, 50/60Hz (auto ranging)
Power consumption: 180W max. at full output

Control
On-Board: Full colour display
Control Protocol: DMX512, Auto, Sound, Manual, Master-Slave
Control Personality: Advanced 13ch /Basic 8ch

Optical system
Dimmer: 0-100%
Strobe: 0-20Hz
Focus: Manual focus
Prism: 3-facet prism

Movement
Pan: 540°
Tilt: 270°
Pan/Tilt resolution: 16 bit
Special: Pan / Tilt movement blackout, User-selectable Pan & Tilt ranges, 540°/360°/180°, Reverse Pan / Tilt movement

Gobos & Colours

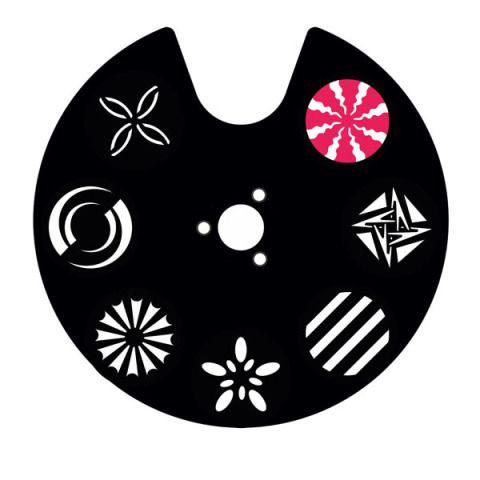

Gobo: 1 glass + 6 metal gobos
Gobo functions: Gobo-flow effect, Gobo shake
Rotation: Bi-directional

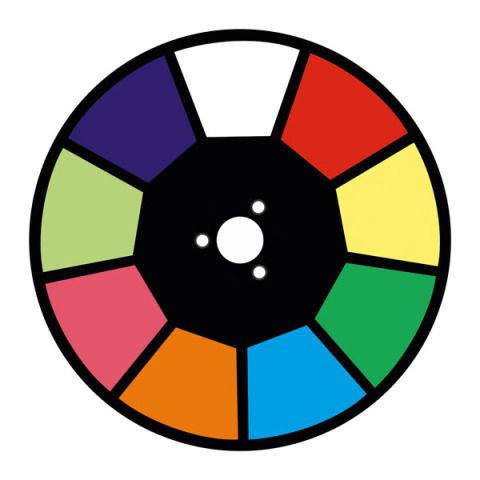

Colours: 8 dichroic-filters + white
Colour functions: Split colours, Rainbow-flow effect

Physical
Colour: Black
Housing: Metal & Flame-retardant plastic

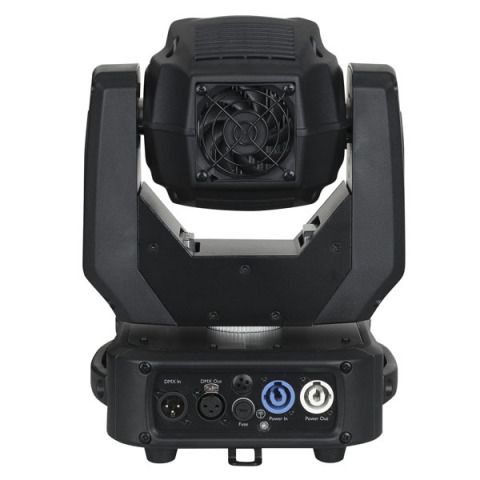

Data Connection: XLR 3&5p in- & output
Power connection: Pro Power in- & output
Dimensions (WxDxH): 238 x 202 x 357 mm
Weight: 6Kg

Certification and Safety
Certification: CE
Max. ambient Temp.: 40°C
