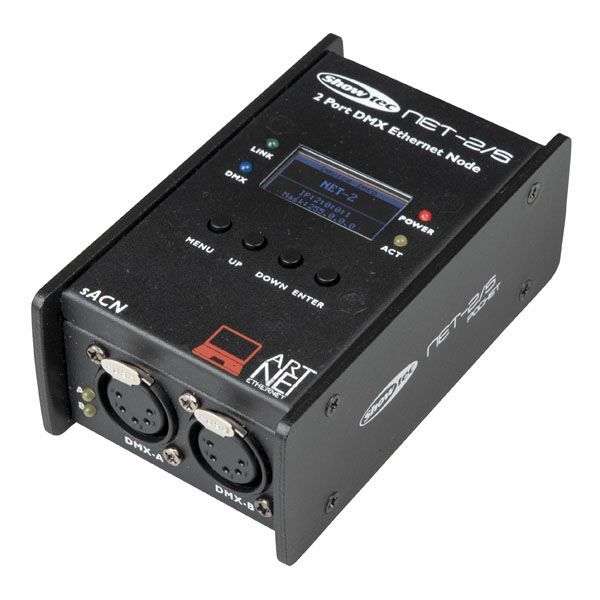

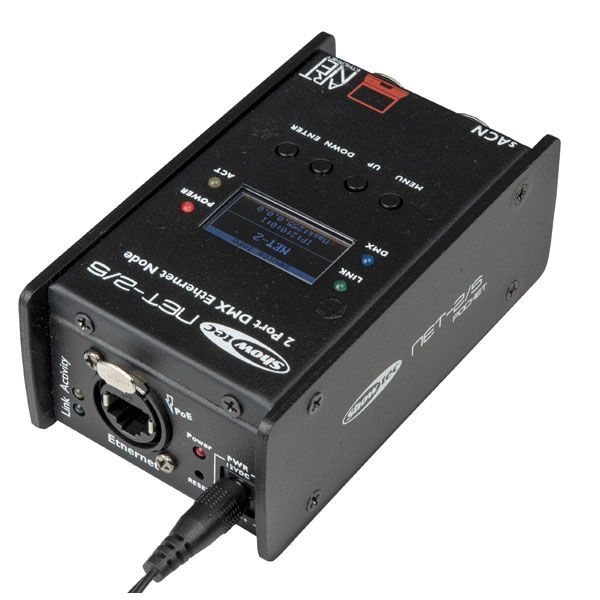

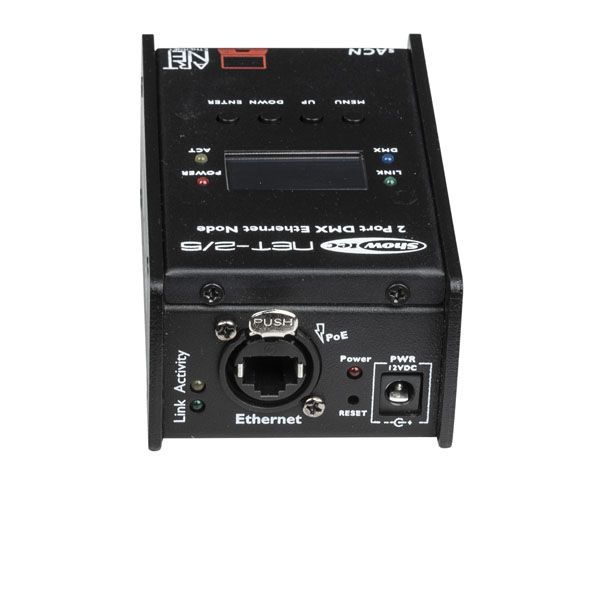

Showtec NET-2/5 Pocket 2 Channel Artnet node, 5p XLR
€ 205,00
€ 169,42
?
SKU
50808
Showtec NET-2/5 Pocket 2 Channel Artnet node, 5p XLR
Showtec NET-2/5 Pocket 2 Channel Artnet node, 5p XLR
The Showtec NET-2/3 Pocket and NET-2/5 Pocket nodes are cutting-edge network routing devices which convert ArtNET or sACN to DMX512 and back. The power input can be provided by POE which makes the 12V power supply superfluous.
A maximum of 1024 channels can be transported over a single CAT5. All settings can be done by the easy-to-use menu on the graphic display and buttons on the front.
Settings can also be arranged via the webbrowser possibility, which gives you (remote) access through your computer or laptop and your network. Default login account: Admin, password: Admin.
A maximum of 1024 channels can be transported over a single CAT5. All settings can be done by the easy-to-use menu on the graphic display and buttons on the front.
Settings can also be arranged via the webbrowser possibility, which gives you (remote) access through your computer or laptop and your network. Default login account: Admin, password: Admin.
- Supports ArtNET and sACN protocol
- 1Gbps data speed
- 2 universes DMX input or output
- Web Setup Interface
-
Specifications
Configuration examples:
- ArtNet to 2x DMX output
- 2x DMX input to ArtNet
- Clone 1 DMX inputs to 1x DMX output and Artnet
- HTP/LTP Merge 2x ArtNet to DMX output
- HTP/LTP Merge DMX input and ArtNet to DMX output
Connections:
Network: RJ45
DMX: 2x 5-pin XLR
Supported protocols: ArtNET, sACN, TCP/IPv4, DMX-512A
Dimensions: 67 x 115 x 44 mm
Power supply: 12VDC, 500mA
Power consumption: 6W max.
Operating temp: 0 to +40 °C
Weight: 335grEAN:8717748463906
