Showtec Goliath Retro light effect with tungsten simulation and dual RGB LED ring
€ 965,00
€ 797,52
?
SKU
43325
Showtec Goliath Retro light effect with tungsten simulation and dual RGB LED ring
Showtec Goliath Retro light effect with tungsten simulation and dual RGB LED ring
320 W LED with retro tungsten dimming effect
264 Individually controllable RGB LEDs
Supports DMX, Art-Net, sACN, RDM, master/slave, and manual modes
Double bracket for hanging or standing installations
Channel range from 4 to 793 for versatile configurations

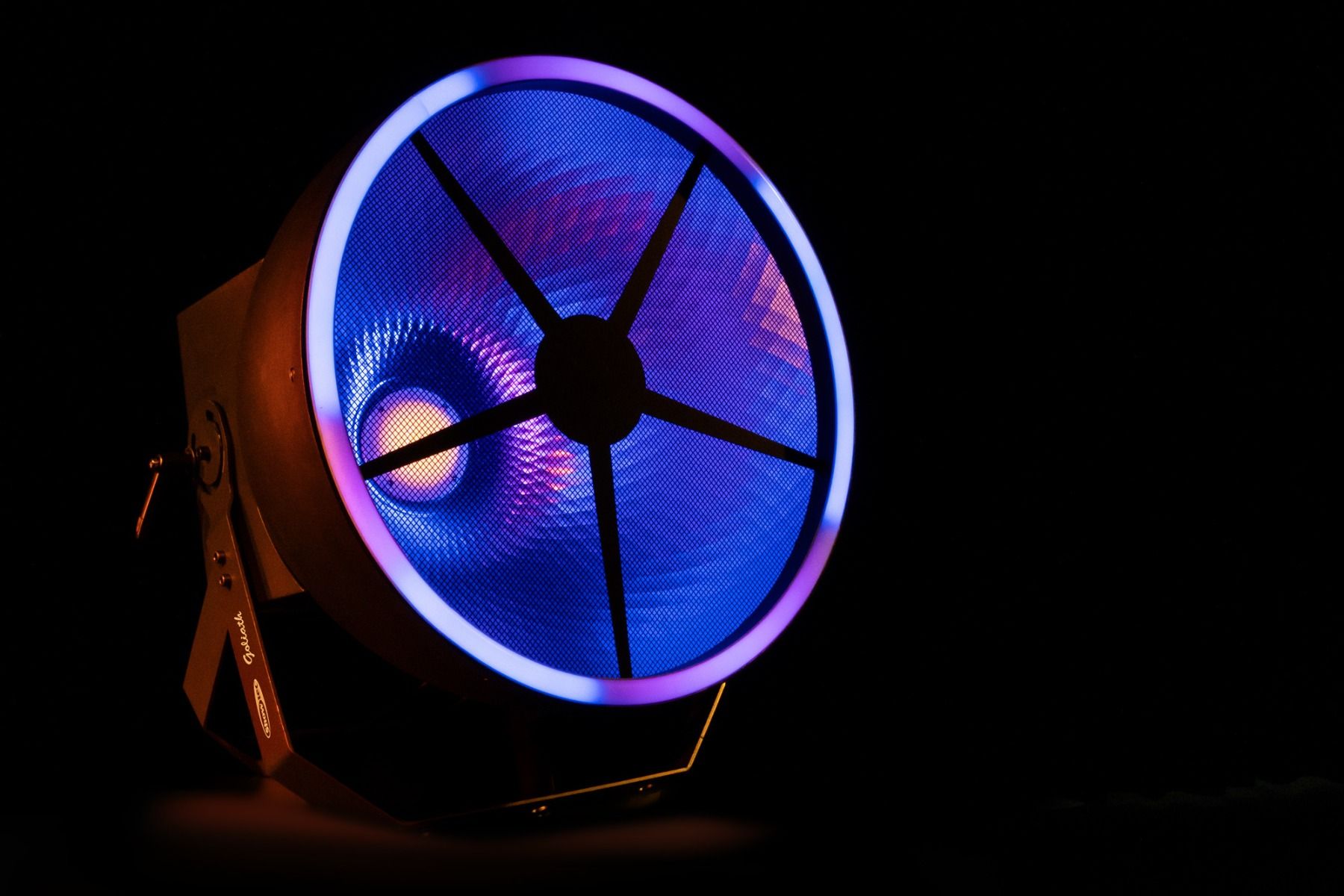

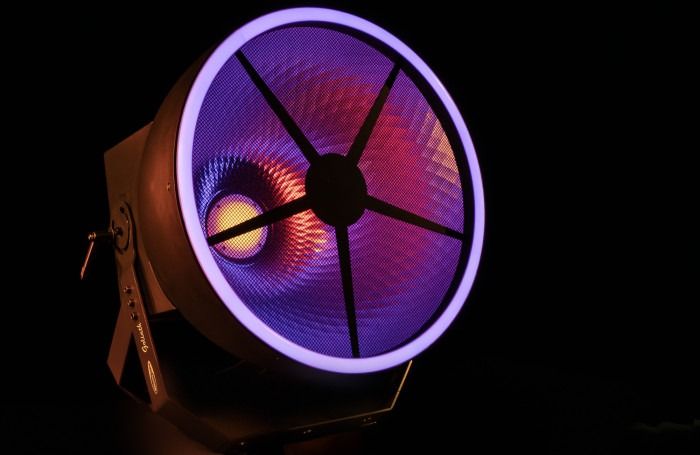

The Showtec Goliath is a retro light effect that combines a powerful 300 W warm white LED with built-in 20 W amber LED, along with a dual RGB LED ring and central RGB LEDs.

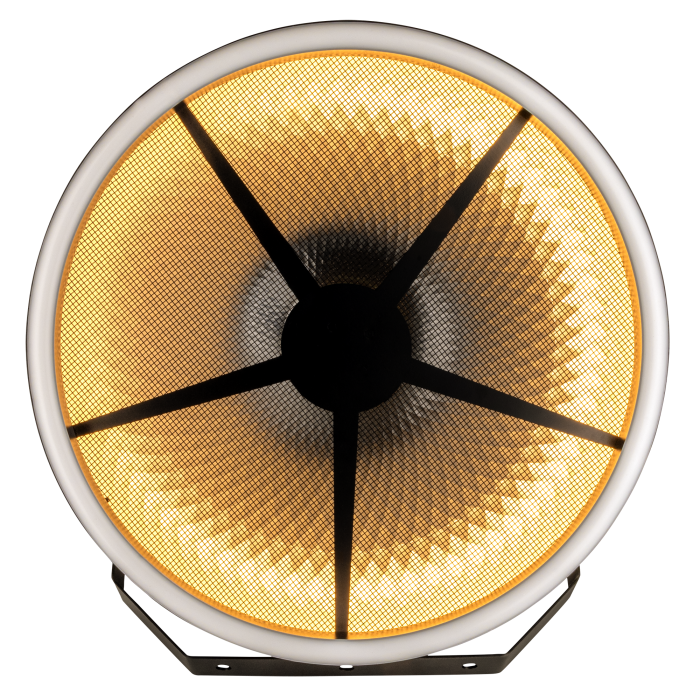

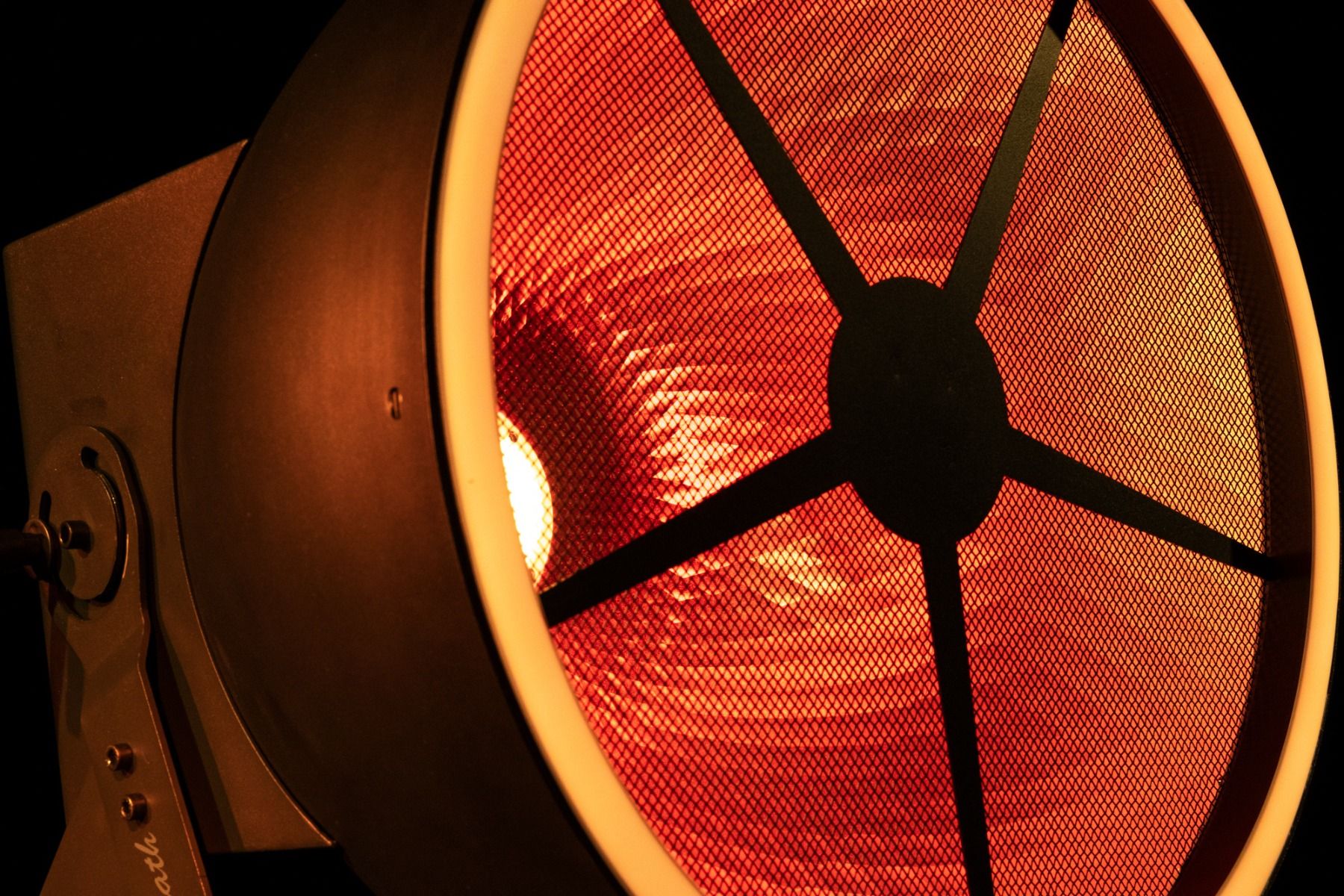

The 20 W amber and 300 W warm white LED replicate the classic tungsten dimming effect, delivering a nostalgic retro feel.
Depending on the selected mode, the warm white and amber LEDs can be controlled separately or as a single ‘tungsten channel’.

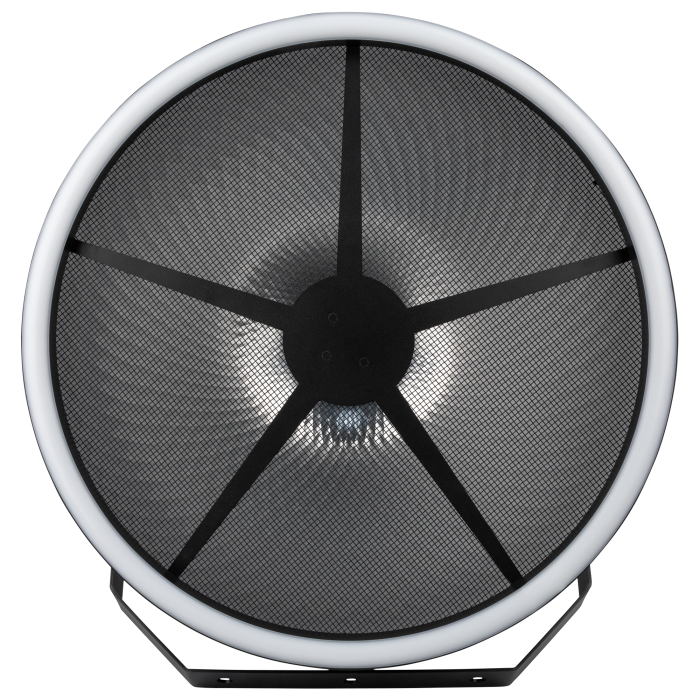

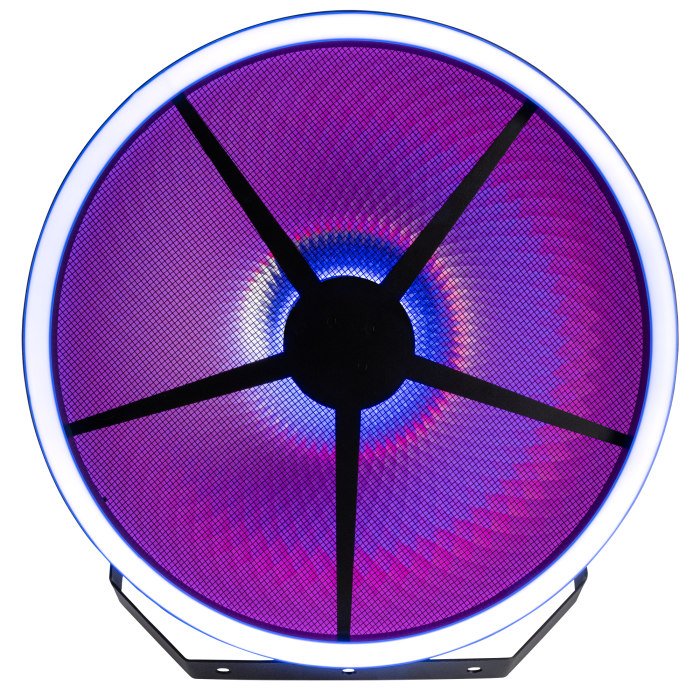

Behind the central circular plate there are 24 RGB LEDs that illuminate the centre of the reflector.
Behind the central circular plate there are 24 RGB LEDs that illuminate the centre of the reflector.

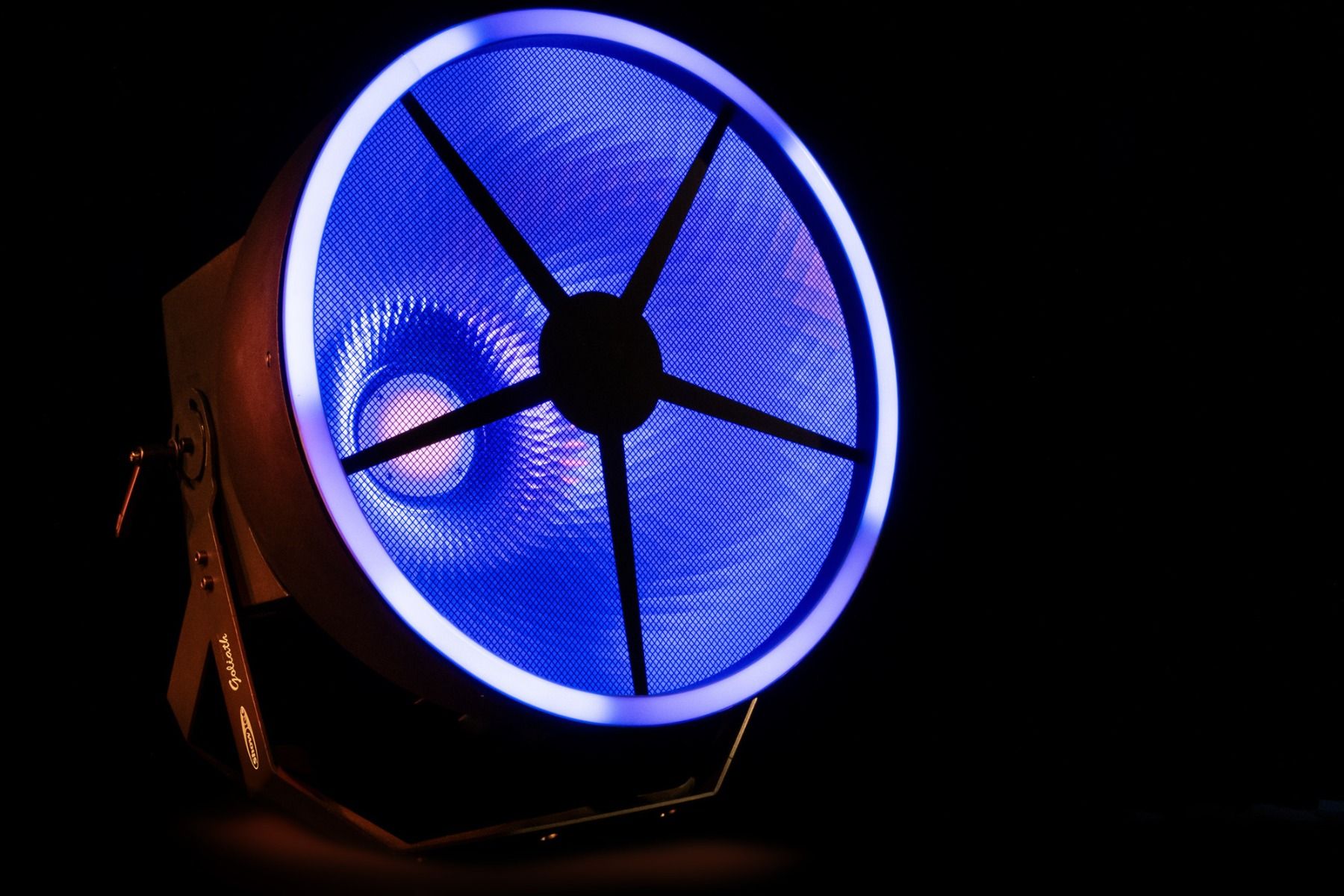

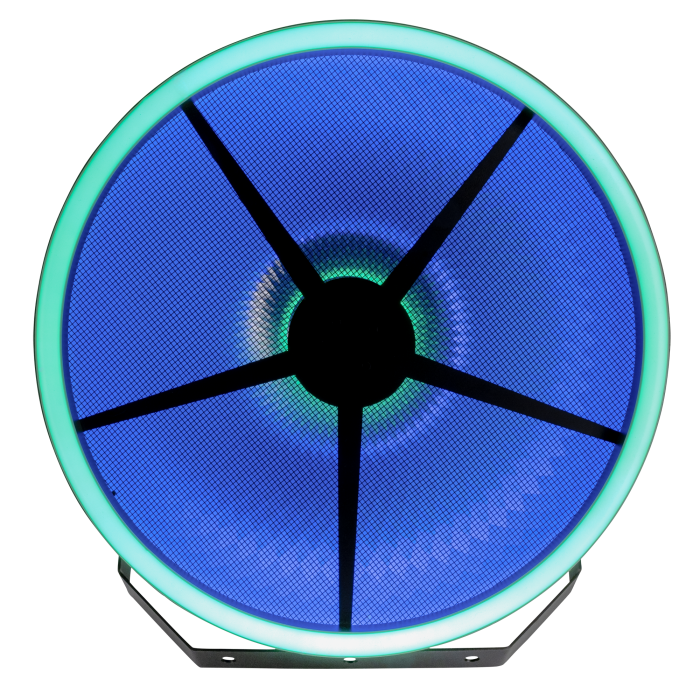

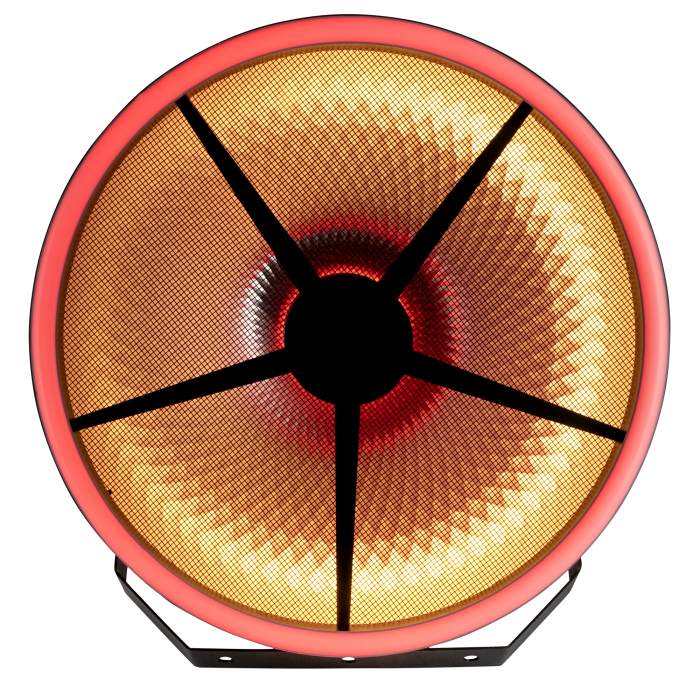

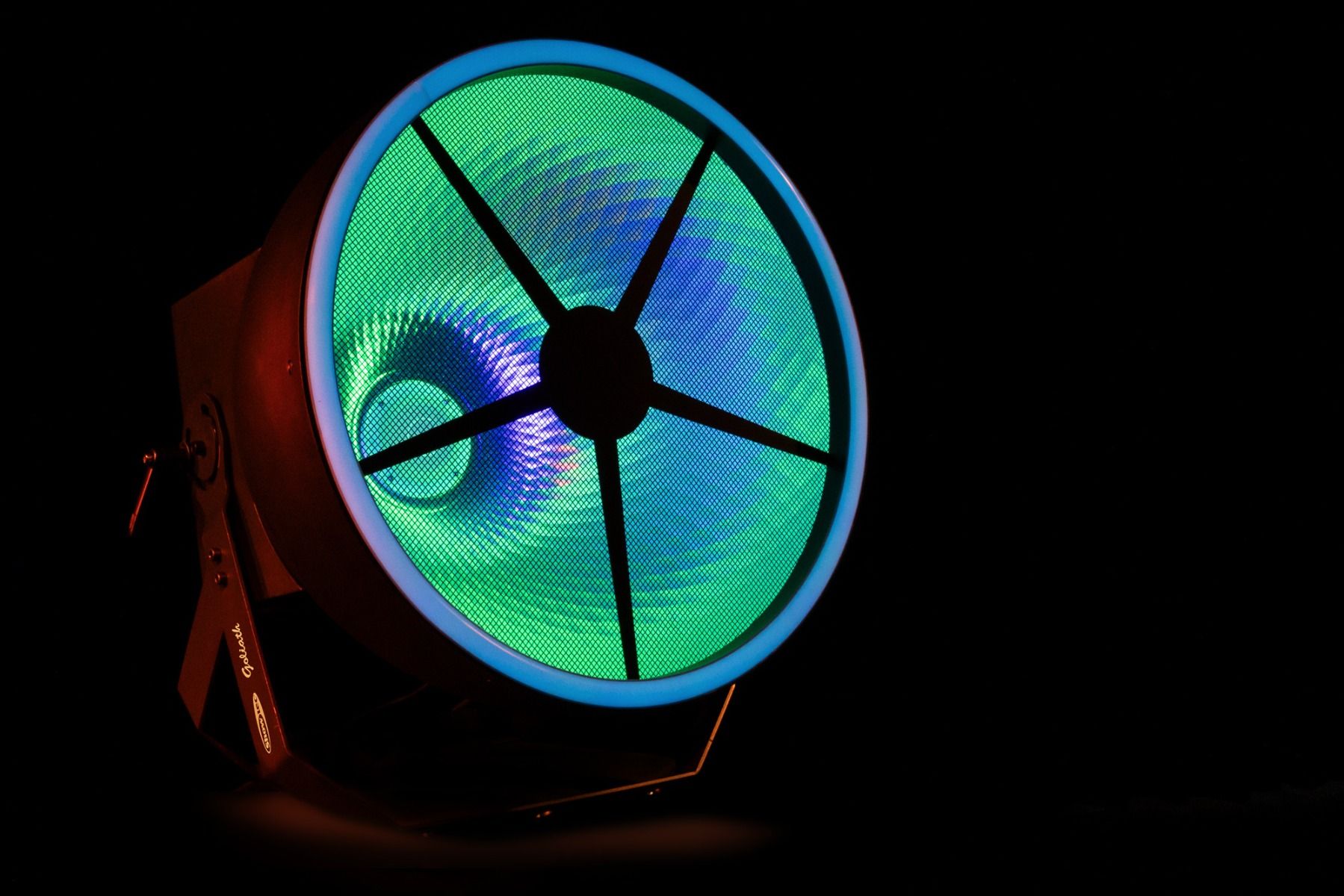

Surrounding this, a large circle of 120 RGB LEDs lights up the reflector’s edges.

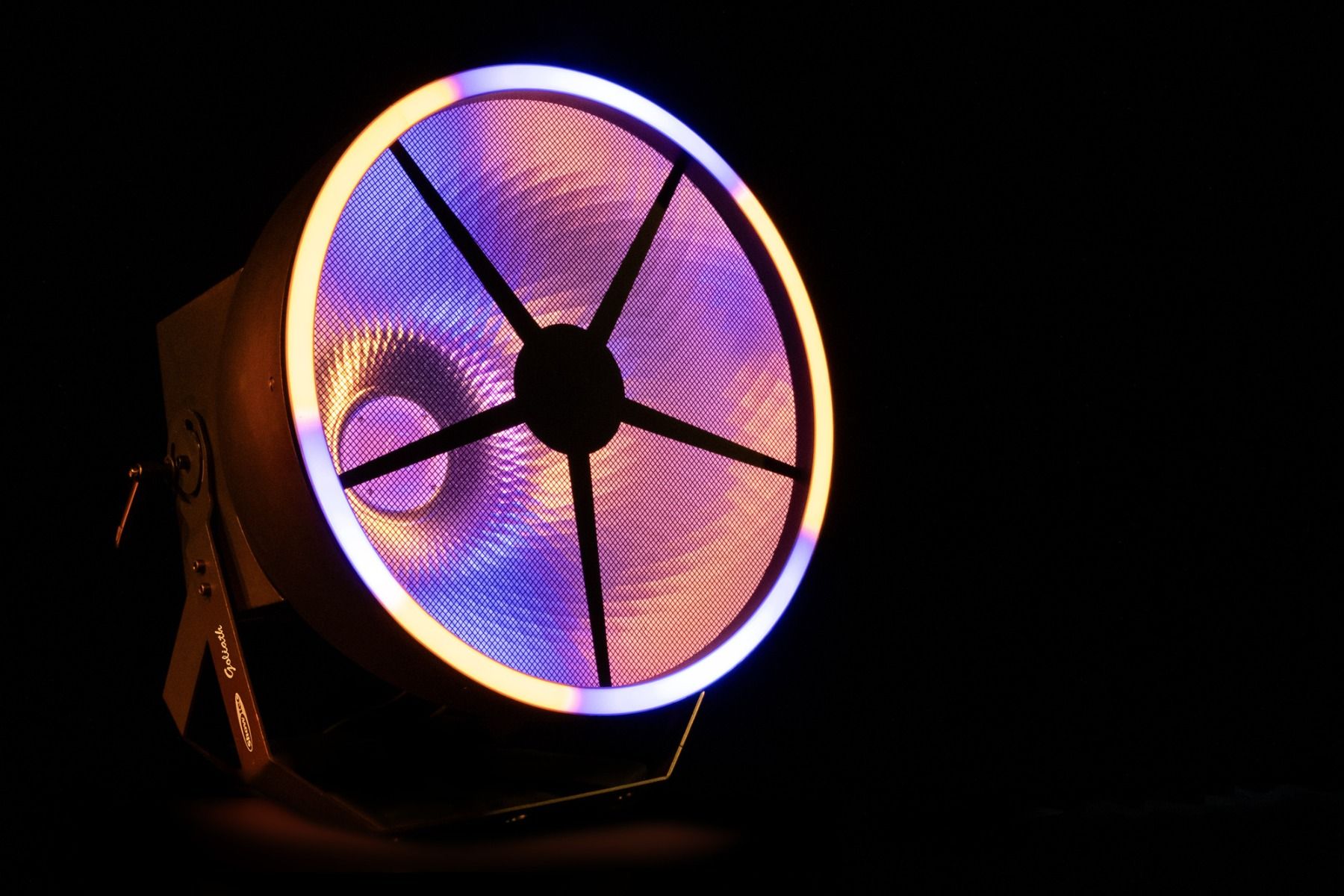

A second ring of 120 RGB LEDs at the outer edge faces forward.
Each RGB LEDs can be controlled individually, offering nearly infinite effect possibilities.
The Goliath supports multiple control modes, including DMX, Art-Net, sACN, RDM, master/slave and manual modes, with several personalities ranging from 4 to 793 channels.
The Goliath supports multiple control modes, including DMX, Art-Net, sACN, RDM, master/slave and manual modes, with several personalities ranging from 4 to 793 channels.

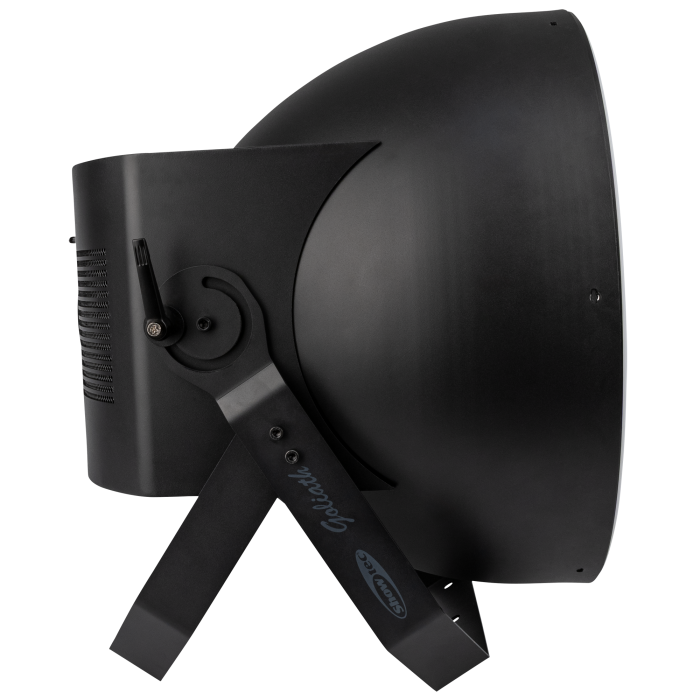

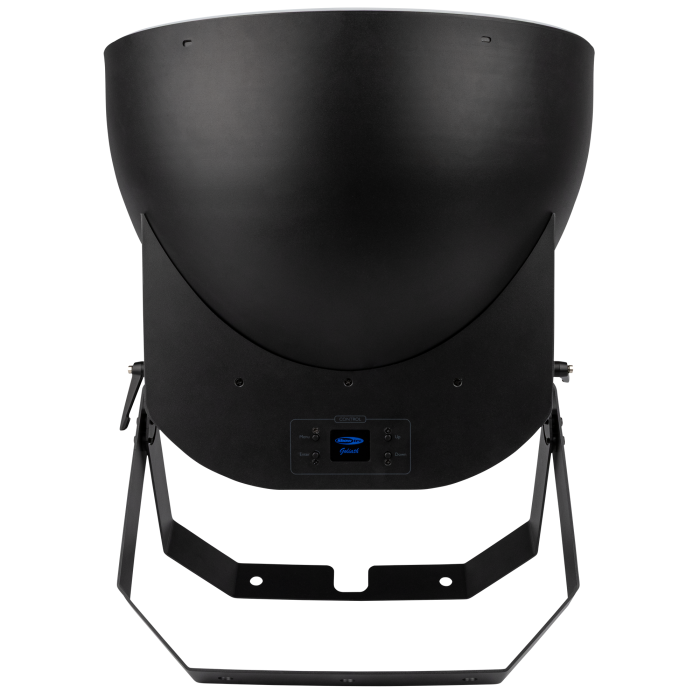

It features a double bracket for both hanging and standing installations.

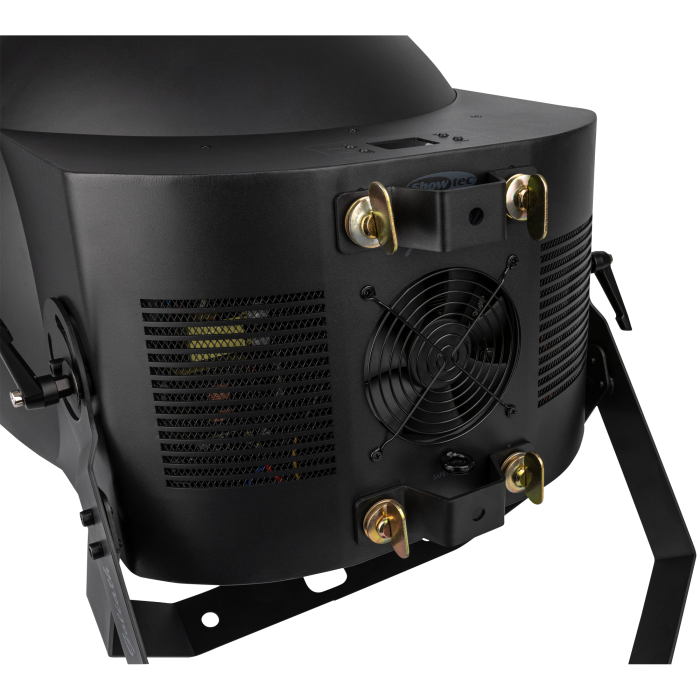

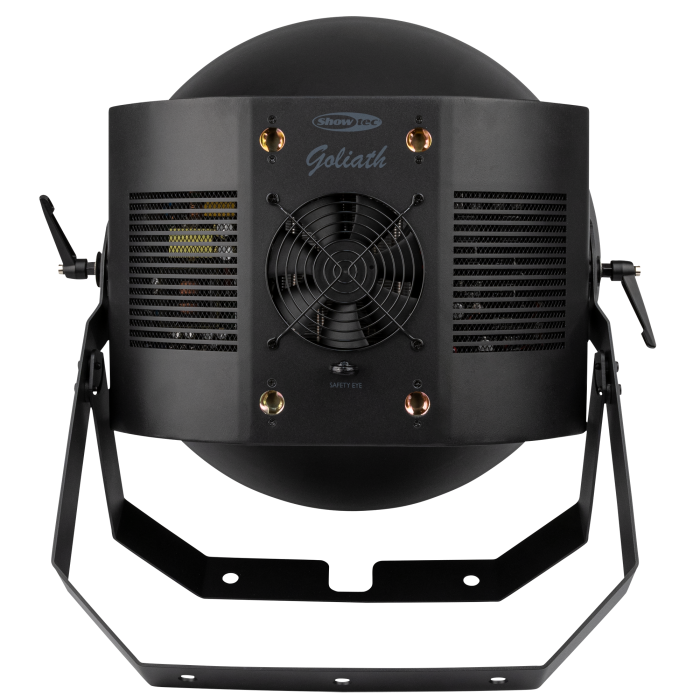

Additionally, quick-lock mounting points on the back allow for easy attachment to a truss using the included brackets.
A Schuko to Power Pro True cable is included.
Source
Light Source Type LED
Light Source 1- Quantity 1
Light Source 1- Power 320 W
Light Source 2- Quantity 264
Light Source 2- Power 0.5 W
LED Colour Type WW, RGB
Refresh Rate (Max.) 6 kHz
Control and Programming
Control Mode Art-Net, Built-in Program, DMX, RDM, sACN, Stand Alone
DMX Channels 4, 5, 14, 21, 433, 793
Protocols Art-Net, DMX, RDM, sACN
Display OLED
Dynamic Effects
Dimmer 0-100 %
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 321 W

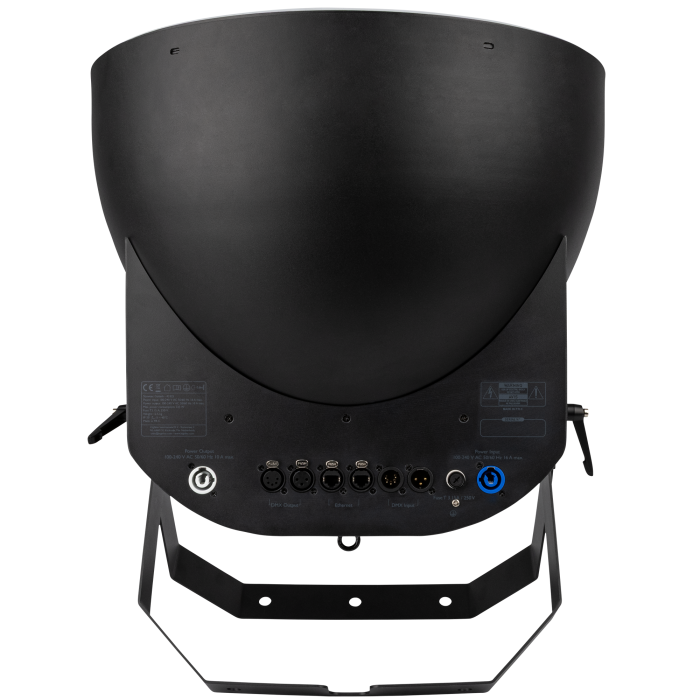

Power Connector In Power Pro Blue
Power Connector Out Power Pro Grey
DMX Connector In RJ45, XLR 3P, XLR 5P
DMX Connector Out RJ45, XLR 3P, XLR 5P
Mechanical Specifications
Height (Including Handles) 583 mm (22.953″)
Height (Without Handles) 490 mm (19.291″)
Width (Including Handles) 503 mm (19.803″)
Width (Without Handles) 490 mm (19.291″)
Depth (Including Handles) 433 mm (17.047″)
Weight 12.5 kg (27.558 lb)
IP Rating IP20 (indoor use only)
Housing Metal
Colour Black
Product Properties
Cooling Active
Rigging
Mounting Options Bracket, Quick-Lock
Thermal Specifications
Maximum Ambient Temperature 40 °C (104 °F)
Minimum Operating Temperature -5 °C (23 °F)

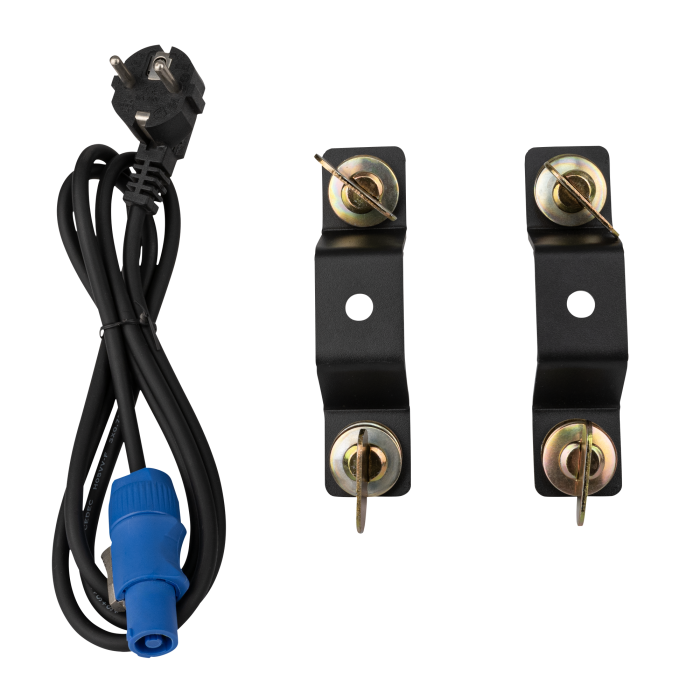

Included Items
Included Cables Power Pro Cable
Included Rigging 2x Quick-Lock Bracket
