Showtec Airdrive 2.4 Stick Wireless DMX receiver - 3P XLR Showtec

3P XLR

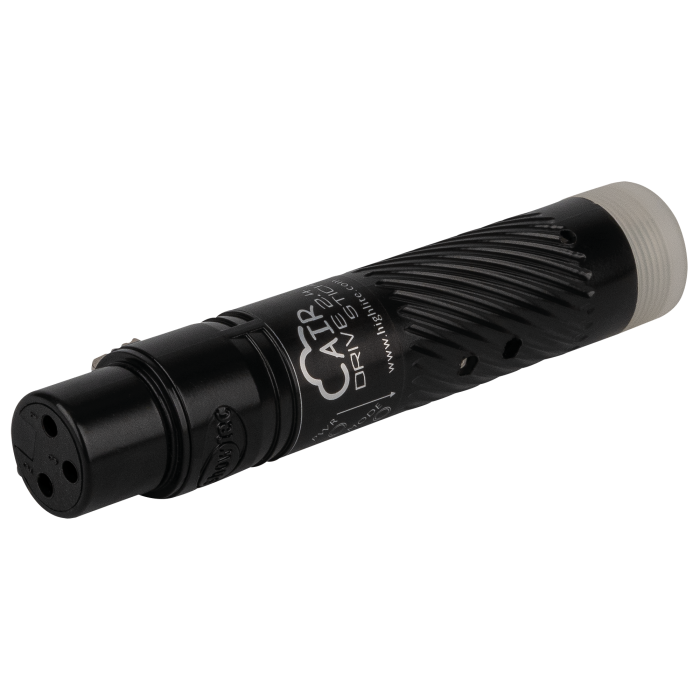

The Showtec Airdrive 2.4 Stick is a wireless DMX512 receiver with integrated battery. It is compatible with the Wireless DMX and LumenRadio protocols and supports up to 79 channels for interference-free operation in the 2.4-GHz ISM band.

A button provides easy control and setting adjustments and status and battery level indicator LEDs provide the necessary information in colour and flash codes.

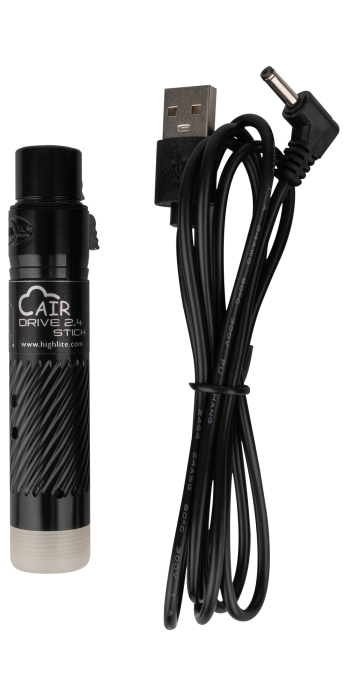

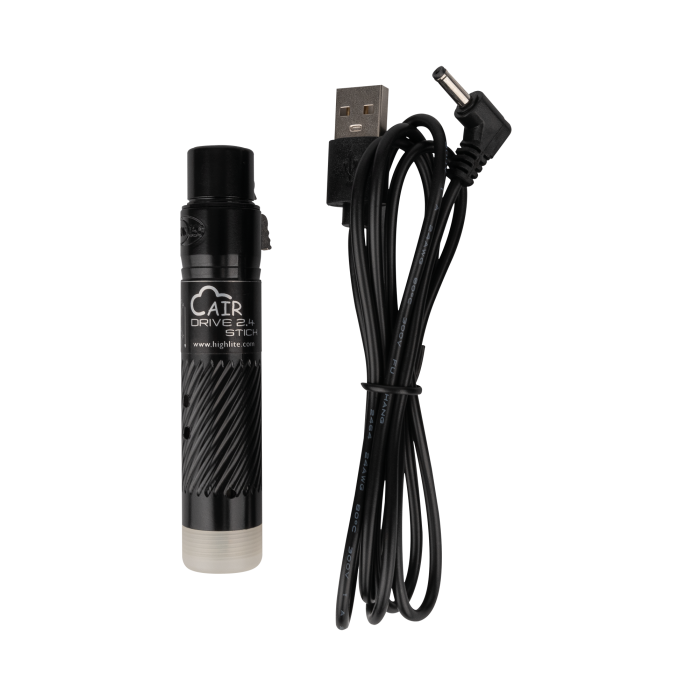

The battery can be charged via a USB standard charger and provides up to 20 hours of operation. A charger is not included.

Wireless Specifications

Wireless Mode G3, G4, CRMX, CRMX²

Reaction Time 5 ms

Antenna Boost 3 dBi

Antenna Type Omni

Antenna Radiation 360 x 180 °

Battery

Battery Type Lithium-ion polymer

Battery Voltage 3.7 V

Capacity 0.45 Ah

Battery Power

1.66 Wh

Control and Programming

DMX Channels

512

Protocols DMX

Operational Modes Receiver

Electrical Specifications and Connections

Power Supply 5 V DC

Power Consumption 1 W

Power Connector In Low Voltage DC plug

DMX Connector Out XLR 3P

Power Adapter

Adapter type AC-DC adapter (not included)

Mechanical Specifications

Length (mm) 98 mm (3.858″)

Width (mm) 19 mm (0.748″)

Height (mm) 22 mm (0.866″)

Weight 0.07 kg (0.154 lb)

IP Rating IP20 (indoor use only)

Housing Metal

Colour Black

Thermal Specifications

Maximum Ambient Temperature 40 °C (104 °F)

Minimum Ambient Temperature -10 °C (14 °F)
