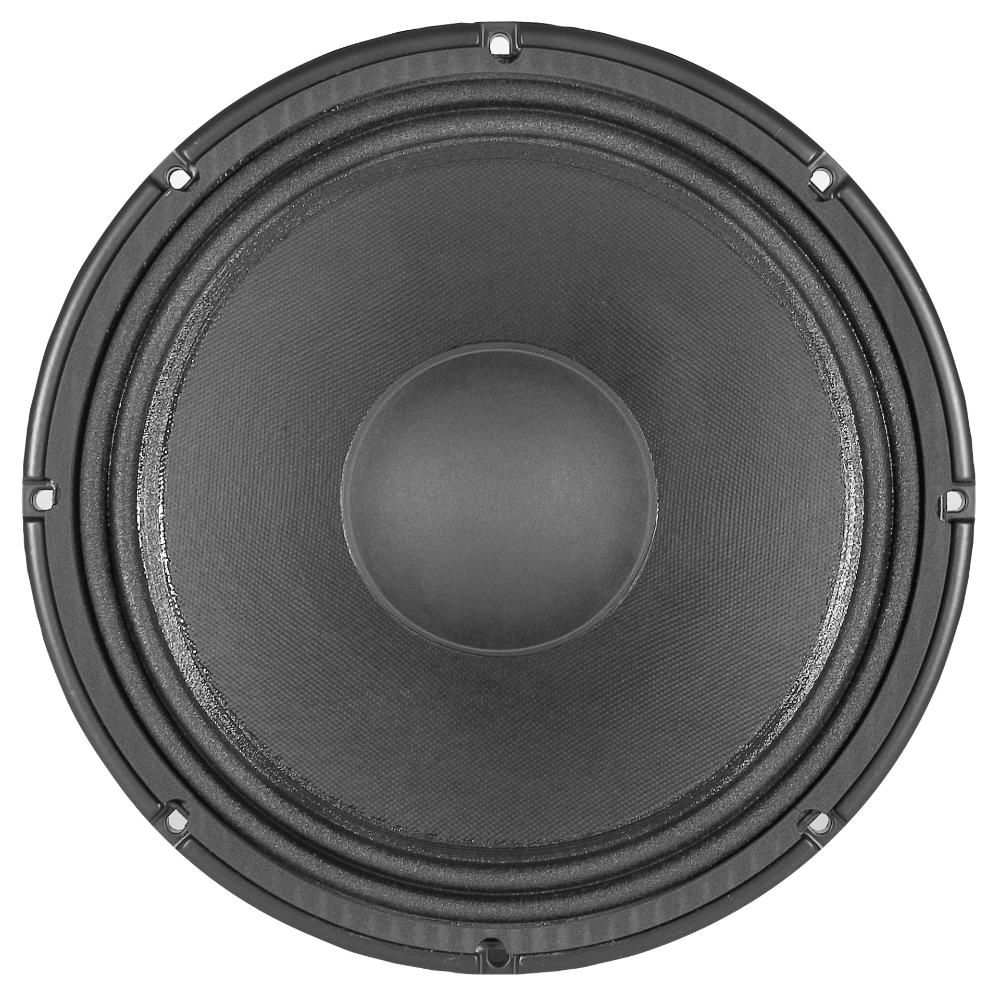

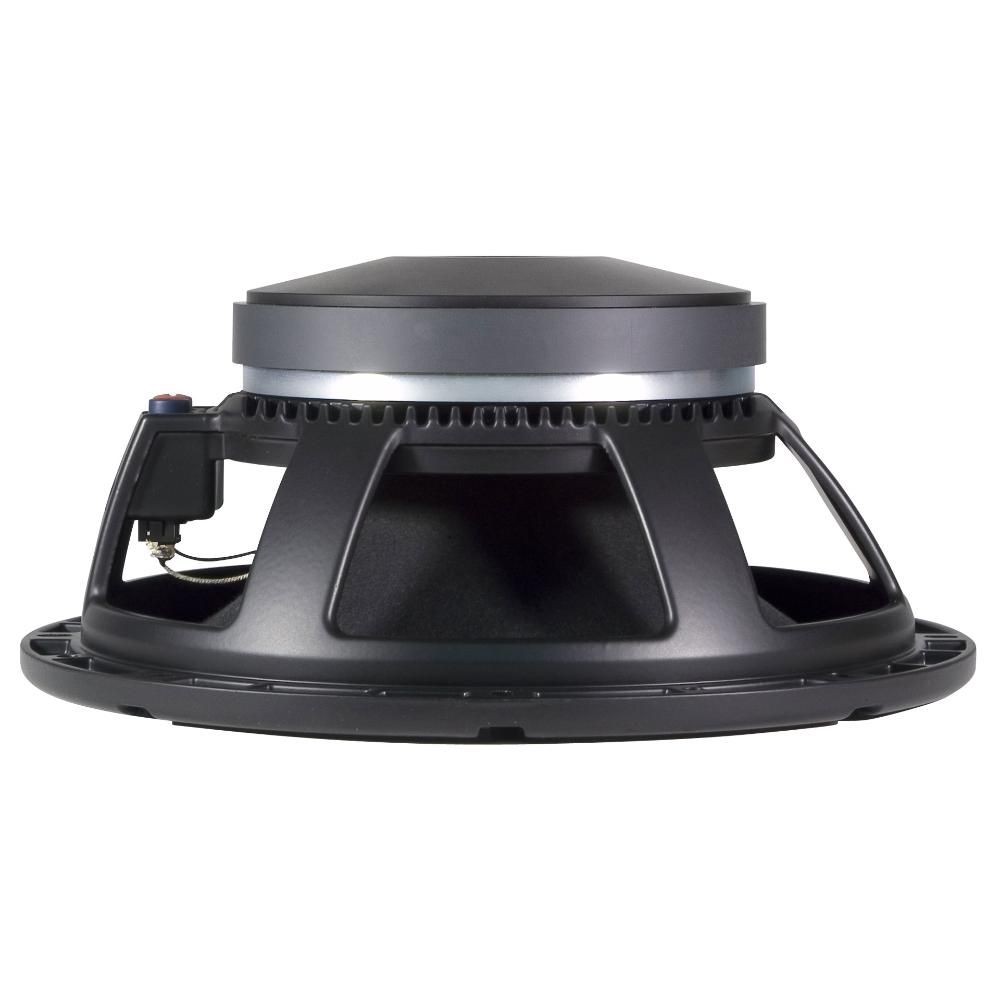

RCF LF12G301, 8 ohm, 12.6 inch speaker
€ 172,00 € 142,15
?
SKU
LF12G301-8
RCF LF12G301, 8 ohm, 12.6 inch speaker
RCF LF12G301, 8 ohm, 12.6 inch speaker
General | |
| Product type | Cone driver |
| Brand | RCF |
| Offer Reference | LF12G301 |
| Product code | 11100016 |
Informations | |
| Nominal impedance | 8 ohm |
| Dimensional category | 12.5 inch |
| Frequency coverage type | Sub, Low, Midbass |
| Manufacturer sensitivity | 97 dB |
| Calculated sensitivity | 97.1 dB |
| Nominal power handling | 450 W |
| Bandwidth | 40÷2000 Hz |
Fundamental parameters | |
| Sd | 500 cm² |
| Mms | 56 gr |
| Le | 1.2 mH |
| Re | 5.8 ohm |
| BL | 19 T.m |
Small signal parameters | |
| Fs | 43 Hz |
| Qes | 0.23 |
| Qms | 4.6 |
| Qts | 0.22 |
| Vas | 97 L |
Datas | |
| Xmax | ±7 mm |
| Calculated Xmax | ±7.84 mm |
| EBP | 187 Hz |
| Zmin | 7 ohm |
| Fs / Qts | 195 Hz |
| Vas * Qts² | 4.7 L |
| Efficiency | 3.23 % |
| Calculated efficiency | 3.22 % |
Dimensions | |
| Voice coil diameter | 3 inch |
| Winding depth | 19 mm |
| Gap height | 10 mm |
| Outside diameter | 320 mm |
| Baffle cutout diameter | 280 mm |
| Front thickness | 13 mm |
| Depth after front | 127 mm |
| Diamètre aimant (mm) | 180 mm |
Shape & Materials | |
| Front chape | Cylindrical |
| Magnet type | Ferrite |
| Basket masterial | Aluminium |
| Winding material | Copper |
| Voice coil former | Glass fiber |
| Surround material | Cloth |
