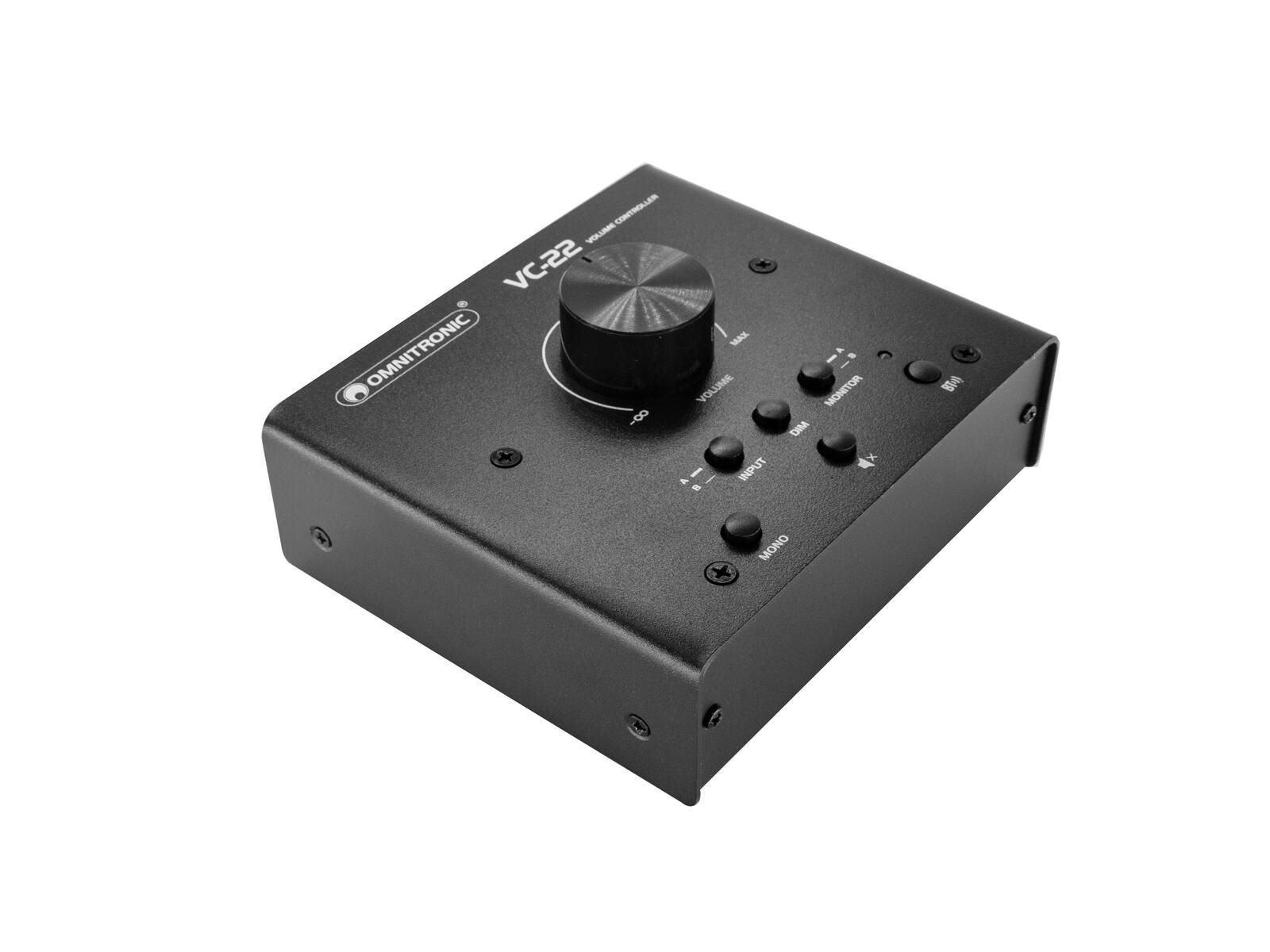

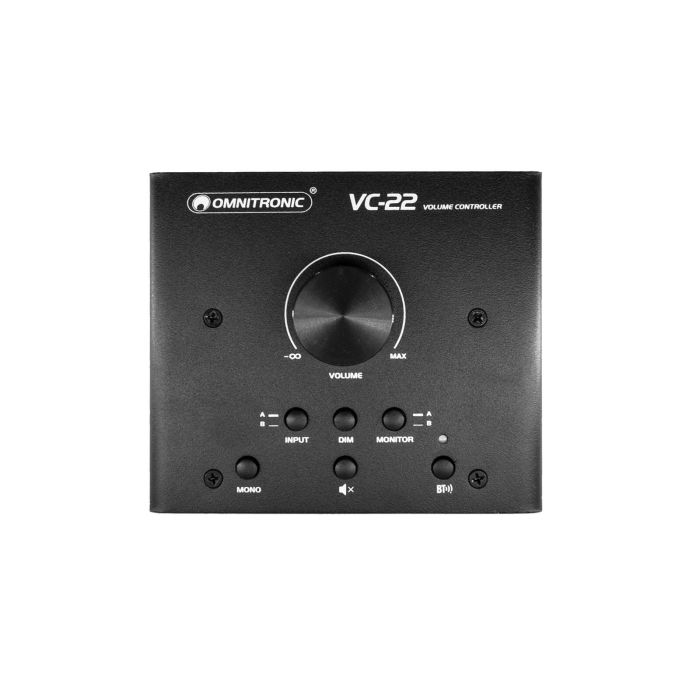

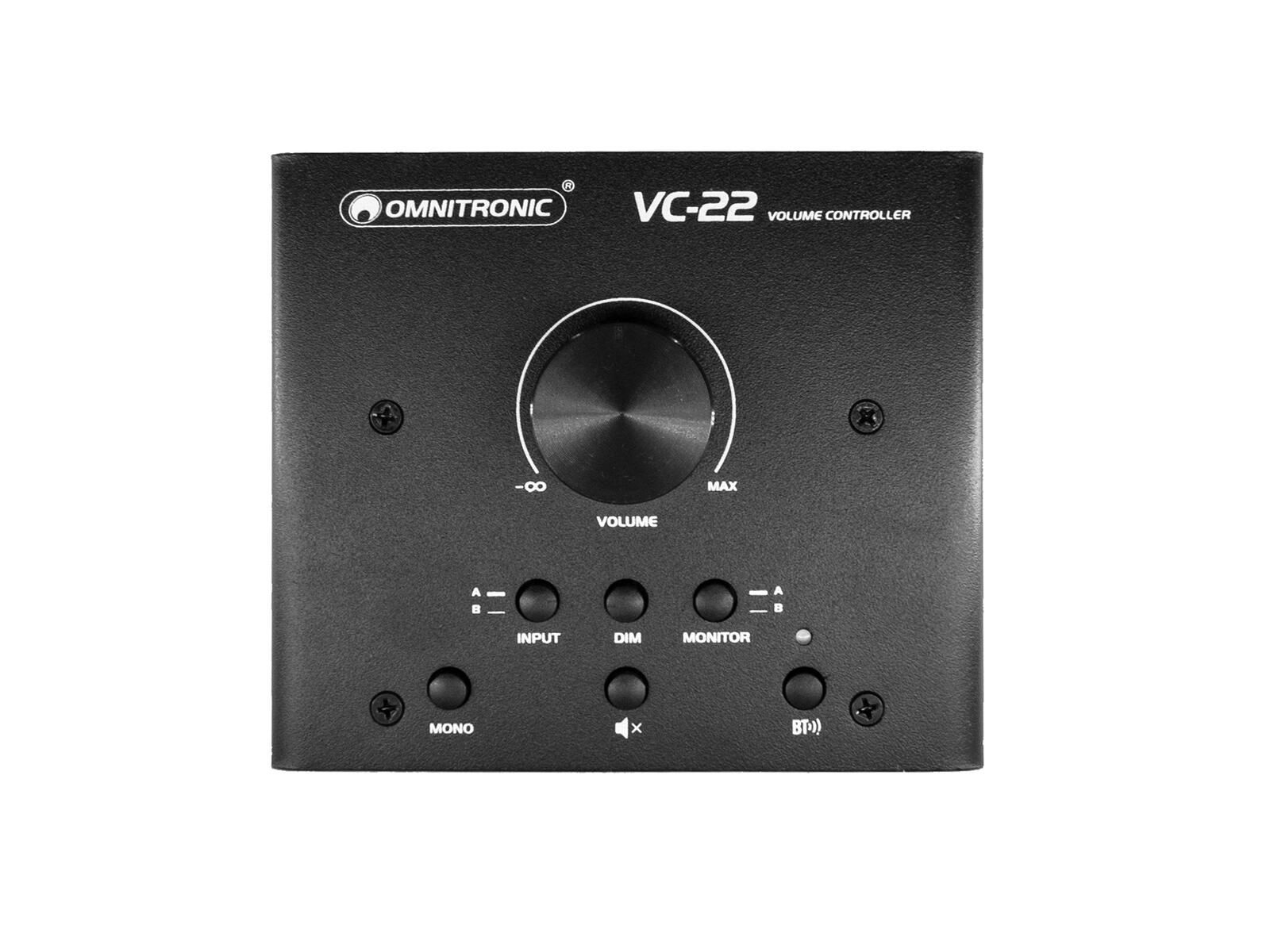

OMNITRONIC VC-22 Volume Controller, active
€ 48,99
€ 40,49
?
SKU
st10355797
OMNITRONIC VC-22 Volume Controller, active Monitor controller with source and monitor selection & Bluetooth connectivity
OMNITRONIC VC-22 Volume Controller, active
Features
Monitor controller with source and monitor selection & Bluetooth connectivity
- 2 signal sources and 2 monitor pairs selectable
- Suitable e.g. between PC sound card and active speakers or amplifiers
- Large rotary level control
- Control via Bluetooth
- Bluetooth: operating range up to 10m in buildings
- Desktop console housing
Package contents
- 1 x device, 1 x USB cable, 1 x user manual, 1 x declaration of conformity
Technical specifications
| Power supply: | 5V DC |
| Power consumption: | 1 W |
| IP classification: | IP20 |
| Protection class: | Protection class III |
| Power connection: | Mains input via USB C (W) mounting version power supply cord for USB A mains connection (provided) |
| Frequency range: | 20 - 20000 Hz |
| Control: | Bluetooth |
| Bluetooth device name: | VC-22 |
| Range: | Bluetooth: range up to 10m in buildings |
| Housing color: | Black matte |
| Control elements: | Connect |
| Status LED: | Pairing |

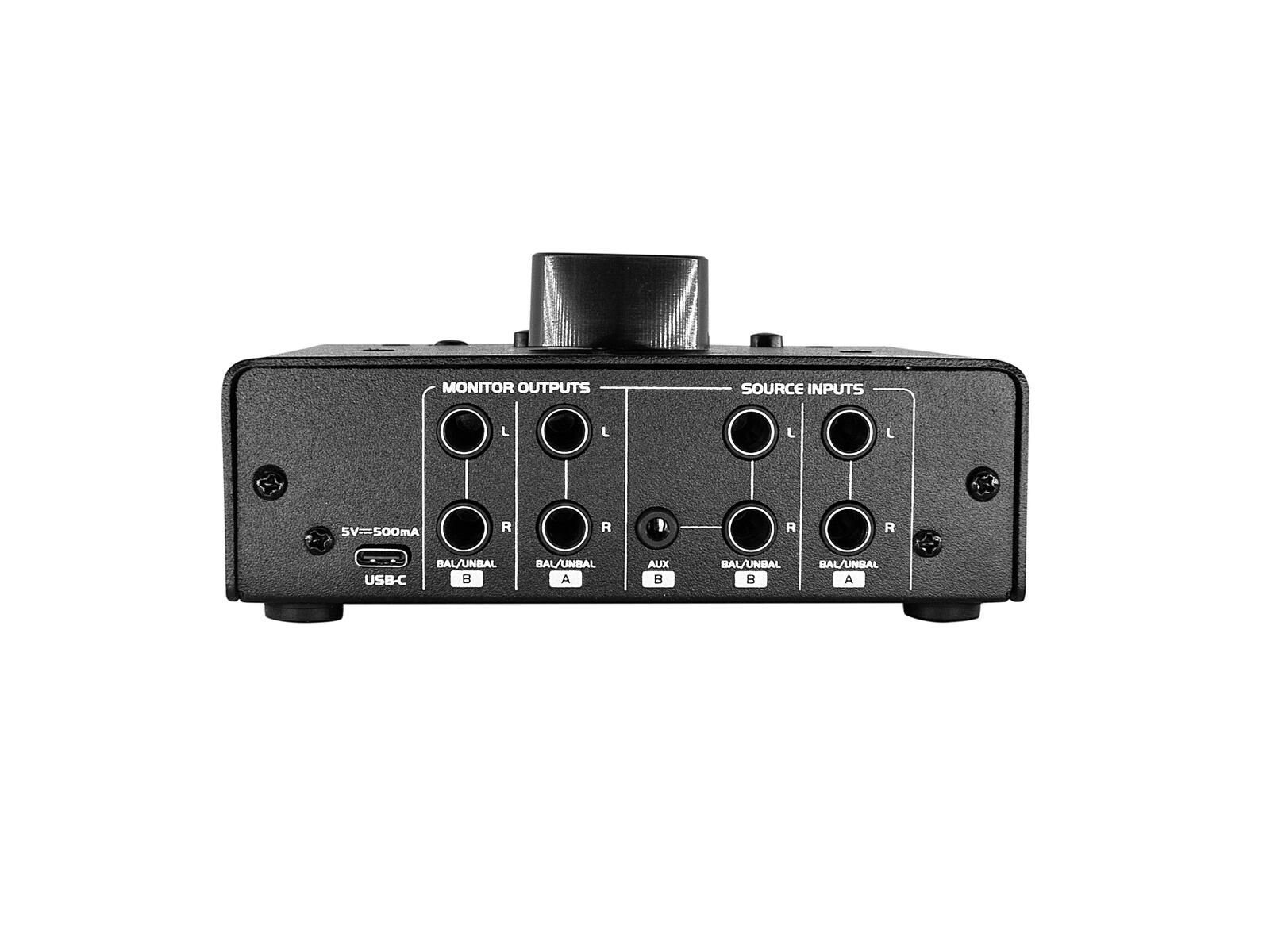

| Connections: | Input: line via 4 x 6.3 mm jack socket (mono) mounting version Input: line via 1 x 3.5 mm jack (stereo) mounting version Output: line via 4 x 6.3 mm jack socket (mono) mounting version |
| Channels: | Input chanel: 1 x mono + stereo with line-line switch via jack plug or Bluetooth Master output: 1 x mono + stereo via jack, channel control via rotary dial, mute control, stereo/mono switch, level attenuator, speaker selector |
| USB port: | Type C |
| Housing design: | Desktop console housing |
| Dimensions: | Width: 13,8 cm Depth: 12 cm Height: 6,4 cm |
| Weight: | 0,570 kg |
| USB cable | |
| Cable length: | 1,5 m |
| Weight: | 0,020 kg |
