OMNITRONIC VC-11 Volume Controller, passief
€ 27,94
€ 23,09
?
SKU
st10355796

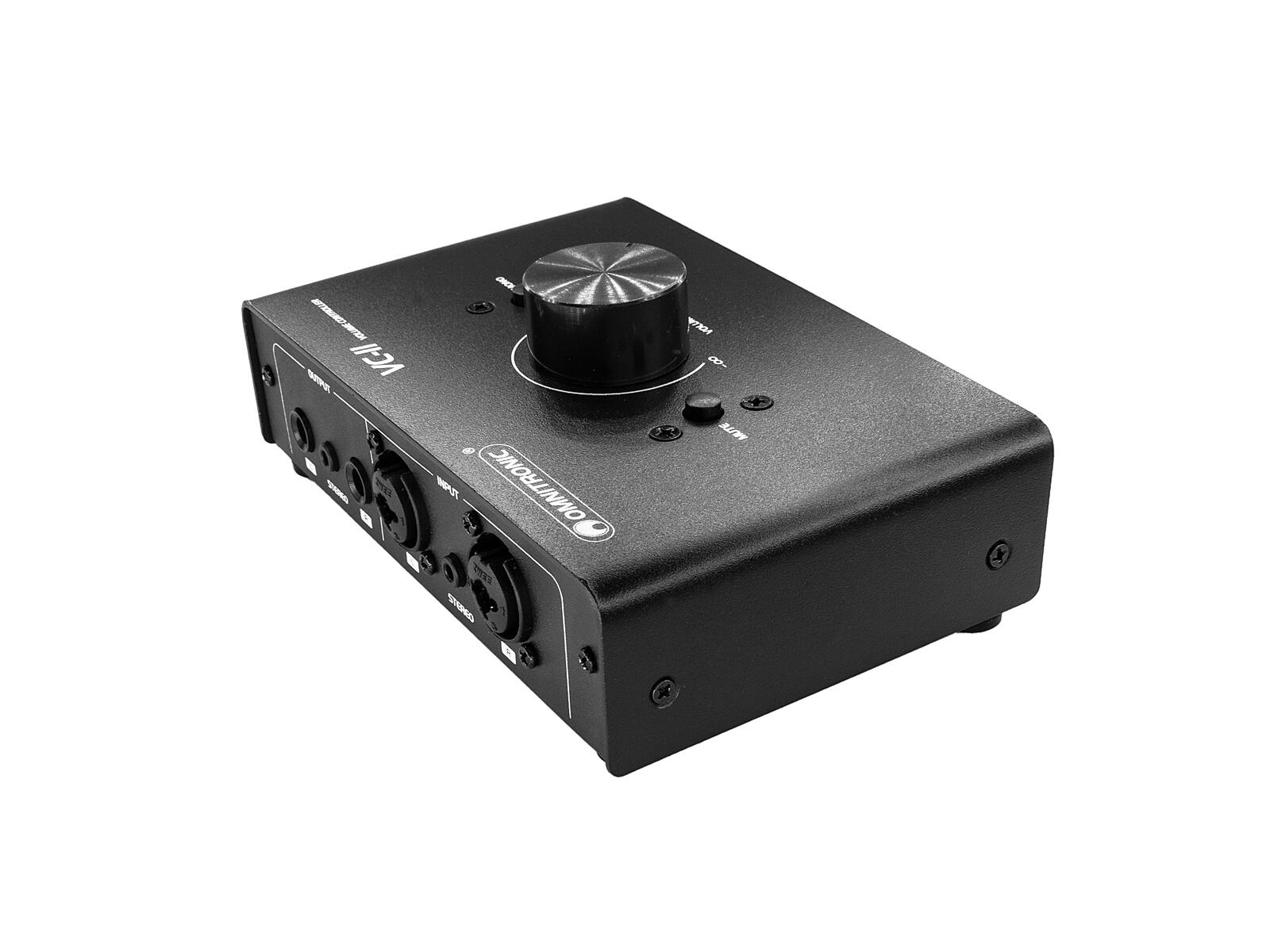

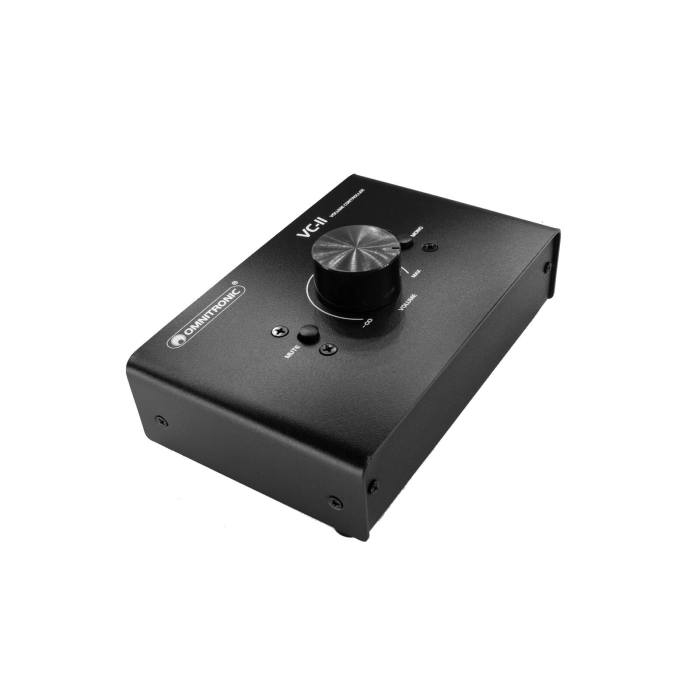

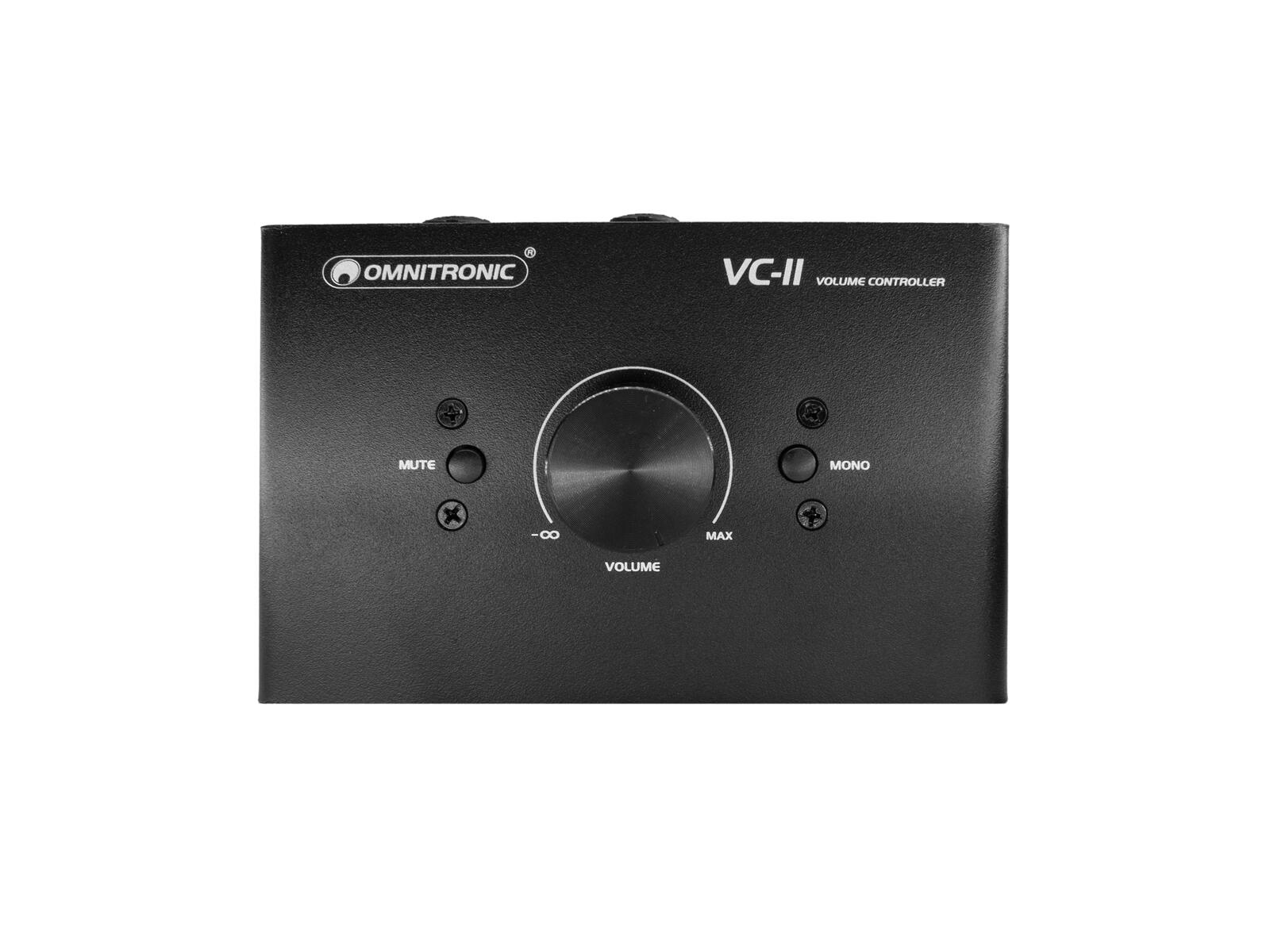

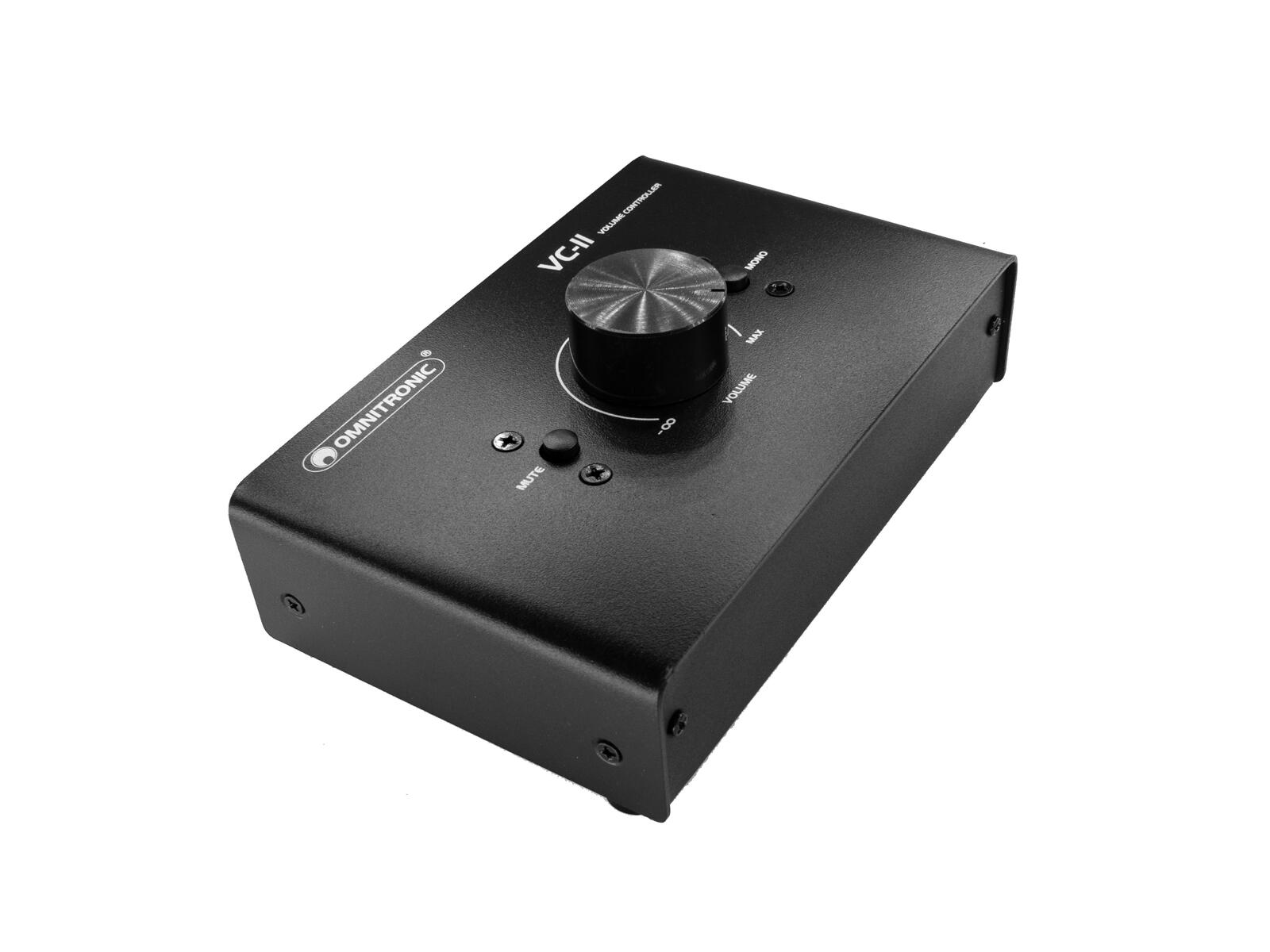

OMNITRONIC VC-11 Volume Controller, passief
OMNITRONIC VC-11 Volume Controller, passief
Features
Passive monitor controller with mute and mono summation
- Precise volume control of analog audio signals
- Suitable e.g. between PC sound card and active speakers or amplifiers
- Large rotary level control
- Passive, requires no power supply
- Desktop console housing
Package contents
- 1 x device
Technical specifications
| IP classification: | IP20 |
| Frequency range: | 20 - 20000 Hz |
| Housing color: | Black matte |
| Connections: | Input: line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: line via 1 x 3.5 mm jack (stereo) mounting version Output: line via 2 x 6.3 mm jack socket (mono) mounting version Output: line via 1 x 3.5 mm jack (stereo) mounting version |
| Channels: | Input chanel: 1 x mono + stereo via XLR or jack, stereo/mono switch, mute control Master output: 1 x mono + stereo via jack, channel control via rotary dial |
| Housing design: | Desktop console housing |
| Dimensions: | Width: 16 cm Depth: 10,8 cm Height: 6,3 cm |
| Weight: | 0,510 kg |
