OMNITRONIC UHF-602 2-channel Wireless Mic System 520-554 MHz
€ 203,01
€ 167,78
?
SKU
st13063603

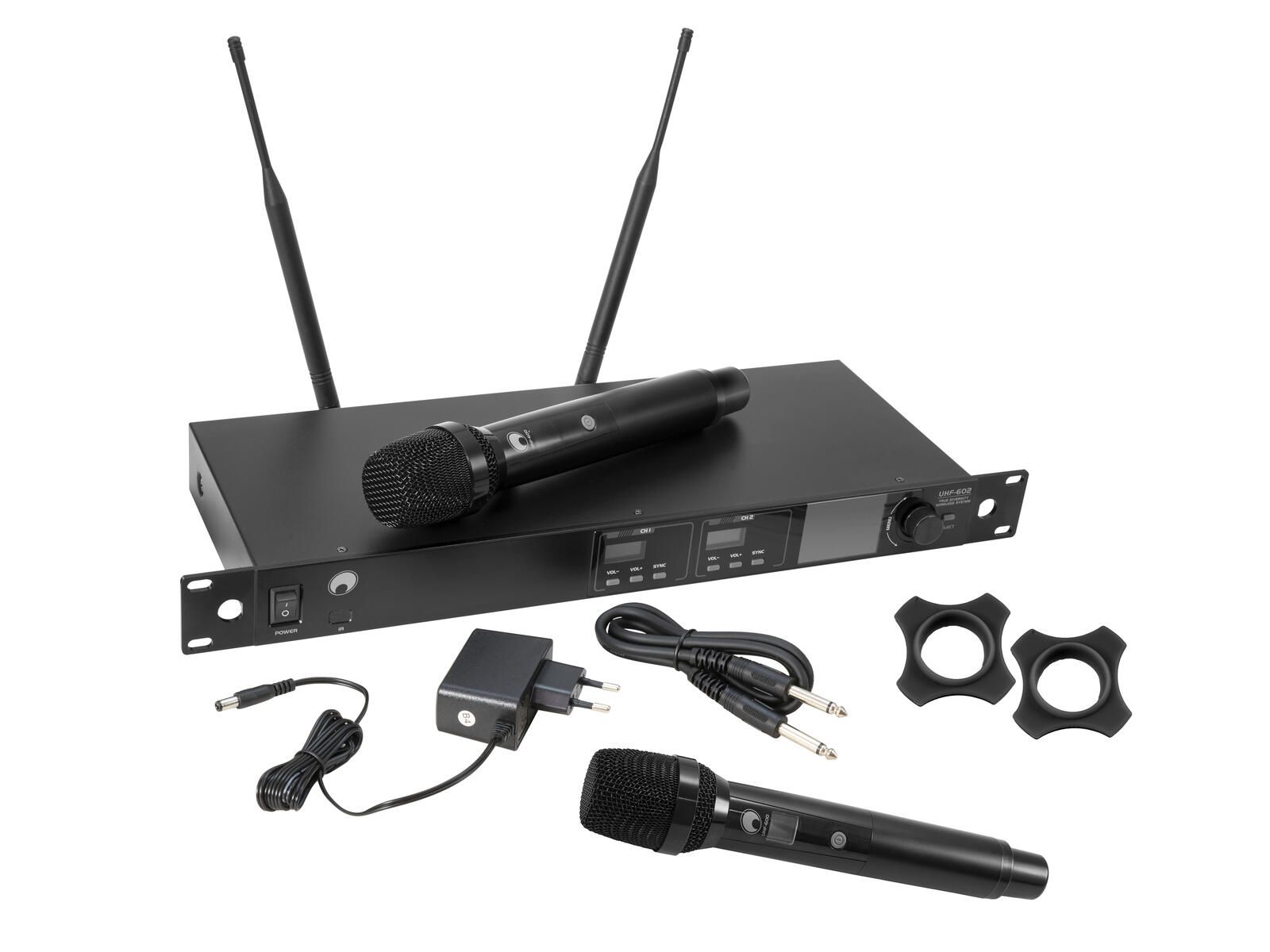

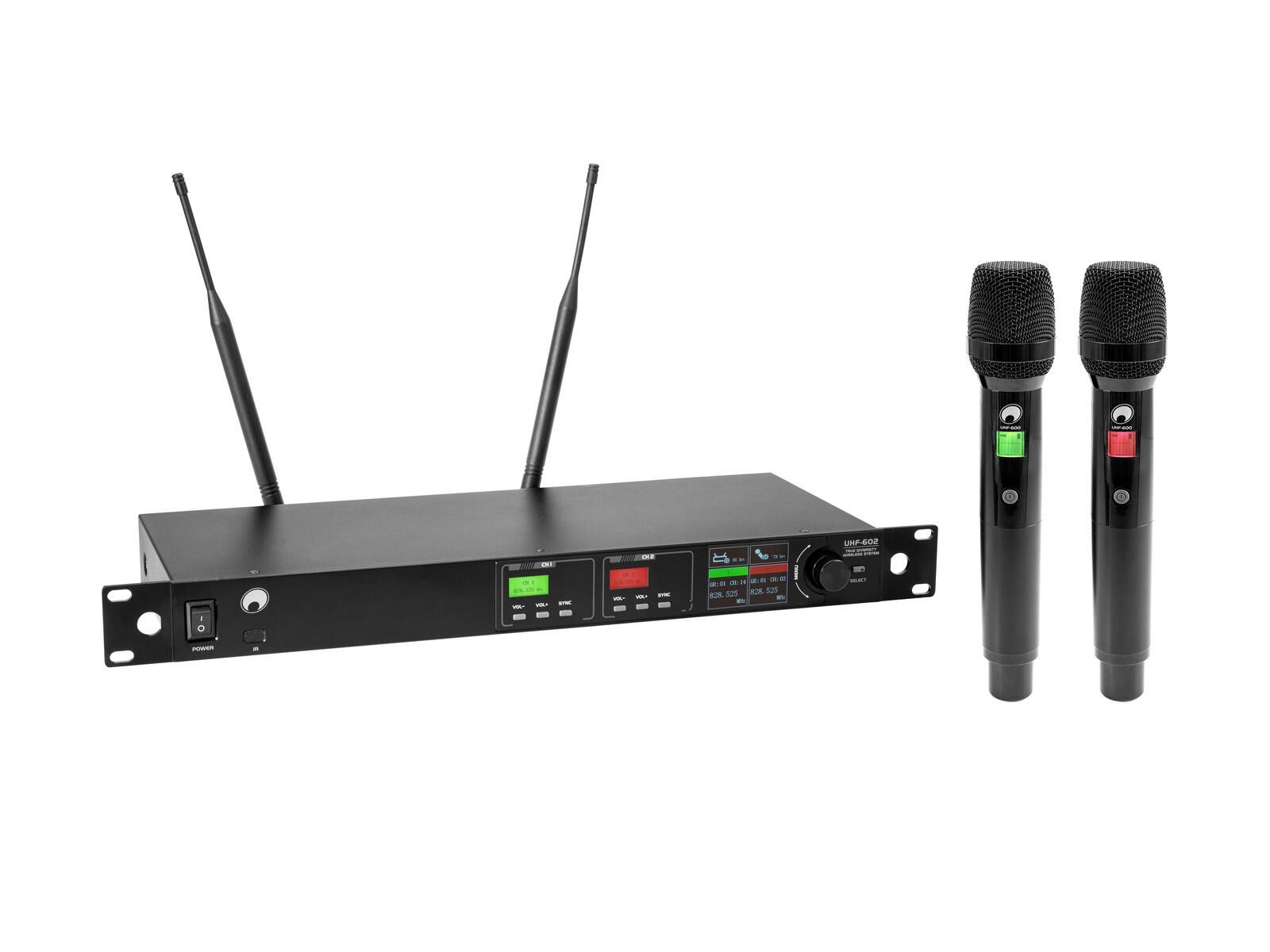

OMNITRONIC UHF-602 2-channel Wireless Mic System 520-554 MHz
OMNITRONIC UHF-602 2-channel Wireless Mic System 520-554 MHz
True diversity wireless system with auto scan, 7-band EQ and TFT color displays
- Multifrequency wireless receiver with high-quality true diversity reception
- Ideal for large multi-channel systems
- Operating range up to 60m with line-of-sight
- License-free in Germany for professional use
- Up to 24 transmitters in 2 bands can be operated in parallel without interference

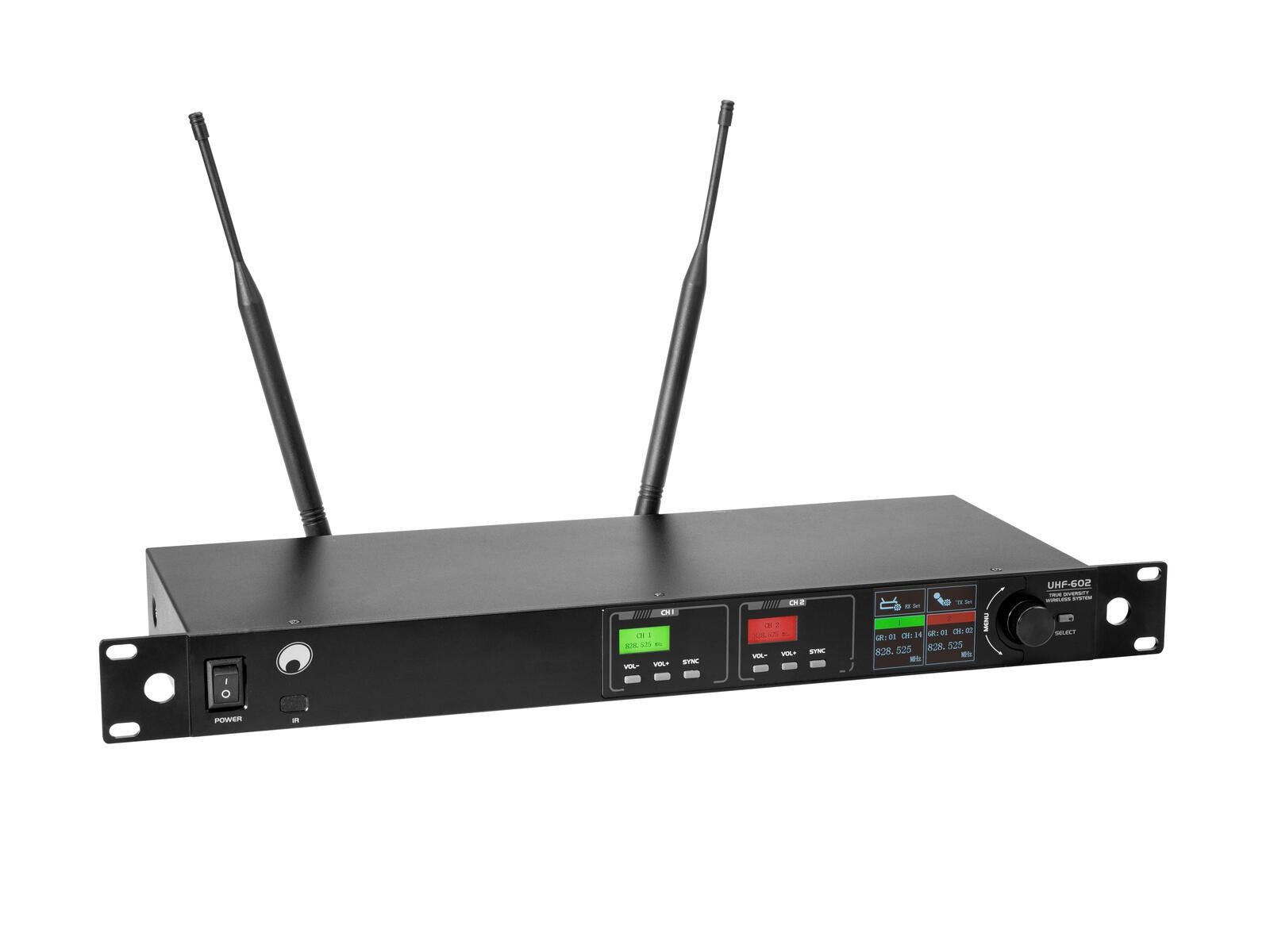

receiver
- Automatic frequency setup
- ID transmitter verification prevents incorrect use and interference from external radio transmitters

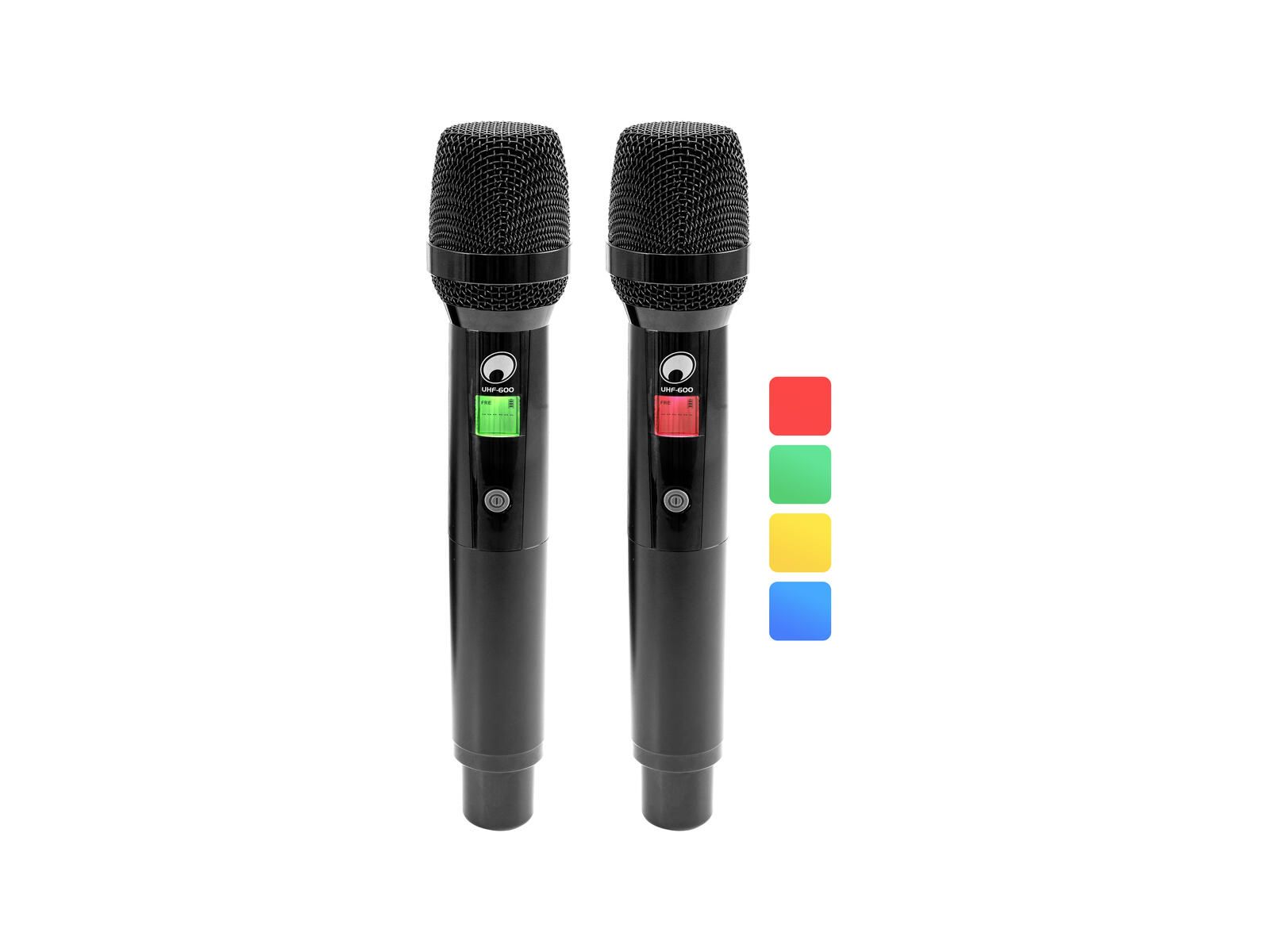

- Different user colors selectable for easy differentiation
- 7-band equalizer for sound tuning
- Multifunctional jogdial for menu settings
- Lock function for prevents undesired changes to settings
- (19") 48.3 cm rack installation 1 U
- Ultra-low latency
- Multicolor TFT display
- Technical specifications
Type: Wireless set Range: Range up to 60m with line-of-sight Frequency band: UHF 520 - 554 MHz Switching bandwidth: 34 MHz Parallel mode: Max. 24 transmitter in 2 bands Frequency selection: Frequencies automatically scannable Weight: 2.52 kg Receiver Power supply: 100-240 V AC, 50/60 Hz
12V DC 1000 mAPower consumption: 4.5 W Protection class: Protection class III Power connection: Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter included Number of channels: 2 Frequency range: 50 - 16000 Hz S/N ratio: >80 dB THD: <0.5 % at 1 kHz Diversity: True diversity Latency: < 3 ms Modulation: FM Housing color: Black Display type: 3 x multicolor TFT display Display: Frequency , goup , channel , RF signal level; AF audio level , Mute Control elements: Level control per channel, power switch, encoder, menu Connections: Input: antenna via 2 x BNC (F)
Output: microphone via 2 x 3-pin XLR (M) mounting version
Output: microphone via 1 x 6.3 mm plug (unbal.)Equalizer: Graphic equalizer 7-band Material: Metal Housing design: (19") 48.3 cm rack installation 1 U Mounting depth: 21 cm Dimensions: Width: 48.5 cm
Depth: 21 cm
Height: 4.4 cmWeight: 1.5 kg Microphone Power supply: 3V DC 118 mA Capsule type: Dynamic
Size: Ø 2.54 mmPolar pattern: Cardioid Battery: 2 x Mignon (AA) (not included) RF power output: 30 mW (HI); 20 mW (LO) Housing color: Black Display type: Multicolor LCD display Display: Frequency , charge status indicator , Mute , RF signal level Switch: On/off/mute switch Material: Metal Dimensions: Length: 25.9 cm
Diameter: Ø 4.95 cmWeight: 0.351 kg
