OMNITRONIC ROD-1043 Active Column Speaker System mixer met BT 350watt
€ 417,45
€ 345,00
?
SKU
st11039102
OMNITRONIC ROD-1043 Active Column Speaker System mixer met BT 350watt
OMNITRONIC ROD-1043 Active Column Speaker System mixer met BT 350watt

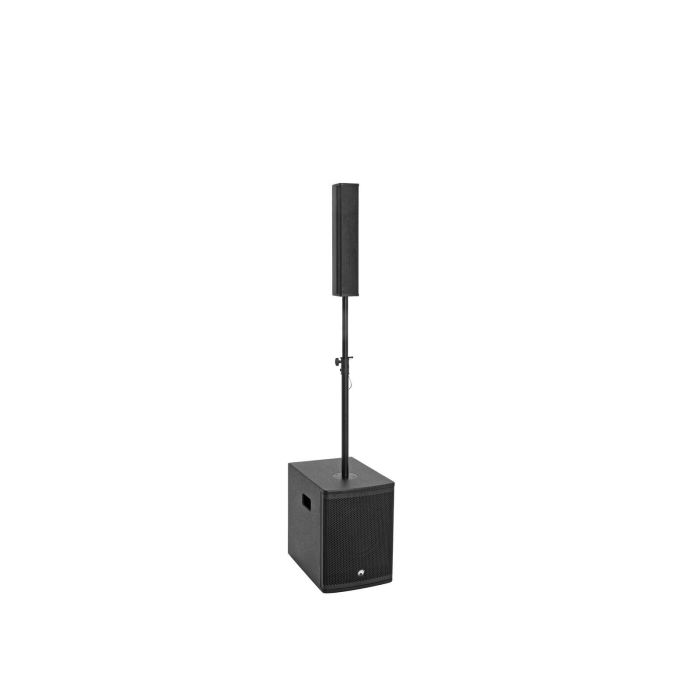

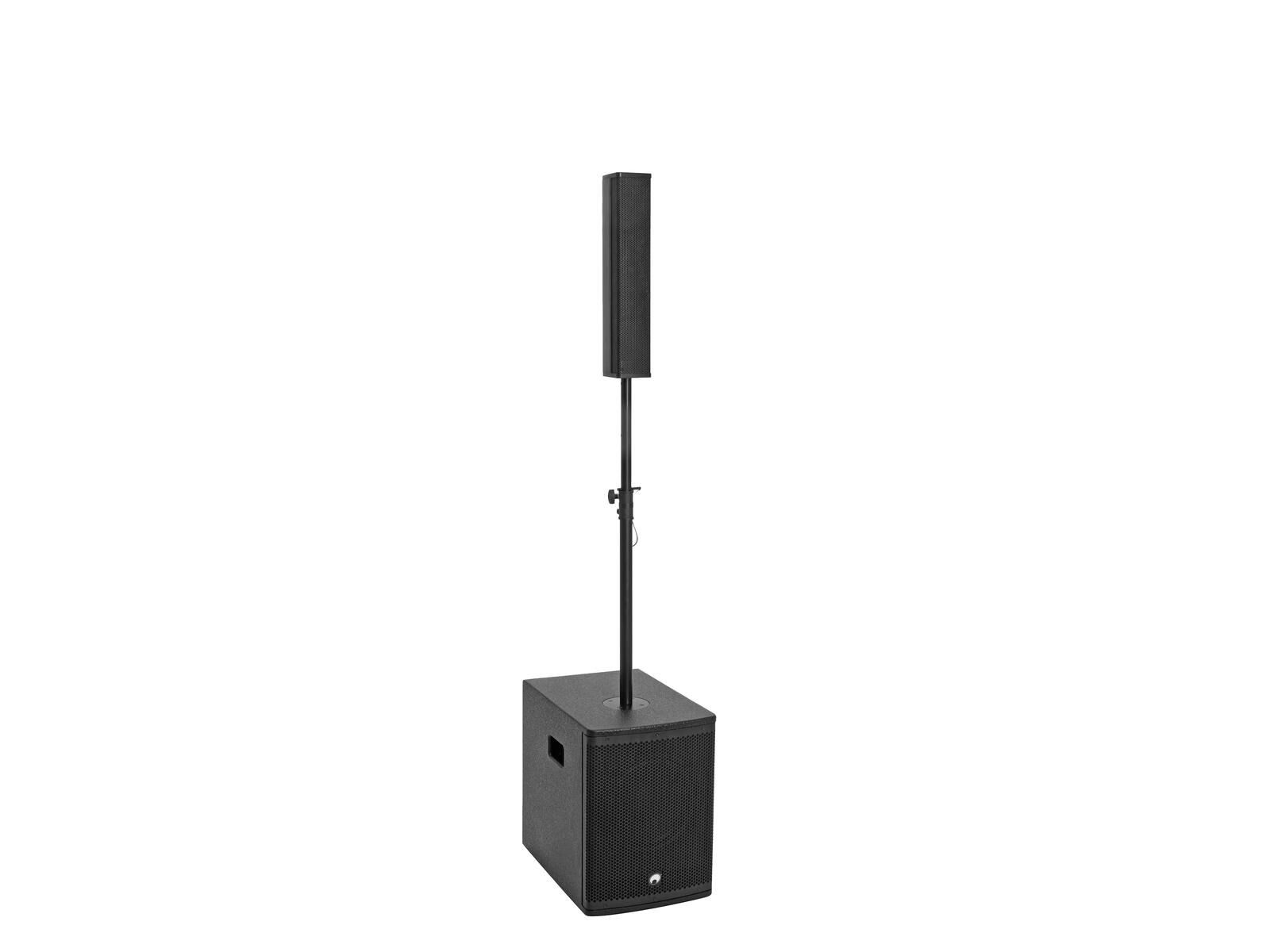

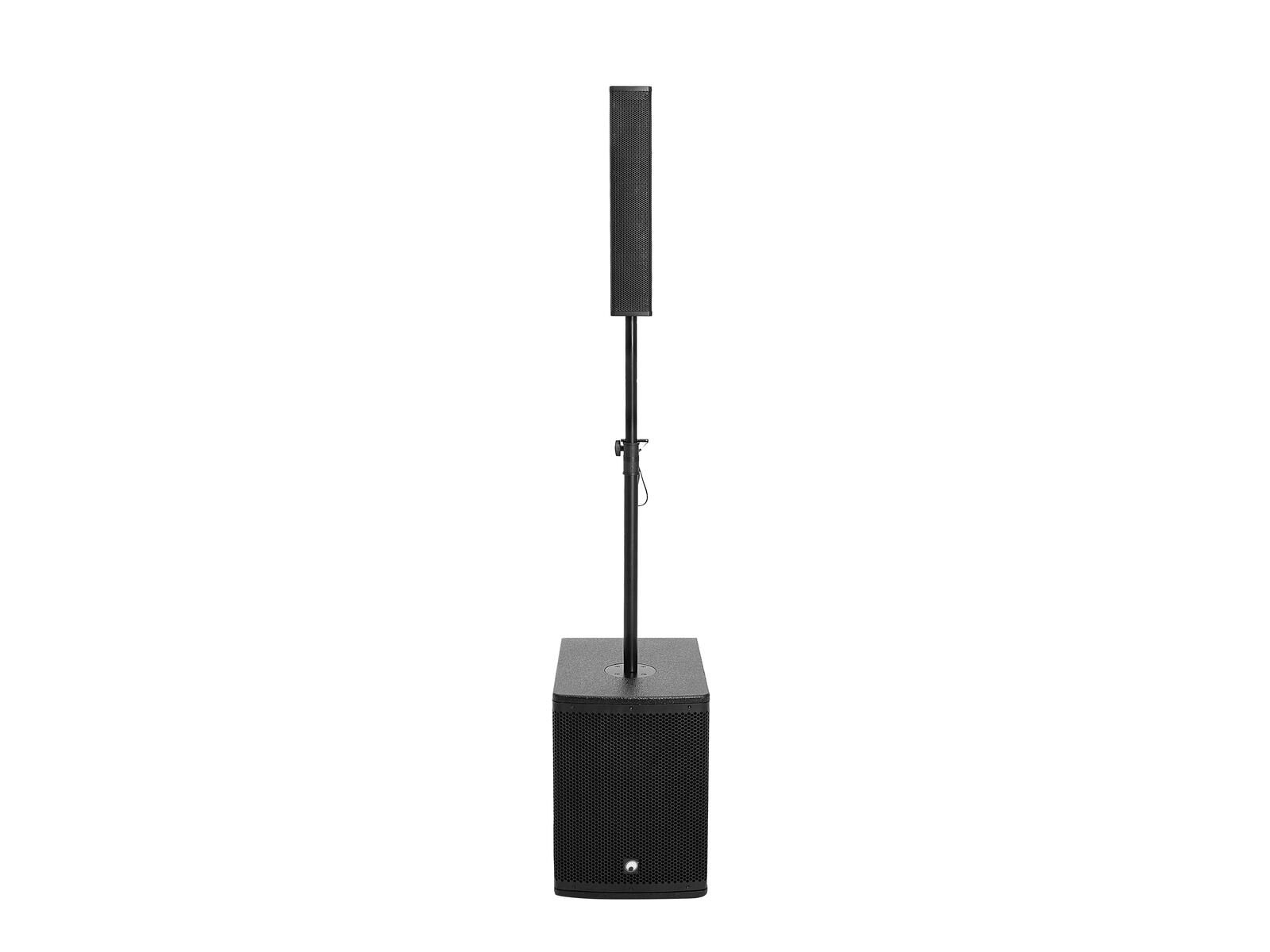

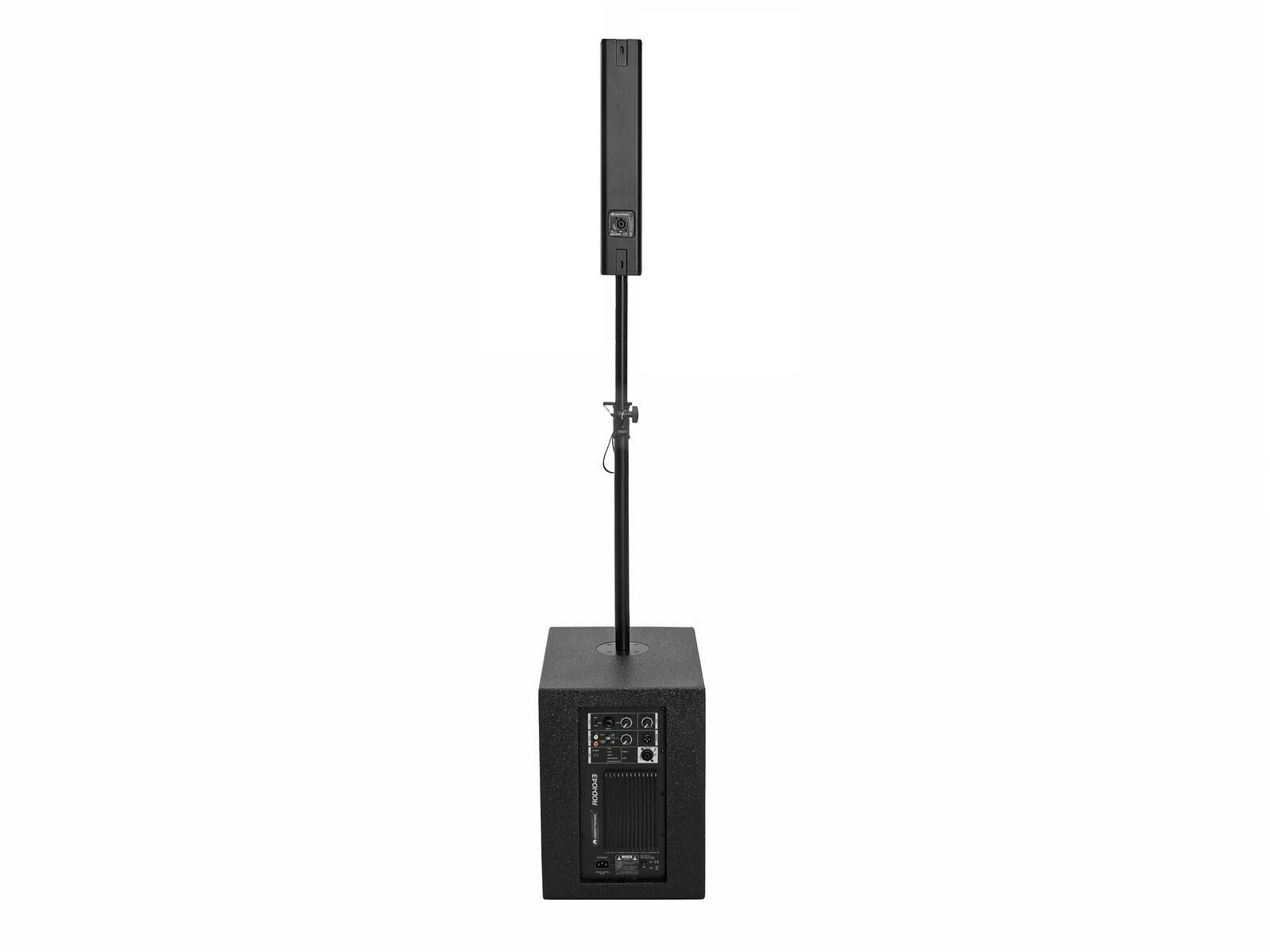

The ROD-1043 is an active column PA system with a high-power subwoofer with 2-channel power mixer and a full-range column speaker for mobile applications. The system offers a mono input (XLR and 6.3 mm jack) and a stereo line input (RCA). The amplifier supplies a power of 200 W and 150 W. The latest Bluetooth technology with TWS support ensures fast and stable wireless connections to Bluetooth audio sources and links two ROD systems for stereo setups.
Features
Mobile column PA system with DSP, mixer, stereo Bluetooth link, 350 W RMS
- Multiband Compressor; Multistep Limiter; Active Phase Correction; Delay Compensation
- Excellent sound quality and high transmission range
- Stereo Bluetooth link for wireless stereo operation with 2 systems linked together

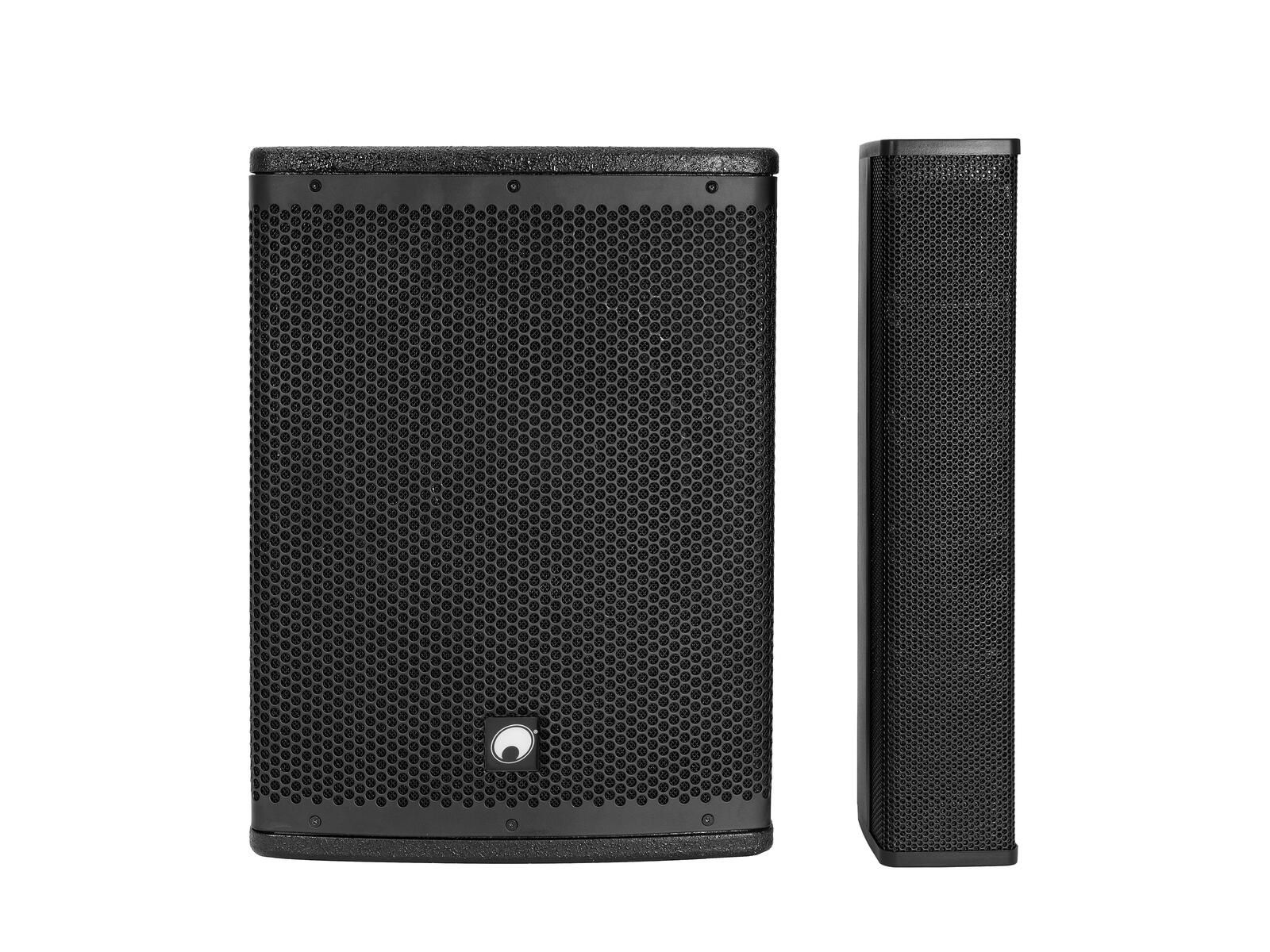

- Metal grille
bass
- 2 recessed carrying handles
- 4 x plastic feet
integrated amplifier module
- Digital signal processor
- DSP presets: FLAT; CLUB; VOICE; BASS BOOST; BASS REDUCTION
- Control via Bluetooth
- Bluetooth: operating range up to 10m in buildings
Package contents
- 1 x bass, 1 x top, 1 x distance tube, 1 x power cord, 1 x user manual, 1 x speaker cable, 2 x tie strap, 1 x declaration of conformity
Technical specifications
| Output power: | 350 W RMS system |
| Frequency range: | 42 - 20000 Hz system |
| Max. SPL: | 125 dB system |
| DSP: | Multiband Compressor; Multistep Limiter; Active Phase Correction; Delay Compensation |
| Weight: | 19,20 kg |
| Bass | |
| Frequency range: | 42 - 150 Hz |
| Impedance: | 1 x 4 ohms bass |

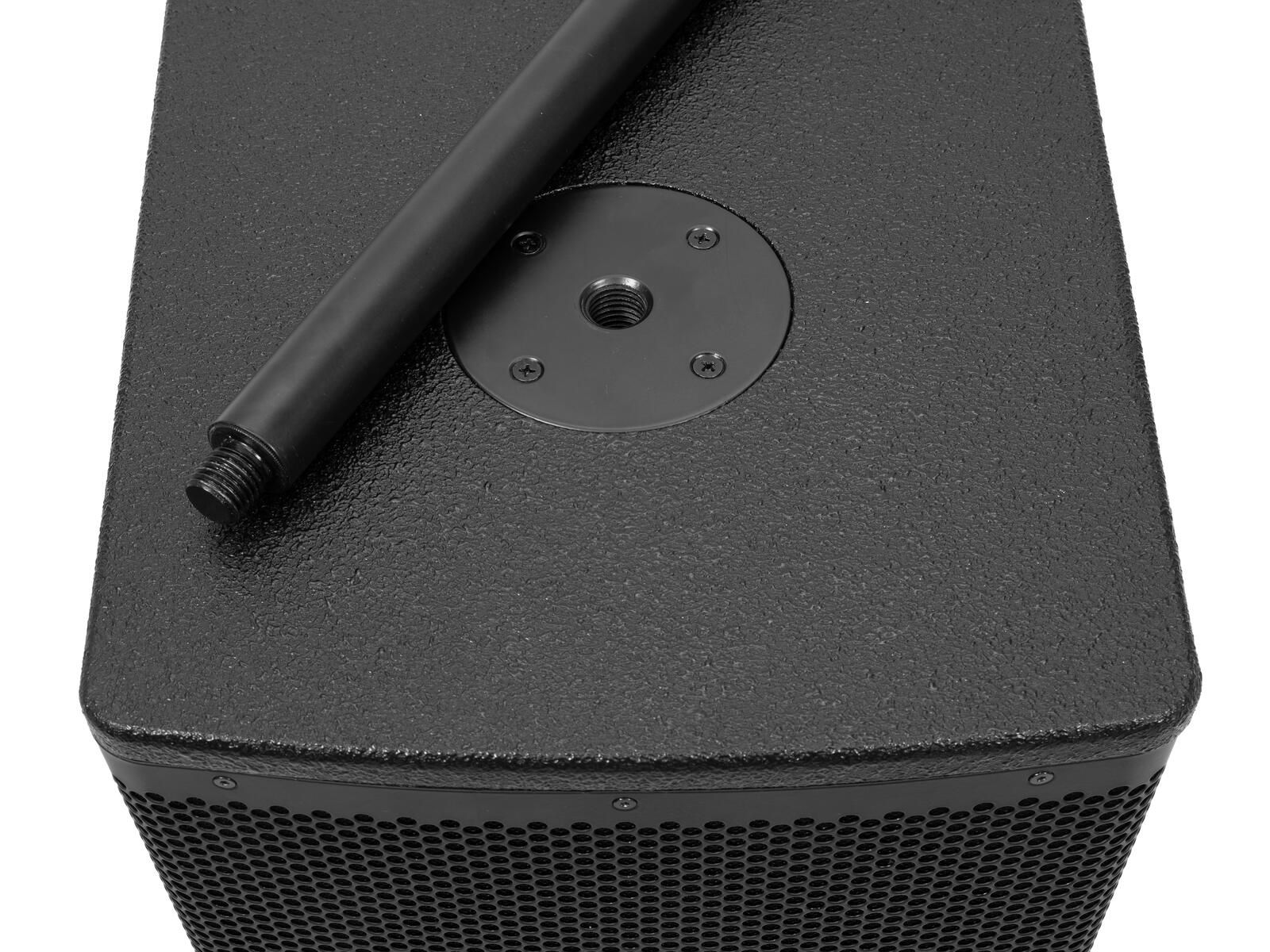

| Attachment system: | M20 thread |
| Speaker: | 1 x woofer 10" with ferrit magnet Basket material: steel Voice coil lows 2" Conematerial: cardboard/paper |
| Type of speaker: | Subwoofer |
| Type of construction: | Vented |
| Recessed carrying handle: | 2 pc/pcs |
| Transport aid: | 4 x plastic feet |
| Material: | MDF (medium density fiberboard), 16 mm |
| Color: | Black, textured coating |
| Dimensions: | Width: 32 cm Depth: 46,5 cm Height: 44,5 cm |
| Weight: | 16,5 kg |
| Integrated amplifier module | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | Max. 250 W |
| Protection class: | Protection class I |
| Output power: | 1 x 200 W RMS LF 1 x 150 W RMS (4 ohms) HF |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug included |
| Device fuse: | 5 x 20 mm, T 2,5 A fuse serviceable |
| DSP: | Digital signal processor |
| DSP presets: | FLAT; CLUB; VOICE; BASS BOOST; BASS REDUCTION |
| Control: | Bluetooth |
| Bluetooth: | Version: 5,3 with stereo link (TWS) |
| Bluetooth device name: | ROD-1043 |
| Range: | Bluetooth: range up to 10m in buildings |
| Carrier frequency: | 2,4 GHz |
| Circuitry: | Class D |

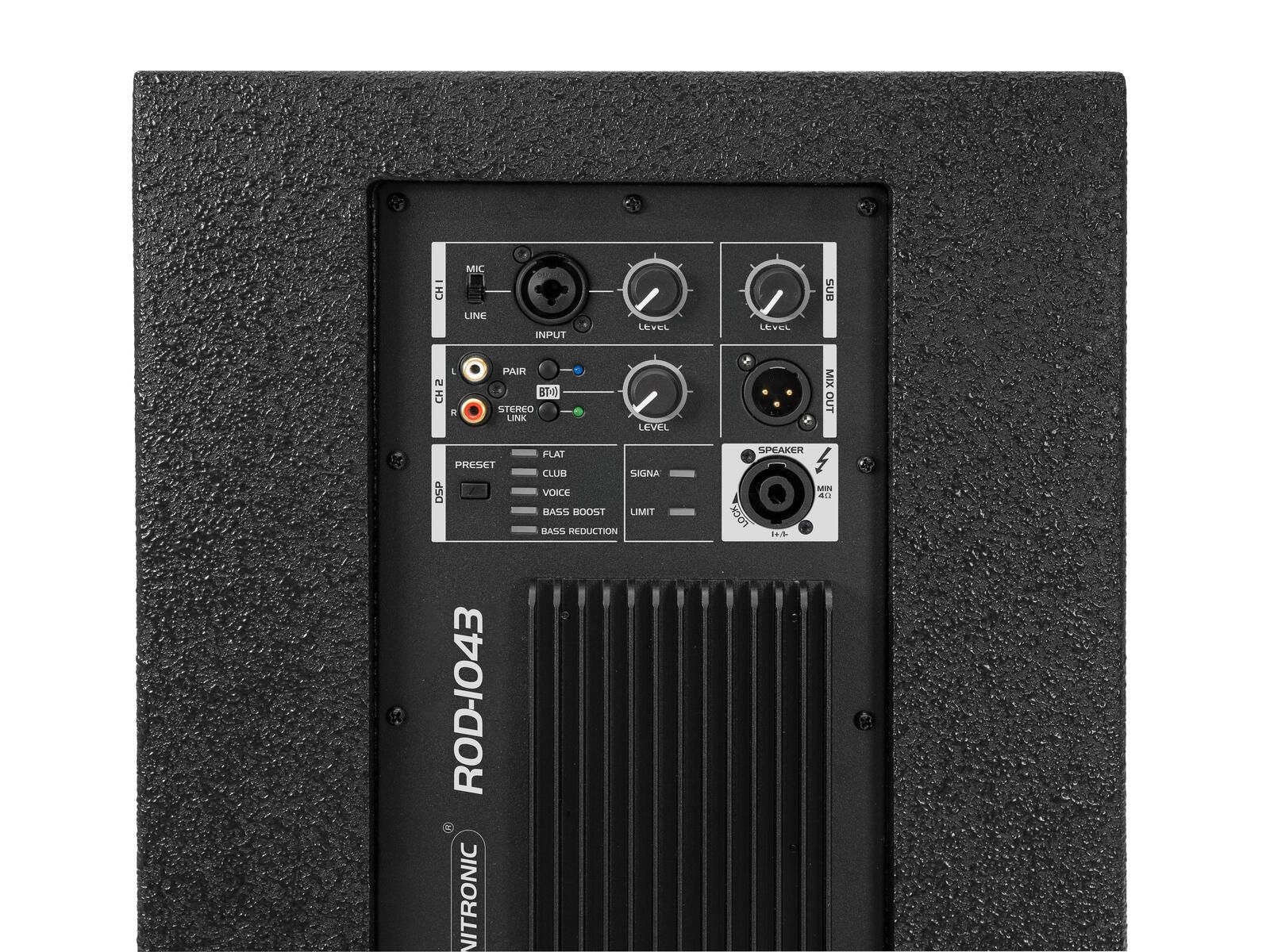

| Control elements: | Level control, power switch, Input sensitivity switch |
| Controls: | Short-circuit; DC voltage; limiter; overload |
| Status LED: | Signal, limit, DSP presets, pairing, link |

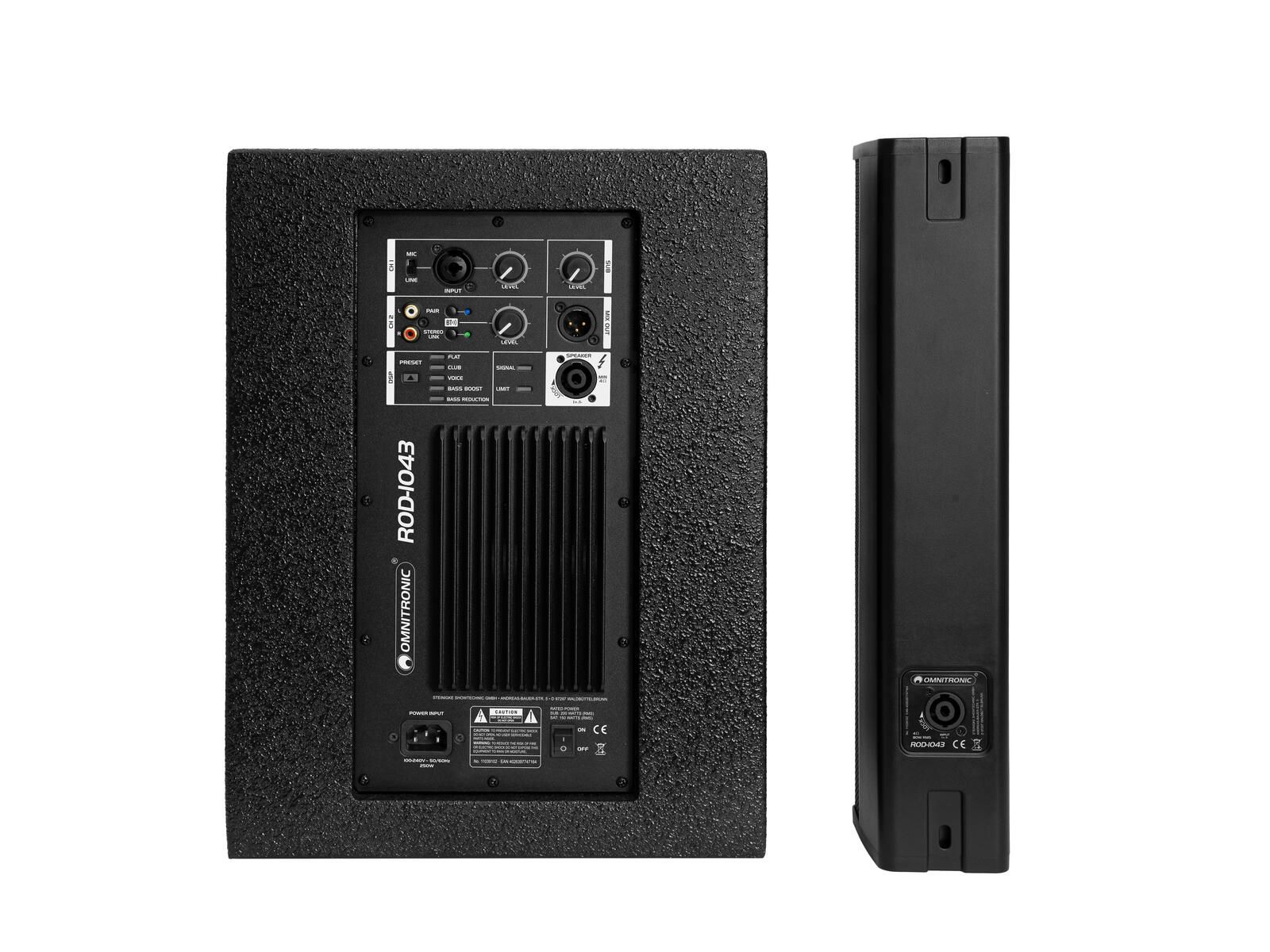

| Connections: | Input: mic/line via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: line via 1 x stereo RCA Output: line via 1 x 3-pin XLR (M) mounting version Output: top via 1 x speaker built-in socket (F) |
| Input channels: | 1 x stereo via RCA or Bluetooth, channel control via rotary dial 1 x mono with mic-line switch via Combination socket (XLR/jack), channel control via rotary dial |
| Crossover frequency: | 150 Hz |
| Top | |
| Power: | Program: 160W Rated: 80W AES |
| Frequency range: | 150 - 20000 Hz |
| Sensitivity: | 90 dB (1W/1m) |
| Dispersion angle: | 100° x 20° |
| Impedance: | 1 x 4 ohms top |
| Attachment system: | Flange: Ø 25mm |

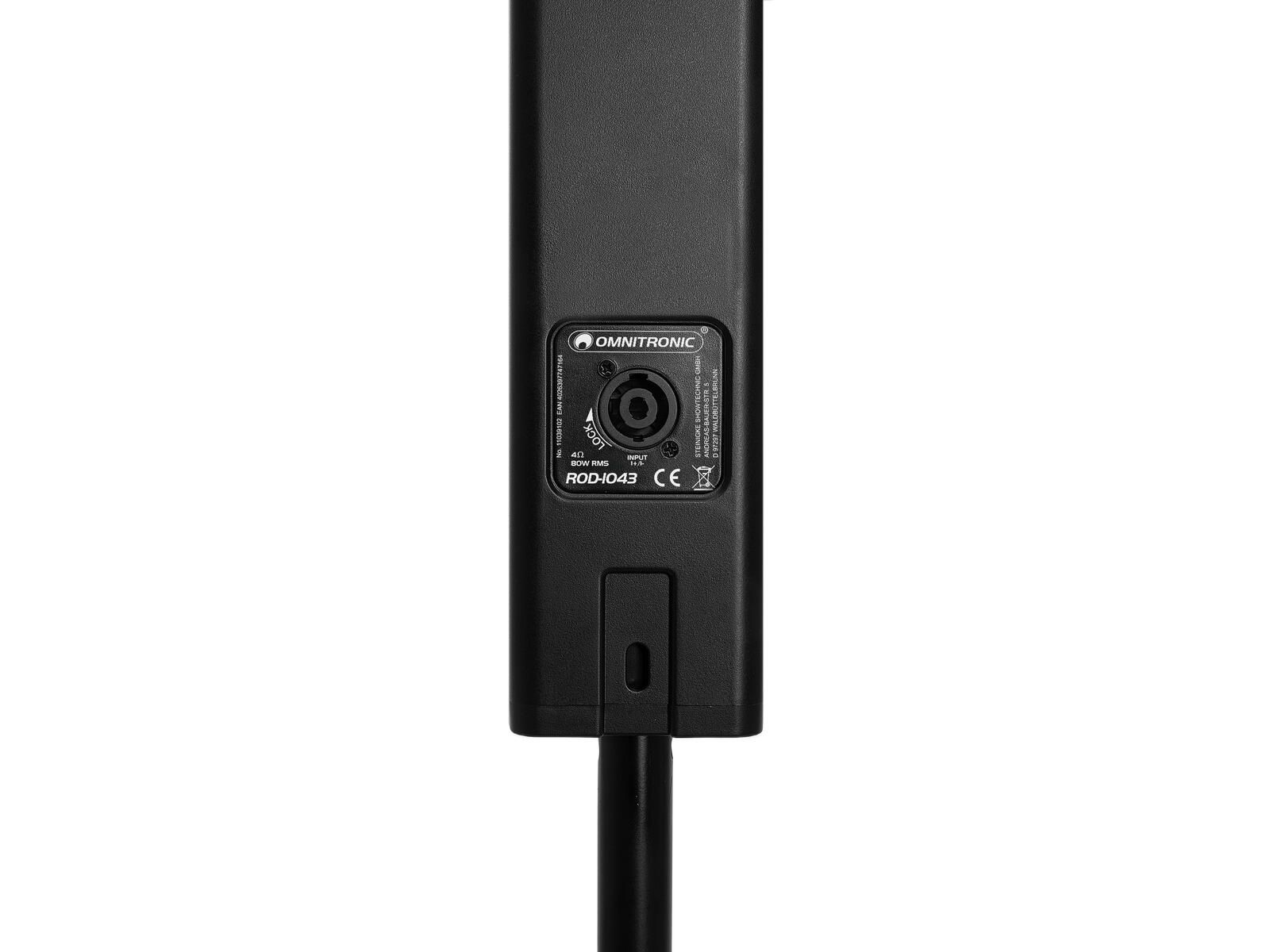

| Connections: | Input: top via 1 x speaker built-in socket (F) |
| Speaker: | 4 x full range loudspeaker 3" with neodymium magnet Basket material: steel Voice coil full range loudspeaker 0.75" Conematerial: cardboard/paper |
| Type of speaker: | Column speaker |
| Type of construction: | Closed Box |
| Material: | Plastic hard |
| Color: | Black |
| Dimensions: | Width: 8,5 cm Depth: 10,5 cm Height: 45 cm |
| Weight: | 1,43 kg |
| Distance tube | |
| Height: | Maximum: 95 cm Minimum: 59 cm Adjustable in 4 steps with locking pin |
| Attachment system: | M20 thread Pivot: Ø 25mm |
| Type (general stands): | Speaker stand/manual |
| Material: | Steel, painted |
| Weight: | 0,74 kg |
| Power cord | |
| Cable construction: | 3 x 0,75 mm² H05VV-F |
| Cable length: | 1,80 m |
| Speaker cable | |
| Cable construction: | 2 x 0,75 mm² speaker cable |
| Cable length: | 2 m |
