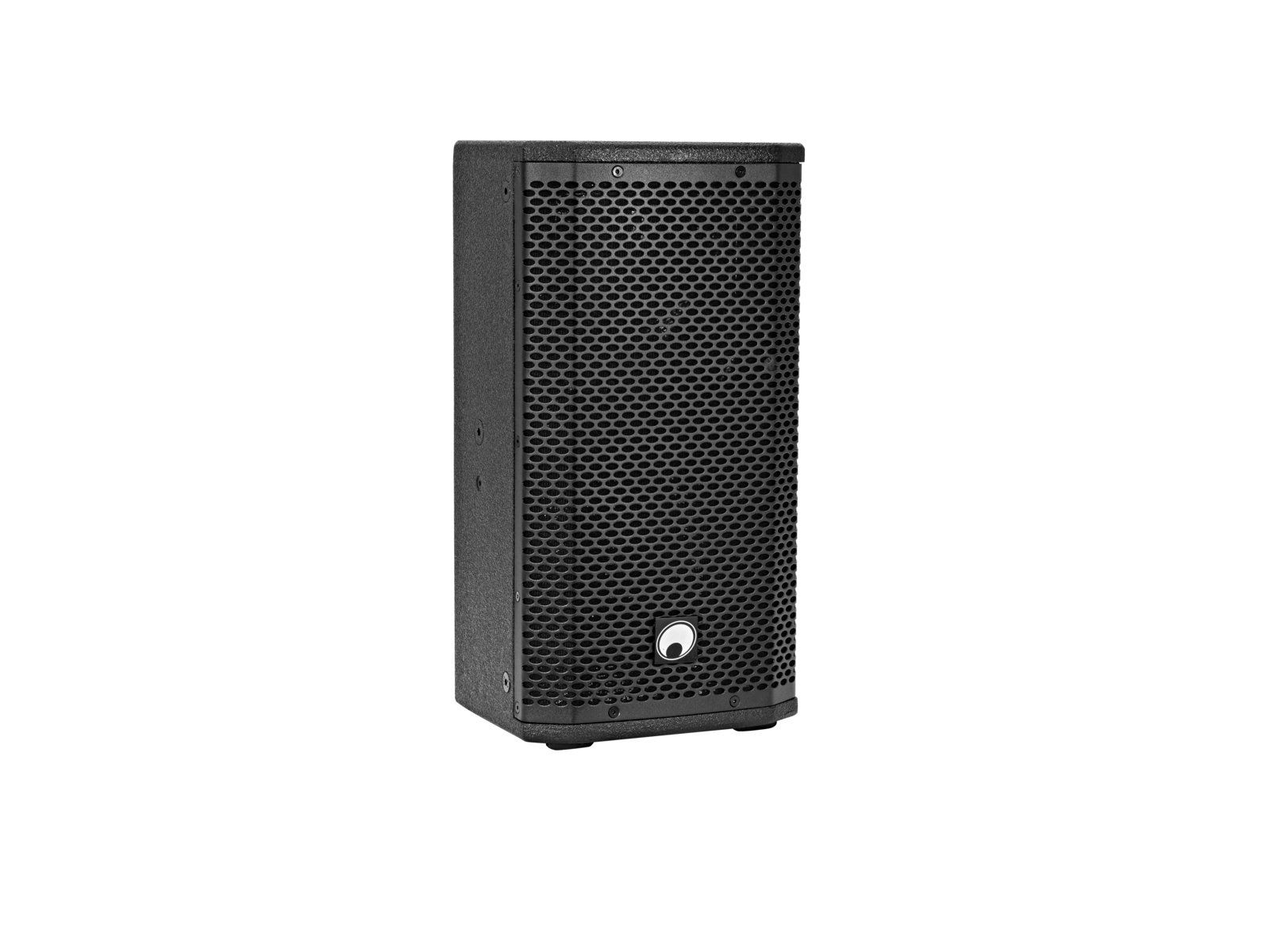

OMNITRONIC PAS-208A MK4 2-way Top, active, DSP, BT
€ 284,75
€ 235,33
?
SKU
st11039551
- Buy 2 for € 270,51 € 223,56 each and save 5%
OMNITRONIC PAS-208A MK4 2-way Top, active, DSP, BT
OMNITRONIC PAS-208A MK4 2-way Top, active, DSP, BT
Features
Active speaker with 8" woofer, 1" driver, 200 W RMS LF, 40 W RMS HF
- Active PA speaker system for touring applications and permanent installations
- Optimized for combination with PAS subwoofers
- DSP-controlled biamp amplifier (class D)
- Trapezoidal, multi-functional multiplex cabinet with monitor shape
- Stereo Bluetooth link for wireless stereo operation with 2 systems linked together
- Digital signal processor
- DSP presets: MUSIC; LIVE; CLUB; VOICE
- Black metal grille with acoustic foam
- With rigging points
- Dual flange
- Rugged carrying handle
- Control via Bluetooth
- Bluetooth: operating range up to 10m in buildings
- The device is cooled by passive convection cooling
Package contents
- 1 x compact cabinet speaker, 1 x user manual, 1 x declaration of conformity
Technical specifications
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 300 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC (M) power supply cord with safety plug included |
| Device fuse: | 5 x 20 mm, T 2 A fuse replaceable |
| Power: | Program: 400W LF Rated: 200W RMS LF Program: 80W HF Rated: 40W RMS HF |
| Frequency range: | 75 - 20000 Hz |
| Max. SPL: | 118 dB |
| DSP: | Digital signal processor |
| DSP presets: | MUSIC; LIVE; CLUB; VOICE |
| Dispersion angle: | 90° x 60° |
| Cooling: | Passive convection cooling |
| Low cut: | 100Hz, switchable |
| Control: | Bluetooth |
| Bluetooth: | With stereo link (TWS) |
| Bluetooth device name: | OMNITRONIC PAS-208A MK4 |
| Range: | Bluetooth: range up to 10m in buildings |
| Attachment system: | Dual flange: |
| Flying points: | 12 x M8 thread; 4 x M10 thread |
| Circuitry: | Class D Biamp |
| Control elements: | Power switch, Master control, level control per channel, Input sensitivity switch, source selector; connect, low cut switch |
| Controls: | Limiter; power on/off transients |
| Status LED: | Power, signal, peak, low cut, pairing; stereo, DSP presets |
| Connections: | Input: Mic-Line-Hi.Z via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Output: line via 1 x 3-pin XLR (M) mounting version |

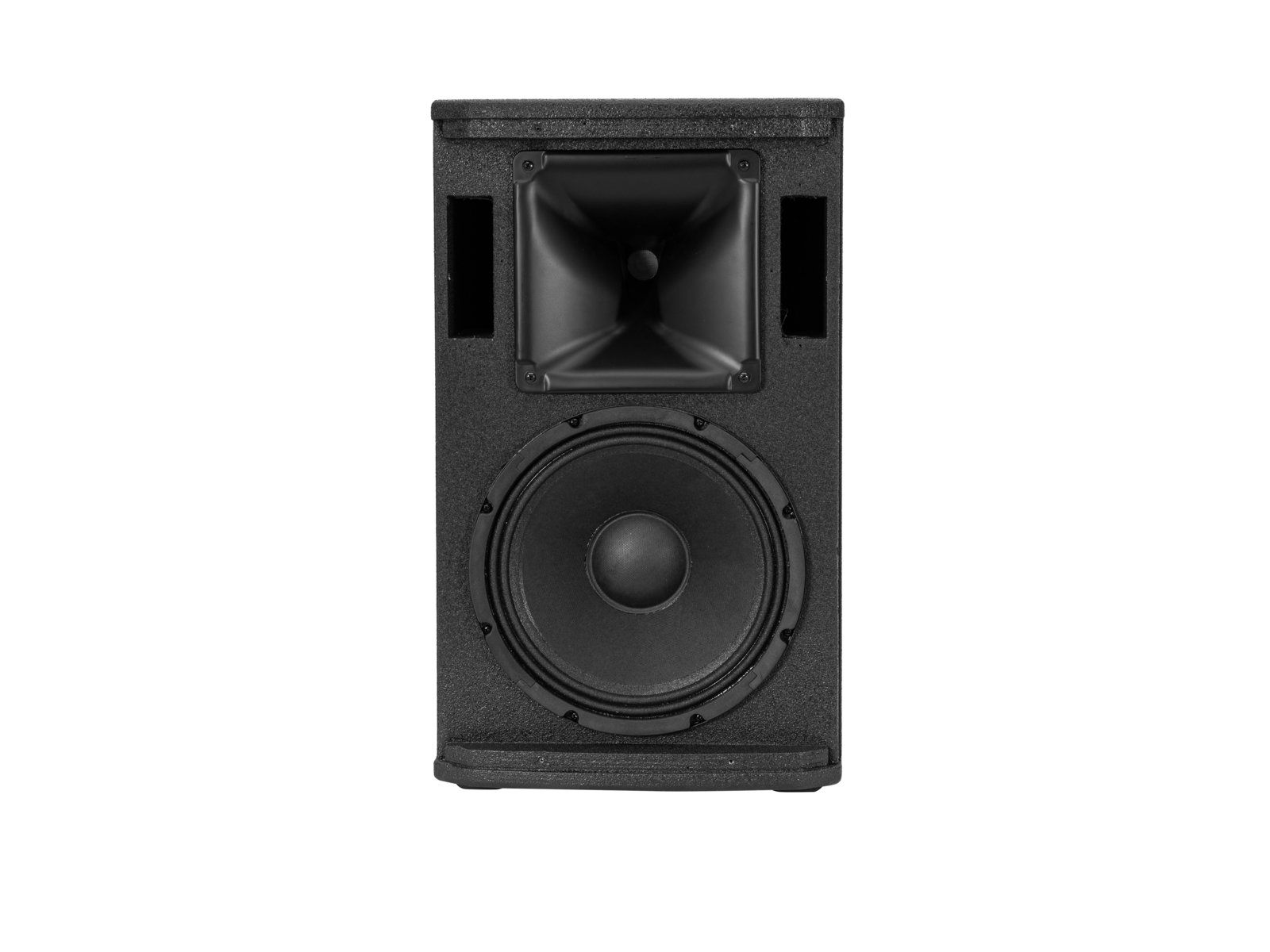

| Speaker: | 1 x woofer 8" with ferrit magnet Basket material: steel Conematerial: cardboard/paper Voice coil lows 2" 1 x compression tweeter highs 1" with ferrit magnet Voice coil compression tweeter highs 1,35" |
| Type of speaker: | Compact cabinet speaker |
| Type of construction: | Vented |
| Carrying handle: | 1 pc/pcs |
| Material: | Plywood multi-layer glued, 12 mm |
| Color: | Black |
| Dimensions: | Width: 26 cm Depth: 45 cm Height: 23 cm |
| Weight: | 10,65 kg |
