OMNITRONIC MES-12BT2 Wireless PA System
OMNITRONIC MES-12BT2 Wireless PA System

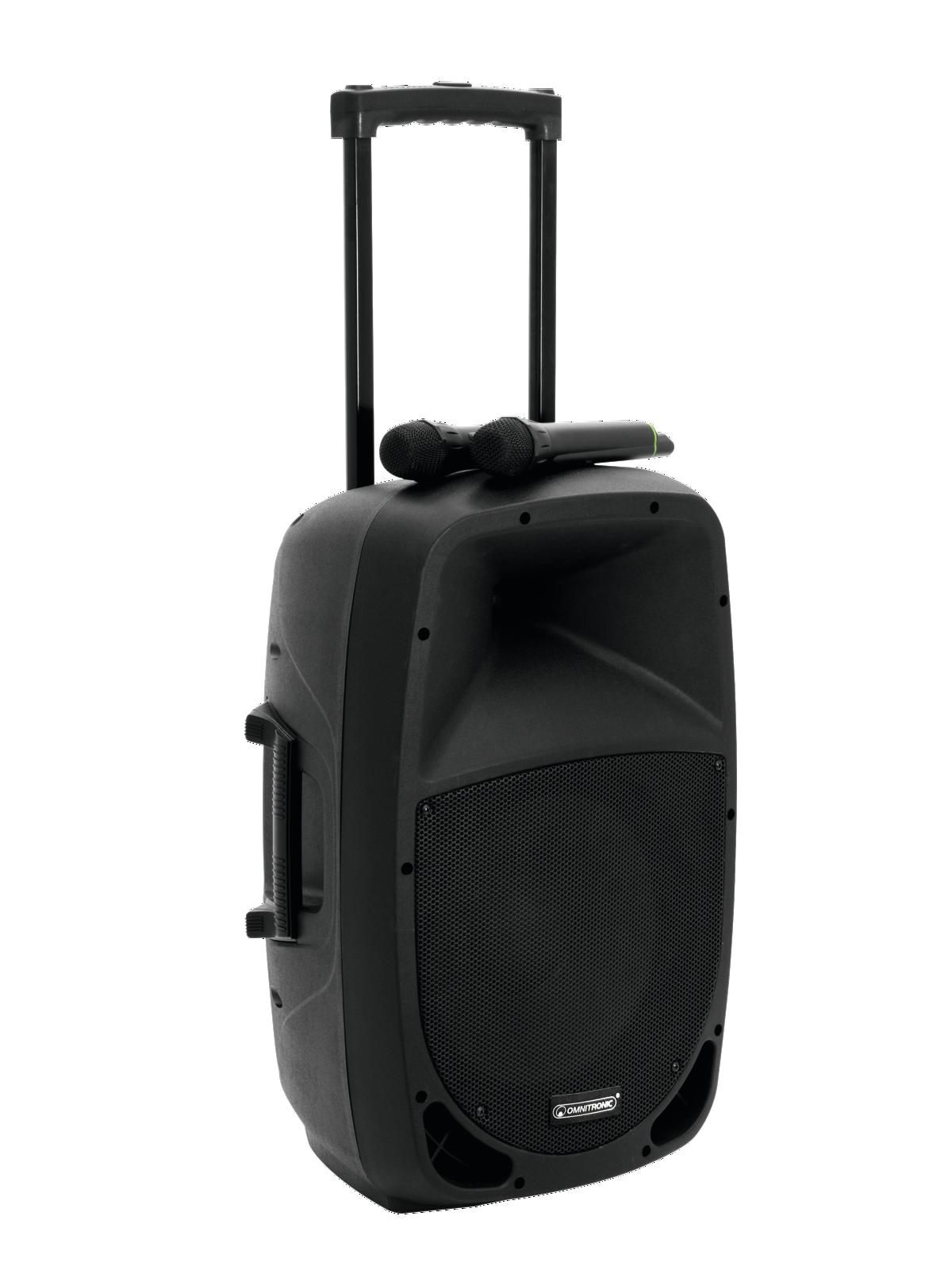

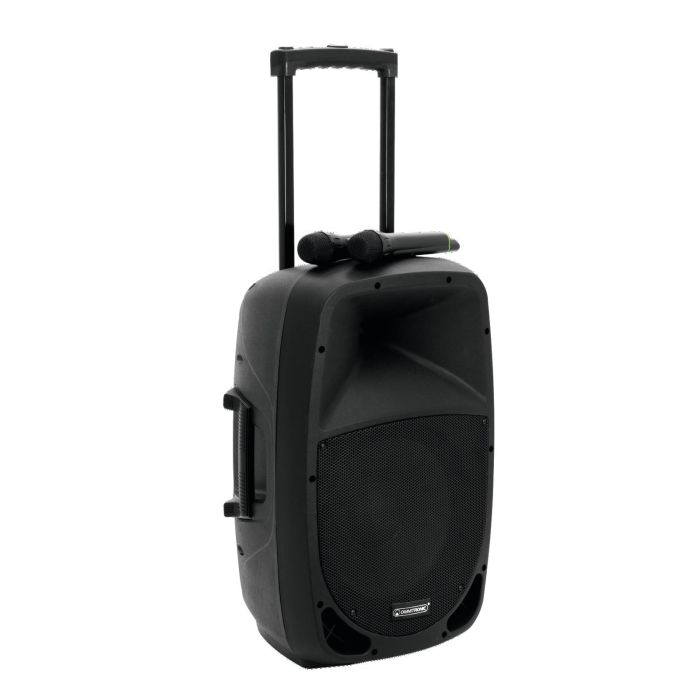

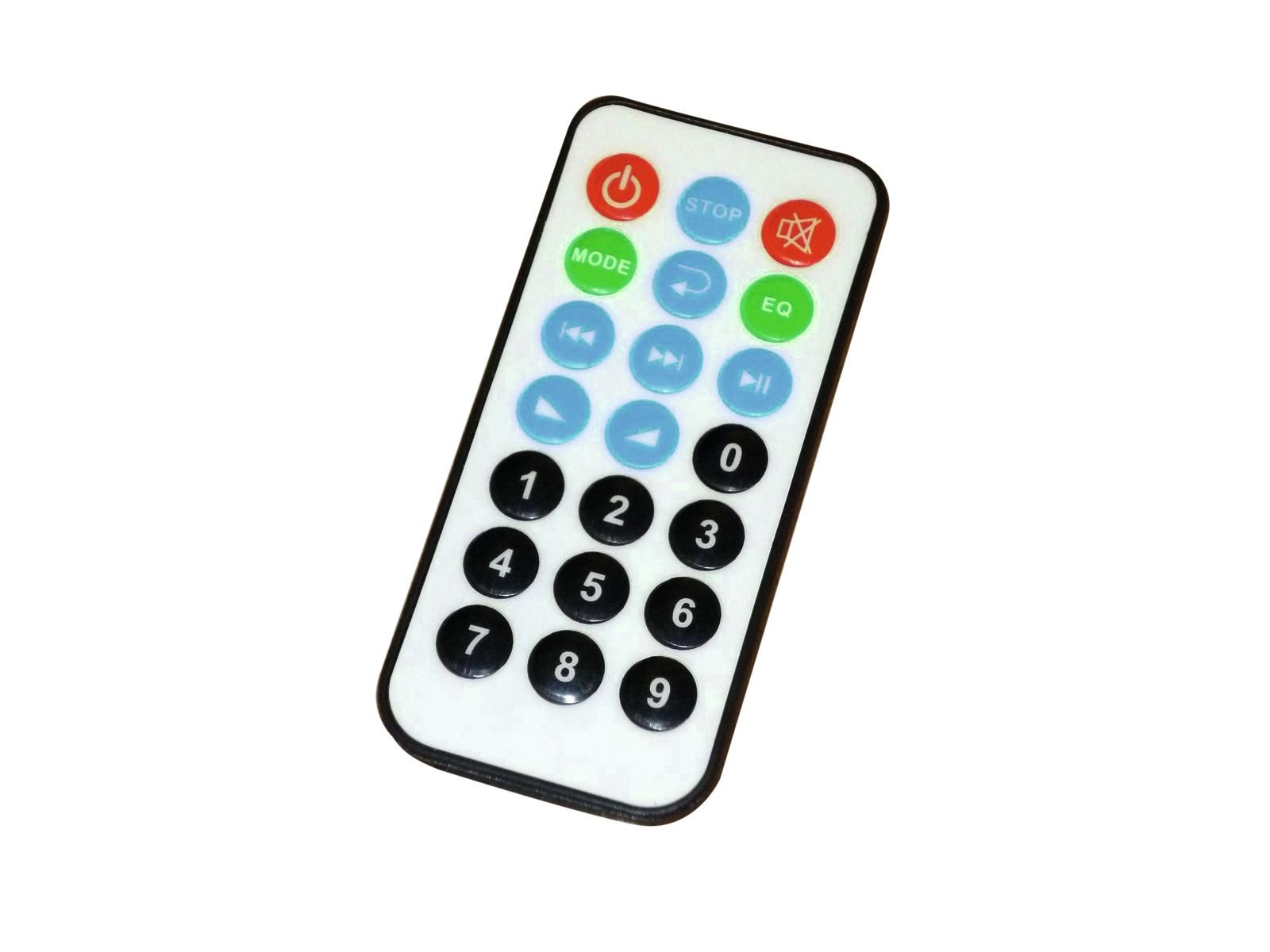

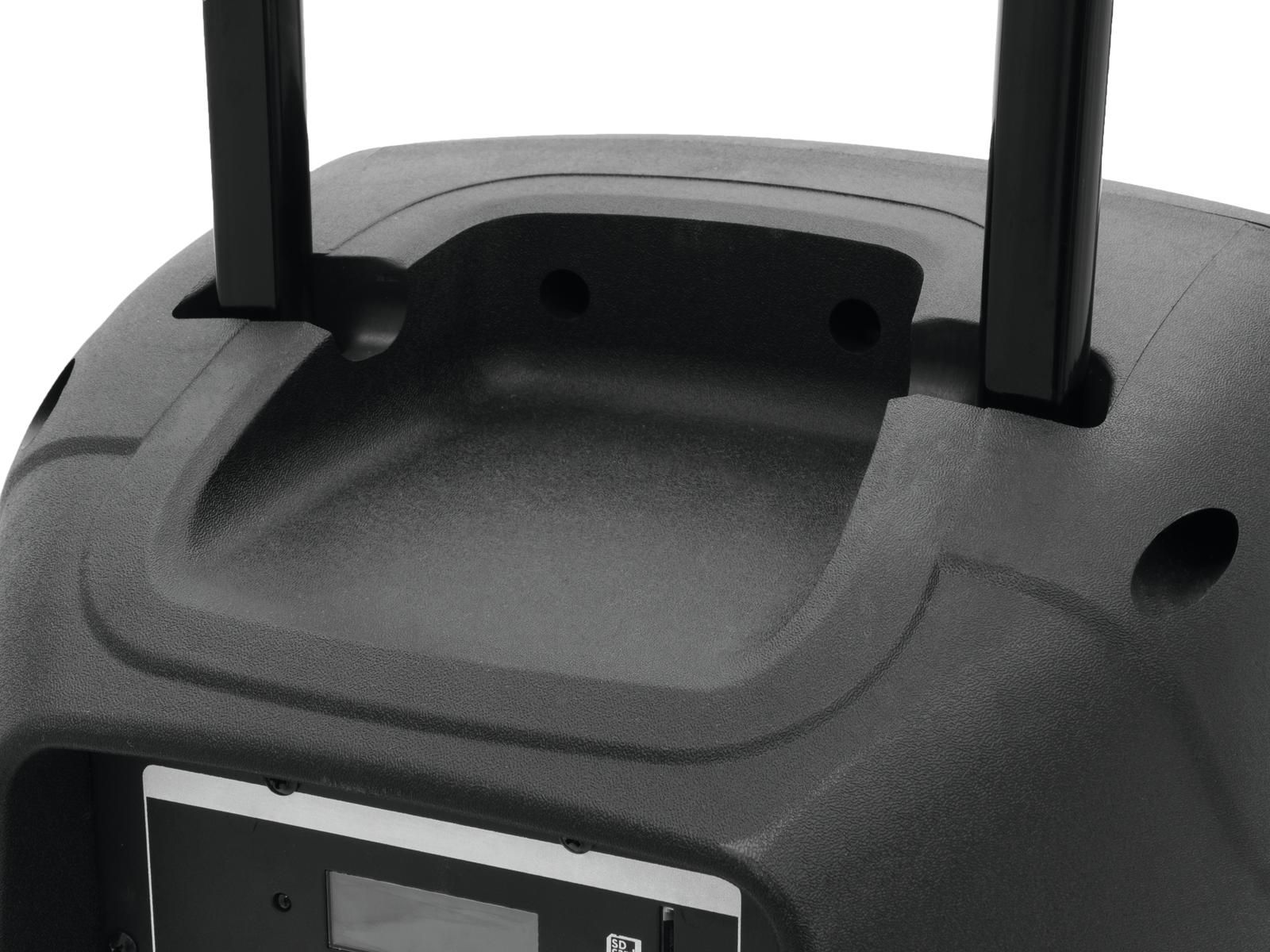

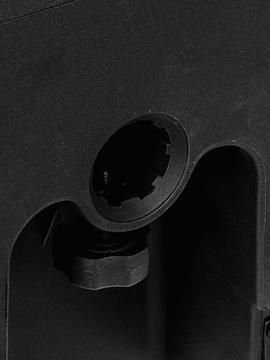

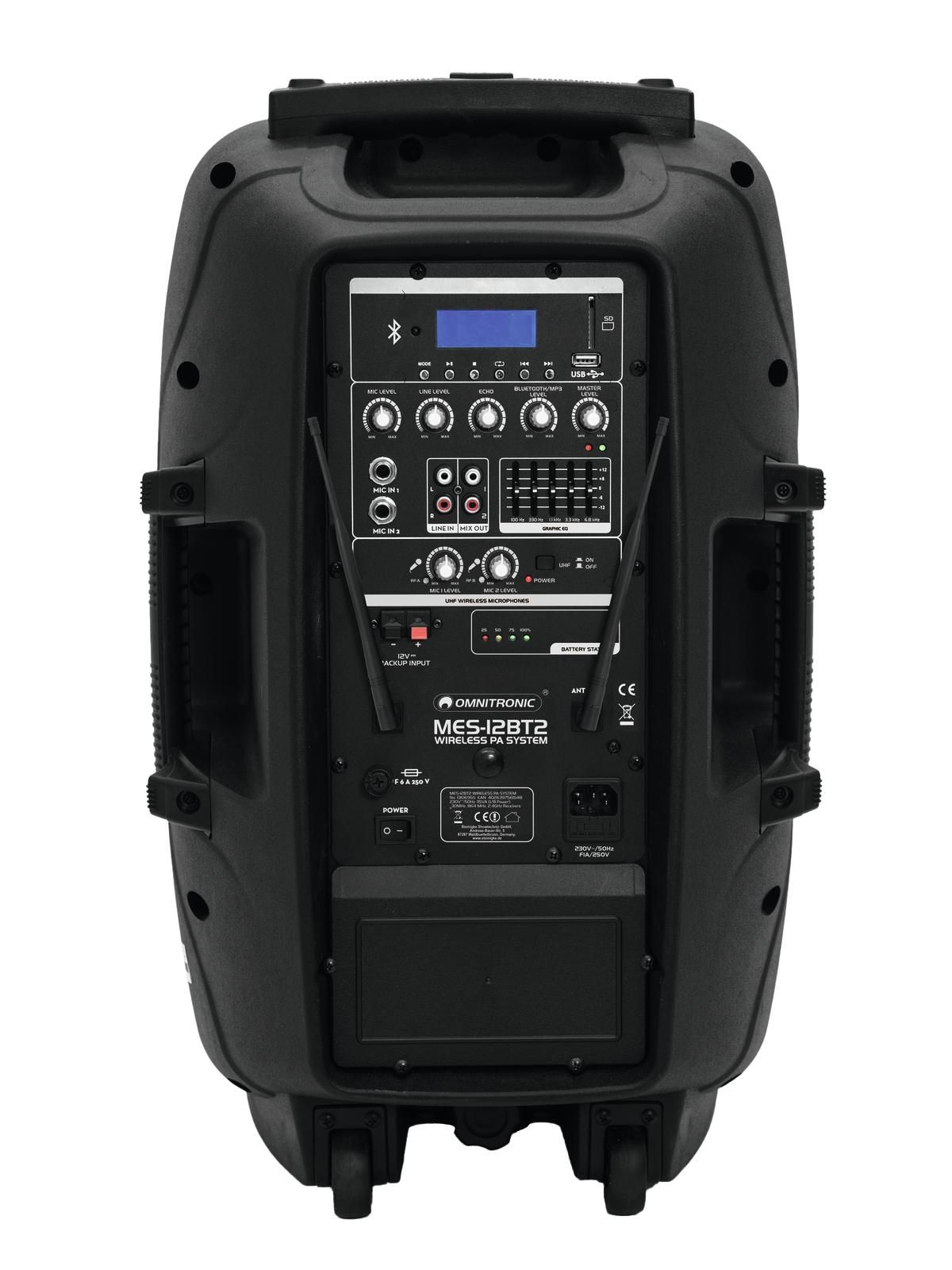

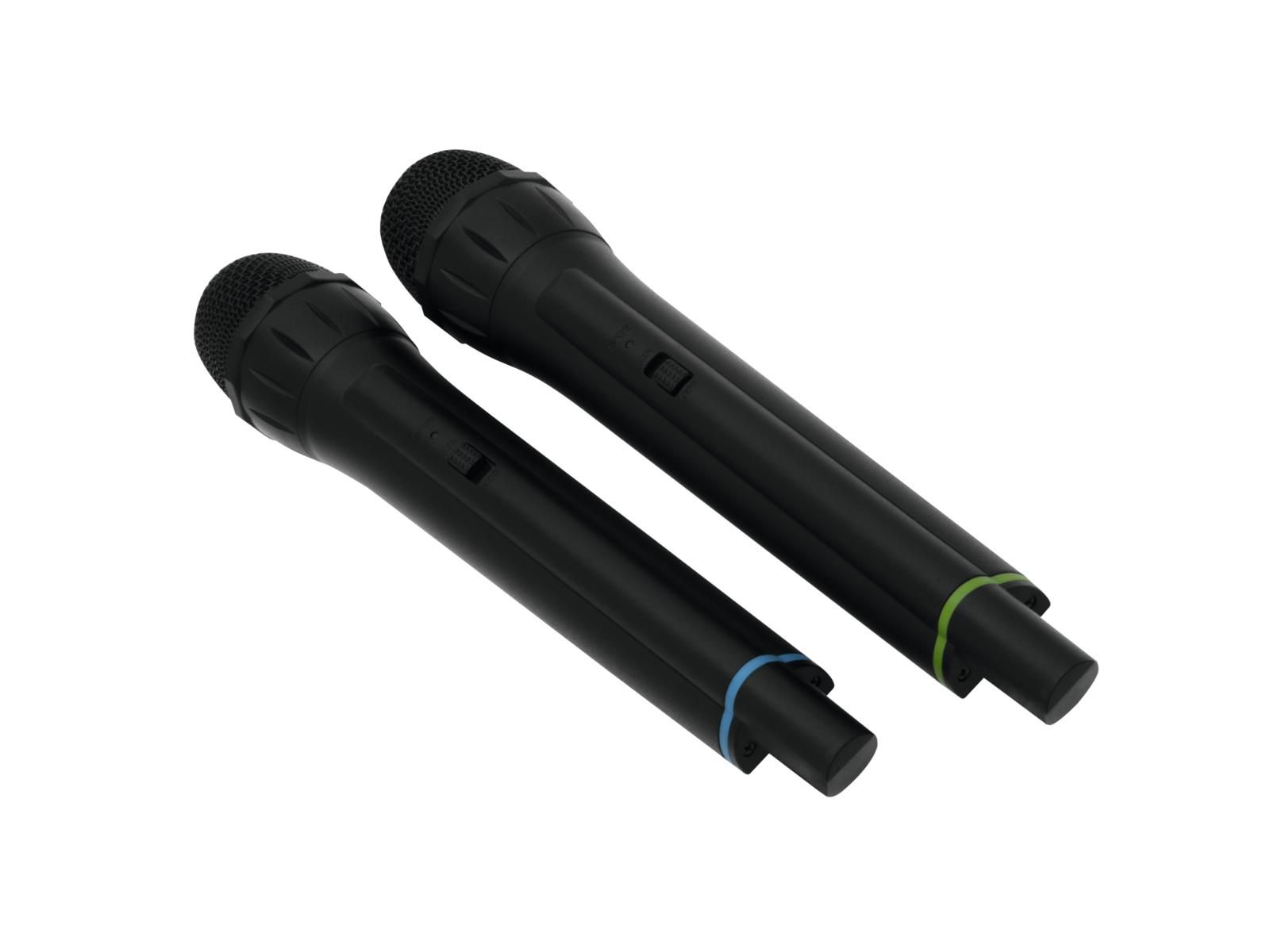

Portable PA system for mobile use Ideal for mains independent and wireless applications, e.g. at sales events, lectures and gyms 3-channel power mixer (45 W RMS) and 2-way speaker system with a 30 cm woofer (12") MP3 player with Bluetooth receiver, IR remote control and volume control SD card slot and USB input Enjoy music wirelessly from mobile Bluetooth devices such as smartphones, tablets and notebooks UHF receiver units and 2 matching wireless microphones Mains operation or battery operation for up to 4-5 hours of music playing Integrated automatic charging of the battery Lead acid battery optionally available (13106993) 2 mono microphone channels 1 stereo input channel for line signal sources e.g. CD players and notebooks Adjustable reverb effect for wireless microphones/microphone channels Graphic 5-band EQ, master volume control 2 master outputs (mono) Terminals for external 12V battery operation (e.g. car battery) Operation of the hand-held microphones via 2 x AA batteries (not included) Light-weight black plastic enclosure with metal grille, monitor shape Flange for speaker stand installation Two wheels and retractable pulling handle for trolley-like mobility License-free in large parts of the EU
Power supply: 230 V AC, 50 Hz or 12 V DC via rechargeable battery or external sourcePower consumption: 35 VA (1/8 power)Rec. battery (accessory): 12 V DC, 7 AhBattery operation: 4-5 hoursRecharging time: 10-11 hoursDimensions (L x W x H): 310 x 360 x 600 mmTotal weight: 11 kgAmplfier:Nominal power output: 45 W RMSMaximum power output: 90 WInputs:Mic, mono: 2 x 6.3 mm jack, bal.Line, stereo: RCA L/ROutput:Line, mono: 2 x RCASpeaker system:Components: 25 cm woofer (10"), 2.5 cm driver (1")Frequency range: 62 Hz - 18 kHzMax. SPL: 106 dB (1 m)Sensitivity: 90 dB (1 W, 1 m)Reception modules:Carrier frequency: 830 MHz, 864 MHzRange: approx. 30 mFrequency range: 70 Hz-16 kHzWireless microphones:Frequency stability: ± 0.005 %RF power output: 10 mWPolar pattern: omnidirectionalFrequency response: 70 Hz -16 kHzRange: approx. 30 mBattery: 2 x 1.5 V AABattery life: 13 hoursDimensions (DxL): 40 x 260 mmWeight: 250 gBluetooth:Carrier frequency: 2.4 GHzRange: approx. 10 mAudio player:Playback format: MP3, WMAStorage media: USB devices and SD(HC) cards up to 32 GBFile system: FAT32Shipping weight: 12.60 kg
