OMNITRONIC CMP-102 MK2 CD/MP3 Player
OMNITRONIC CMP-102 MK2 CD/MP3 Player
Features

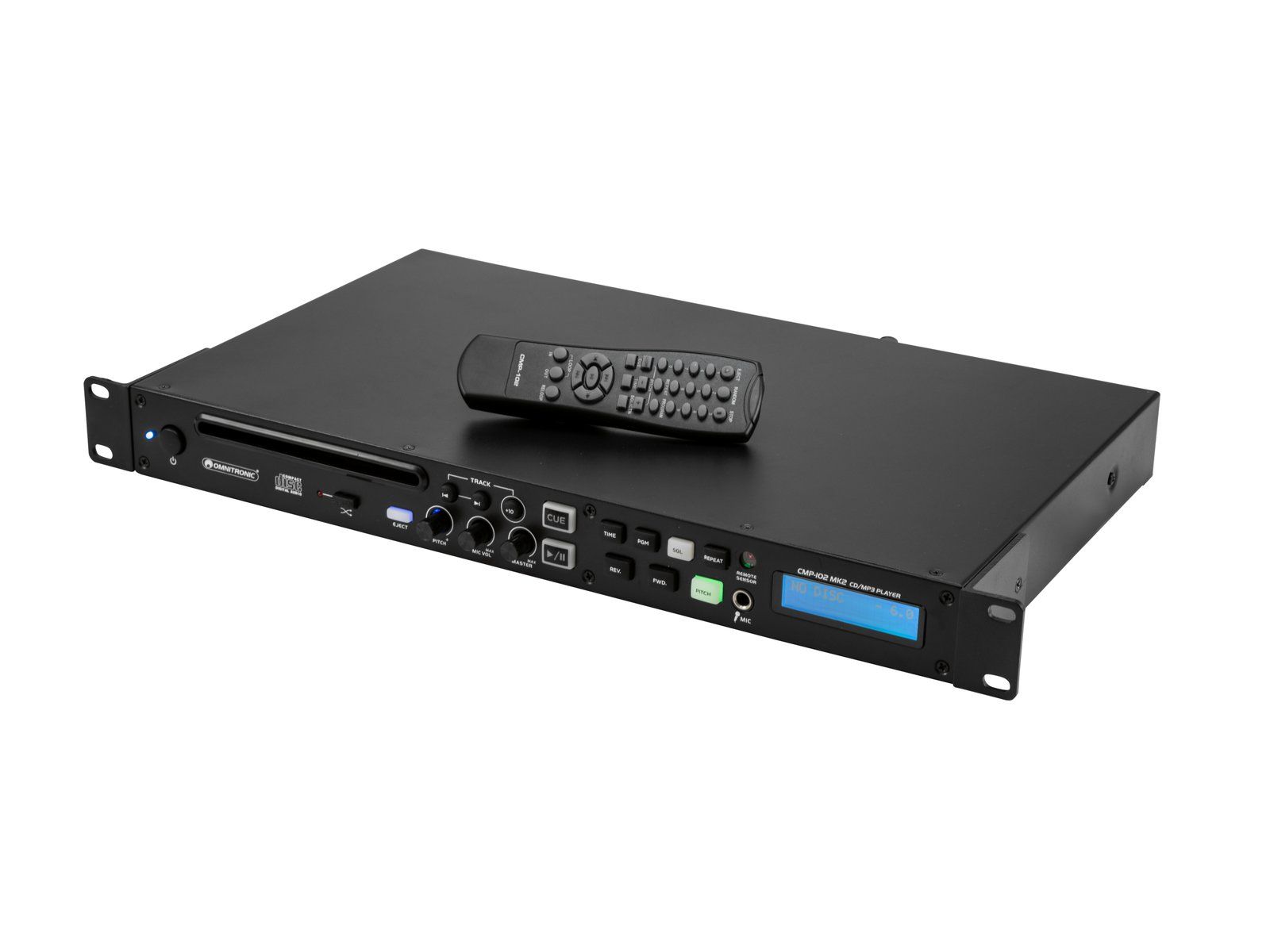

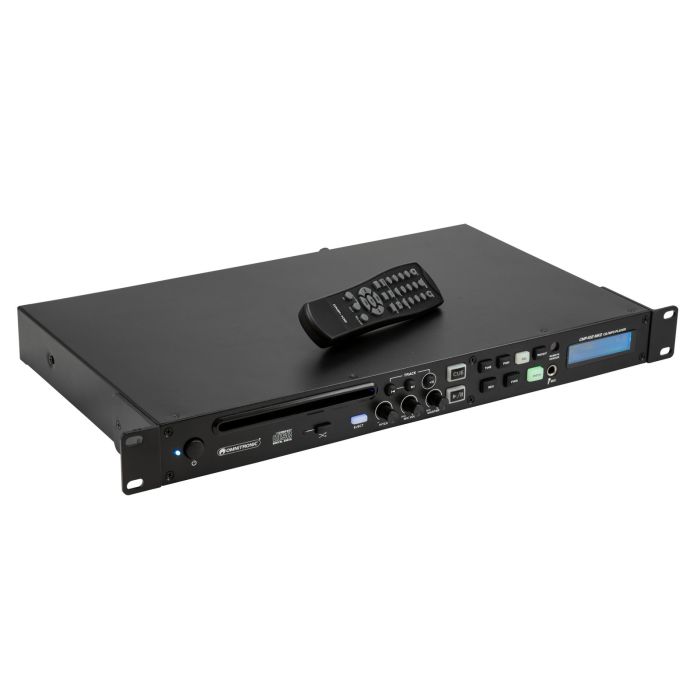

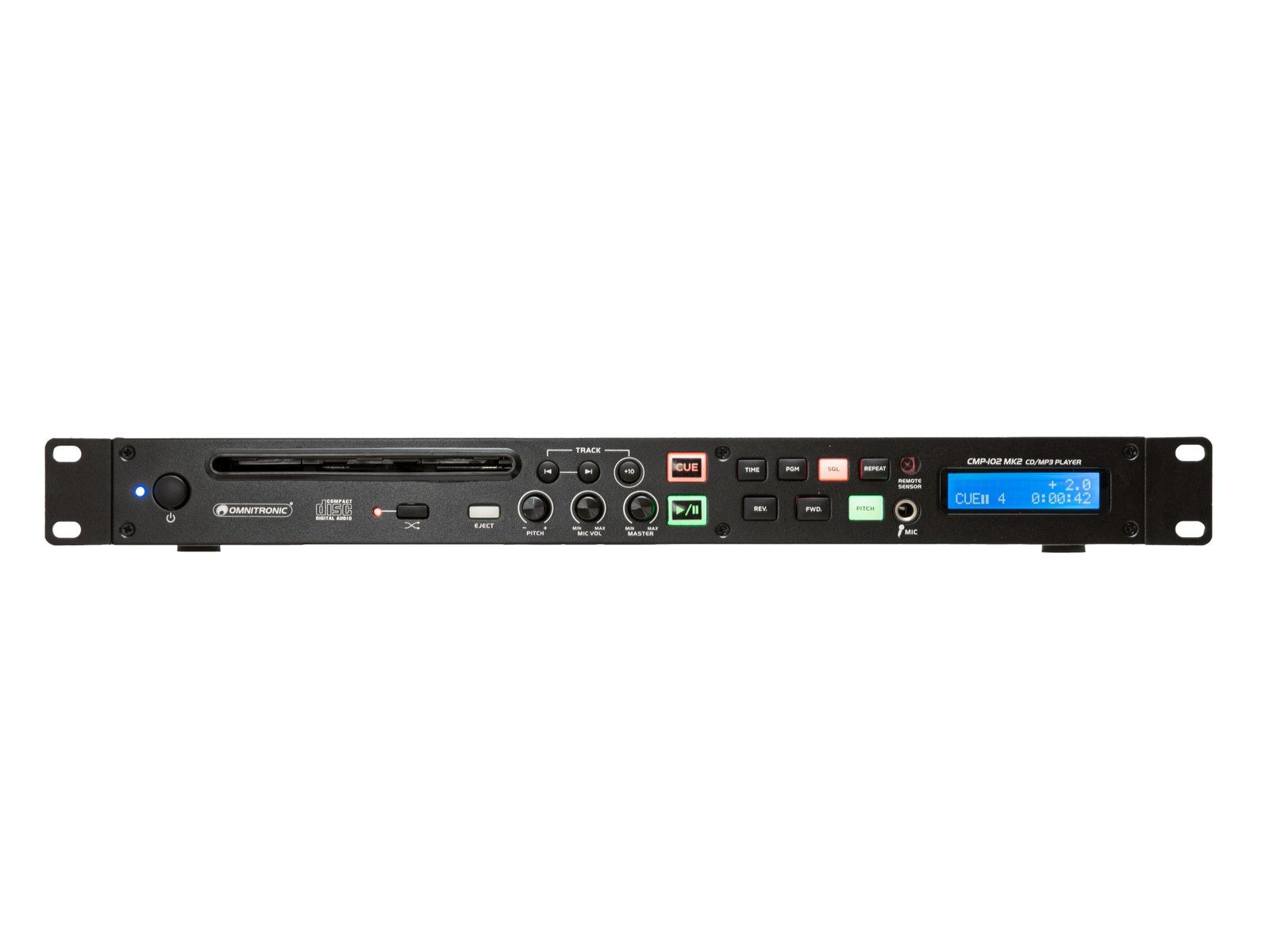

1U CD/MP3 player with XLR connectors and IR remote control
1 U flat CD player with IR remote control
For permanent installation e.g. in restaurants, fitness studios, retail locations
Audio CD/ CD-R/CD-RW/MP3 CD
Slot-in drive
40 seconds anti-shock protection
Adjustable microphone input (XLR and 6.3 mm jack)
Master output (XLR and RCA)
Recording output (RCA)
Pitch adjustment up to ±16 %
Cue function
Seamless loop/reloop function (via remote control
Single or continuous play
Random play
Repeat functions: repeat 1, repeat all
Title programming
Comfortable track selection with skip buttons and +10 button
Alphanumeric LCD with blue backlight
Indication of elapsed time, remain time (MP3 CD) or total remain time (audio CD)
Indication of artist and title name (MP3 CD)
Bargraph display (audio CD)
Pitch adjustment is displayed in %
Rack installation (1 U), rack brackets removable
Controlling by IR remote control
(19") 48.3 cm rack installation 1 U
Technical specifications
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 10 W
Power connection: Mains input C8 "figure 8" mounting version Power supply cord with Euro plug (provided)
Frequency range: 20 - 20000 Hz
S/N ratio: >80 dB
THD: <0,1 % at 1 kHz
Control: IR remote control
Audio player: CD player (ID3 tag) Anti-shock Seamless loop
Sample rate: 44,1 kHz
CD player drive: Slot in-Single CD drive
Display: MP3 ID3-Tags , play time remaining , play time elapsed; CD-DA play time remaining , play time elapsed , total play time remaining

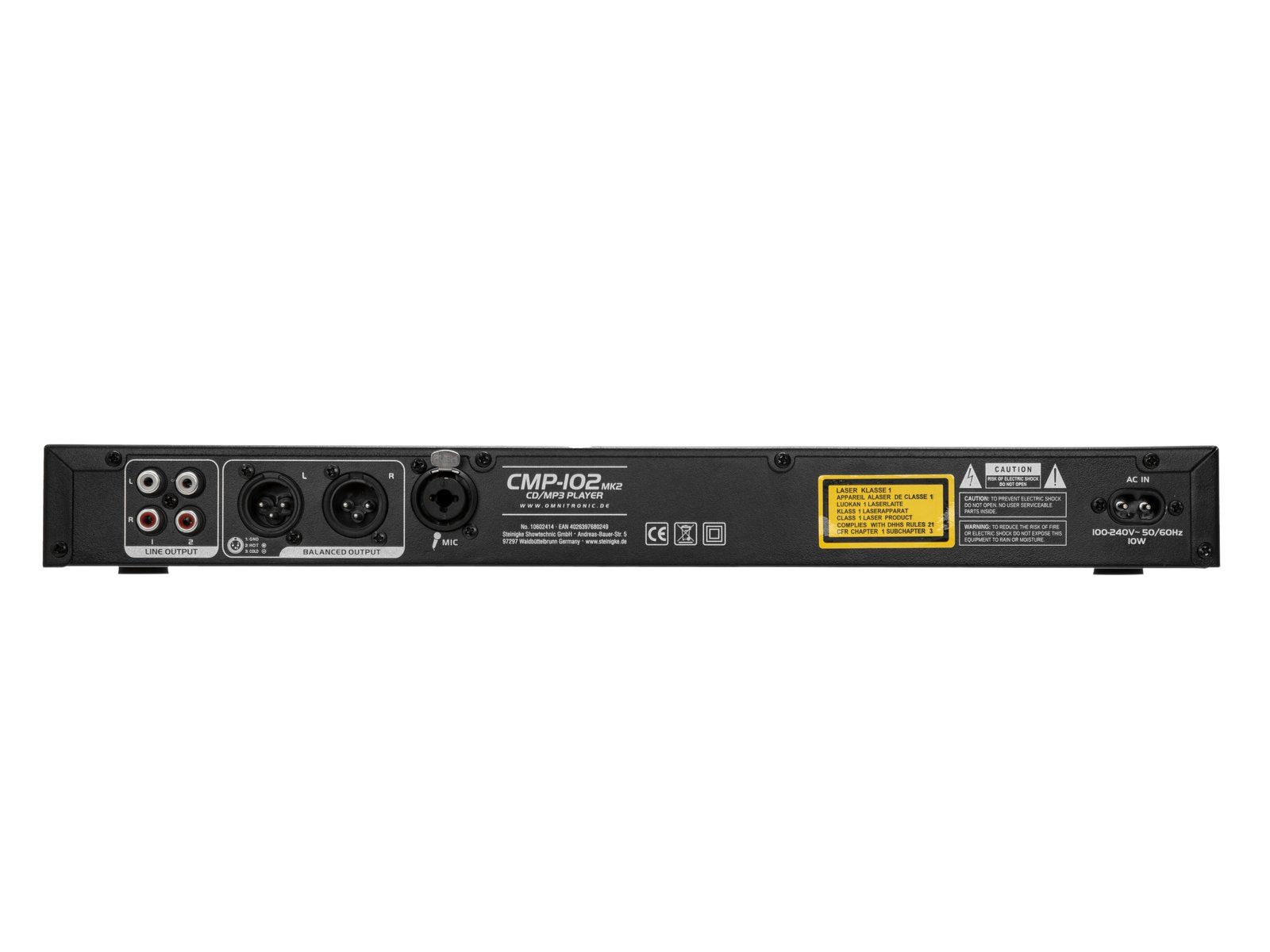

Connections: Output: 1 x line via 3-pin XLR
Output: 1 x line via stereo RCA
Output: 1 x rec. via stereo RCA
Input: 1 x Microphone via 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: 1 x Microphone via 6.3 mm plug (unbal.)
Format: CD, CD-R, CD-RW, CD-DA, MP3
Frame accuracy: 1/75 s
Pitch range: ±4%, ±8%, ±16%
Converter: 1 bit
Material: Metal
Color: Black
Housing design: (19") 48.3 cm rack installation 1 U
Dimensions: Width: 48,3 cm
Depth: 27 cm
Height: 4,45 cm
Weight: 3,14 kg
Remote control
