Monacor SPP-125 MIDDENTOON LUIDSPREKER
Aanbiedings prijs
€ 19,97
€ 16,50
normale prijs
€ 27,89
€ 23,05
?
Only 2 left
SKU
SPP-125 MIDDENTOON LUIDSPREKER
Monacor SPP-125 MIDDENTOON LUIDSPREKER
Monacor SPP-125 MIDDENTOON LUIDSPREKER

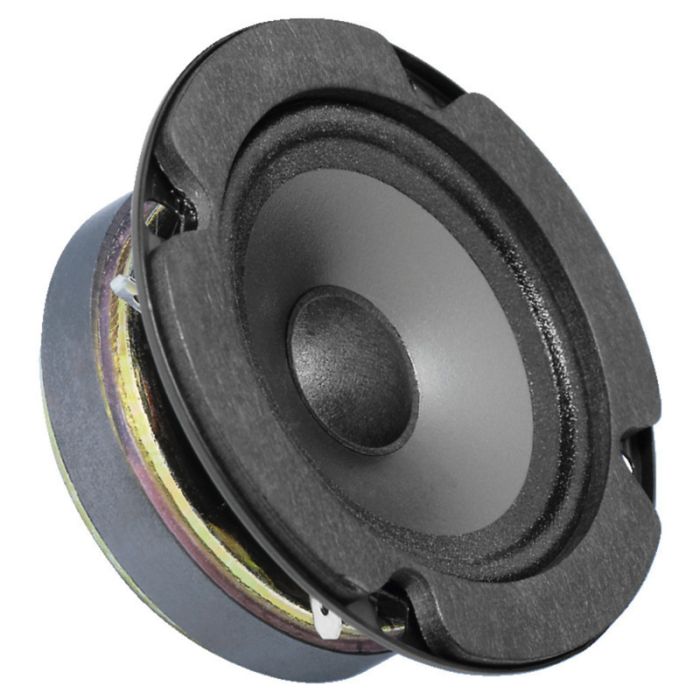

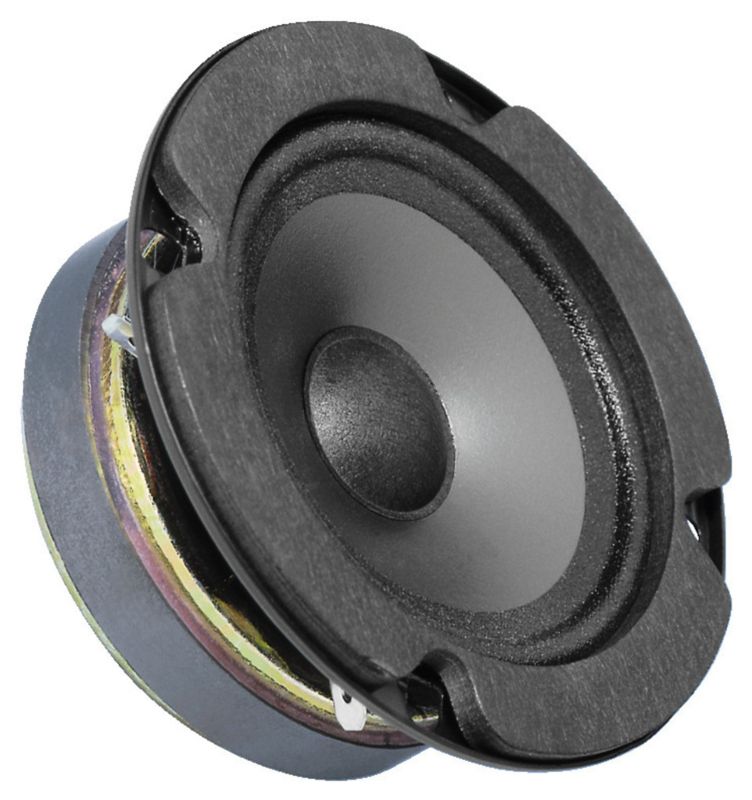

Midrange speaker, 22 W, 8 Ω
Closed basket, no further midrange cabinet required.
This series of speakers with polypropylene cone is very well-suited for replacing defective 8 Ω speakers in hi-fi speaker systems.
| TECHNISCHE GEGEVENS | |
| Impedance (Z) | 8 Ω |
| Transmission method | - |
| Frequency range | 800-8,000 Hz |
| Resonant frequency (fs) | 550 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | - |
| Power rating | 22 W |
| Peak music power output | 45 W |
| Sensitivity | 92 dB/W/m |
| Max. rated SPL | - |
| Max. voltage | - |
| Radiation angle, horizontal | - |
| Radiation angle, vertical | - |
| Suspension compl. (Cms) | - |
| Moving mass (Mms) | - |
| Mech. Q factor (Qms) | - |
| Electr. Q factor (Qes) | - |
| Total Q factor (Qts) | - |
| Equivalent volume (Vas) | - |
| DC resistance (Re) | 6.5 Ω |
| Force factor (BxL) | - |
| Voice coil induct. (Le) | 0.2 mH |
| Voice coil diameter | Ø 20 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | - |
| Eff. cone area (Sd) | 73 cm2 |
| Magnet weight | 150 g |
| Magnet diameter | Ø 70 mm |

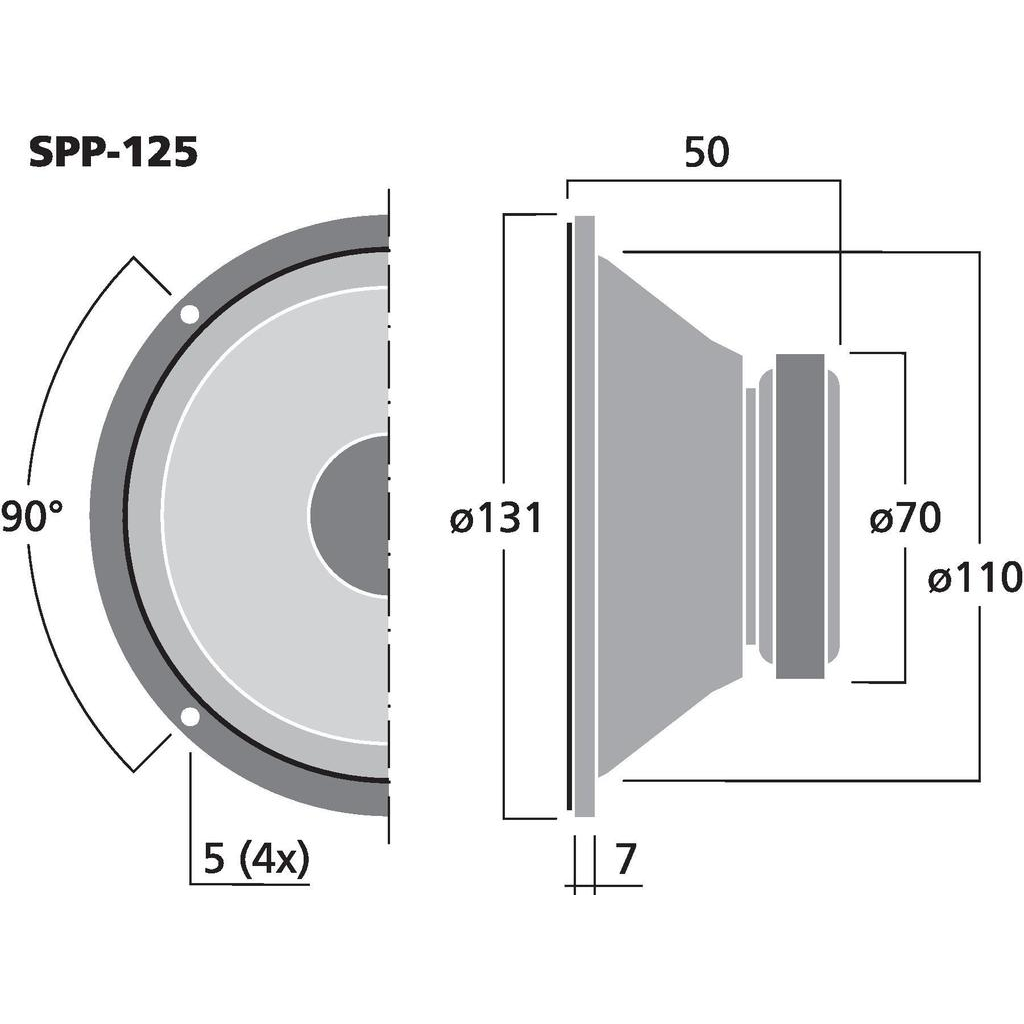

| Mounting cutout | Ø 110 mm |
| Mounting depth | 43 mm |
| Mounting hole diameter | Ø 122 mm |
| Hole spacing X-axis | 86 mm |
| Hole spacing Y-axis | 86 mm |
| Dimensions | Ø 131 mm x 50 mm |
| Outside diameter | Ø 131 mm |
| Width | Ø 131 mm |
| Height | - |
| Depth | 50 mm |
| Protective class | - |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.472 kg |
| Packing unit | 1 |
| Type of speaker | 5" |
