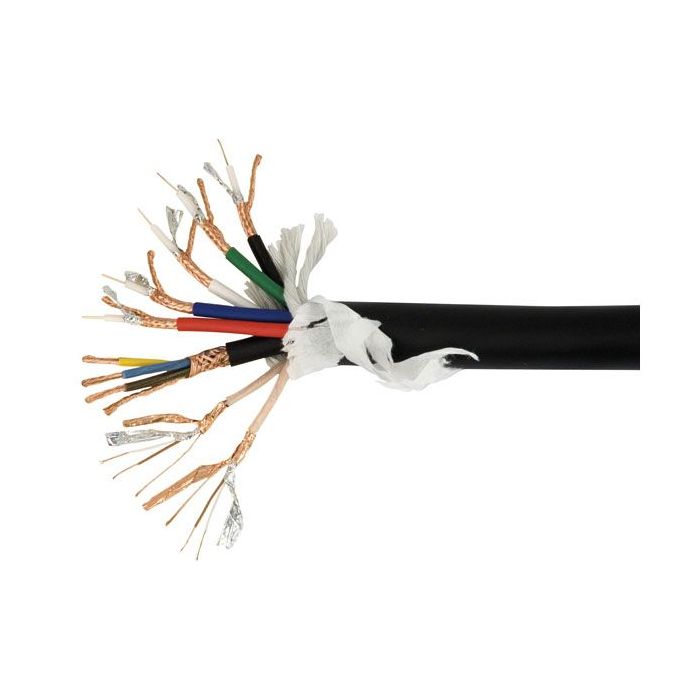

Media-Flex 523 Power+2xAudio+5xCoax. prijs per meter

Technical Info Price per meter Video cable (5x) Conductor drains: OFC 0,58 Conductor insulation: PE Conductor insulation mm: 3,71 Conductor resistance: 65 Ohm/Km Outer insulation: PVC 4,2 mm Impedance: 75 Ohm Attenuation: 10MHz 0,02270 90MHz 0,18650 100MHz 0,19060 220MHz 0,30640 470MHz 0,76580 770MHz 0,96420 1000MHz 1,6122 Audio cable (2x) Conductor drains: OFC 20x 0,10 Conductor insulation: PE red + white Conductor insulation: 1,3mm Filler material: paper 1st shield twisted copper NF 96x0,10 Outer isolation: Black Conductor resistance: 80 Ohm /Km Shield resistance: 30 Ohm /Km Capacity inner conductor: 60pF/m Capacity inner cond. shield/inner cond.: 78pF/m Impedance: 110 Ohm Power cable Conductor drains: 3x1,5mm2 Conductor insulation: PVC Black Working Temperature: -20 - +50 degree Voltage overflash: 30V
