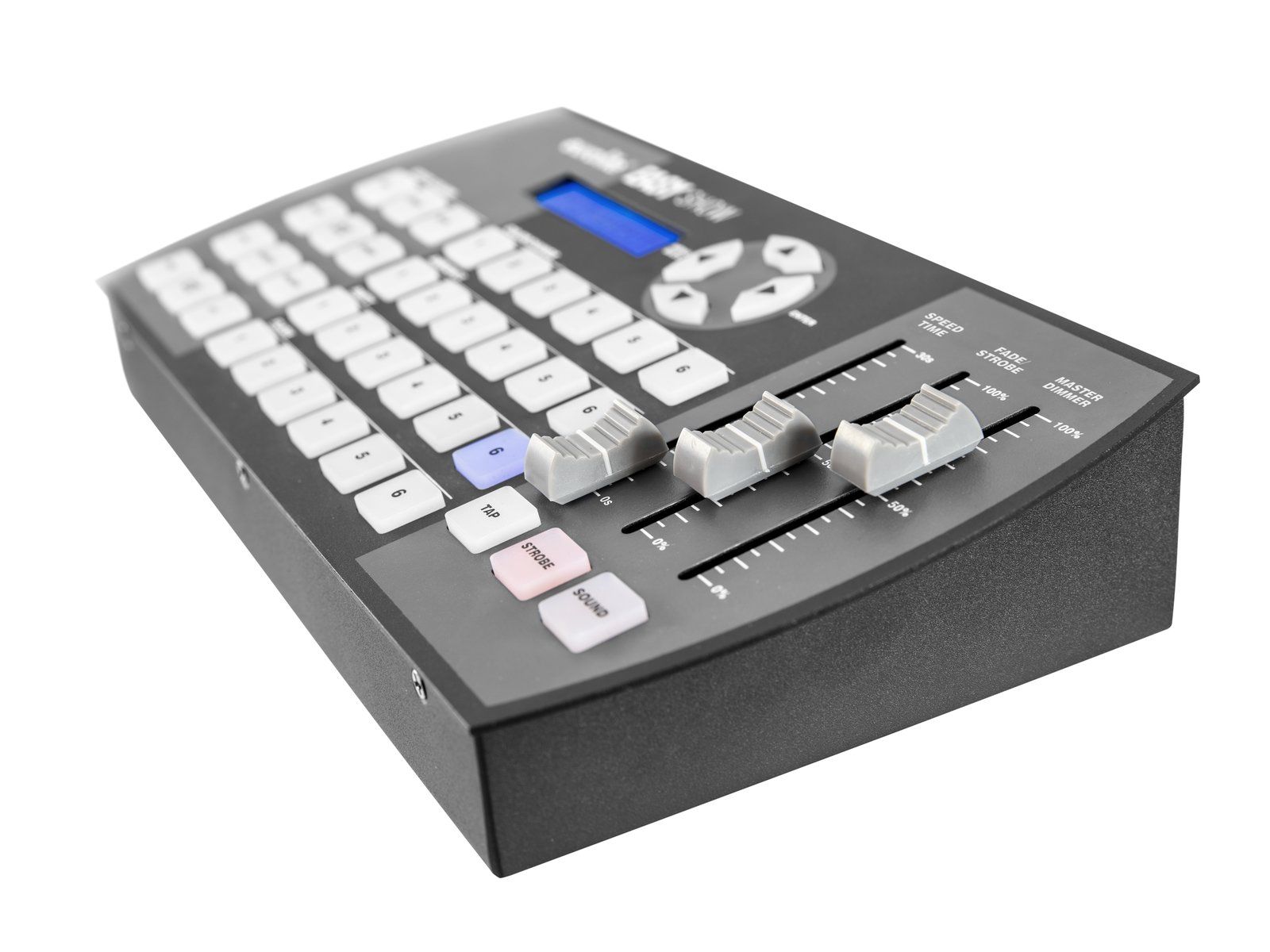

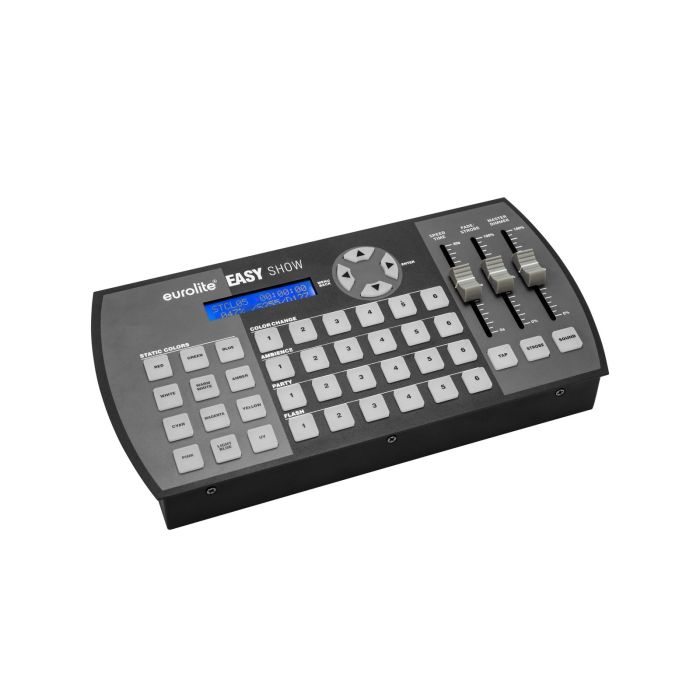

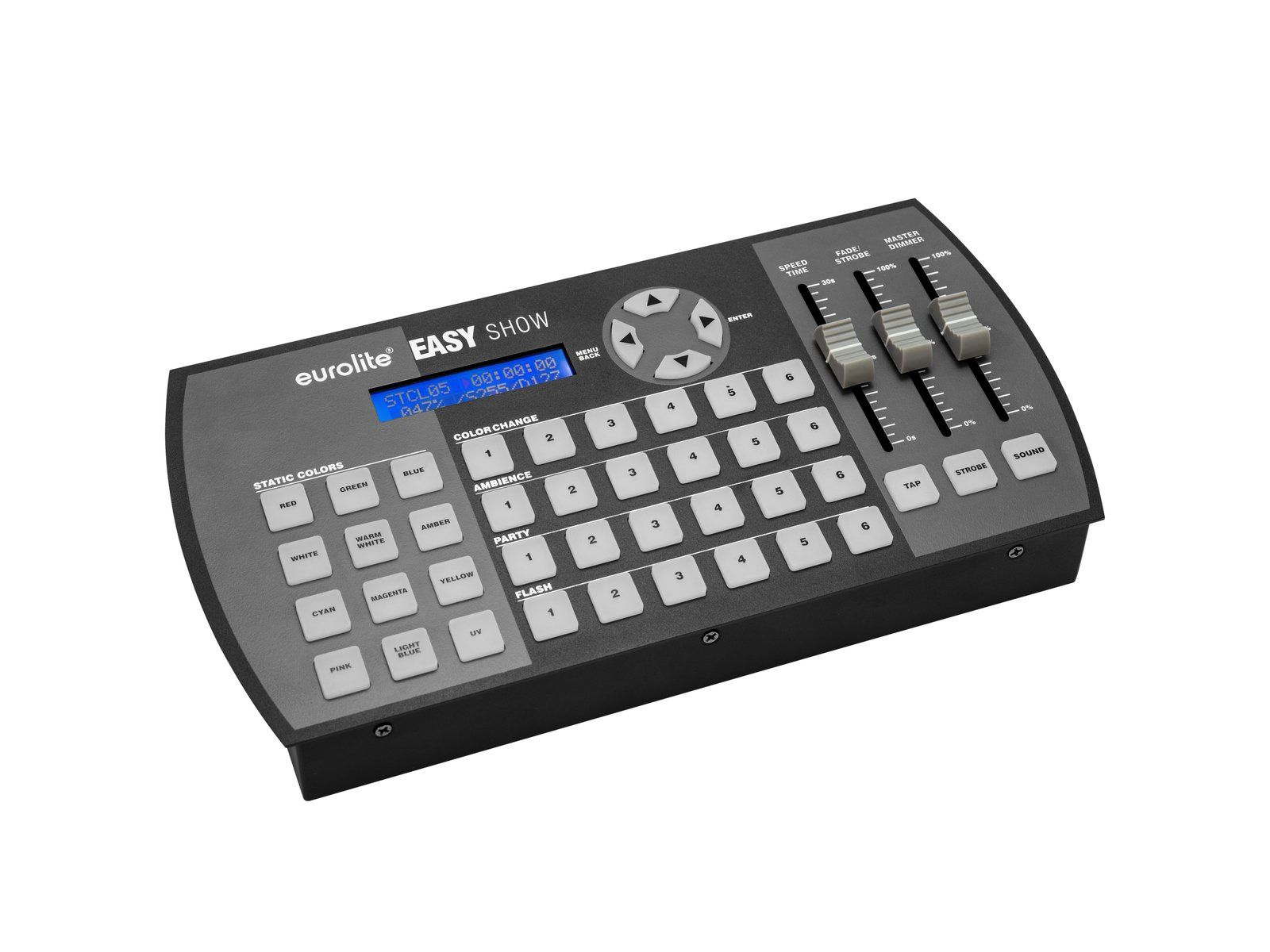

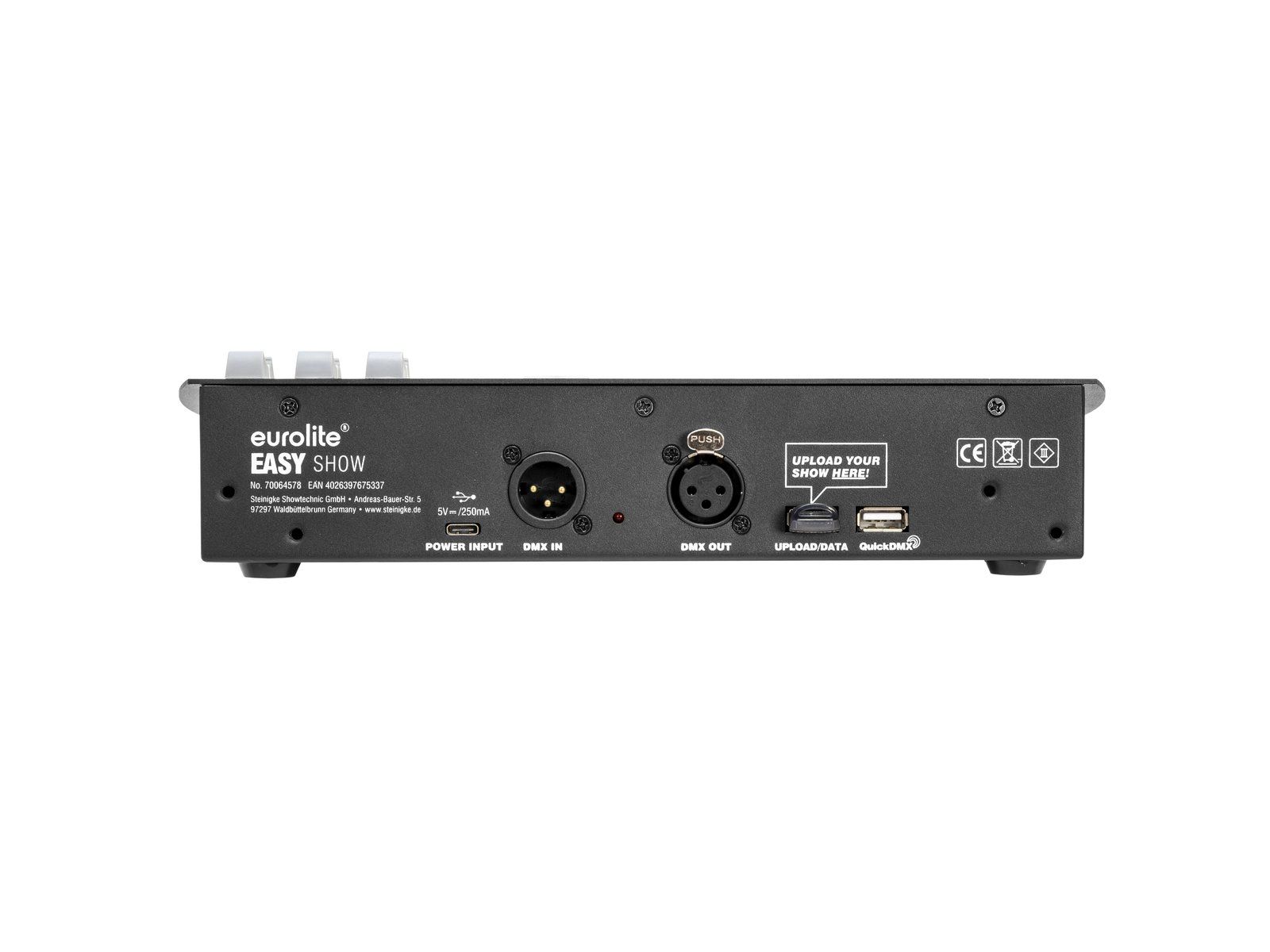

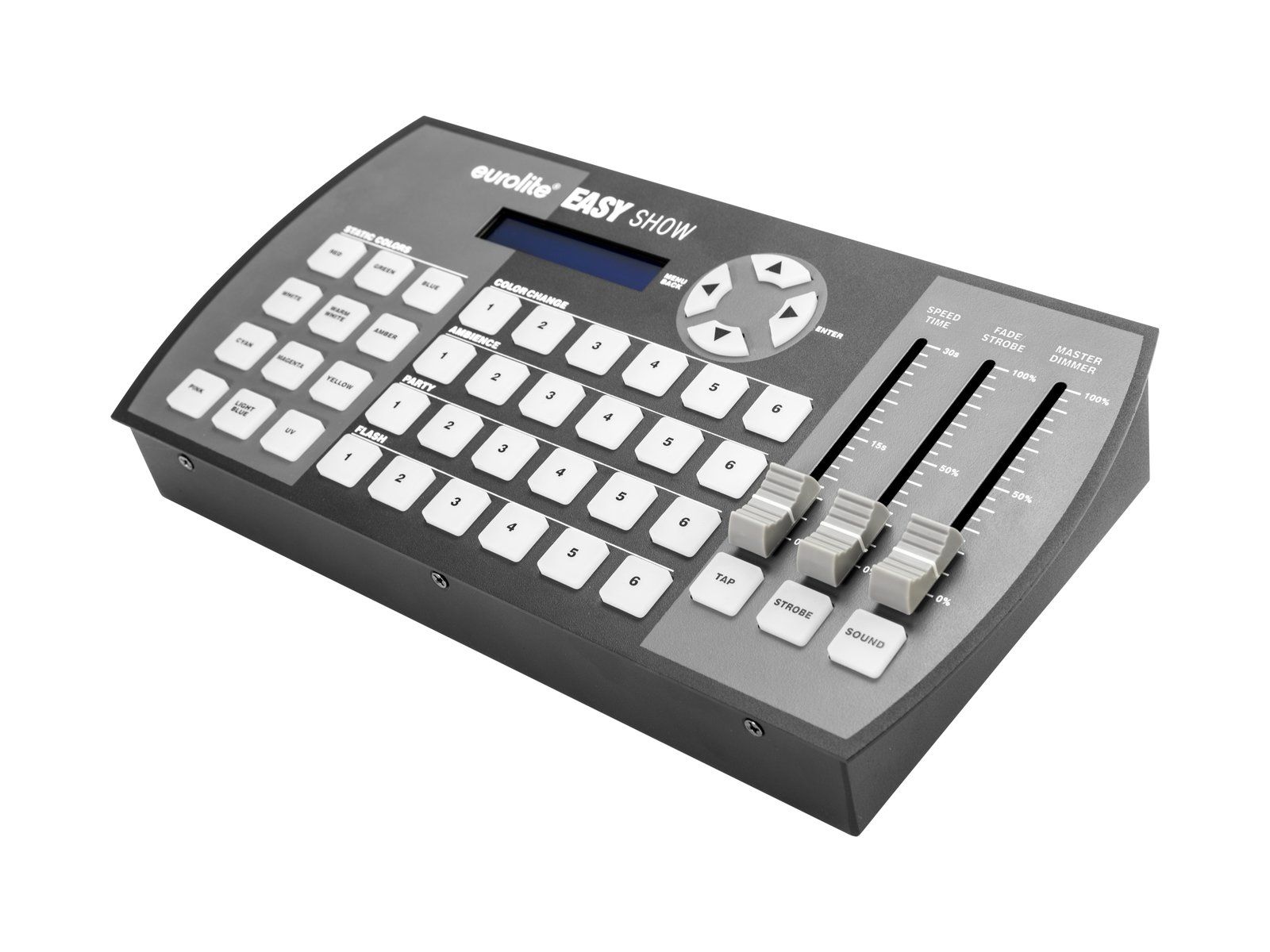

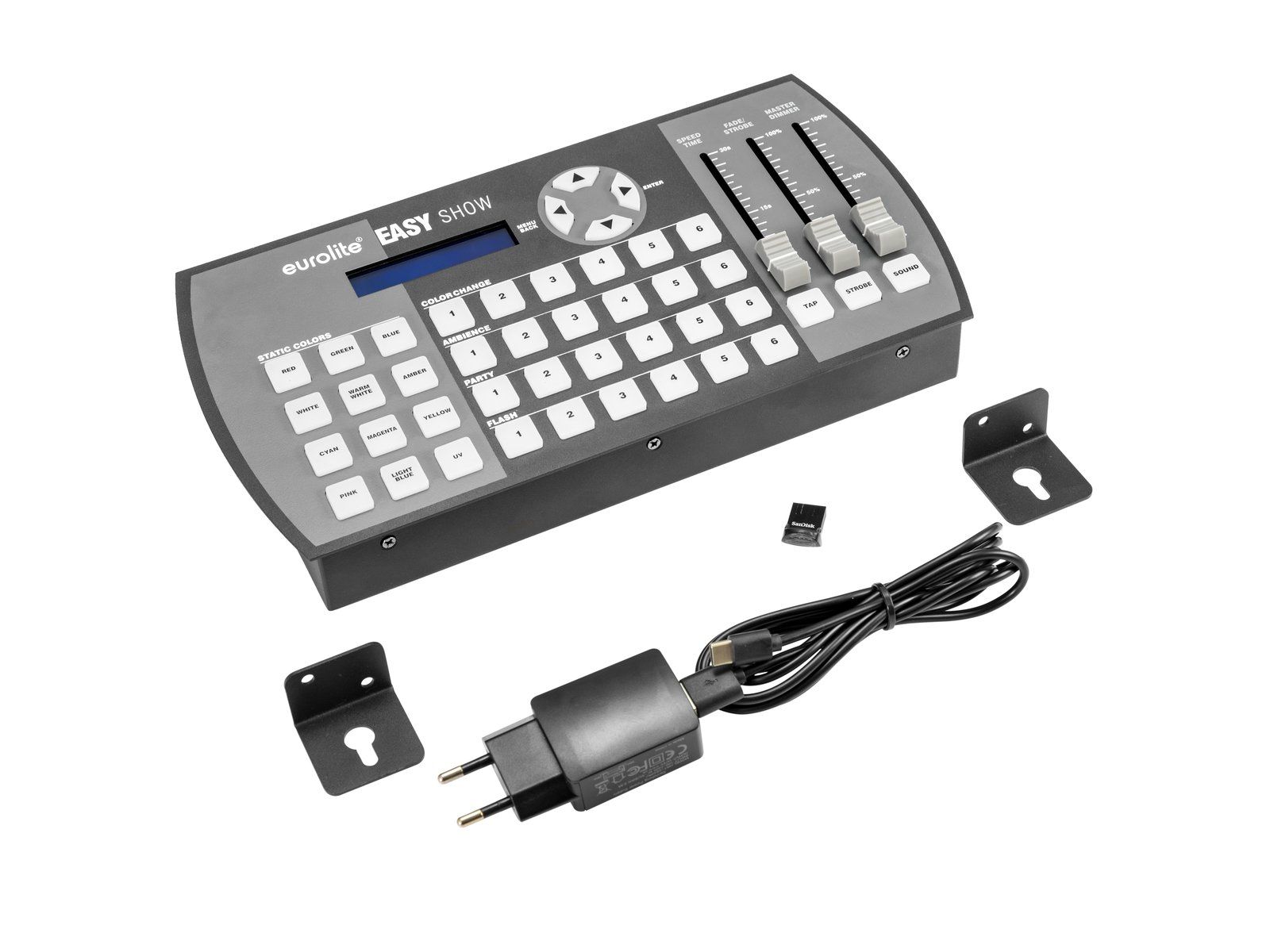

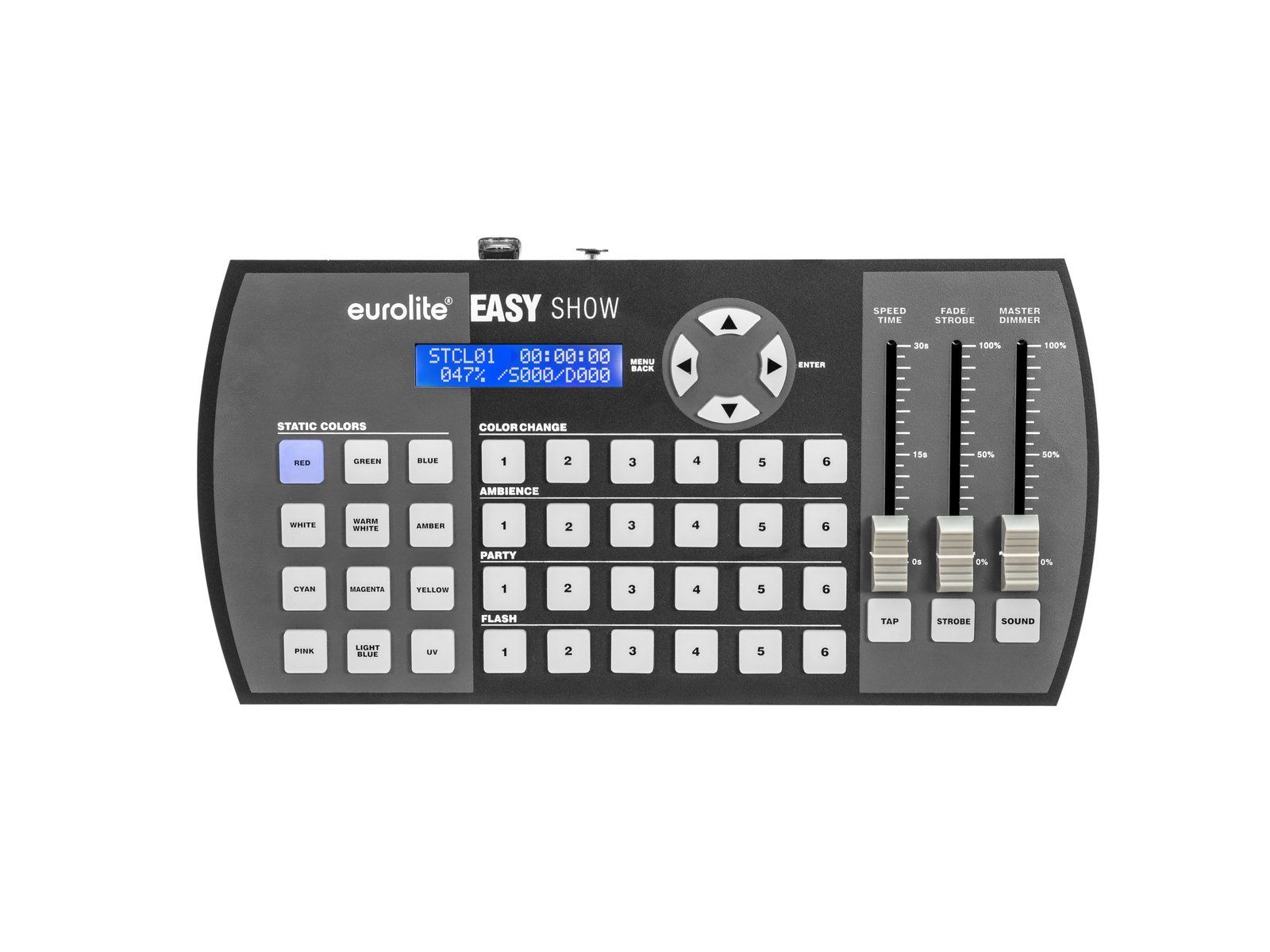

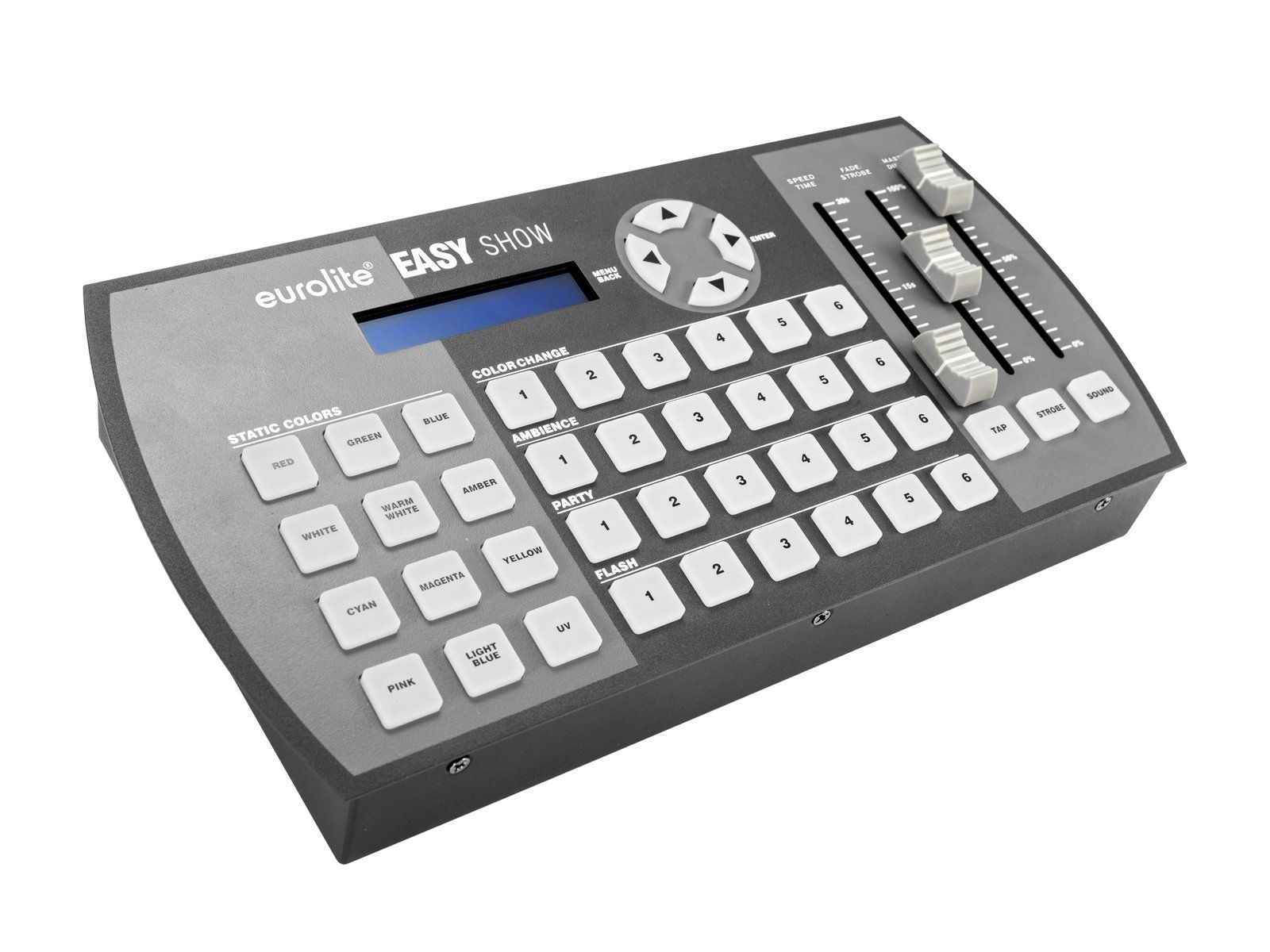

EUROLITE EASY Show Programmed DMX controller

Deze controller is speciaal gemaakt voor eurlite producten zie lijst

KLS systems
Address KLS systems according to the following table. To control several systems synchronously, they must be
assigned the same start address and the same mode.
Fixture Item no. Mode Start address
KLS 200 42109700 1
KLS 400 42109780 1
KLS 401 42109781 1
KLS 800 42109850 1
KLS 801 42109851 1
KLS 1001 42109875 1
KLS 30 42109603 16 channels 16
KLS 902 Next 42109860 16 channels 16
KLS 120 42109606 16 channels 16
KLS 2001 42109890 23 channels 33
KLS 2500 42109892 23 channels 33
KLS 3002 Next 42109895 24 channels 56
KLS PARty 42110197 20 channels 80
KLS 170 42109620 16 channels 100
KLS 180 42109630 21channels 116
KLS 190 42109608 13 channels 137
KLS Laser Bar 51741090 27 channels 150
KLS Laser Bar Pro 51741091 28 channels 150
RGB spotlights (3in1)
Basically all RGB spotlights with 3 control channels can be used (channel 1: red, channel 2: green, channel 3:
blue). There are 4 start addresses provided for these fixtures. If you operate a single spotlight, use the first start
address, i.e. 4. If you operate two spotlights, use the first two start addresses and so on. If you operate more than
four spotlights, start again from the beginning with the fifth device, i.e. with 4.
Type Mode Start address
RGB spotlight 3 channels
4
7
10
13
Compatible Eurolite RGB fixtures include:
Fixture Item no. Fixture Item no.
SLS 6 TCL 51915361 ML-56 COB RGB 100W bl 41607301
CBB 2 COB RGB 51930274 ML-56 COB RGB 100w sil 41607321
Par-30 COB RGB bl 41607200 Pro Slim Par-6 COB RGB 51842564
Par-30 COB RGB sil 41607225 IP Pad COB RGB 25W 51914155
Par 56 COB RGB 25W bl 41607215 Par-56 COB RGB 60W bl 41607210
Par 56 COB RGB 25W sil 41607240 Par-56 COB RGB 60W sil 41607235
CBB-4 RGB 51930278 CBB-6 RGB 51930279
IP-T1000 TCL 51914123 IP Pad COB RGB 60W 51914165
PML-80 COB RGB 41602595 PMB 8 COB RGB 30W 51930286
Pro Slim Par-12 MK2 51842562 IP Pad COB RGB 180W 51914167
IP Par 12x3W TCL 51914175 SLS-180 RGB 18x1W 51915375
Par 56 COB RGB 100W bl 41607220 Par-65 RGB 10mm Short 51913582
Par 56 COB RGB 100W sil 41607245
 23 • EN
RGBW spotlights (4in1)
Basically all RGBW spotlights with 4 control channels can be used (channel 1: red, channel 2: green, channel 3:
blue, channel 4: white). There are 4 start addresses provided for these fixtures. If you operate a single spotlight,
use the first start address, i.e. 16. If you operate two spotlights, use the first two start addresses and so on. If you
operate more than four spotlights, start again from the beginning with the fifth device, i.e. with 16.
Type Mode Start address
RGBW spotlight 4 channels
16
20
24
28
Compatible Eurolite RGBW fixtures include:
Fixture Item no. Fixture Item no.
Par-56 QCL Short sil 51913592 IP Pad 4x8W QCL 51914156
Par-56 QCL Short bl 51913593 IP Par 14x8W QCL 51914178
Bar-12 QCL RGBW 51930398 CLS-9 QCL RGBW 9x8W 51913888
LED 4c-7 Silent Slim Spot 51915315 Par 64 COB RGBW 120W 41603605
Par-64 QCL 12x8W Flo bl 51914030 CLS-18 QCL RGBW 18x8W 51913889
Par-64 QCL 12x8W Flo sil 51914031 Stage Pixel Bar 5 51841359
4c-12 Silent Slim Spot 51915316 IP Tourlight 120 QCL 51914250
Akku Flat Light 1 sil 41700001 THA-120 PC 41602130
Akku Flat Light 1 bl 41700011 IP Pad 24x8W QCL 51914160
Akku Flat Light 3 sil 41700015 Multiflood Pro IP RGBW 51914136
Akku Flat Light 3 bl 41700016 SLS-144 RGBW Floor 51915280
Pix-12 QCL 51930426 Akku IP Flat Light 1 cr 41700050
RGB+UV spotlights (4in1)
Basically all RGB+UV spotlights with 4 control channels can be used (channel 1: red, channel 2: green, channel
3: blue, channel 4: UV). There are 2 start addresses provided for these fixtures. Use 486 for the first fixture and 490
for the second. If you operate more than two spotlights, use the two start addresses alternately.
Type Mode Start address
RGB+UV spotlight 4 channels 486
490
Compatible Eurolite RGB+UV fixtures include:
Fixture Item no. Fixture Item no.
SLS 603 TCL6UV 51915358 TL-4 QCL RGB&UV 51915448
TL-3 RGB&UV Trusslight 51915445 Bar-12 QCL RGB&UV 51930393
LED Bar-6 QCL RGB&UV 51930394
 24 • EN
RGBAW spotlights (5in1)
Basically all RGBAW spotlights with 5 control channels can be used (channel 1: red, channel 2: green, channel 3:
blue, channel 4: amber, channel 5: white). There are 4 start addresses provided for these fixtures. If you operate a
single spotlight, use the first start address, i.e. 36. If you operate two spotlights, use the first two start addresses
and so on. If you operate more than four spotlights, start again from the beginning with the fifth device, i.e. with 36.
Type Mode Start address
RGBAW spotlight 5 channels
36
41
46
51
Compatible Eurolite RGBAW fixtures include:
Fixture Item no.
ML-56 COB RGBAW 100W 41607331
ML-56 COB RGBAW 100W 41607310
RGBWA+UV spotlights (6in1)
Basically all RGBWA+UV spotlights with 6 control channels can be used (channel 1: red, channel 2: green,
channel 3: blue, channel 4: white, channel 5: amber, channel 6: UV). There are 4 start addresses provided for
these fixtures. If you operate a single spotlight, use the first start address, i.e. 56. If you operate two spotlights, use
the first two start addresses and so on. If you operate more than four spotlights, start again from the beginning
with the fifth device, i.e. with 56.
Type Mode Start address
RGBWA+UV spotlight 6 channels
56
62
68
74
Compatible Eurolite RGBWA+UV fixtures include:
Fixture Item no. Fixture Item no.
LED Bar-3 HCL 51930395 ML-56 HCL 12x10W Floor 51913678
SLS-7 HCL Floor 51915379 PIX-12 HCL 51930406
Par-56 HCL Short sil 51913590 Stage Panel 16 HCL LED 51913891
Par-56 HCL short bl 51913591 IP Par 12x12W HCL 51914187
IP Par 3x12W HCL 51914188 IP T-1000 HCL 51914121
SLS 12-HCL MK2 51915381 IP Pad 9x8w HCL 51914159
PIX-6 HCL 51930401 POS-8 LED HCL 51841367
Pro Slim Par-12 MK2 HCL 51842561 Stage Panel 32 HCL LED 51913893
 25 • EN
RGB/CW/WW/A/UV spotlights (7in1)
Basically all RGB/CW/WW/A/UV spotlights with 7 control channels can be used (channel 1: red, channel 2: green,
channel 3: blue, channel 4: cold white, channel 5: warm white, channel 6: amber, channel 7: UV). There are 2 start
addresses provided for these fixtures. Use 178 for the first fixture and 185 for the second. If you operate more than
two spotlights, use the two start addresses alternately.
Type Mode Start address
RGB/CW/WW/A/UV
spotlight 7 channels 178
185
Compatible Eurolite RGB/CW/WW/A/UV fixtures include:
Fixture Item no. Fixture Item no.
LED IP Par 12x9W SCL 51914233 LED 7C-7 Silent Slim 51915320
LED IP Par 7x9W SCL 51914232 LED 7C-12 Silent Slim 51915321
LED IP Par 3x9W SCL 51914235
Lighting effects
Address these Eurolite fixtures according to the following table. To control several systems synchronously, they
must have the same start address and the same mode.
Compatible Eurolite fixtures include:
Fixture Item no. Mode Start address
LED B 40 HCL 51918951 11 channels 192
LED B40 Laser 51741087 10 channels 203
LED B40 Laser white 51741088 10 channels 203
LED BR 60 51918320 7 channels 213
LED D-2000 51918317 5 channels 220
LED FE 2500 Hypno 51741084 16 channels 225
LED FE 1750 51741083 13 channels 241
LED Laser Derby 51741086 13 channels 254
LED WF-30 51918545 9 channels 267
LED WF-40 51918544 9 channels 276
LED FE-700 51918616 10 channels 285
LED Z-1000 51918221 10 channels 295
LED Mini D-20 Hybrid 51918202 4 channels 305
LED Gobo Derby 51918330 8 channels 309
LED Super Strobe ABL 52200920 22 channels 464
LED CBT-6 51930281 21 channels 433
 26 • EN
Moving heads
Address these Eurolite fixtures according to the following table. Use the same start address when using multiple
devices of the same type.
Tip
The fixtures should be set up with the display facing the direction in which the light is emitted. For a good effect,
use an even number of moving heads and invert pan and tilt with every second device. Make this adjustment
directly on the fixtures. The fixtures will then work in opposite directions, creating a very nice image.
Compatible Eurolite moving heads include:
Fixture Item no. Mode Start address
TMH 75 Hybrid 51785982 21 channels 317
TMH 75 Hybrid white 51786090 21 channels 317
LED TMH 60 51785984 11 channels 338
LED TMH 60 MK2 51785983 11 channels 338
LED TMH 30 51785980 11 channels 338
LED TMH 30 MK2 51785981 11 channels 338
LED TMH 17 51786065 9 channels 349
LED TMH 13 51785972 9 channels 349
LED TMH 46 51785892 16 channels 358
LED TMH W36 51785880 15 channels 374
LED TMH W63 51785880 15 channels 374
LED TMH X4 51785915 16 channels 399
LED TMH S30 51786070 10 channels 389
LED TMH S90 51786075 15 channels 494
Scanners
Scanners of the same type also use the same start address. Pan should be inverted at every second device so
that the horizontal axis works in opposite direction or the pan and tilt axis if both axes should run in opposite
direction.
Compatible Eurolite scanners include:
Fixture Item no. Mode Start address
LED TSL 150 51786119 9 channels 415
LED TSL 200 51786123 9 channels 424
