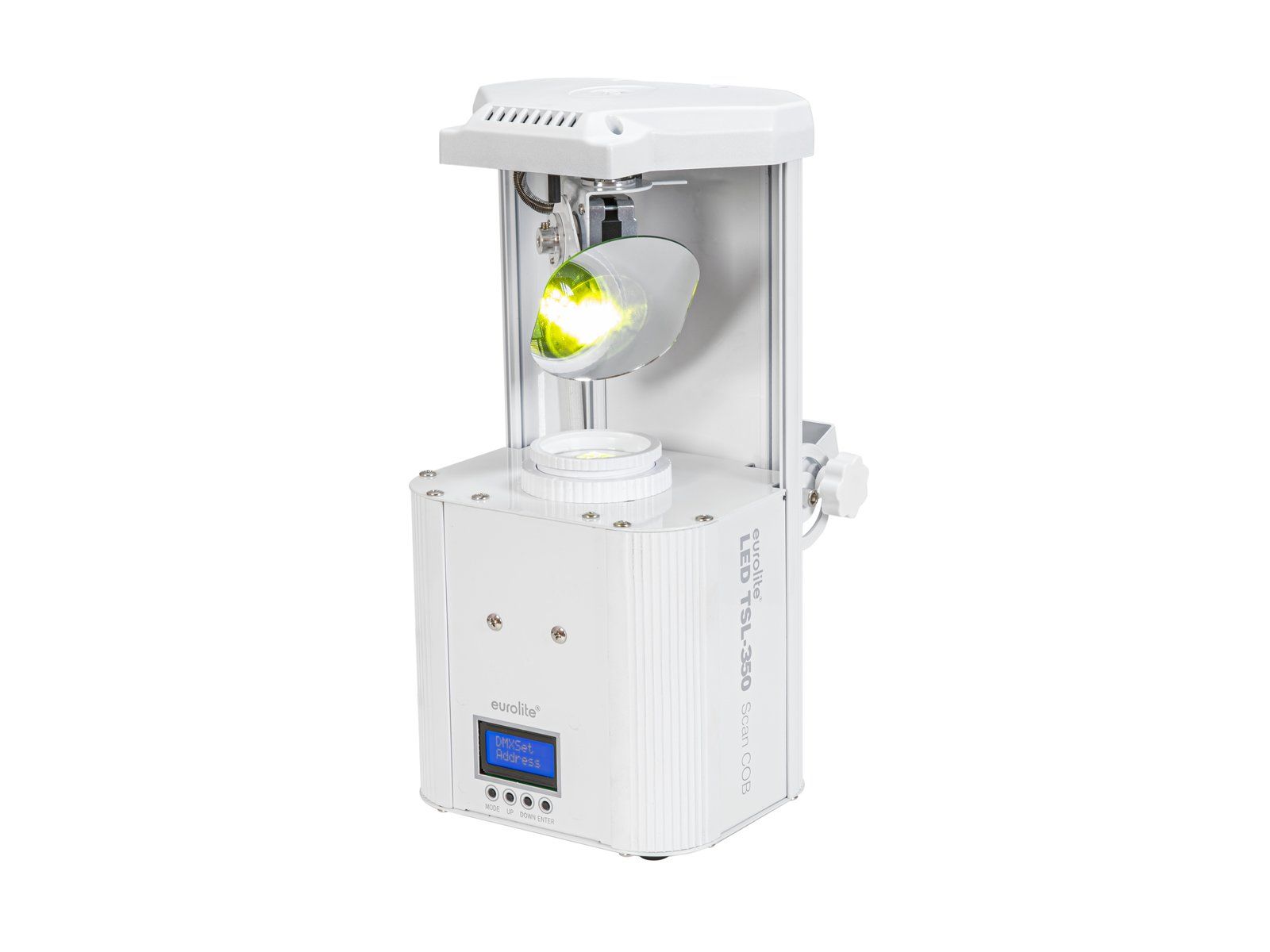

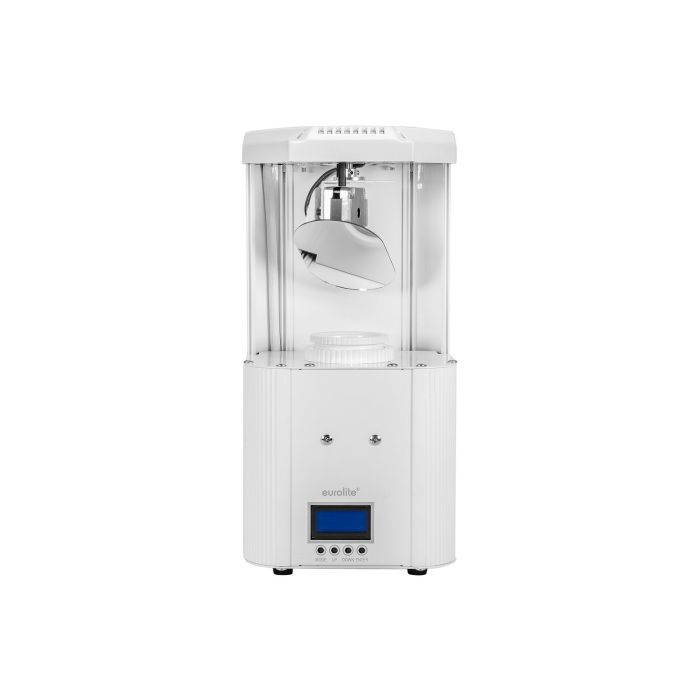

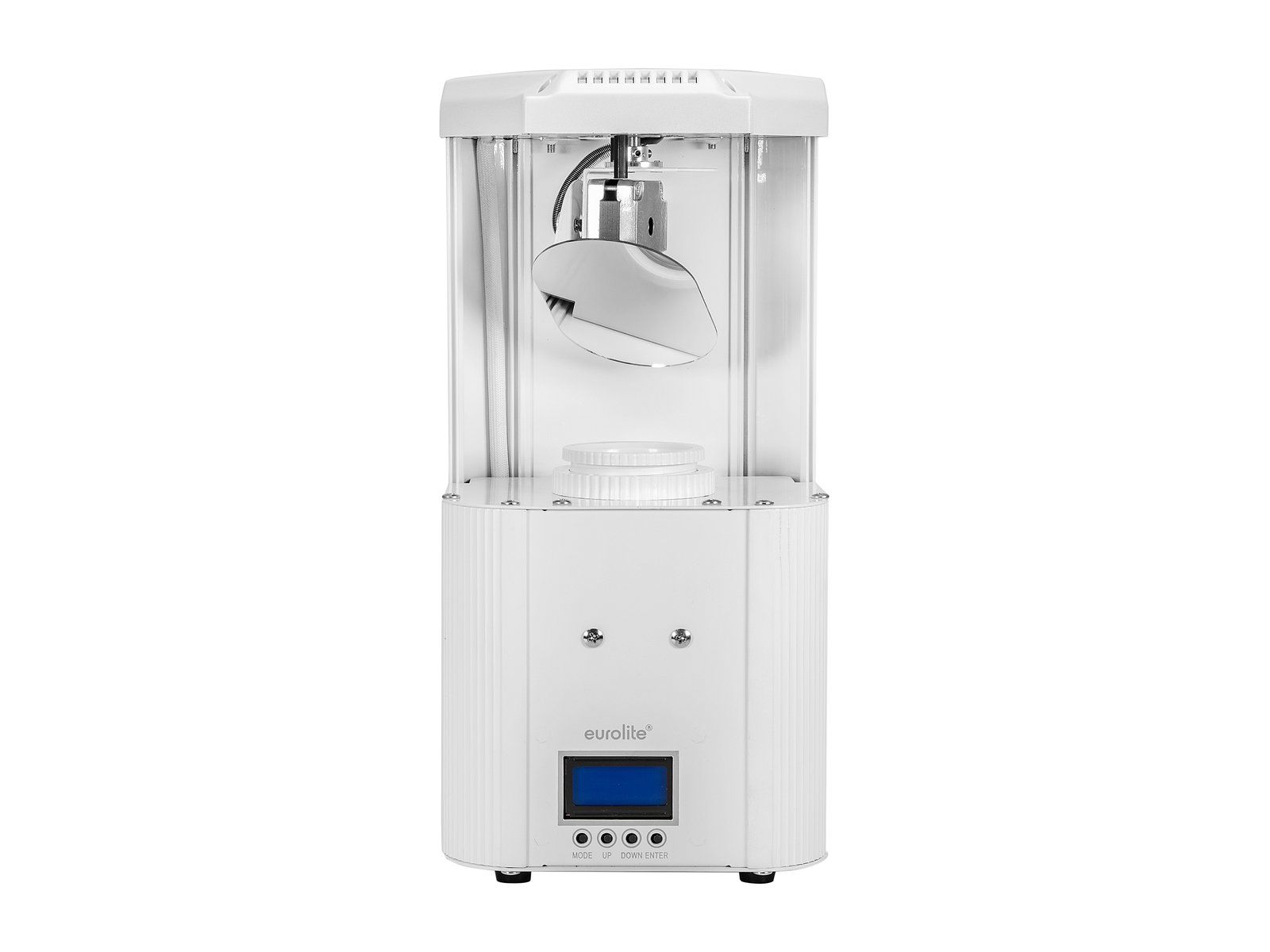

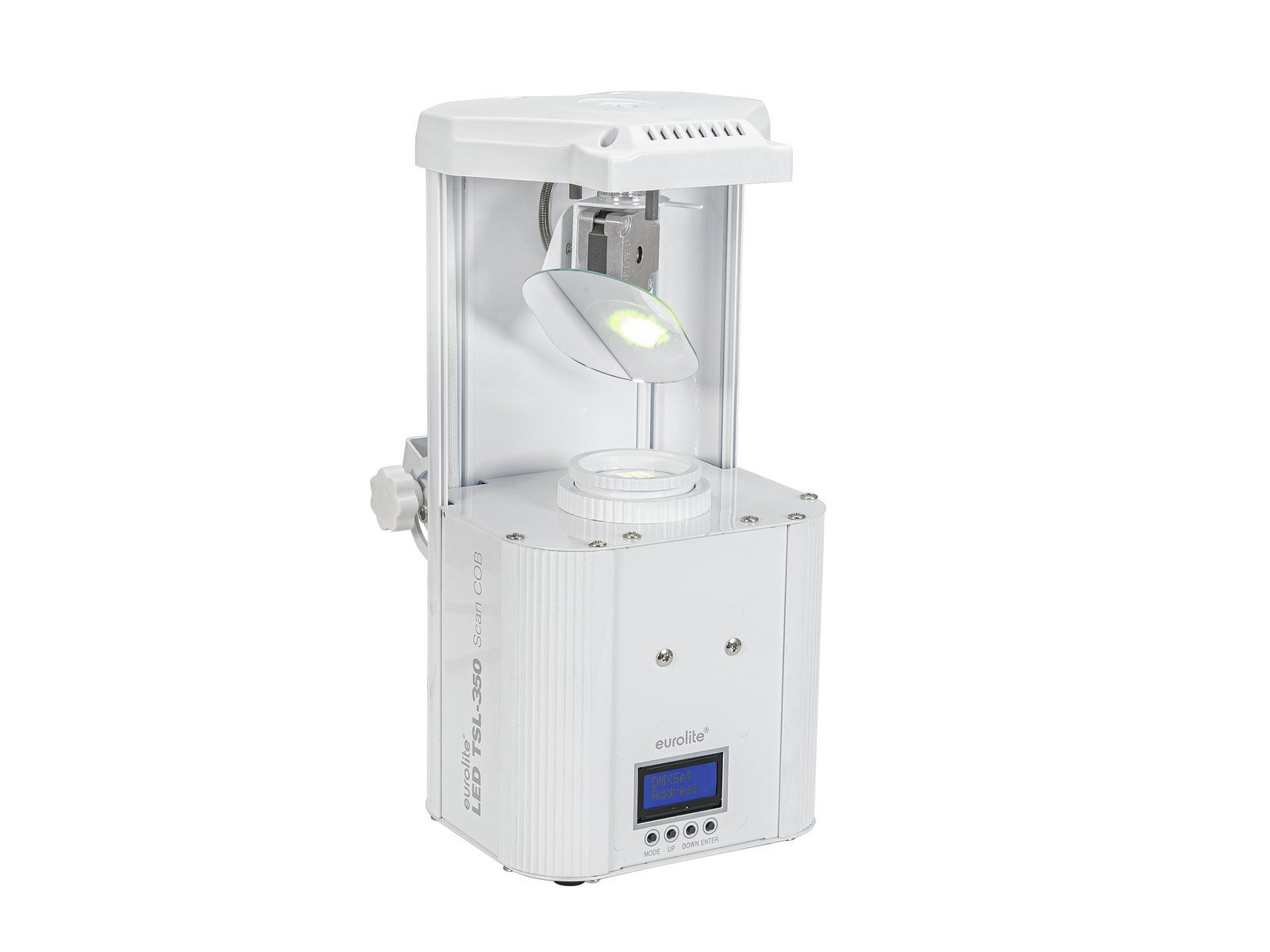

EUROLITE LED TSL-350 Scan COB wit

EUROLITE LED TSL-350 Scan COB wit

Features

Handy scanner with 60 W COB LED, gobo and color wheel

Compact design
Electronic dimmer
1 powerful LED 60 W COB (chip-on-board) cold white (CW)
Positioning within PAN and TILT
Color wheel; gobo wheel with rotating gobos; Focus manual
Color wheel with 7 dichroic filters plus open
Rainbow effect with adjustable speed
Gobo wheel with rotating gobos, 7 gobos and open
Slot-in gobo system for easy gobo replacement
Shake effect
Integrated Showprograms
Can be operated in 10 CH mode
The device is cooled by cooling fan
Controlling by stand-alone; DMX; QuickDMX via USB (optional); Master/slave function; Sound to light via Microphone; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in Light Captain
Flicker-free
With a beam angle of 11°
LCD display

Package contents

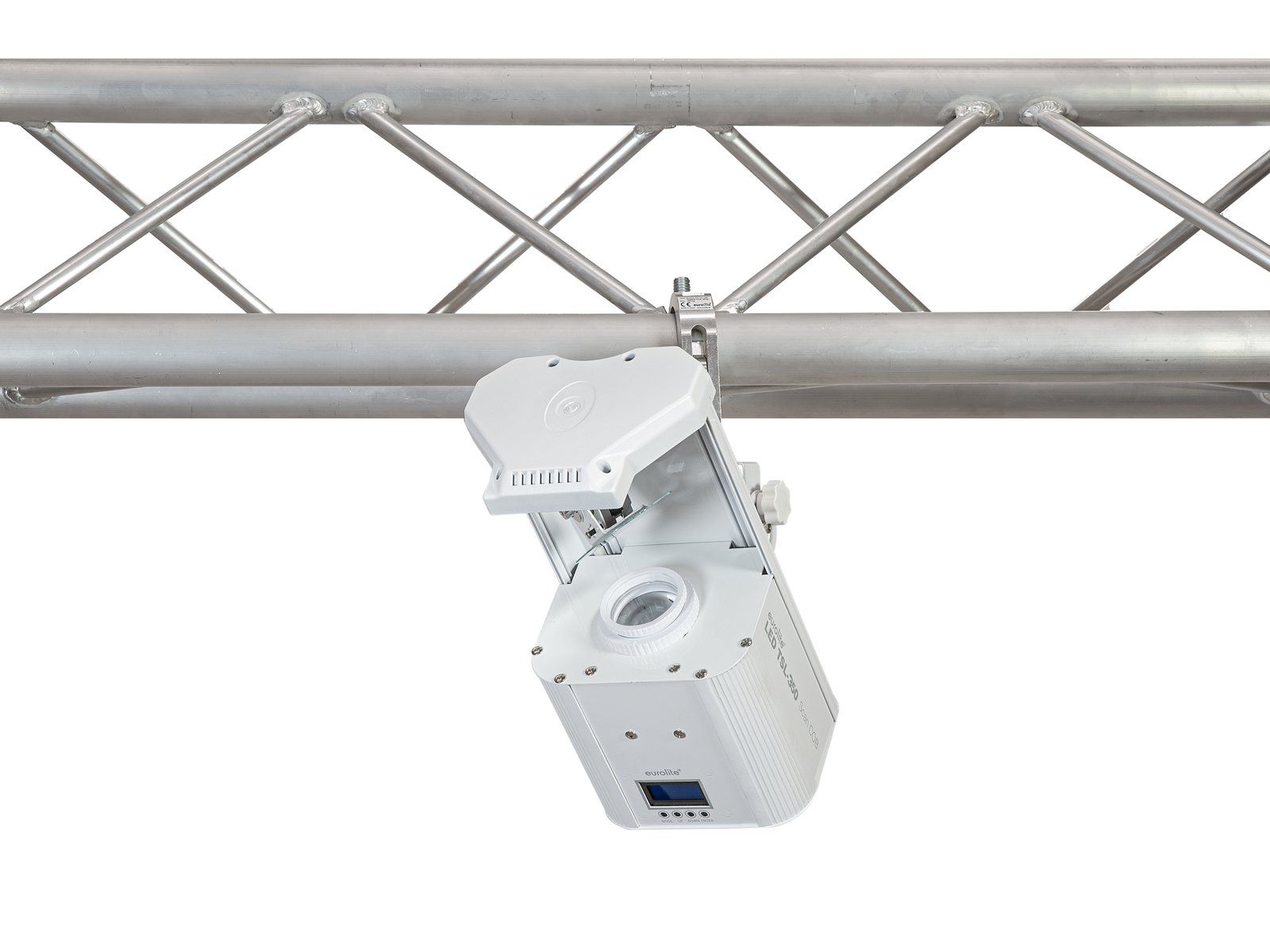

1 x moving light, 1 x user manual, 1 x power cord, 1 x mounting bracket, 3 x gobos

Technical specifications
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 70 W
IP classification: IP20
Protection class: Protection class I
Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Fuse: 5 x 20 mm, T 1,5 A Fuse replaceable
Lamp type: LED lamp
LED: 1 x 60 W COB (chip-on-board) cold white (CW)
Equipment: Color wheel; gobo wheel with rotating gobos; Focus manual
Color generation: Color wheel with 7 dichroic filters plus open
Gobos: Gobo wheel with rotating gobos, 7 gobos and open
Outside diameter 10mm
Image diameter 14mm
Slot-in gobo system for easy gobo replacement
Shake effect
DMX channels: 10
DMX input: 3-pin XLR (M) mounting version
DMX output: 3-pin XLR (F) mounting version
Cooling: Cooling fan
Control: Stand-alone; DMX; QuickDMX via USB (optional); Master/slave function; Sound to light via Microphone; Light Captain; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Beam angle: 11°
Beam angle (1/2 peak): 11°
Illuminance in Lux (lx): Cold white (CW) 1m: 12034 lx, 3m: 1489 lx, 6m: 388 lx
Housing color: White
Display type: LCD display
Dimensions: Width: 16,0 cm
Depth: 15,0 cm
Height: 33,0 cm
Weight: 3,26 kg
