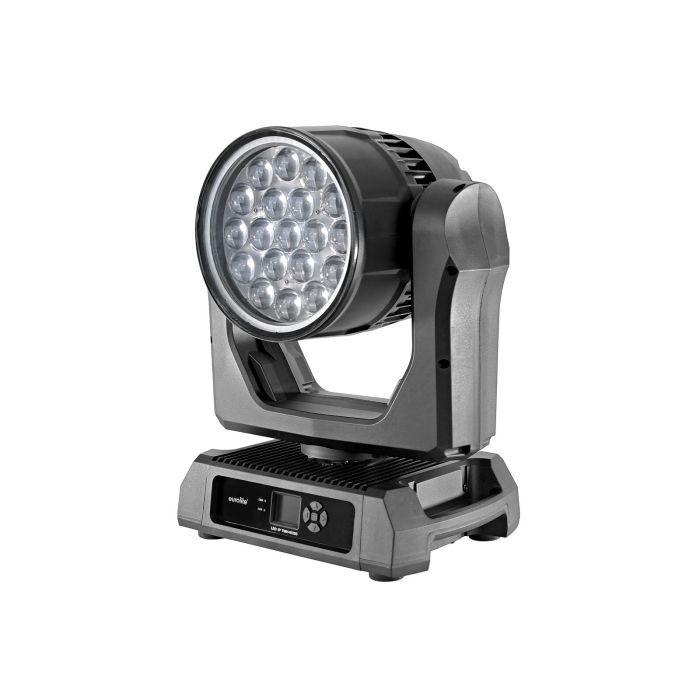

EUROLITE LED IP TMH-W285 Hypno Moving Head Wash
€ 709,00
€ 585,95
?
SKU
st51785932
EUROLITE LED IP TMH-W285 Hypno Moving Head Wash
EUROLITE LED IP TMH-W285 Hypno Moving Head Wash

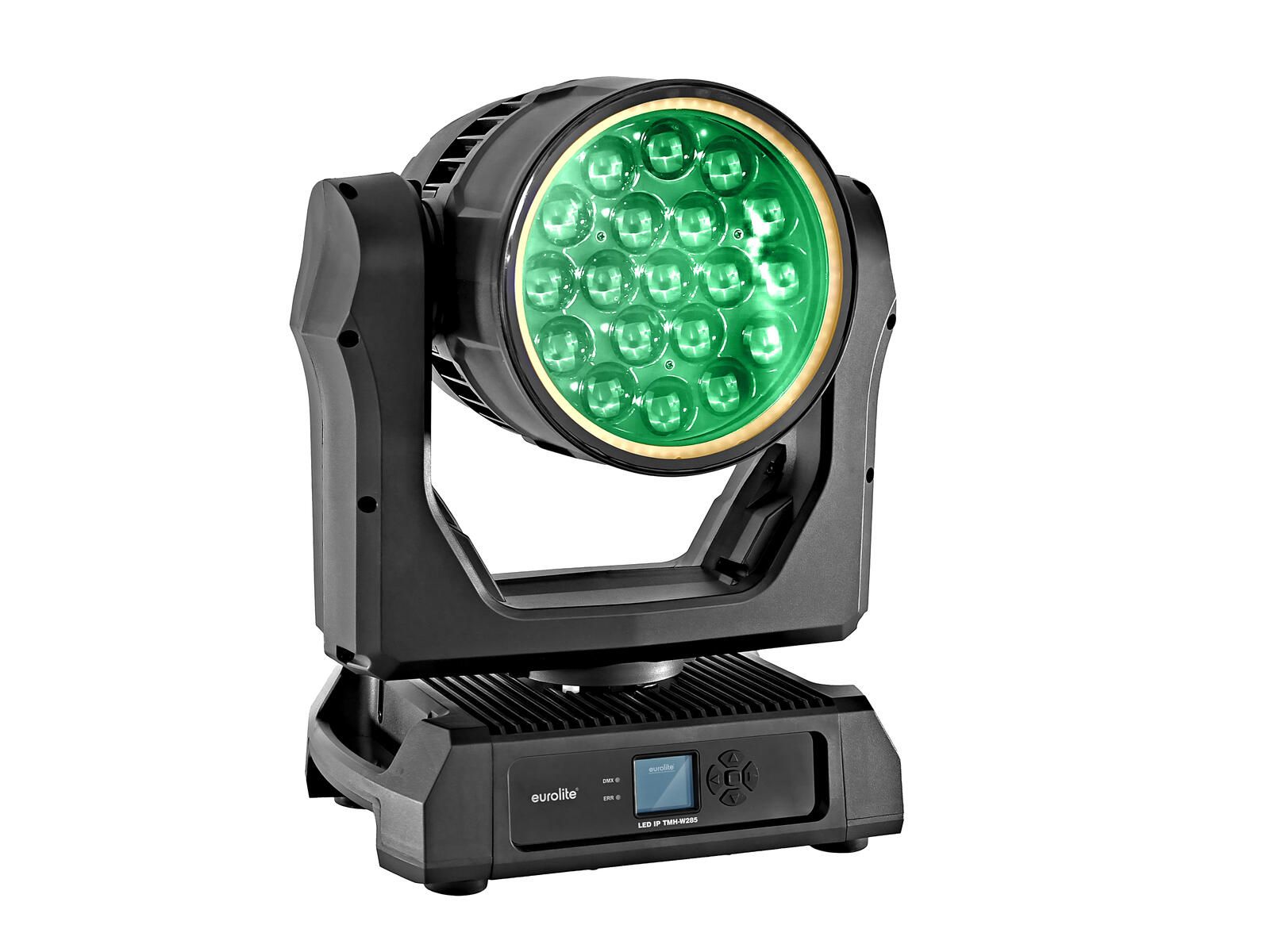

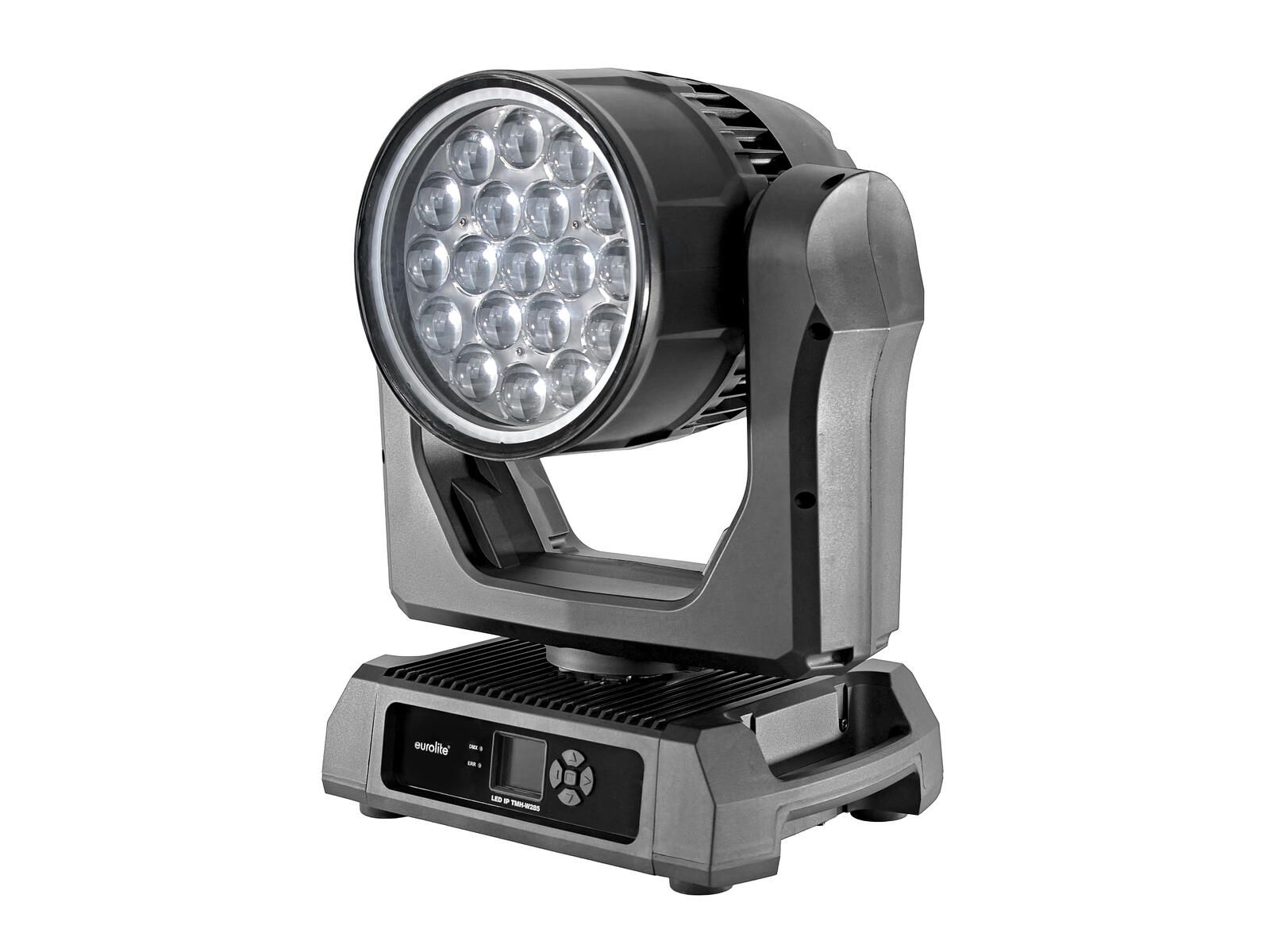

Weather-proof moving washlight with RGBW LEDs, backlighting via RGB hypno LEDs and zoom
- 19 powerful LEDs 15 W SMD 5050 4in1 QCL RGBW (homogenous color mix)

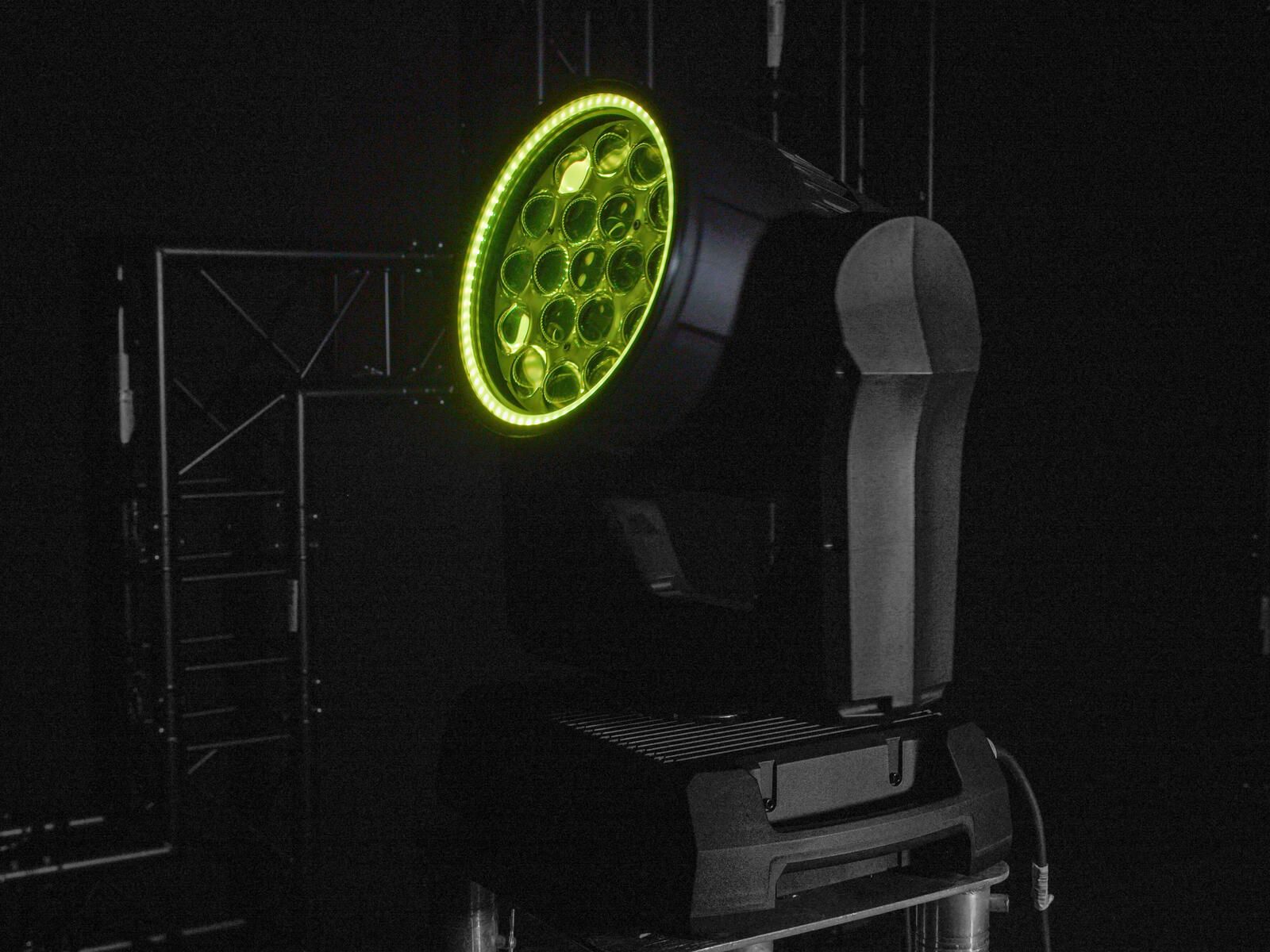

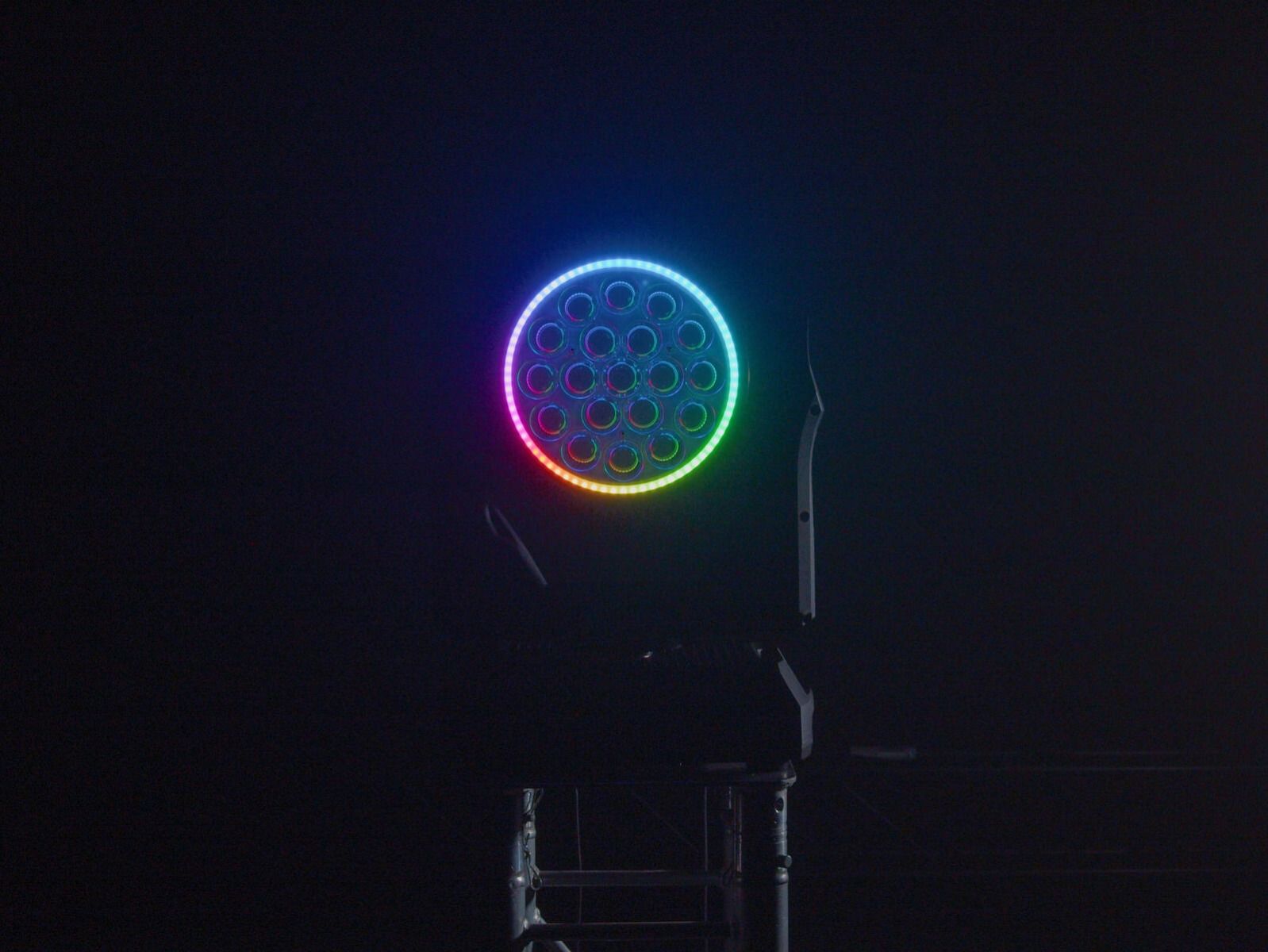

3 segments controlled separately - 72 powerful LEDs 0.12 W SMD 2528 3in1 TCL RGB (homogenous color mix)
- Positioning within 540° PAN, 260° TILT
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Zoom motor driven
- Dimmer; Dimmer speed (step response) adjustable; color blend stepless; color macros; colors preset
- Wash effect; beam effect
- The device is cooled by cooling fan at the head
- Control via stand-alone; DMX; RDM; master/slave function
- Flicker-free
- DMX fail mode (hold; blackout)
- With a beam angle of 2° - 48°

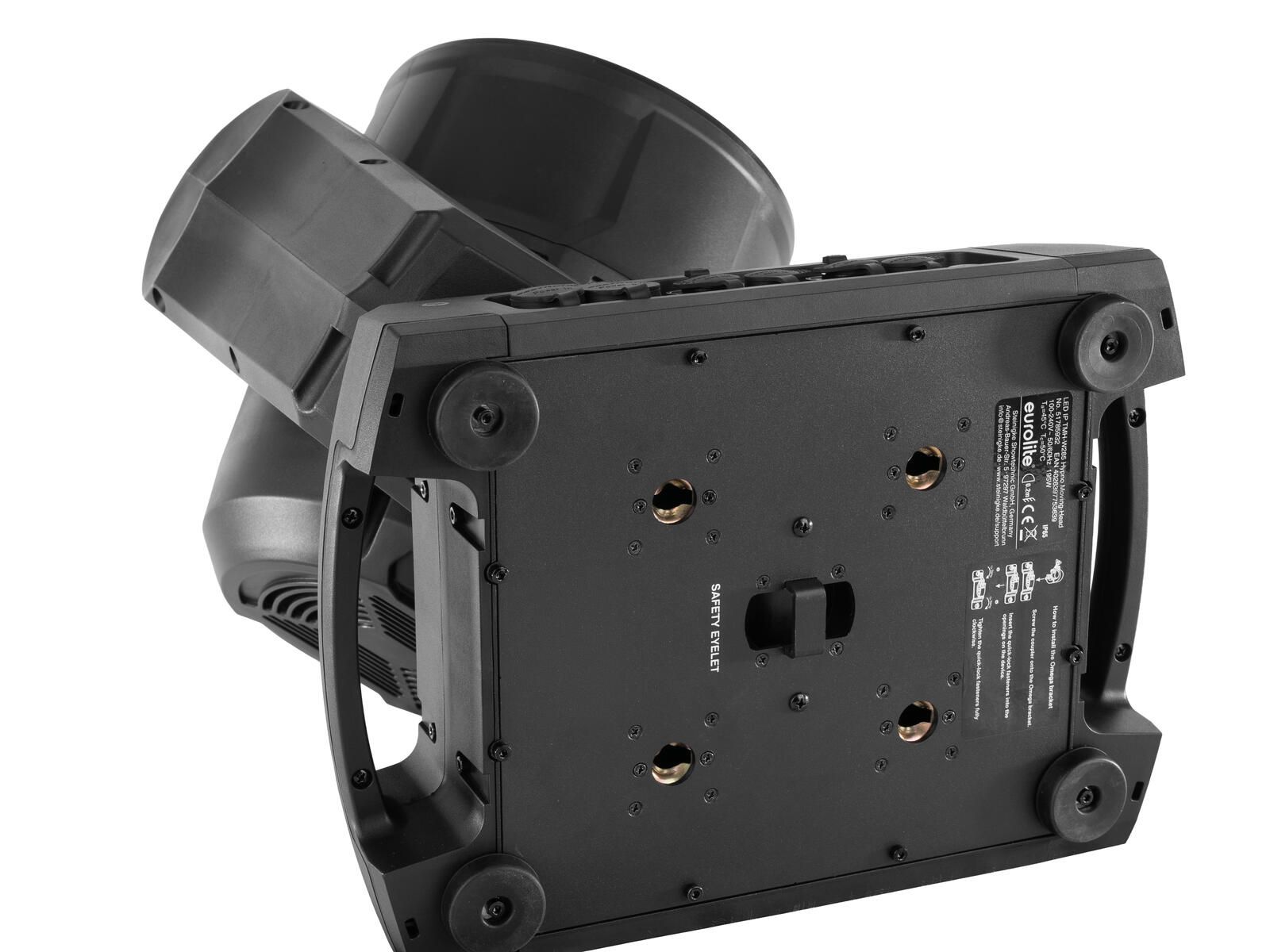

- With omega bracket

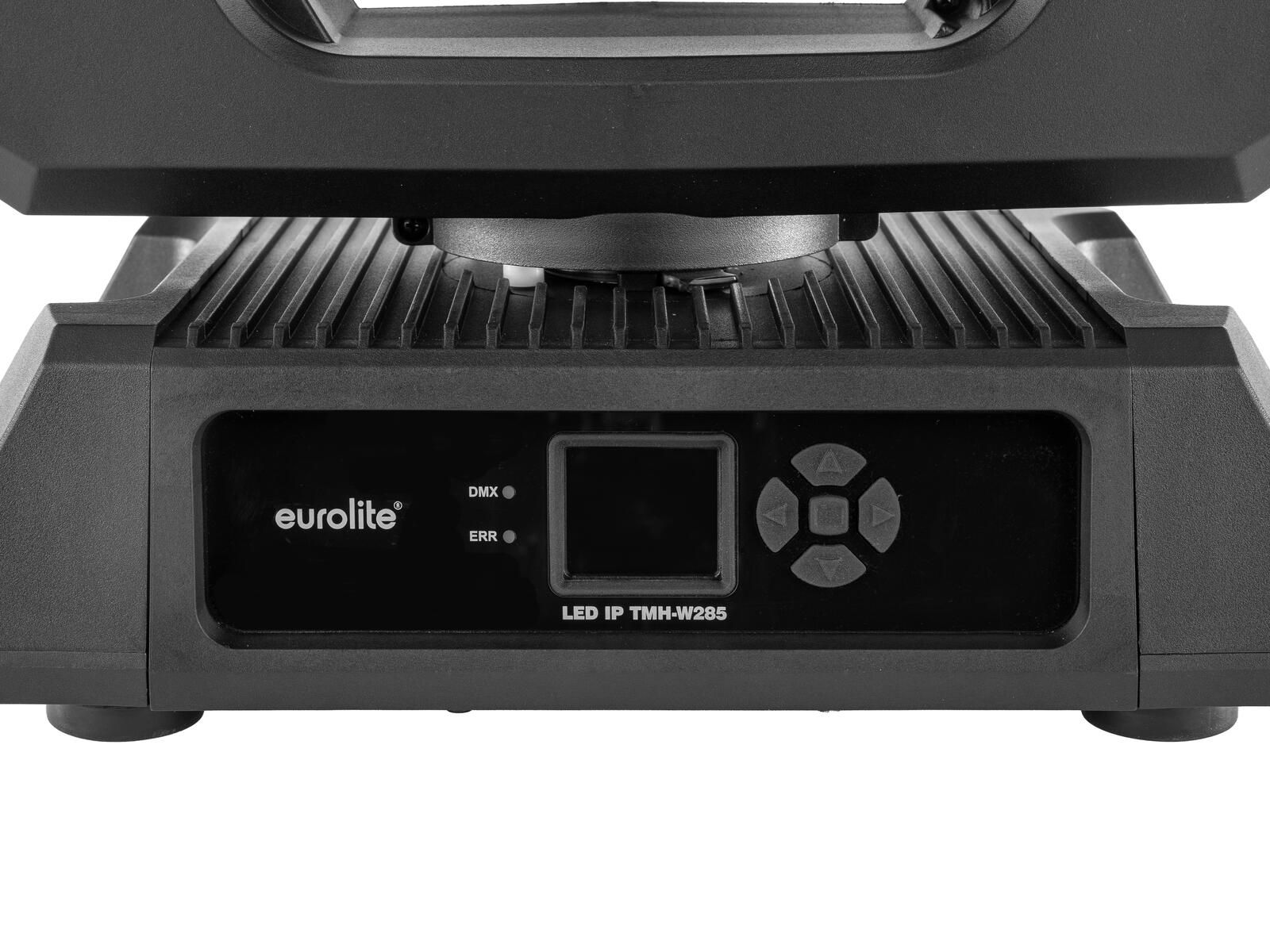

- Multicolor LCD display
- 2 Rugged carrying handles
- 4 x rubber feet

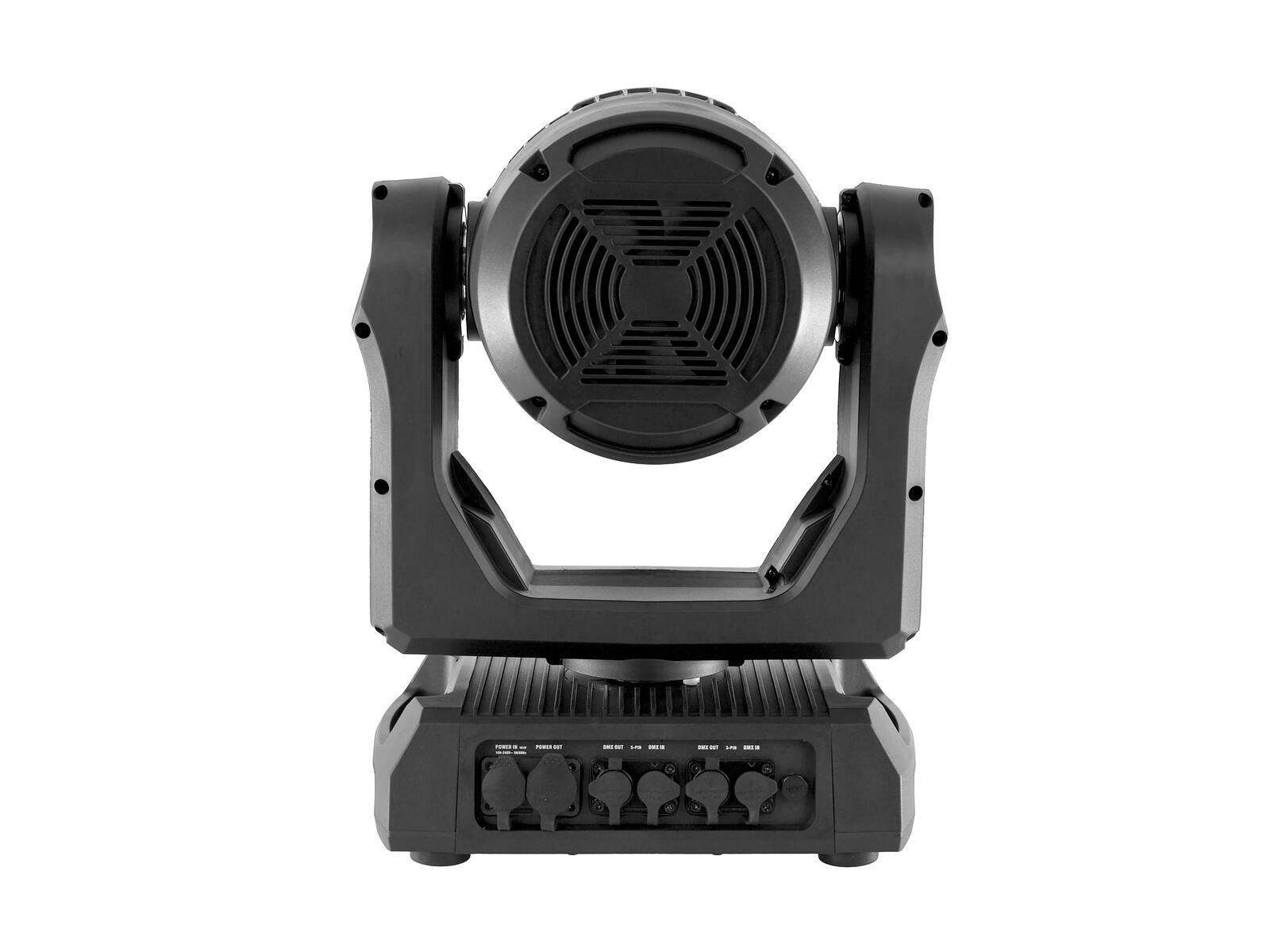

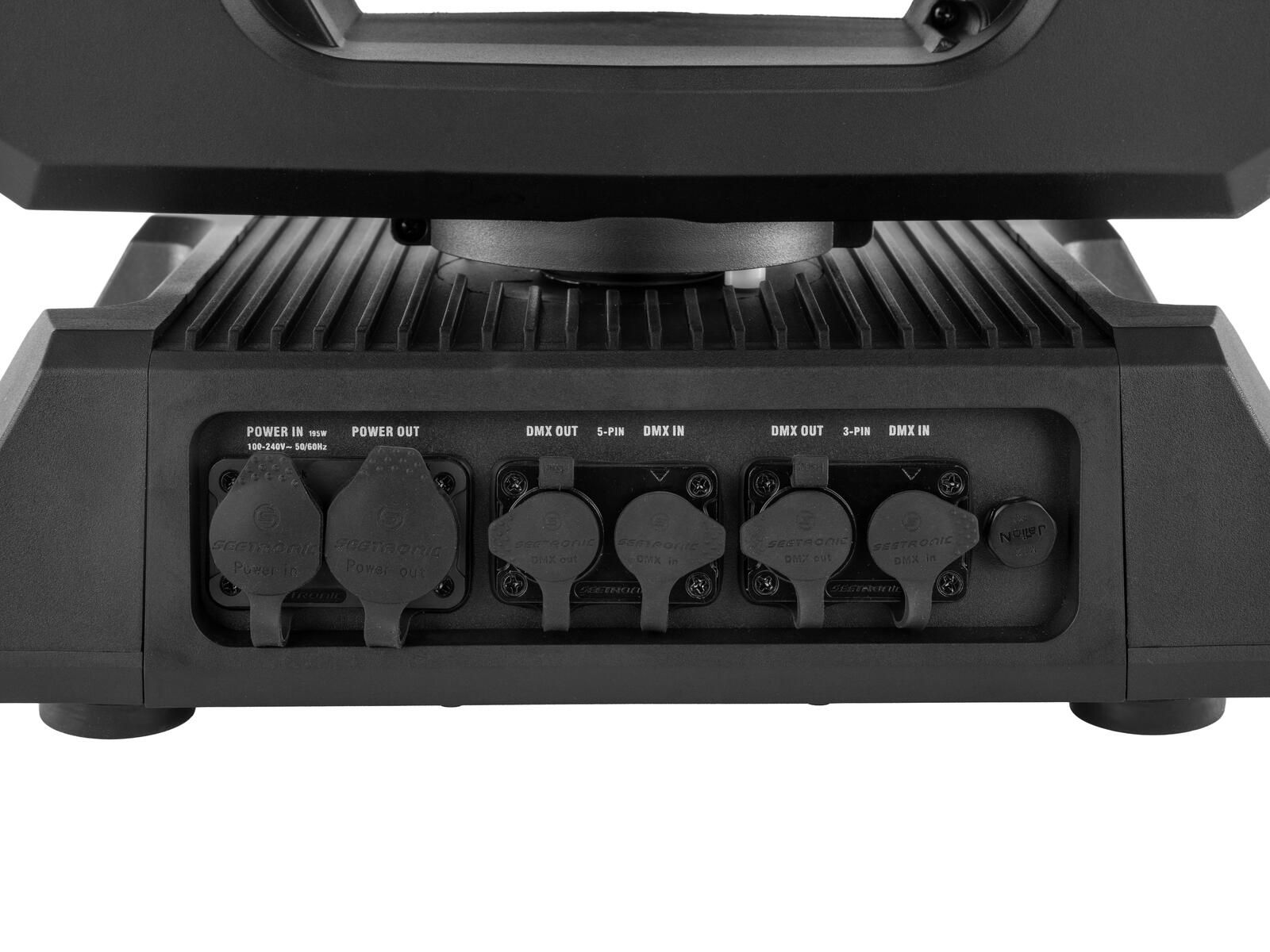

- Mains input and output for power linking up to 4 units
- Built with SEETRONIC connector
- Suitable for outdoor use IP65
- With pressure compensation membrane
- For application areas such as: Architecture; stage; clubs/dancing school; wedding/gala/events; mobile djs / entertainer; rental; restaurants, bars and hotels; theater
- Application possibility: Standing; suspended
- Preprogrammed in Light Captain
- Technical specifications

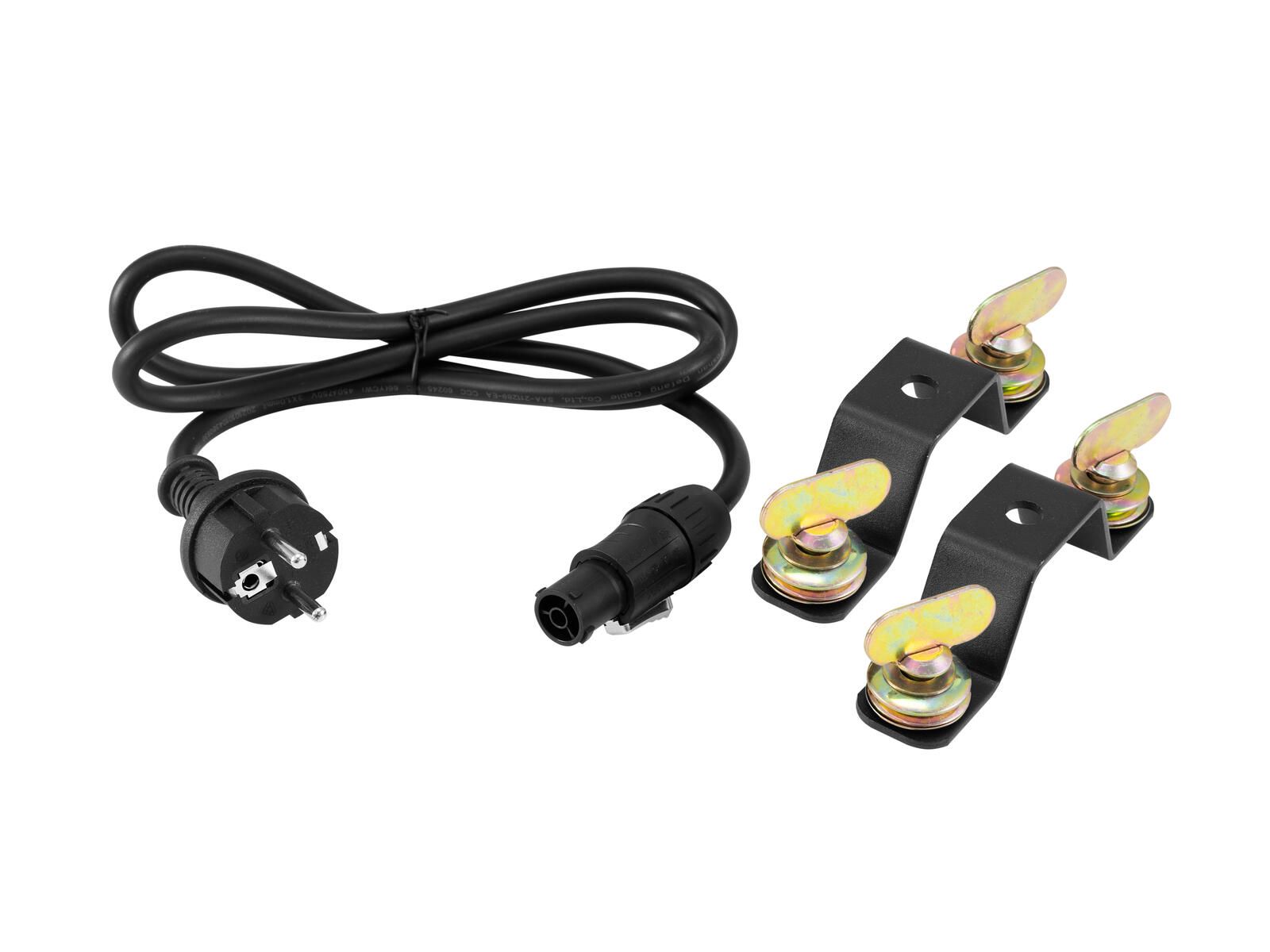

Power supply: 100-240 V AC, 50/60 Hz Power consumption: 195 W IP classification: IP65 Protection class: Protection class I Power connection: Mains input via IP T-Con (M) mounting version power supply cord with safety plug Cable construction: 3 x 1.0 mm² H07RN-F Power output: IP T-Con (F) mounting version Lamp type: LED lamp LED type: 19 x 15 W SMD 5050 4in1 QCL RGBW (homogenous color mix)
72 x 0.12 W SMD 2528 3in1 TCL RGB (homogenous color mix)Max. TILT movement: 260° exact positioning (16 bit resolution) auto position correction (feedback) Max. PAN movement: 540° exact positioning (16 bit resolution) auto position correction (feedback) Flash rate: 1.3 - 10.6 Hz Equipment: Zoom motor driven DMX channels: 18; 26 DMX input: 3-pin XLR (M) mounting version IP
5-pin XLR (M) mounting version IPDMX output: 3-pin XLR (F) mounting version IP
1 x 5-pin XLR (F) mounting version IPCooling: 1 x cooling fan at the head Control: Stand-alone; DMX; RDM; master/slave function Preprogrammed in: Light Captain Projection: Flicker-free PWM frequency: 26000 Hz DMX fail mode: Hold; blackout Beam angle: 2° - 48° Beam angle (1/2 peak): 2 - 30° Beam angle (1/10 peak): 8 - 48° Housing color: Black Attachment system: 2x omega bracket Display type: Multicolor LCD display Status LED: DMX, fault Carrying handle: 2 pc/pcs Transport aid: 4 x rubber feet Diameter mounting holes: 2 x Ø11mm Use of brands: Built with SEETRONIC connector Material: Plastic Dimensions: Width: 38.8 cm
Depth: 25.7 cm
Height: 49.1 cmWeight: 15.40 kg Noise classification: Class 2 (slight noise) depending on mode used Legal specifications Special product: Not designed for household room illumination Intended use: Show effect lighting
