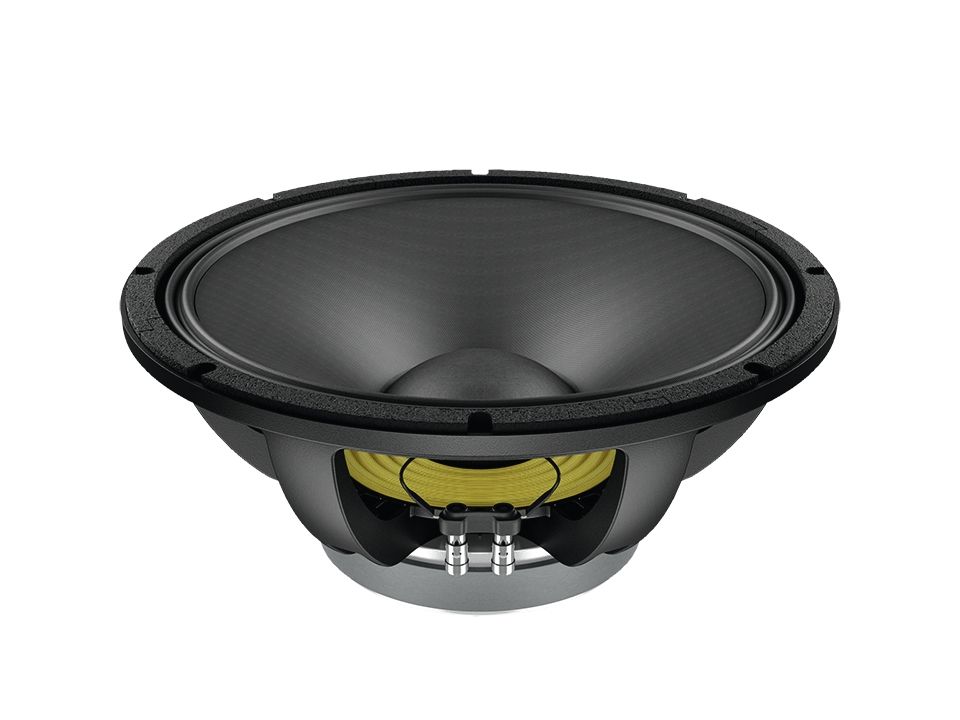

LAVOCE WAF153.00 15" Woofer Ferrite Magnet Aluminium Basket Driver
LAVOCE WAF153.00 15" Woofer Ferrite Magnet Aluminium Basket Driver
500 W AES, 8 ohm, 99 dB, 45-3000 Hz
Type: 38 cm woofer (15 ")
Nominaal vermogen: 500 W AES
Programmakracht: 1000 W
Impedantie: 8 ohm
Gevoeligheid: 99 dB
Frequentiebereik: 45-3000 Hz
Spiraalspoel diameter: 8 cm (3 ")
Chassismateriaal: aluminium
Magneetmateriaal: ferriet
Gewicht: 9,45 kg
ALGEMENE SPECIFICATIES
Nominale diameter mm (in.) 380 (15)
Nominale impedantie Ω 8
Minimale impedantie Ω 5,5
Programmakracht (1) W 1000
AES Vermogen (2) W 500
Gevoeligheid (3) dB 99
Frequentiebereik Hz 40 ÷ 4000
Spraakspoel diameter mm (in.) 75 (3)
Chassismateriaal Aluminium
Magneetmateriaal Ferriet
Afmetingen van de magneet
OD x ID x h
mm
(in.)
190 x 95 x 25
(7,48 x 3,74 x 0,98)
Spoelmateriaal CCAW
Voormalig materiaal Glasvezel
Kegelvormig waterbestendig behandeld papier
Randmateriaal Polykatoen
Xmax (4) mm (in.) 7 (0.28)
Xmech (5) mm (in.) 12,65 (0,5)
Opening hoogte mm (in.) 10 (0.4)
Spreekspoelwikkeling hoogte mm (in.) 19,3 (0,76)
KLEINE SIGNAALPARAMETERS
DC-weerstand Re Ohm 4,7
Resonantiefrequentie Fs Hz 47
Bewegende massa Mms g (oz) 100 (3.52)
Naleving Cms mm / N 0,1
Force factor BxL N / A 18,5
Mechanische Q-factor Qms 6
Elektrische Q-factor Qes 0,43
Totale Q-factor Qts 0,4
Equivalent luchtvolume Vas l (ft3
) 101 (3.57)
Spraakspoel Inductantie Le mH 0,78
Diafragma gebied Sd cm2
(in 2
) 855 (132,5)
Referentie-efficiëntie Eta 0% 2,42
