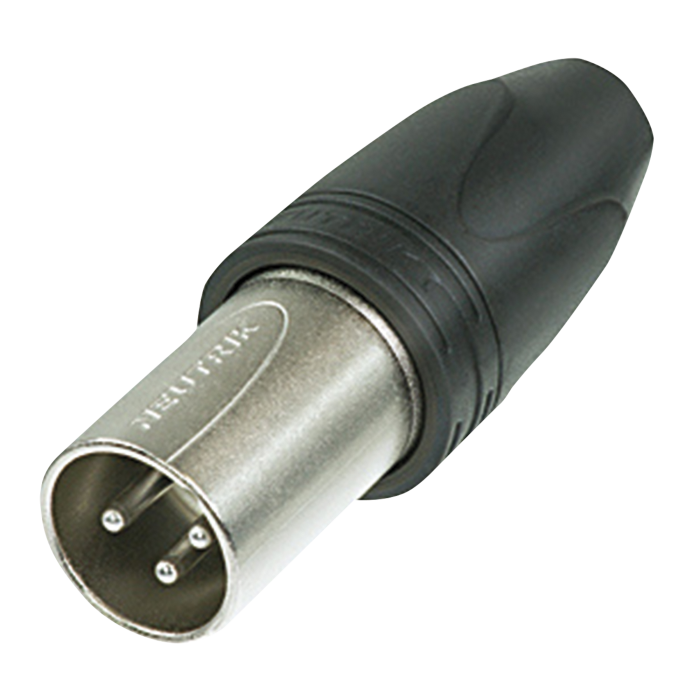

Neutrik XLR 'Heavy Duty' IP connector 3p Male Silver Housing, silver contacts 25 stuks

Neutrik XLR 'Heavy Duty' IP connector 3p Male Silver Housing, silver contacts 25 stuksNeutrik XLR 'Heavy Duty' IP connector 3p Male Silver Housing, silver contacts • "Heavy duty" cable connector for outdoor use • Rubber sealing jacket protects against water ingress and mechanical shock • Rugged zinc diecast shell, long-lasting and dependable • Internal thread on shell is well protected against any damageThe Neutrik XX-HDD Series is a "heavy duty" XLR cable connector for outdoor use. All metal design, dust and water protected according to IP 67 by mating with related XX-HDD cable connector.Specifications Electrical: Capacitance between contacts ≤ 4 pF Contact resistance ≤ 3 mΩ (inner) Rated current per contact 16 A Rated voltage 50 V Mechanical: Cabel O.D. 3,5 – 8,0 mm Wiresize max. 2.5 mm² Wiresize max. 14 AWG Wiring Solder contacts Locking device Latch lock Material: Boot Polyurethan Contacts Brass Insert Polyamide Shell Zinc diecast Shell plating Nickel Strain relief Polyacetal Environmental: Flammability UL 94 HB Standard compliance IEC 61076-2-103 Protection class IP 40 Solderability Complies with IEC 68-2-20 Temperature range -30 °C to +80 °C
