OMNITRONIC PAA-240 PA Amplifier
€ 289,00
€ 238,84
?
SKU
st80709809

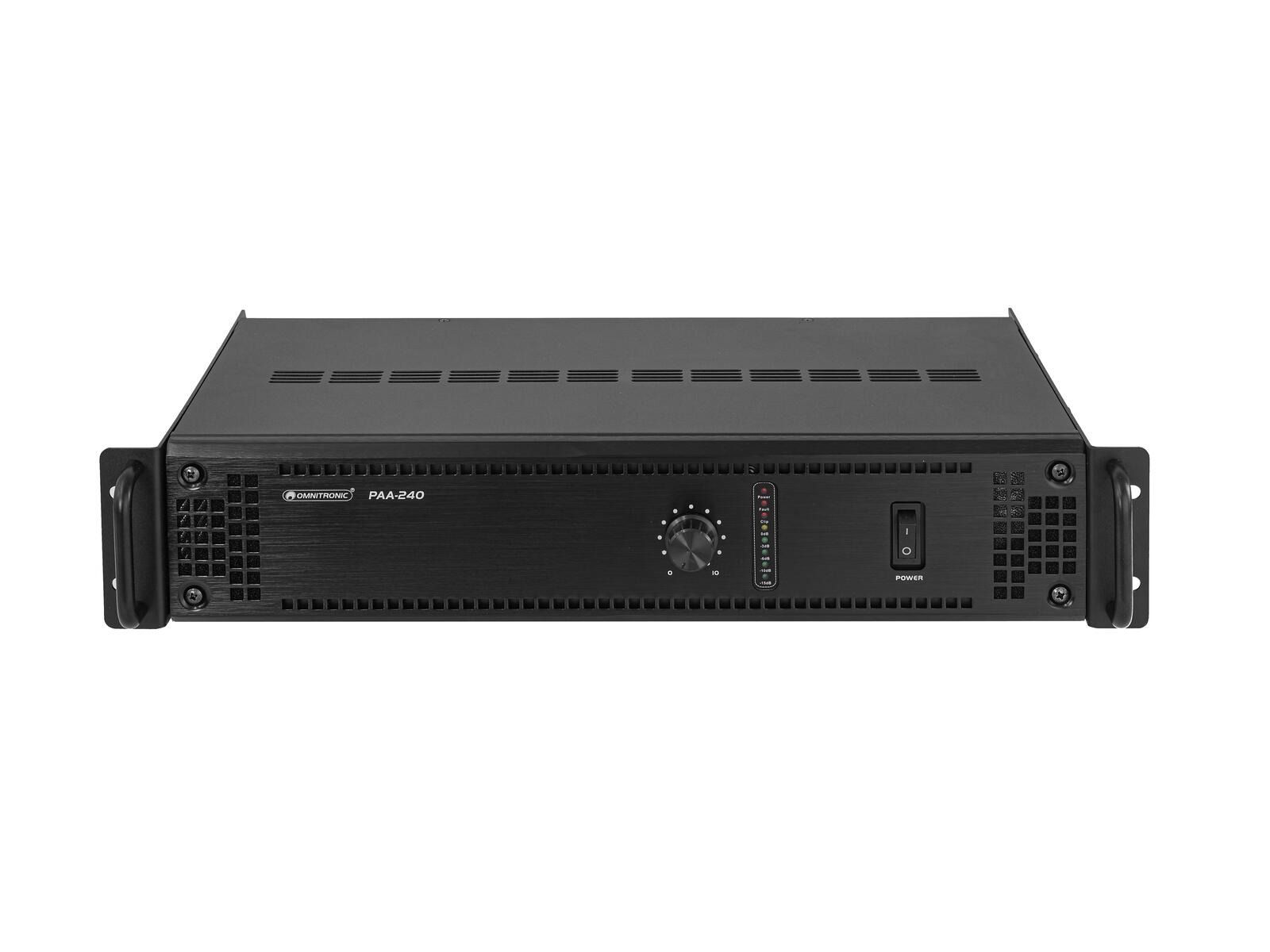

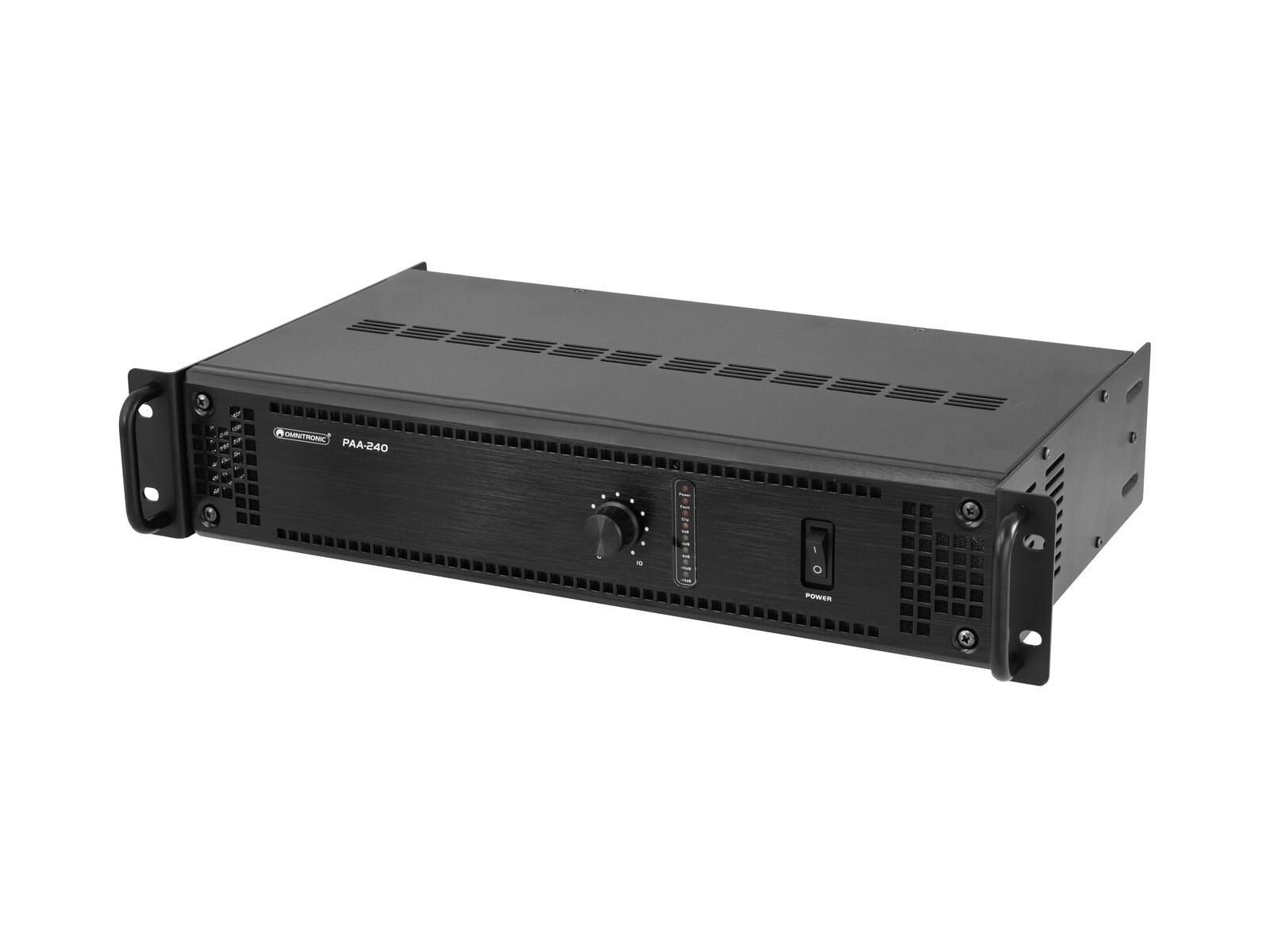

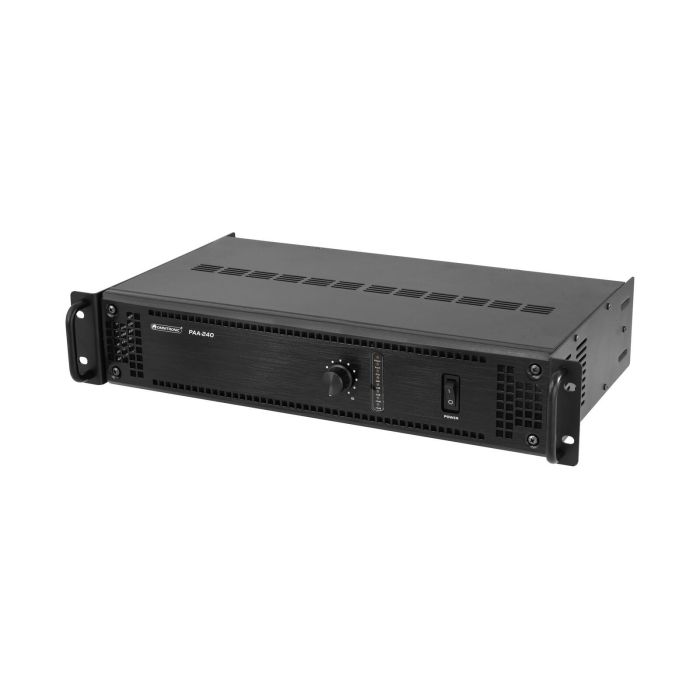

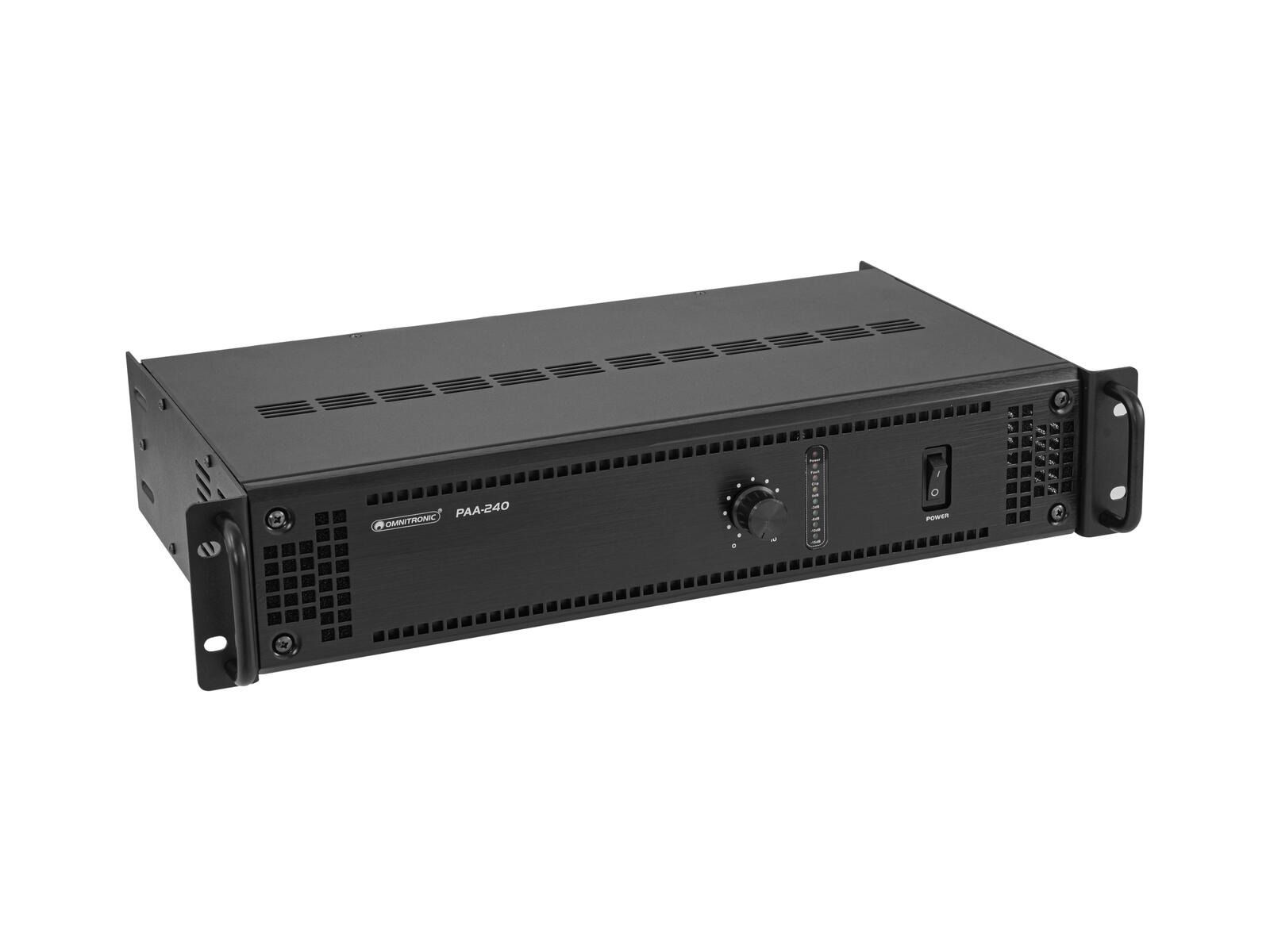

OMNITRONIC PAA-240 PA Amplifier
OMNITRONIC PAA-240 PA Amplifier
PA power amplifier, 240 W RMS
- 1 line input (XLR and 6.3 mm jack)
- 1 feed-through output (optionally XLR or 6.3 mm jack)
- Master control
- LED indicators for power, level, clip and fault
- (19") 48.3 cm rack installation 2 U
- For application areas such as: Installation; restaurants, bars and hotels; sports centres/gyms
Technical specifications
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 480 W |
| Protection class: | Protection class I |
| Output power: | 240 W RMS |
| Power connection: | Fixed power supply cord with safety plug |
| Device fuse: | 5 x 20 mm, T 5 A fuse replaceable |
| Frequency range: | 60 - 16000 Hz |
| S/N ratio: | >90 dB |
| THD: | <0.5 % at 1 kHz |
| Impedance: | 4-16 ohms; public address systems 100V; Public address systems 70V |
| Housing color: | Black |
| Circuitry: | Class AB |
| Control elements: | Power switch, level control |
| Controls: | Softstart; overheat; overload; short-circuit; DC voltage |
| Status LED: | Level meter, power, fault, clip |

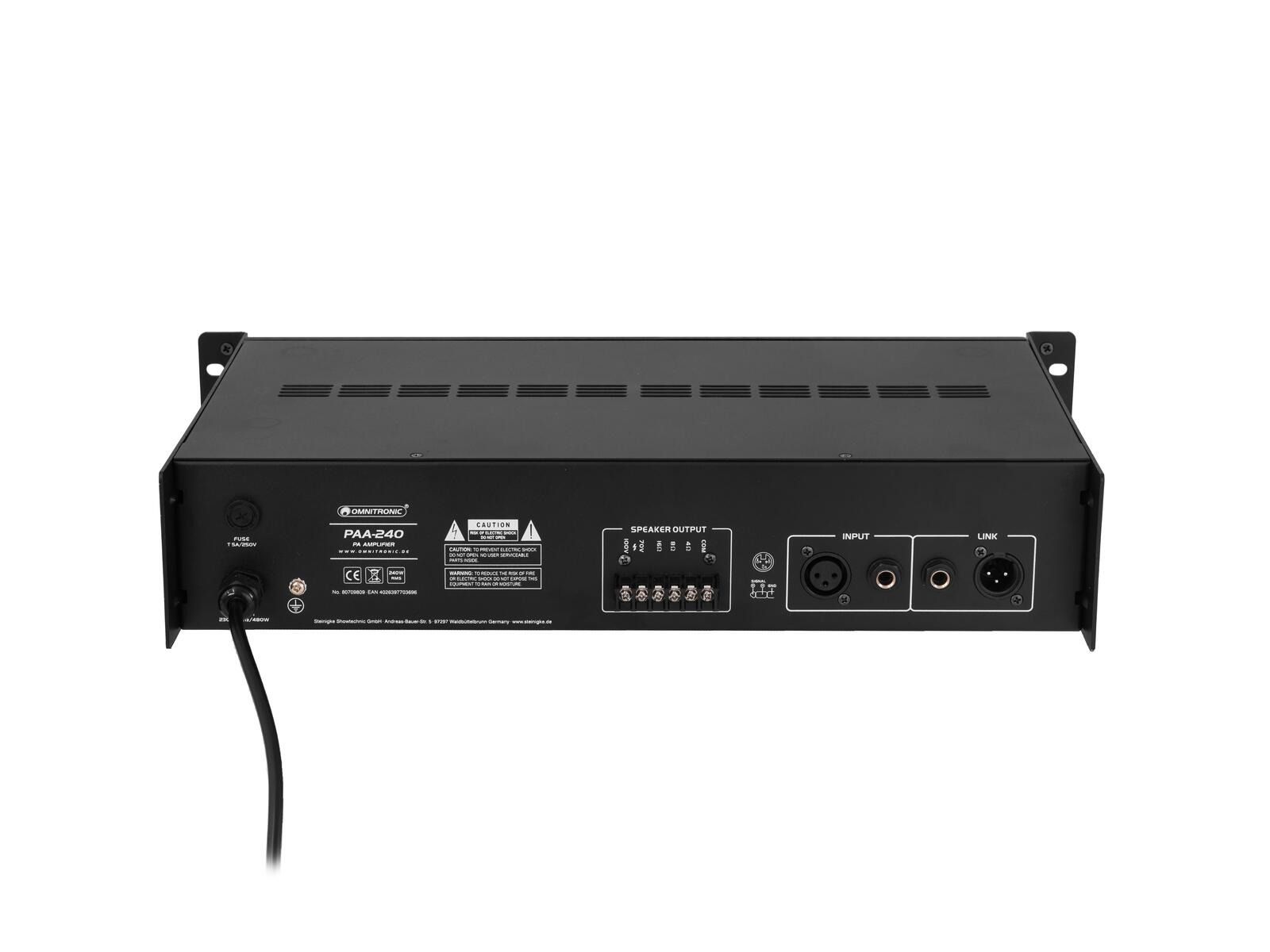

| Connections: | Input: line via 1 x 6.3 mm jack socket (mono) mounting version Input: line via 1 x 3-pin XLR 0.8 V Output: line via 1 x 6.3 mm jack socket (mono) mounting version Output: line via 1 x 3-pin XLR |
| Housing design: | (19") 48.3 cm rack installation 2 U |
| Dimensions: | Width: 48.3 cm Depth: 26.4 cm Height: 9.8 cm |
| Weight: | 6.55 kg |
