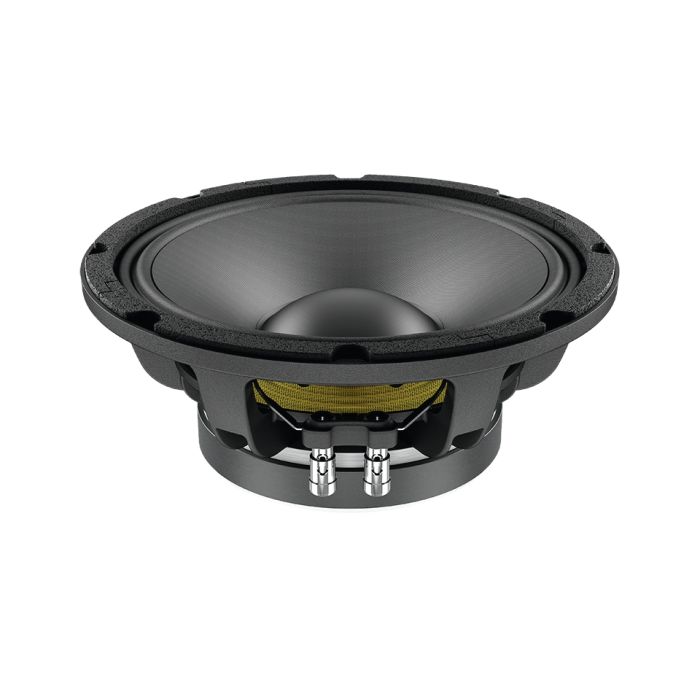

LAVOCE WAF102.50A 10" Woofer Ferrite Magnet Aluminium Basket Driver
LAVOCE WAF102.50A 10" Woofer Ferrite Magnet Aluminium Basket Driver
250 W AES, 8 ohm, 97 dB, 70-4000 Hz
Type: 25 cm woofer (10 ")
Nominaal vermogen: 250 W AES
Programmakracht: 500 W
Impedantie: 8 ohm
Gevoeligheid: 97 dB
Frequentiebereik: 70-4000 Hz
Spiraalspoel diameter: 6,5 cm (2,5 ")
Chassismateriaal: aluminium
Magneetmateriaal: ferriet
Gewicht: 4,6 kg
ALGEMENE SPECIFICATIES
Nominale diameter mm (in.) 250 (10)
Nominale impedantie Ω 8
Minimale impedantie Ω 6,5
Programmakracht (1) W 500
AES Vermogen (2) W 250
Gevoeligheid (3) dB 98,5
Frequentiebereik Hz 70 ÷ 4500
Spraakspoel diameter mm (in.) 65 (2.5)
Chassismateriaal Aluminium
Magneetmateriaal Ferriet
Afmetingen van de magneet
OD x ID x h
mm
(in.)
155 x 80 x 20
(6,1 x 3,1 x 0,8)
Spoelmateriaal CCAR
Voormalig materiaal Glasvezel
Kegelvormig waterbestendig behandeld papier
Randmateriaal Polykatoen
Xmax (4) mm (in.) 5 (0.19)
Xmech (5) mm (in.) 9 (0.35)
Opening hoogte mm (in.) 8 (0.3)
Spreekspoelwikkeling hoogte mm (in.) 14 (0.55)
KLEINE SIGNAALPARAMETERS
DC-weerstand Re Ohm 5,5
Resonantiefrequentie Fs Hz 71
Bewegende massa Mms g (oz) 36 (1.27)
Naleving Cms mm / N 0,14
Force factor BxL N / A 15,6
Mechanische Q-factor Qms 4,23
Elektrische Q-factor Qes 0,36
Totale Q-factor Qts 0,33
Equivalent luchtvolume Vas l (ft3
) 29 (1)
Spraakspoel Inductantie Le mH 0,8
Diafragma gebied Sd cm2
(in 2
) 380 (58.9)
Referentie-efficiëntie Eta 0% 2,75
