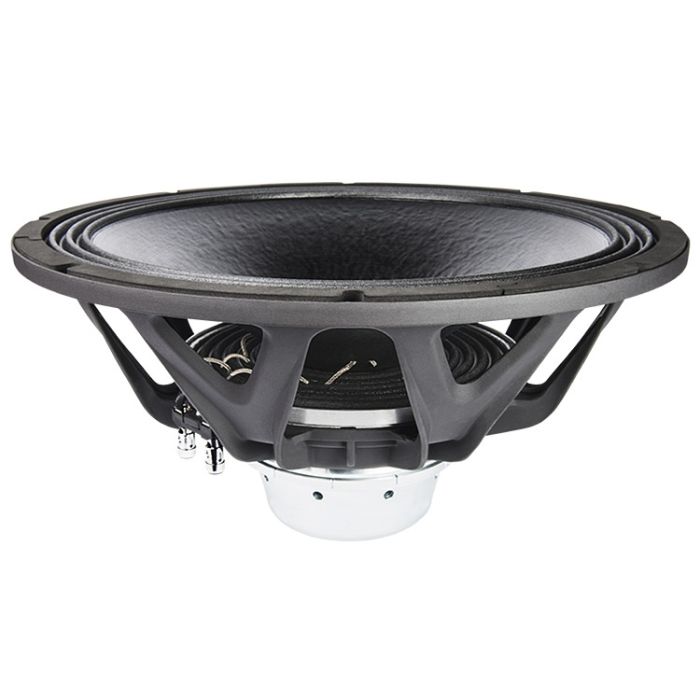

Faital Pro 18XL1800 18" - 1600 W - 95 dB - 8 Ohm laag luidspreker

€ 852,03 € 704,16

SKU

FAI-FP18XL1800A

Details

Faital Pro 18XL1800 18" - 1600 W - 95 dB - 8 Ohm laag luidspreker

Nominal Specifications

Nominal Diameter	460 mm (18 in)
Overall Diameter	460 mm (18.11 in)
Bolt Circle Diameter	440 mm (17.32 in)
Baffle Cutout Diameter	422 mm (16.61 in)
Depth	233 mm (9.17 in)
Flange and Gasket Thickness	14 mm (0.55 in)
Net Weight	10.2 Kg (22.5 lb)
Shipping Box (Single Carton Box)	490 x 485 x 275 mm (19.3 x 19.1 x 10.8 in)
Shipping Weight	11.7 Kg (25.8 lb)

Technical Parameters

Nominal Impedance	8 Ohm
Minimum Impedance	6.7 Ohm
AES Power Handling (1)	1600 W
Maximum Power Handling (2)	3200 W
Sensitivity (1W/1m)	95 dB
Frequency Range	30÷1600 Hz
Voice Coil Diameter	100 mm (4 in)
Winding Material	Cu
Former Material	Glass Fiber
Winding Depth	45 mm (1.77 in)
Magnetic Gap Depth	14 mm (0.55 in)
Flux Density	1.15 T
Magnet	Neodymium Sectors
Basket Material	Aluminum
Demodulation	Aluminum Ring
Cone Surround (3)	Triple Roll
NET Air Volume filled by Loudspeaker	7.3 dm^3 (0.258 ft^3)
Spider Profile	2x non-adjacent symmetrical constant height waves

Thiele and small parameters

PART NUMBER (P/N)

Push Terminals - 8 Ohm Version

04604223

Notes:

(1) 2 Hours Test According to AES 2-1984 Rev. 2003

(2) Maximum power is defined as 3dB greater than nominal power.

(3) Treated Polycotton

(4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3)

(5) Maximum excursion before permanent damage
