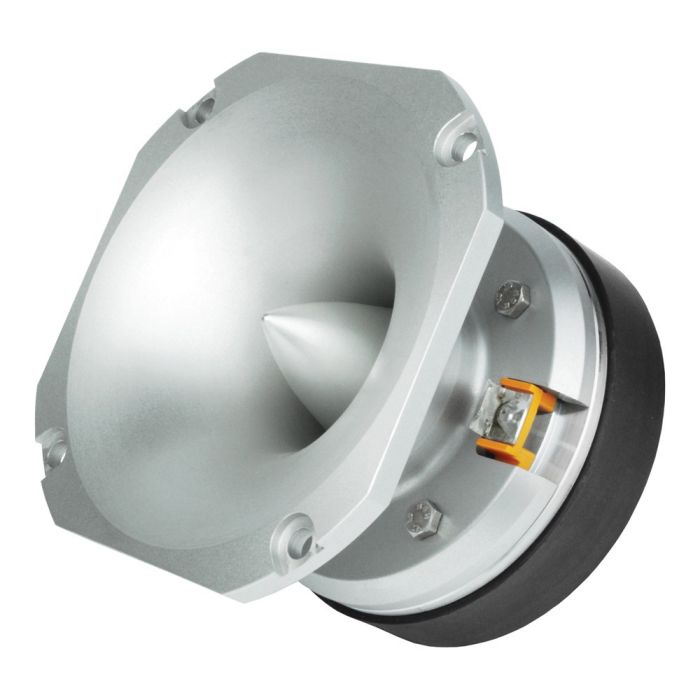

Faital Pro FD 371 A 37 mm Compression Driver 35 W 8 Ohms

Name: Faital Pro FD 371 A 37 mm Compression Driver 35 W 8 Ohms
Brand: Faital pro
SKU: FAI-FPFD371A
Price: 220.994401 EUR
Availability: PreOrder

Schrijf uw review over dit product

€ 220,99

SKU

FAI-FPFD371A

Faital Pro FD 371 A 37 mm Compression Driver 35 W 8 Ohms

Details

Reviews

Faital Pro FD 371 A 37 mm Compression Driver 35 W 8 Ohms

Technical Parameters

Nominal Impedance	8 Ohm
Minimum Impedance	6.6 Ohm
AES Power Handling (1)	35 W
Maximum Power Handling (2)	70 W
Minimum Crossover Frequency (3)	2.6 kHz
Sensitivity (1W/1m) (4)	107 dB
Frequency Range	2.6÷20 kHz
Dispersion Angle	40°
Voice Coil Diameter	37 mm (1.46 in)
Winding Material	Al
Former Material	Kapton
Diaphragm Material	Ketone Polymer
Diaphragm Shape	Annular
Winding Depth	2.1 mm (0.08 in)
Magnetic Gap Depth	2.6 mm (0.10 in)
Flux Density	1.5 T
Magnet	Ferrite Ring
Re	5.5 Ohm
Phase Plug Design	Annular
Exit Angle	N/A
NET Air Volume filled by HF Driver	0.3 dm^3 (0.011 ft^3)

Nominal Specifications

Throat Diameter	N/A
Overall Diameter	115.2/102 mm (4.54/4.0 in)
Bolt Circle Diameter	107 mm (4.21 in)
Baffle Cutout Diameter	91 mm (3.58 in)
Depth	79 mm (3.11 in)
Flange and gasket Thickness	5.5 mm (0.22 in)
Net Weight	1.3 kg (2.8 lb)
Shipping Box (Single carton box)	150 x 123 x 102 mm (5.9 x 4.8 x 4.0 in)
Shipping Weight	1.3 kg (2.9 lb)
