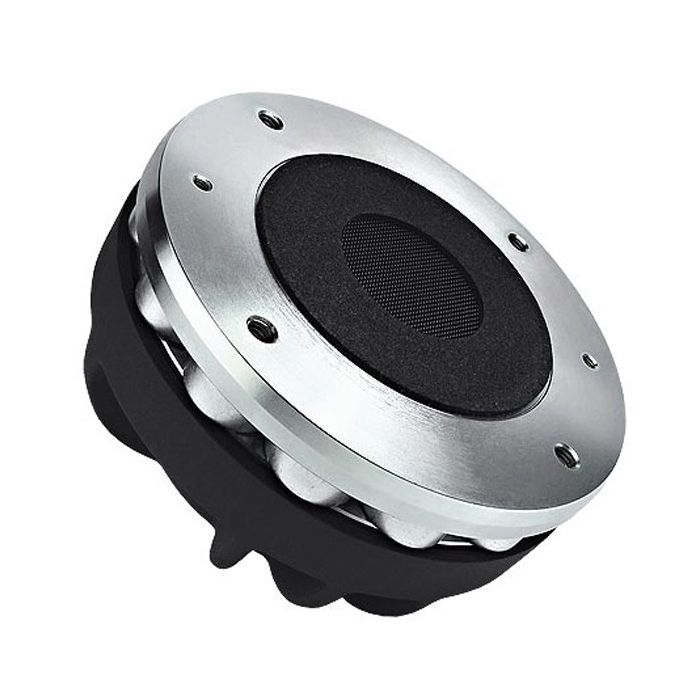

Faital Pro Compression driver HF146, 8 ohm, 1.4 inch

Name: Faital Pro Compression driver HF146, 8 ohm, 1.4 inch
Brand: Faital pro
SKU: FAI-FPHF146A
Price: 364.064801 EUR
Availability: PreOrder

Schrijf uw review over dit product

€ 364,06

SKU

FAI-FPHF146A

Faital Pro Compression driver HF146, 8 ohm, 1.4 inch

Details

Reviews

Faital Pro Compression driver HF146, 8 ohm, 1.4 inch

Technical Parameters

Nominal Impedance	8 Ohm
Minimum Impedance	6.8 Ohm
AES Power above 0.9 kHz (1)	80 W
AES Power above 0.65 kHz	40 W
Maximum Power above 0.9 kHz (2)	160 W
Maximum Power above 0.65 kHz	80 W
Minimum Crossover Frequency (3)	0.9 kHz
Sensitivity (1W/1m) (4)	109 dB
Frequency Range	0.7÷18 kHz
Voice Coil Diameter	65 mm (2.56 in)
Winding Material	Al
Former Material	Kapton
Diaphragm Material	Ketone Polymer
Diaphragm Shape	Dome
Winding Depth	3 mm (0.12 in)
Magnetic Gap Depth	4.2 mm (0.17 in)
Flux Density	1.7 T
Magnet	Neodymium Slug Crown
Re	5.5 Ohm
Phase Plug Design	Annular
Exit Angle (5)	29° Conical
NET Air Volume filled by HF Driver	0.55 dm^3 (0.019 ft^3)

Nominal Specifications

Throat Diameter	35.6 mm (1.4 in)
Overall Diameter	123 mm (4.84 in)
90° Mounting Holes Diameter (4xM6)	102 mm (4.02 in)
Depth	63.5 mm (2.5 in)
Net Weight	2 kg (4.4 lb)
Shipping Box (Single carton box)	185 x 170 x 122 mm (7.3 x 6.7 x 4.8 in)
Shipping Weight	2.3 kg (5.1 lb)
