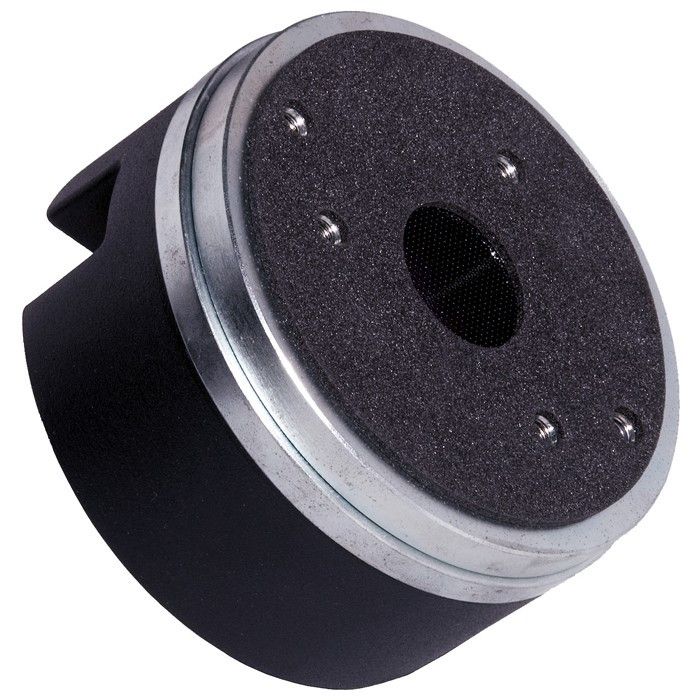

Faital Pro Compression driver HF10RT , 8 ohm, 1 inch

Faital Pro Compression driver HF10RT , 8 ohm, 1 inch

• General

  •  Product type : Compression driver
  •  Brand : Faital Pro
  •  Manufacturer reference : HF10RT
  •  Product code : 00443880

• Informations

  •  Nominal impedance : 8 ohm
  •  Dimensional category : 4 inch
  •  Manufacturer sensitivity : 108 dB
  •  Nominal power handling : 60 W
  •  Bandwidth : 1000÷20000 Hz
  •  Recommended min cutoff frequency : 1300 Hz
  •  Exit diameter compression driver : 1.0 inch

• Fundamental parameters

  •  Re : 5.8 ohm

• Datas

  •  Flux density : 1.9 T
  •  Zmin : 6.7 ohm
  •  Weight : ~1.6 kg

• Dimensions

  •  Voice coil diameter : 1.73 inch
  •  Winding depth : 2.45 mm
  •  Gap height : 2.75 mm
  •  Outside diameter : 102 mm
  •  Depth : 54 mm

• Shape & Materials

  •  Front chape : Cylindrical
  •  Magnet type : Neodymium
  •  Winding material : Aluminium
  •  Diaphragm former material : Kapton
  •  Diaphragm material : Titanium
