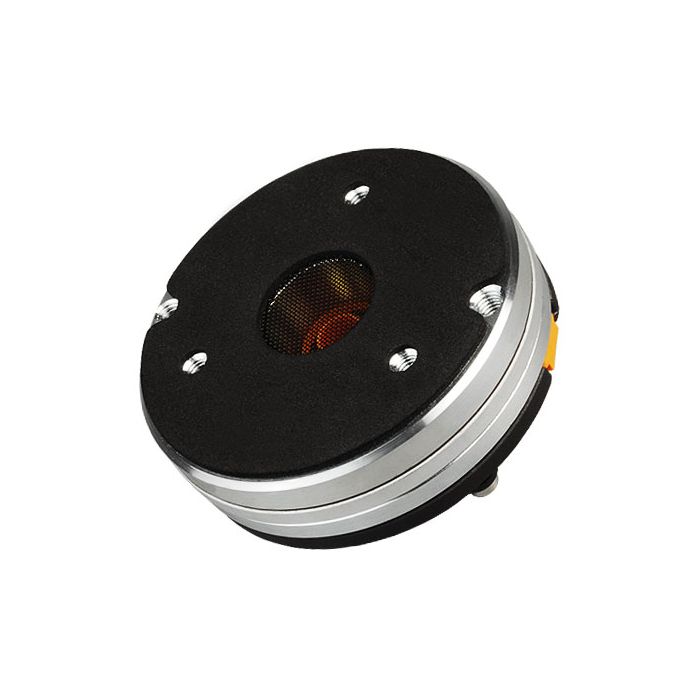

Faital Pro Compression driver HF108R , 16 ohm, 1 inch 60watt

Faital Pro Compression driver HF108R , 8 ohm, 1 inch 60watt

Name: Faital Pro Compression driver HF108R , 8 ohm, 1 inch 60watt
Brand: Faital pro
SKU: FAI-FPHF108RA
Price: 242.701801 EUR
Availability: PreOrder

Schrijf uw review over dit product

€ 242,70

SKU

FAI-FPHF108RA

Faital Pro Compression driver HF108R , 8 ohm, 1 inch 60watt

Details

Reviews

Faital Pro Compression driver HF108R , 8 ohm, 1 inch 60watt

Technical Parameters

Nominal Impedance	8 Ohm
Minimum Impedance	6.5 Ohm
AES Power Handling (1)	60 W
Maximum Power Handling (2)	120 W
Minimum Crossover Frequency (3)	1.3 kHz
Sensitivity (1W/1m) (4)	109 dB
Frequency Range	1÷20 kHz
Voice Coil Diameter	44 mm (1.73 in)
Winding Material	Al
Former Material	Kapton
Diaphragm Material	Ketone Polymer
Diaphragm Shape	Dome
Winding Depth	2.3 mm (0.09 in)
Magnetic Gap Depth	2.85 mm (0.11 in)
Flux Density	2.1 T
Magnet	Neodymium Ring
Re	5.8 Ohm
Phase Plug Design	Annular
Exit Angle (5)	31° Conical
NET Air Volume filled by HF Driver	0.195 dm^3 (0.007 ft^3)

Nominal Specifications

Throat Diameter	25.4 mm (1 in)
Overall Diameter	87 mm (3.43 in)
180° Mounting Holes Diameter (2xM5)	76 mm (2.99 in)
Depth	41 mm (1.61 in)
Net Weight	800 g (1.8 lb)
Shipping Box (Single carton box)	147 x 130 x 82 mm (5.8 x 5.1 x 3.2 in)
Shipping Weight	1.2 kg (2.6 lb)

Part Number (P/N)
