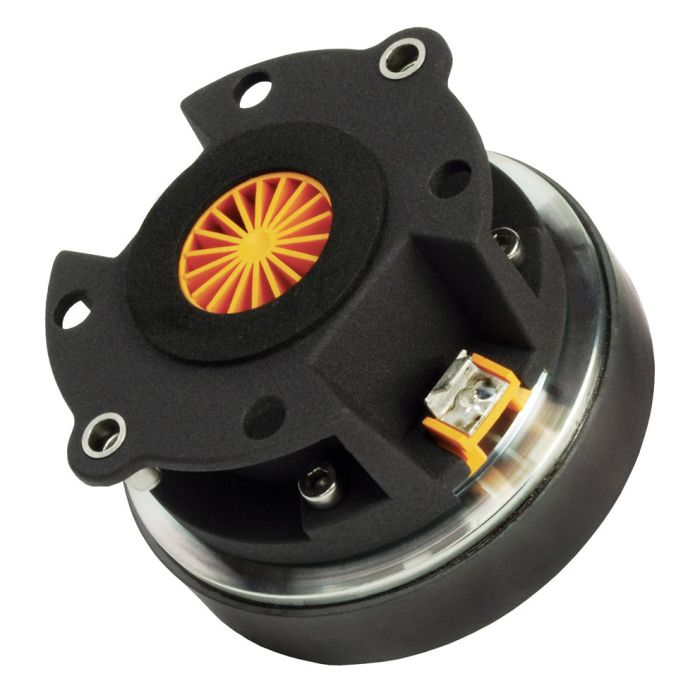

Faital Pro Compression driver HF105 , 8 ohm, 1 inch 40watt

Faital Pro Compression driver HF105 , 8 ohm, 1 inch 40watt

• General

  •  Product type : Compression driver
  •  Brand : Faital Pro
  •  Manufacturer reference : HF105
  •  Product code : 00374111

• Informations

  •  Nominal impedance : 8 ohm
  •  Dimensional category : 3.5 inch
  •  Manufacturer sensitivity : 107 dB
  •  Nominal power handling : 40 W
  •  Bandwidth : 1400÷20000 Hz
  •  Recommended min cutoff frequency : 1700 Hz
  •  Exit diameter compression driver : 1.0 inch

• Fundamental parameters

  •  Re : 5.5 ohm

• Datas

  •  Flux density : 1.5 T
  •  Zmin : 6.7 ohm
  •  Weight : ~1.2 kg

• Dimensions

  •  Voice coil diameter : 1.46 inch
  •  Winding depth : 2.1 mm
  •  Gap height : 2.6 mm
  •  Outside diameter : 91 mm
  •  Depth : 61 mm

• Shape & Materials

  •  Front chape : Cylindrical
  •  Magnet type : Ferrite
  •  Winding material : Aluminium
  •  Diaphragm former material : Kapton
  •  Diaphragm material : Keton polymer
