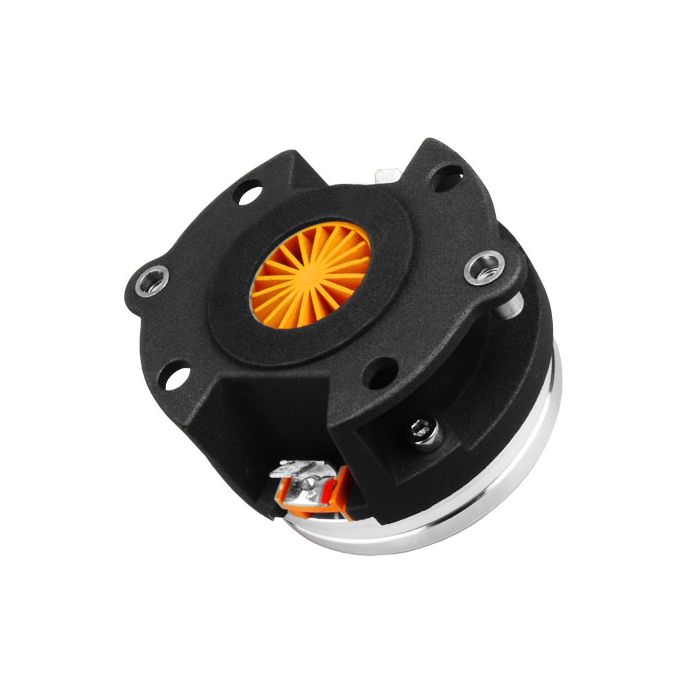

Faital Pro Compression driver HF104, 16 ohm, 1 inch 40w

Name: Faital Pro Compression driver HF104, 16 ohm, 1 inch 40w
Brand: Faital pro
SKU: FAI-FPHF104B
Price: 174.966001 EUR
Availability: PreOrder

Schrijf uw review over dit product

€ 174,97

SKU

FAI-FPHF104B

Faital Pro Compression driver HF104, 16 ohm, 1 inch 40w

Details

Reviews

Faital Pro Compression driver HF104, 16 ohm, 1 inch 40w

Technical Parameters

Nominal Impedance	16 Ohm
Minimum Impedance	13.9 Ohm
AES Power Handling (1)	40 W
Maximum Power Handling (2)	80 W
Minimum Crossover Frequency (3)	1.7 kHz
Sensitivity (1W/1m) (4)	108 dB
Frequency Range	1.5÷20 kHz
Voice Coil Diameter	37 mm (1.46 in)
Winding Material	Al
Former Material	Kapton
Diaphragm Material	Ketone Polymer
Diaphragm Shape	Annular
Winding Depth	2.6 mm (0.10 in)
Magnetic Gap Depth	2.6 mm (0.10 in)
Flux Density	1.85 T
Magnet	Neodymium Ring
Re	11 Ohm
Phase Plug Design	Radial
Exit Angle (5)	Combined Exit
NET Air Volume filled by HF Driver	0.16 dm^3 (0.006 ft^3)

Nominal Specifications

Throat Diameter	25.4 mm (1 in)
Overall Diameter	91 mm (3.58 in)
180° Mounting Holes Diameter (2xM5)	77.5 mm (3.05 in)
Depth	51 mm (2.01 in)
Net Weight	670 g (1.5 lb)
Shipping Box (Single carton box)	98 x 90 x 64 mm (3.9 x 3.5 x 2.5 in)
Shipping Weight	700 g (1.5 lb)
