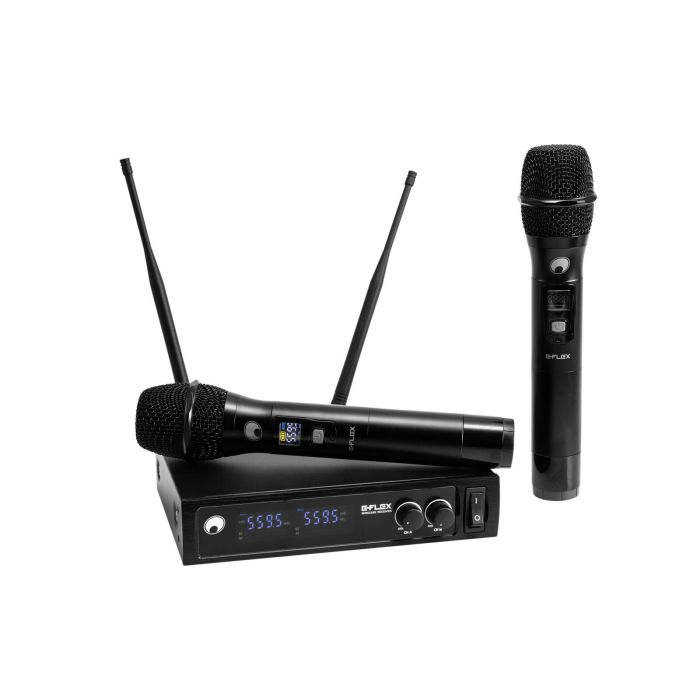

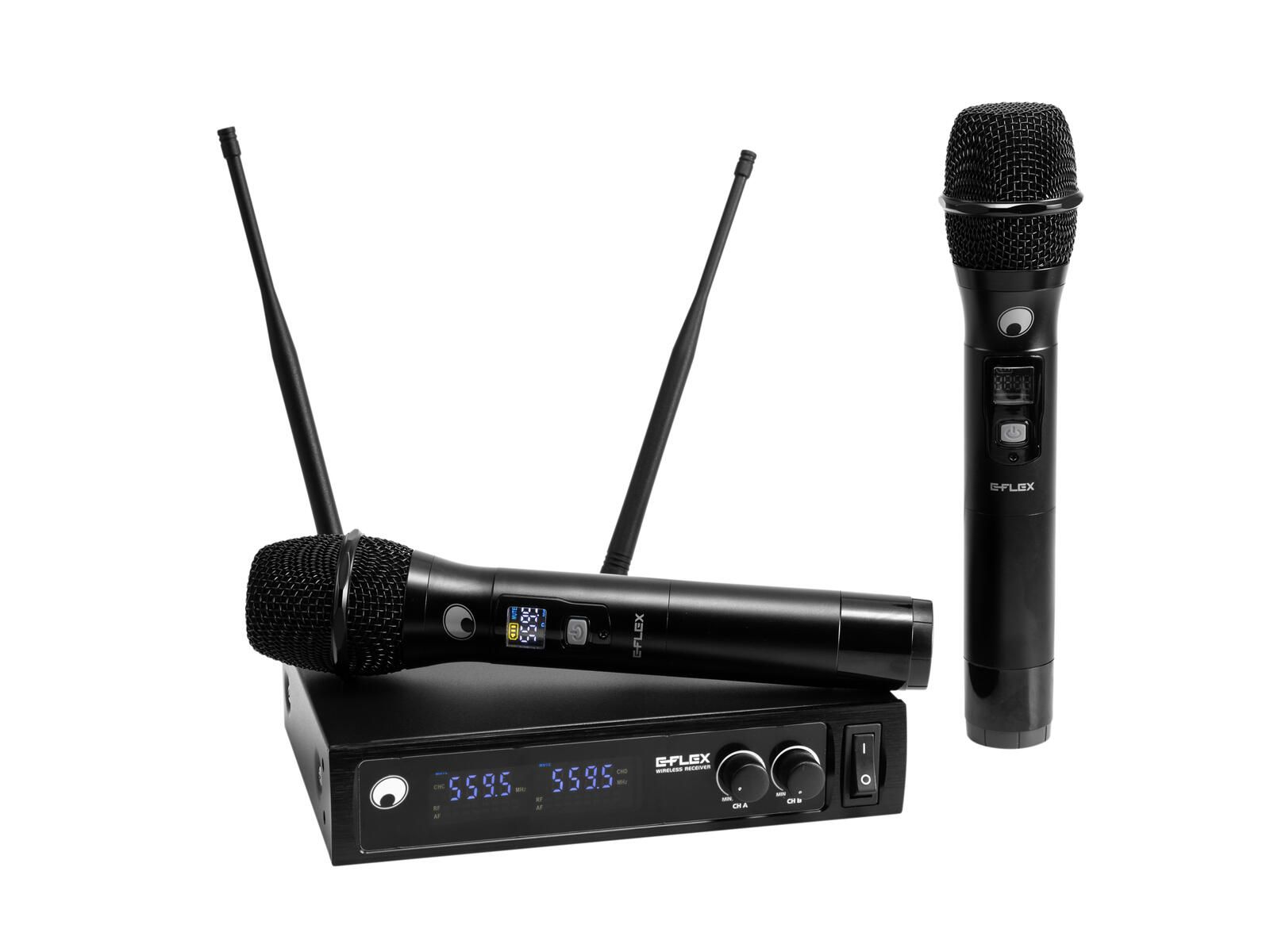

OMNITRONIC UHF E-FLEX 2, Wireless Mic System 559-575 MHz
€ 84,51
?
SKU
st13063371
OMNITRONIC UHF E-FLEX 2, Wireless Mic System 559-575 MHz
OMNITRONIC UHF E-FLEX 2, Wireless Mic System 559-575 MHz
Features
License-free 2-channel microphone system (UHF 863 - 865 MHz, UHF 823 - 832 MHz) with auto sync, incl. rack kit
- 2-channel receiver and 2 hand-held microphones with UHF PLL technology
- Quick and easy frequency adjustment at hand-held transmitter
- 16 selectable UHF frequencies (823-832 and 863-865 MHz)
- 2 separate channels with volume controls
- Balanced XLR output per channel
- 6.3 mm jack for mixed signal output
- Detachable BNC antennas
- Operating range up to 30m with line-of-sight
- UHF 863 - 865 MHz License-free and approved in Europe
- UHF 823 - 832 MHz License-free and approved in large parts of Europe

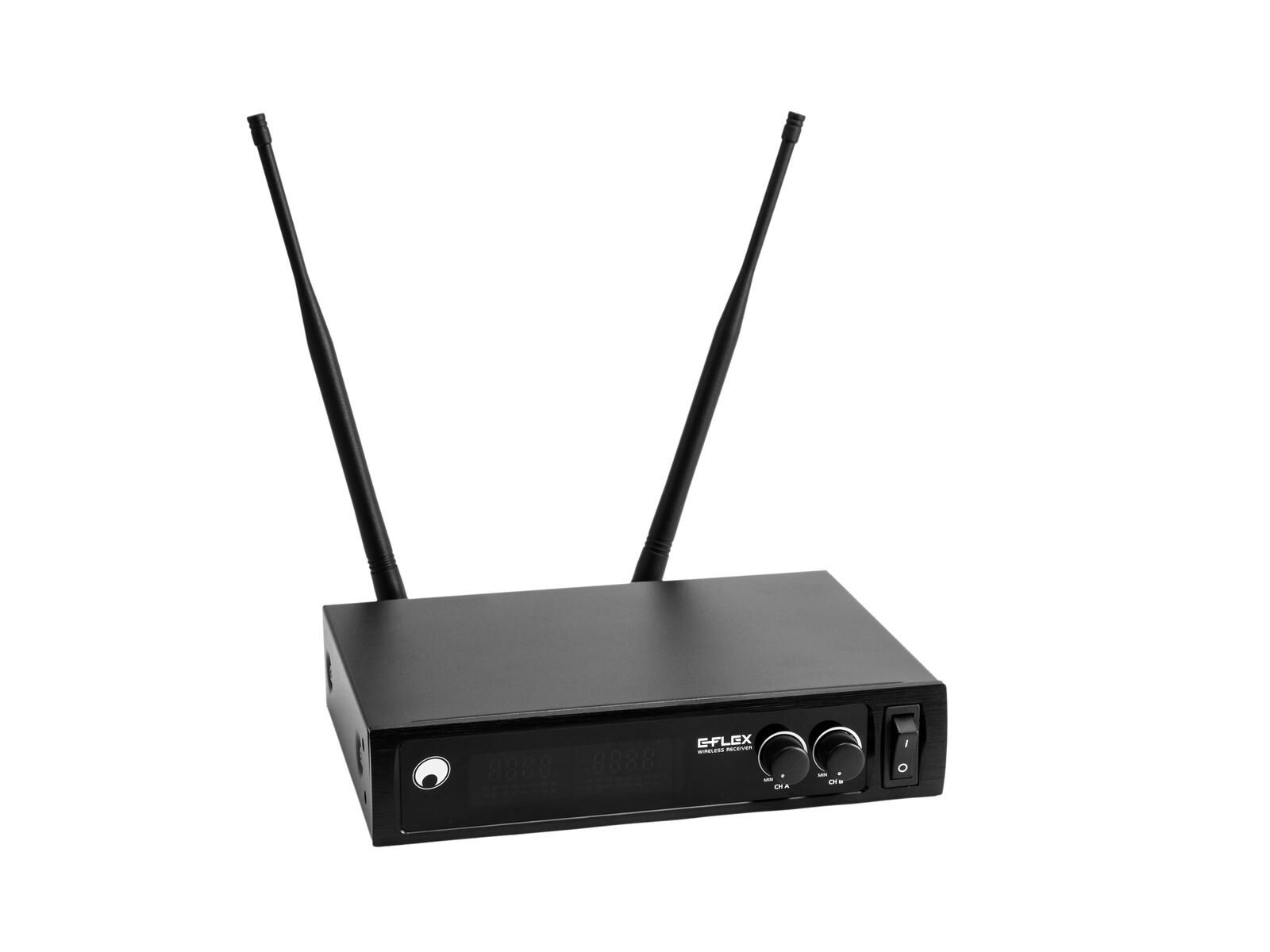

receiver
- Multicolor 4 digit 7-segment LED display
- Desktop console housing
- (19") 48.3 cm rack installation possible
microphone
- Polar pattern: Cardioid
- Multicolor 4 digit 7-segment LED display
- Charge status indicator
Package contents
- 1 x receiver, 1 x external mains adapter, 2 x antenna, 2 x microphone, 1 x jack cable, 2 x mounting bracket, 6 x screw, 4 x foot, 1 x user manual, 1 x declaration of conformity
Technical specifications
| Type: | Wireless set |
| Protection class: | Protection class III |
| Number of channels: | 2 |
| Frequency range: | 50 - 15000 Hz |
| Range: | Range up to 30m with line-of-sight |
| Frequency band: | UHF 559 - 575 MHz |
| Modulation: | FM |
| Frequency selection: | 16 switchable frequencies In 2 groups |
| Weight: | 1,87 kg |
| Receiver | |
| Power supply: | 100-240 V AC, 50/60 Hz 12V DC 500 mA |
| Power consumption: | Max. 3,1 W |
| Power connection: | Mains input via coaxial power connector (M) power supply cord with AC unit (provided) |
| S/N ratio: | >90 dB |
| THD: | <0,05 % at 1 kHz |
| Housing color: | Black |
| Display type: | Multicolor 4 digit 7-segment LED display |
| Display: | Mute; channel , frequency , AF audio level , RF signal level |
| Control elements: | Power switch, level control per channel |
| Connections: | Input: antenna via 2 x BNC (F) Output: microphone via 1 x 6.3 mm plug (unbal.) Output: microphone via 2 x 3-pin XLR (M) mounting version |
| Material: | Metal |
| Housing design: | Desktop console housing (19") 48.3 cm rack installation possible |
| Mounting depth: | 18,5 cm |
| Dimensions: | Width: 21,1 cm Depth: 14,4 cm Height: 4,2 cm |
| Weight: | 0,970 kg |
| Microphone | |
| Type: | Hand-held transmitter |
| Power supply: | 3V DC |
| Capsule type: | Dynamic |
| Polar pattern: | Cardioid |
| Battery: | Mignon (AA) (not included) |
| Sensitivity: | -54 dB |
| RF power output: | 10 mW |
| Housing color: | Black |
| Display type: | Multicolor 4 digit 7-segment LED display |
| Display: | Frequency , channel , charge status indicator , Mute |
| Switch: | On/off/mute switch |
| Material: | Metal |
| Dimensions: | Length: 24,3 cm Diameter: Ø 5,5 cm |
| Weight: | 0,27 kg |
