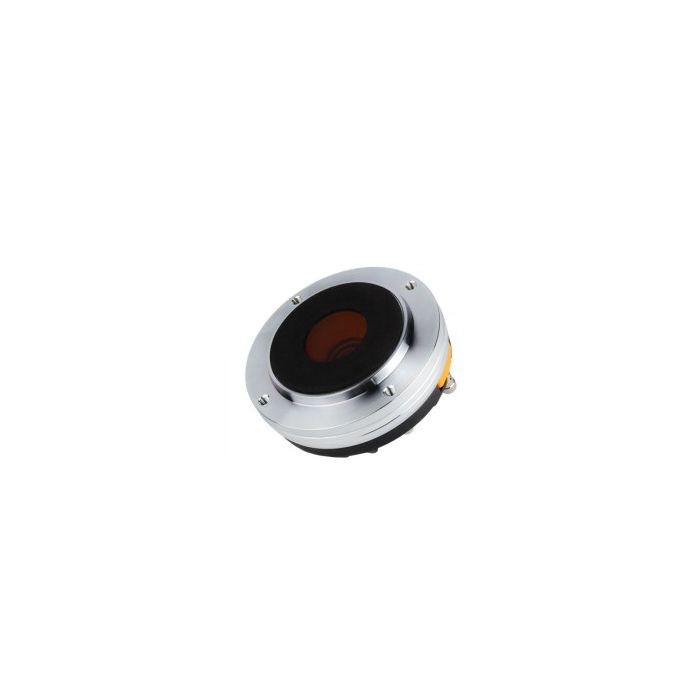

Faital Pro Compression driver HF144 , 8 ohm, 1.4 inch

Faital Pro Compression driver HF144 , 8 ohm, 1.4 inch

• General

  •  Product type : Compression driver
  •  Brand : Faital Pro
  •  Manufacturer reference : HF144
  •  Product code : 00654016

• Informations

  •  Nominal impedance : 8 ohm
  •  Dimensional category : 5 inch
  •  Manufacturer sensitivity : 109 dB
  •  Nominal power handling : 80 W
  •  Bandwidth : 700÷18000 Hz
  •  Recommended min cutoff frequency : 900 Hz
  •  Exit diameter compression driver : 1.4 inch

• Fundamental parameters

  •  Re : 5.5 ohm

• Datas

  •  Flux density : 1.7 T
  •  Zmin : 14.4 ohm
  •  Weight : ~2.2 kg

• Dimensions

  •  Voice coil diameter : 2.56 inch
  •  Winding depth : 3.75 mm
  •  Gap height : 4.2 mm
  •  Outside diameter : 123 mm
  •  Depth : 63.5 mm

• Shape & Materials

  •  Front chape : Cylindrical
  •  Magnet type : Neodymium
  •  Winding material : Aluminium
  •  Diaphragm former material : Kapton
  •  Diaphragm material : Keton polymer
