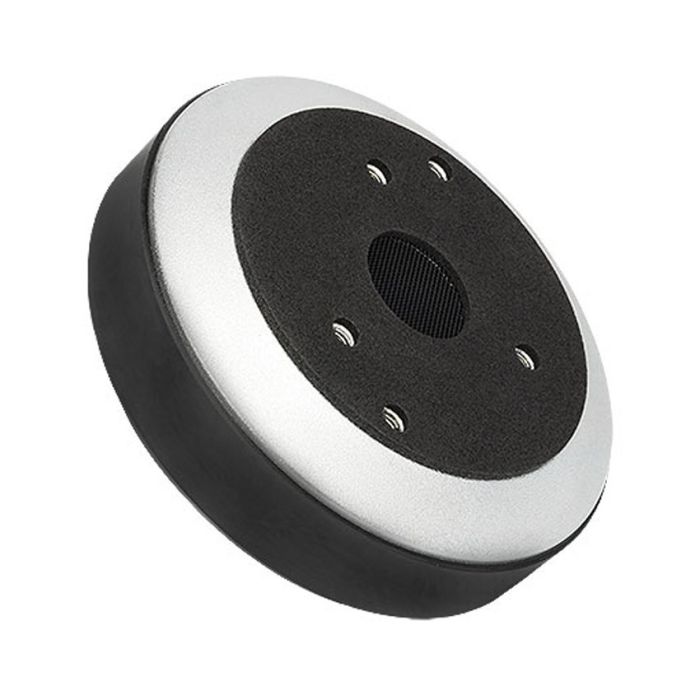

Faital Pro Compression driver HF109 , 16 ohm, 1 inch

Faital Pro Compression driver HF109 , 16 ohm, 1 inch

• General

  •  Product type : Compression driver
  •  Brand : Faital Pro
  •  Manufacturer reference : HF109
  •  Product code : 00444175

• Informations

  •  Nominal impedance : 16 ohm
  •  Dimensional category : 4.5 inch
  •  Manufacturer sensitivity : 108 dB
  •  Nominal power handling : 60 W
  •  Bandwidth : 1000÷20000 Hz
  •  Recommended min cutoff frequency : 1300 Hz
  •  Exit diameter compression driver : 1.0 inch

• Fundamental parameters

  •  Re : 11.6 ohm

• Datas

  •  Flux density : 1.8 T
  •  Zmin : 13.6 ohm
  •  Weight : ~2.4 kg

• Dimensions

  •  Voice coil diameter : 1.73 inch
  •  Winding depth : 2.3 mm
  •  Gap height : 2.85 mm
  •  Outside diameter : 121 mm
  •  Depth : 55 mm

• Shape & Materials

  •  Front chape : Cylindrical
  •  Magnet type : Ferrite
  •  Winding material : Aluminium
  •  Diaphragm former material : Kapton
  •  Diaphragm material : Keton polymer
