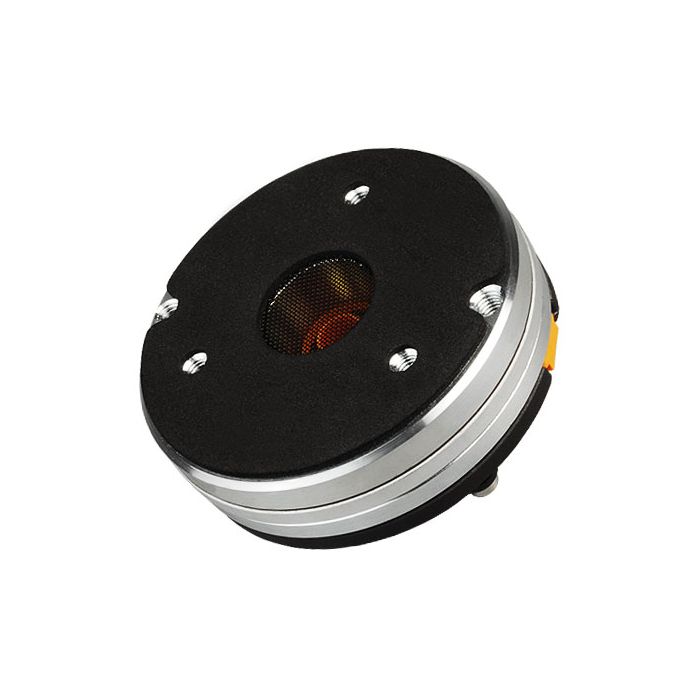

Faital Pro Compression driver HF108 , 16 ohm, 1 inch 60watt
Technical Parameters
| Nominal Impedance |
16 Ohm |
| Minimum Impedance |
13.2 Ohm |
| AES Power Handling (1) |
60 W |
| Maximum Power Handling (2) |
120 W |
| Minimum Crossover Frequency (3) |
1.3 kHz |
| Sensitivity (1W/1m) (4) |
109 dB |
| Frequency Range |
1÷20 kHz |
| Voice Coil Diameter |
44 mm (1.73 in) |
| Winding Material |
Al |
| Former Material |
Kapton |
| Diaphragm Material |
Ketone Polymer |
| Diaphragm Shape |
Dome |
| Winding Depth |
2.9 mm (0.11 in) |
| Magnetic Gap Depth |
2.85 mm (0.11 in) |
| Flux Density |
2.1 T |
| Magnet |
Neodymium Ring |
| Re |
10.5 Ohm |
| Phase Plug Design |
Annular |
| Exit Angle (5) |
31° Conical |
| NET Air Volume filled by HF Driver |
0.195 dm^3 (0.007 ft^3) |
|
Nominal Specifications
| Throat Diameter |
25.4 mm (1 in) |
| Overall Diameter |
87 mm (3.43 in) |
| 180° Mounting Holes Diameter (2xM5) |
76 mm (2.99 in) |
| Depth |
41 mm (1.61 in) |
| Net Weight |
800 g (1.8 lb) |
Shipping Box
(Single carton box) |
147 x 130 x 82 mm
(5.8 x 5.1 x 3.2 in) |
| Shipping Weight |
1.2 kg (2.6 lb) |
|
