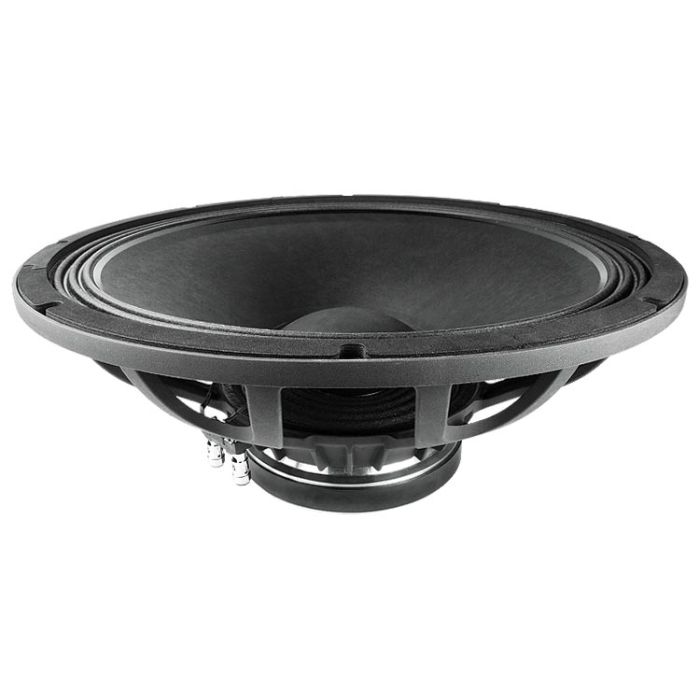

Faital Pro 18FH510 18" - 600 W - 98 dB - 8 Ohm laag Luidspreker

€ 372,99 € 308,26

SKU

FAI-FP18FH510A

Details

Faital Pro 18FH510 18" - 600 W - 98 dB - 8 Ohm laag Luidspreker

Nominal Specifications

Nominal Diameter	460 mm (18 in)
Overall Diameter	460 mm (18.11 in)
Bolt Circle Diameter	440 mm (17.32 in)
Baffle Cutout Diameter	421 mm (16.57 in)
Depth	201.5 mm (7.93 in)
Flange and Gasket Thickness	13.7 mm (0.54 in)
Net Weight	8.8 Kg (19.3 lb)
Shipping Box (Single Carton Box)	503 x 500 x 258 mm (19.8 x 19.7 x 10.2 in)
Shipping Weight	10.3 Kg (22.7 lb)

Technical Parameters

Nominal Impedance	8 Ohm
Minimum Impedance	6.5 Ohm
AES Power Handling (1)	600 W
Maximum Power Handling (2)	1200 W
Sensitivity (1W/1m)	98 dB
Frequency Range	30÷2500 Hz
Voice Coil Diameter	77 mm (3 in)
Winding Material	Cu
Former Material	Glass Fiber
Winding Depth	22 mm (0.87 in)
Magnetic Gap Depth	10.5 mm (0.41 in)
Flux Density	1.2 T
Magnet	Ferrite Ring
Basket Material	Aluminum
Demodulation	No
Cone Surround (3)	Triple Roll
NET Air Volume filled by Loudspeaker	6.1 dm^3 (0.215 ft^3)
Spider Profile	1x variable height waves

Thiele and small parameters

PART NUMBER (P/N)

Push Terminals - 8 Ohm Version

04604080

Notes:

(1) 2 Hours Test According to AES 2-1984 Rev. 2003

(2) Maximum power is defined as 3dB greater than nominal power.

(3) Treated Polycotton

(4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3)

(5) Maximum excursion before permanent damage

Quick acoustic specs

Note:

(1) 2 Hours Test According to AES 2-1984 Rev. 2003

(2) Treated Polycotton

(3) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3)

(4) Maximum excursion before permanent damage

Quick mechanical specs

Nominal Diameter	460 mm (18 in)
Overall Diameter	460 mm (18.11 in)
Bolt Circle Diameter	440 mm (17.32 in)
Baffle Cutout Diameter	421 mm (16.57 in)
Depth	201.5 mm (7.93 in)
Flange and Gasket Thickness	13.7 mm (0.54 in)
Net Weight	8.8 Kg (19.3 lb)
Shipping Box (Single Carton Box)	503 x 500 x 258 mm (19.8 x 19.7 x 10.2 in)
Shipping Weight	10.3 Kg (22.7 lb)
