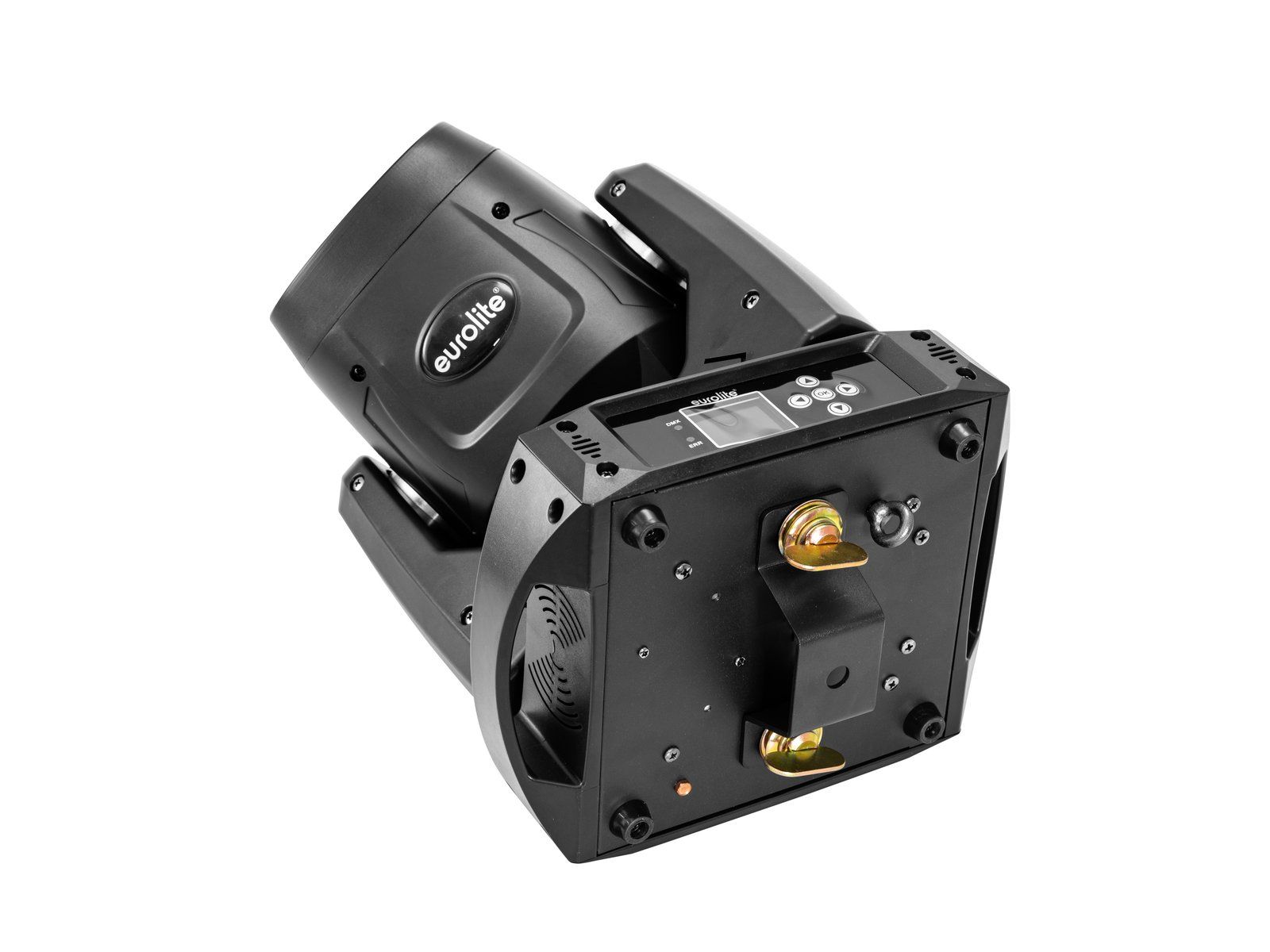

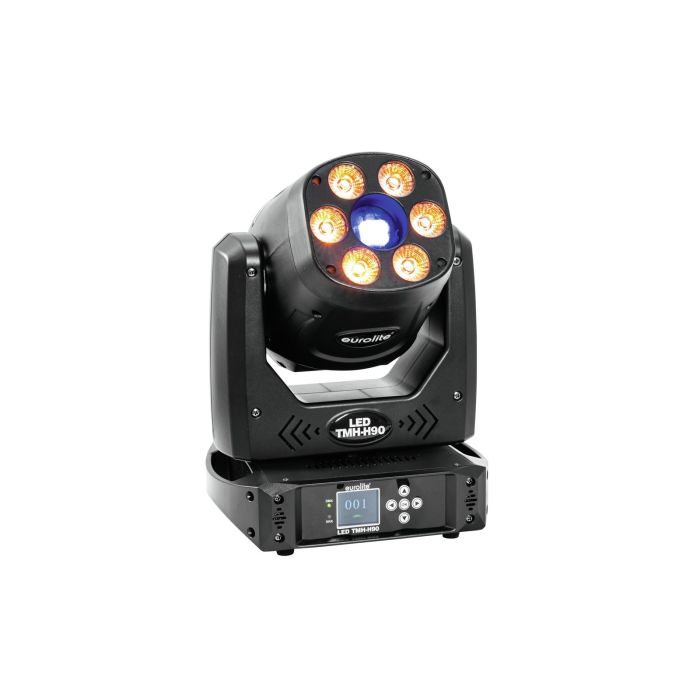

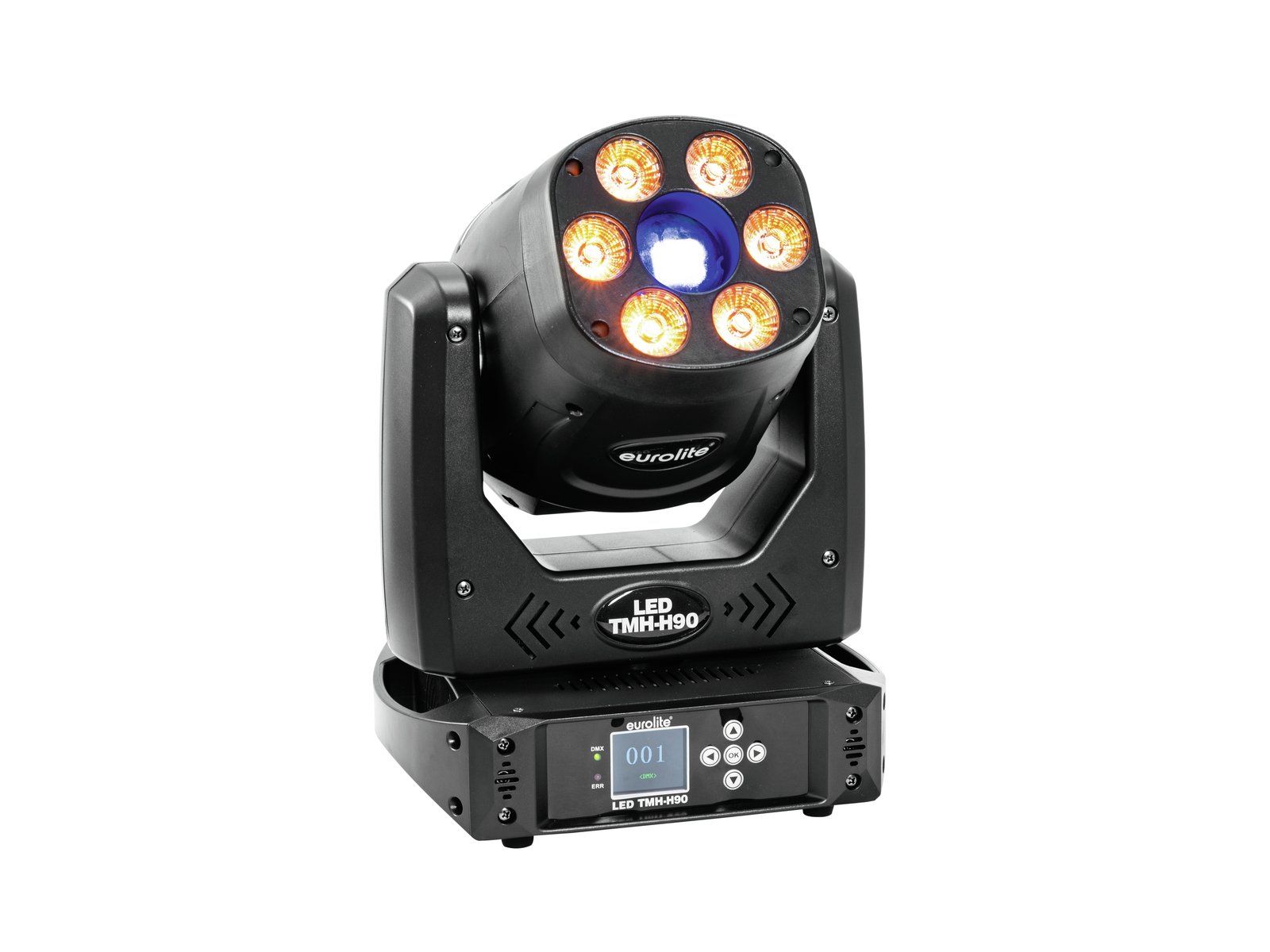

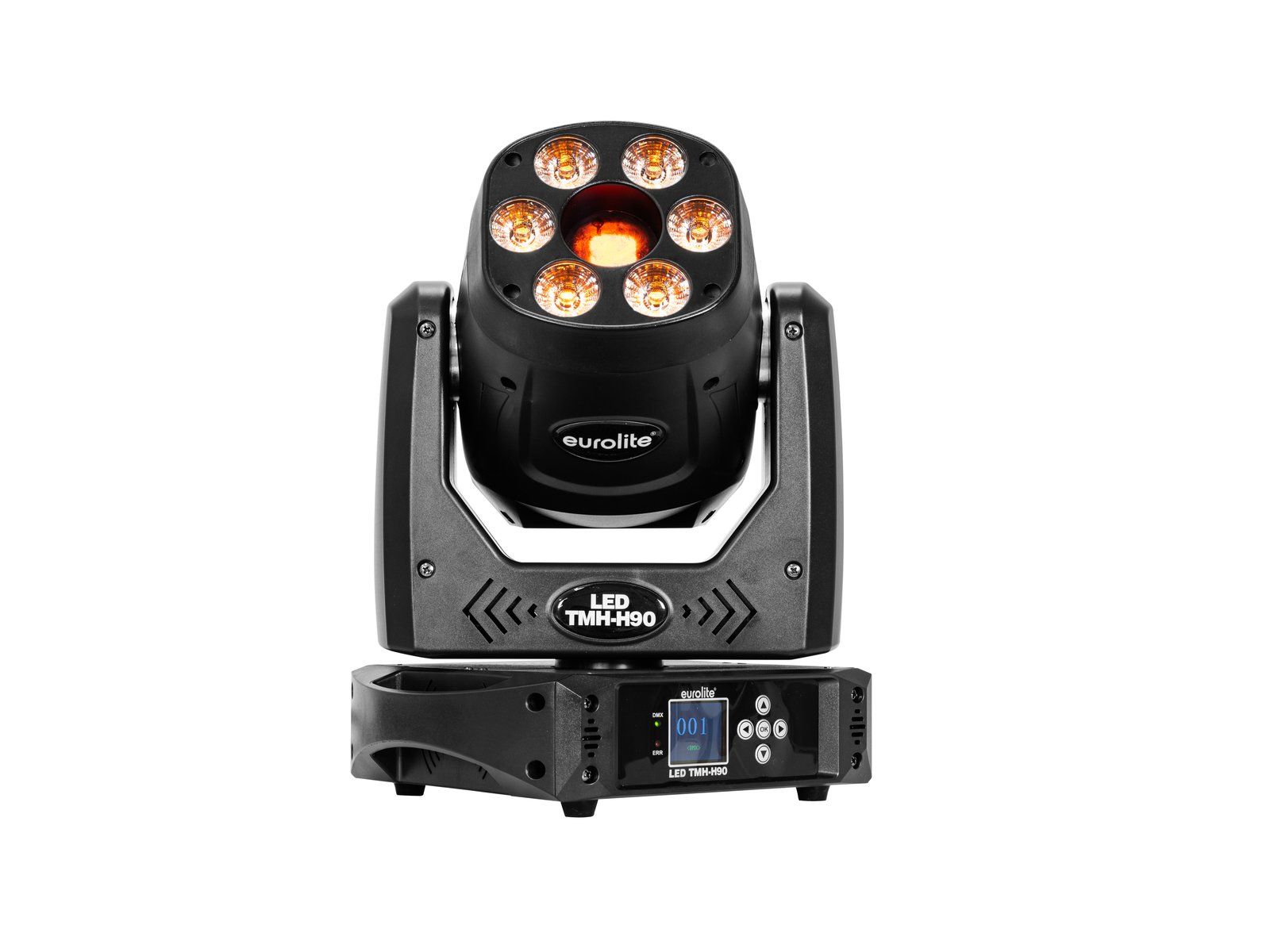

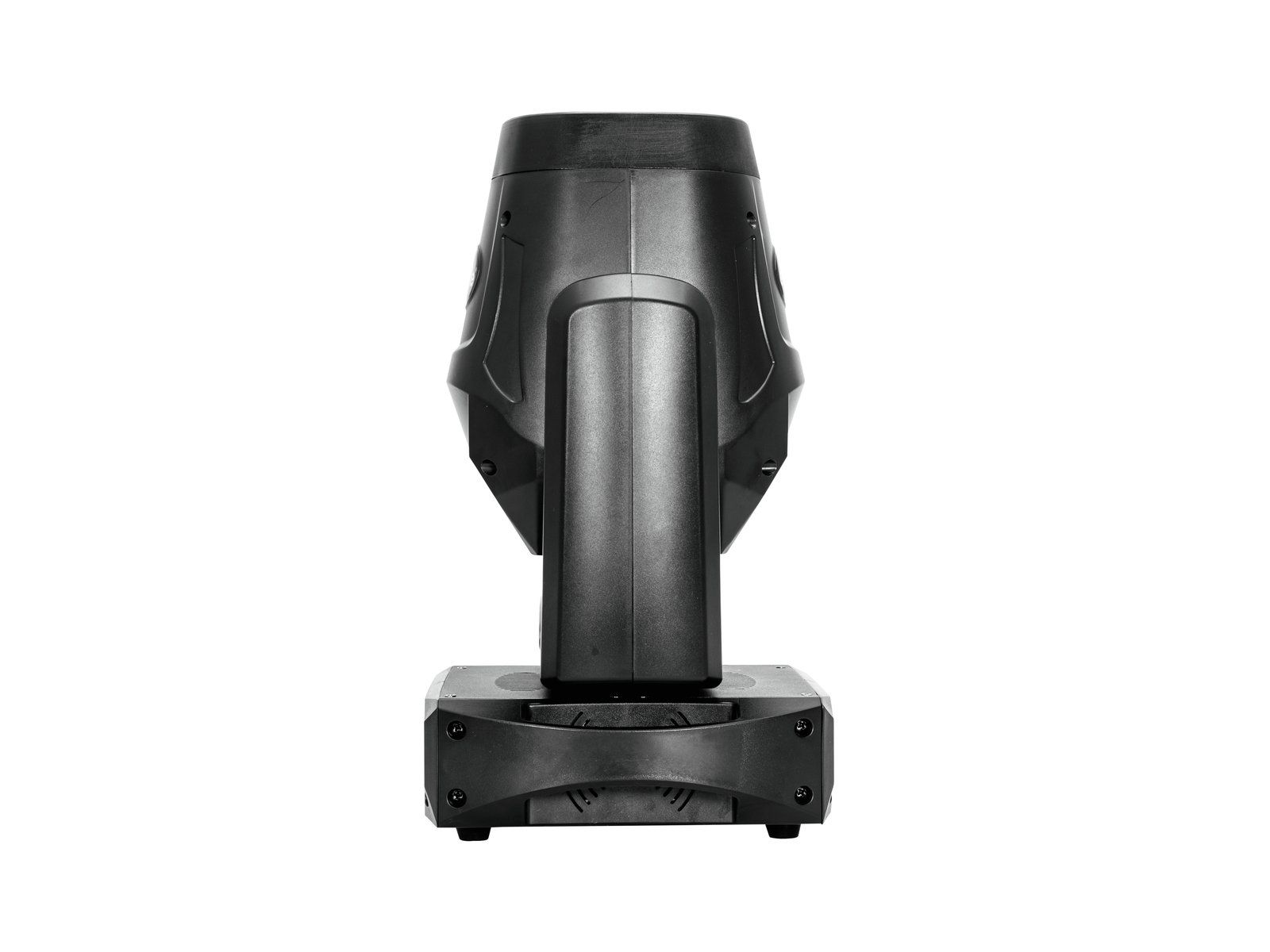

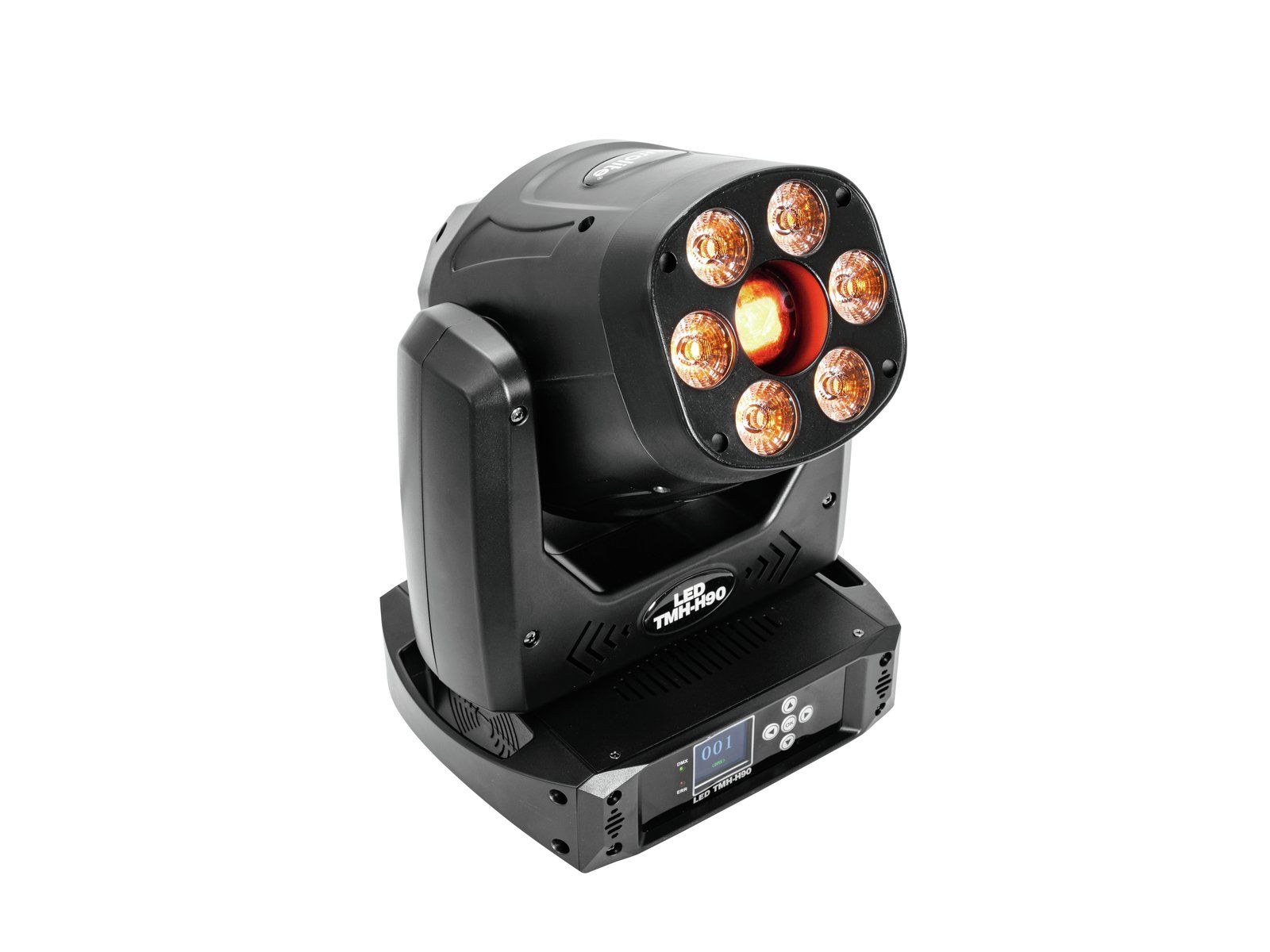

EUROLITE LED TMH-H90 Hybrid Moving-Head Spot/Wash COB
EUROLITE LED TMH-H90 Hybrid Moving-Head Spot/Wash COB
Features
LED moving head hybrid spot/wash with color wheel, static and rotating gobo wheel, prism and focus
Bright spotlight and full-fledged washlight in one device
Positioning within 540° PAN and 200° TILT
Exact positioning via 16 bit PAN/TILT movement resolution
Auto, music, master/slave and DMX mode
Sound-control via built-in microphone
Rotating 3-facet prism
The prism rotates at different speeds
Strobe effect with 2-30 flashes per second
Internal programs
Dimmer
Motorized focus
Automatic position correction
Supports QuickDMX - the wireless DMX system from Eurolite
Built-in phantom-powered USB port for QuickDMX receivers (accessories)
Control board with LCD and foil-keyboard for adjusting the DMX-starting address, PAN/TILT-Reverse, Program, Reset
Switch-mode power supply for operation between 100 and 240 volts
Additional rubber feet protect the device when positioned on the floor
LED: 1 x COB (chip-on-board) 90 W CW
LED: 6 x high-power 10 W 6in1 HCL RGBWA/UV (homogenous color mix)
Color wheel 1 x 7 dichroic filters plus open
Rainbow effect with adjustable speed in both directions
Gobo wheel with static gobos, 7 gobos and open
shake effect
Gobo wheel with rotating gobos, 6 gobos and open
shake effect
Gobos changeable
Slot-in gobo system for exchanging gobos without tools
Can be operated in 25 CH mode
The device is cooled by cooling fan
Controlling by Stand-alone; DMX; QuickDMX via USB (optional); Sound to light via Microphone; Master/slave function
Flicker-free projection
Effect: Gobo effect
Technical specifications
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 135 W
IP classification: IP20
Protection class: Class I
Power connection: Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided)
Fuse: 5 x 20 mm, T 2 A Fuse replaceable
Lamp type: LED lamp
LED: 1 x COB (chip-on-board) 90 W CW
6 x high-power 10 W 6in1 HCL RGBWA/UV (homogenous color mix)
Max. TILT movement: Exact positioning (16 bit resolution) 200° Auto position correction (feedback)
Max. PAN movement: Exact positioning (16 bit resolution) 540° Auto position correction (feedback)
Equipment: Prism 3-fold; gobo wheel with rotating gobos Single in slot; gobo wheel with static gobos; Focus motor-driven; color wheel
Color generation: Color wheel 1 x 7 dichroic filters plus open
Gobos: Gobo wheel with static gobos, 7 gobos and open
Shake effect
Gobo wheel with rotating gobos, 6 gobos and open
Outside diameter 21.8mm
Image diameter 16mm
Shake effect
Gobos changeable
Slot-in gobo system for exchanging gobos without tools
DMX channels: 25
DMX input: 3-pin XLR (M) mounting version
DMX output: 3-pin XLR (F) mounting version
Cooling: Cooling fan
Control: Stand-alone; DMX; QuickDMX via USB (optional); Sound to light via Microphone; Master/slave function
Beam angle: 13°
Beam angle (1/2 peak): Spot 13°
Wash effect 20°
Beam angle (1/10 peak): Wash effect 38°
Illuminance in Lux (lx): Spot CW 1m: 49373 lx, 3m: 6186 lx, 6m: 1606 lx
Wash effect R red 1m: 974 lx, 3m: 101 lx, 6m: 26 lx
Wash effect G green 1m: 2008 lx, 3m: 244 lx, 6m: 66 lx
Wash effect B blue 1m: 518 lx, 3m: 49 lx, 6m: 13 lx
Wash effect CW 1m: 2527 lx, 3m: 257 lx, 6m: 69 lx
Wash effect A amber 1m: 733 lx, 3m: 83 lx, 6m: 21 lx
Wash effect UV 1m: 16 lx, 3m: 2 lx, 6m: 1 lx
Wash effect all 1m: 5885 lx, 3m: 703 lx, 6m: 184 lx
Housing color: Black
Display type: Multicolor LCD display
Dimensions: Width: 25.0 cm
Depth: 22.0 cm
Height: 36.0 cm
Weight: 6.50 kg
Noise classification: Class 3 (clearly perceptible sounds)
