EUROLITE LED IP TMH-H420 Beam/Wash/Flower effect
€ 1.114,71
€ 921,25
?
SKU
st51785940

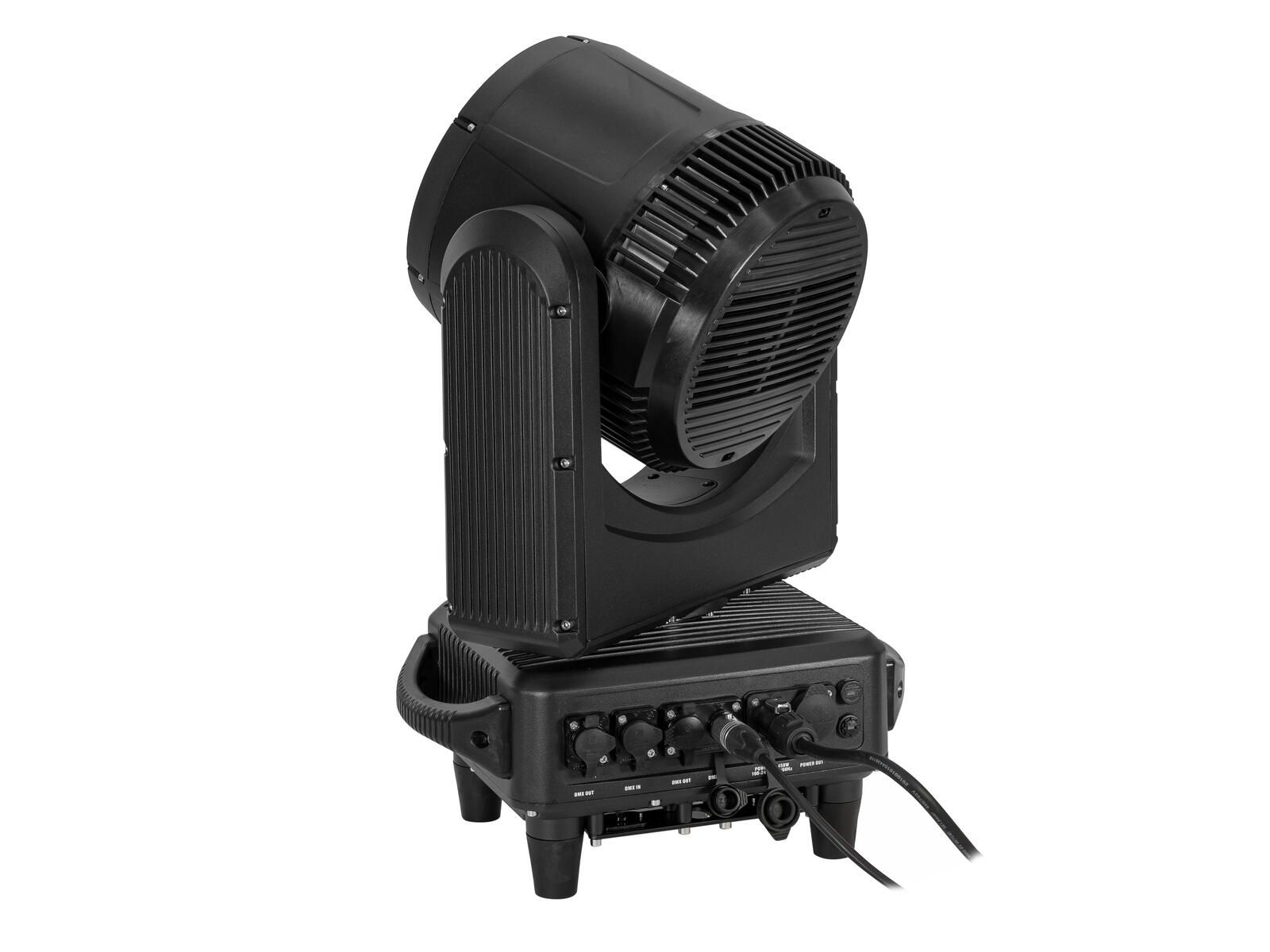

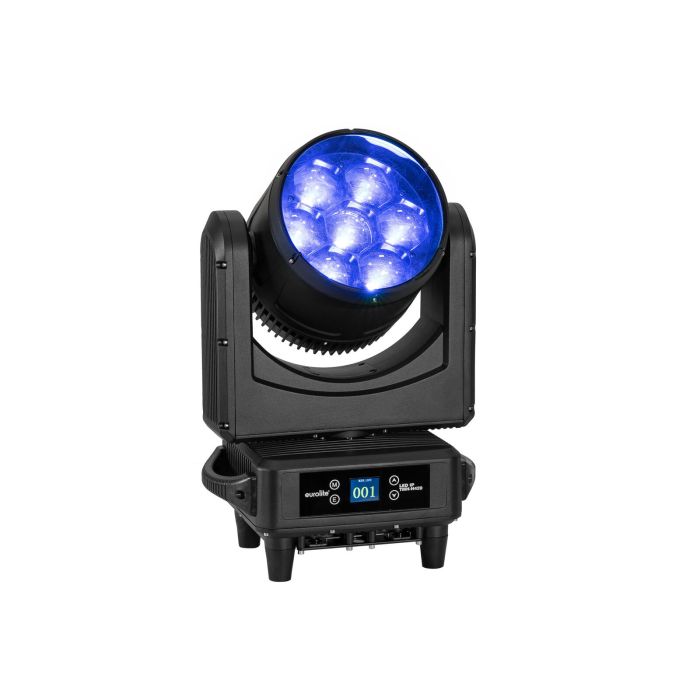

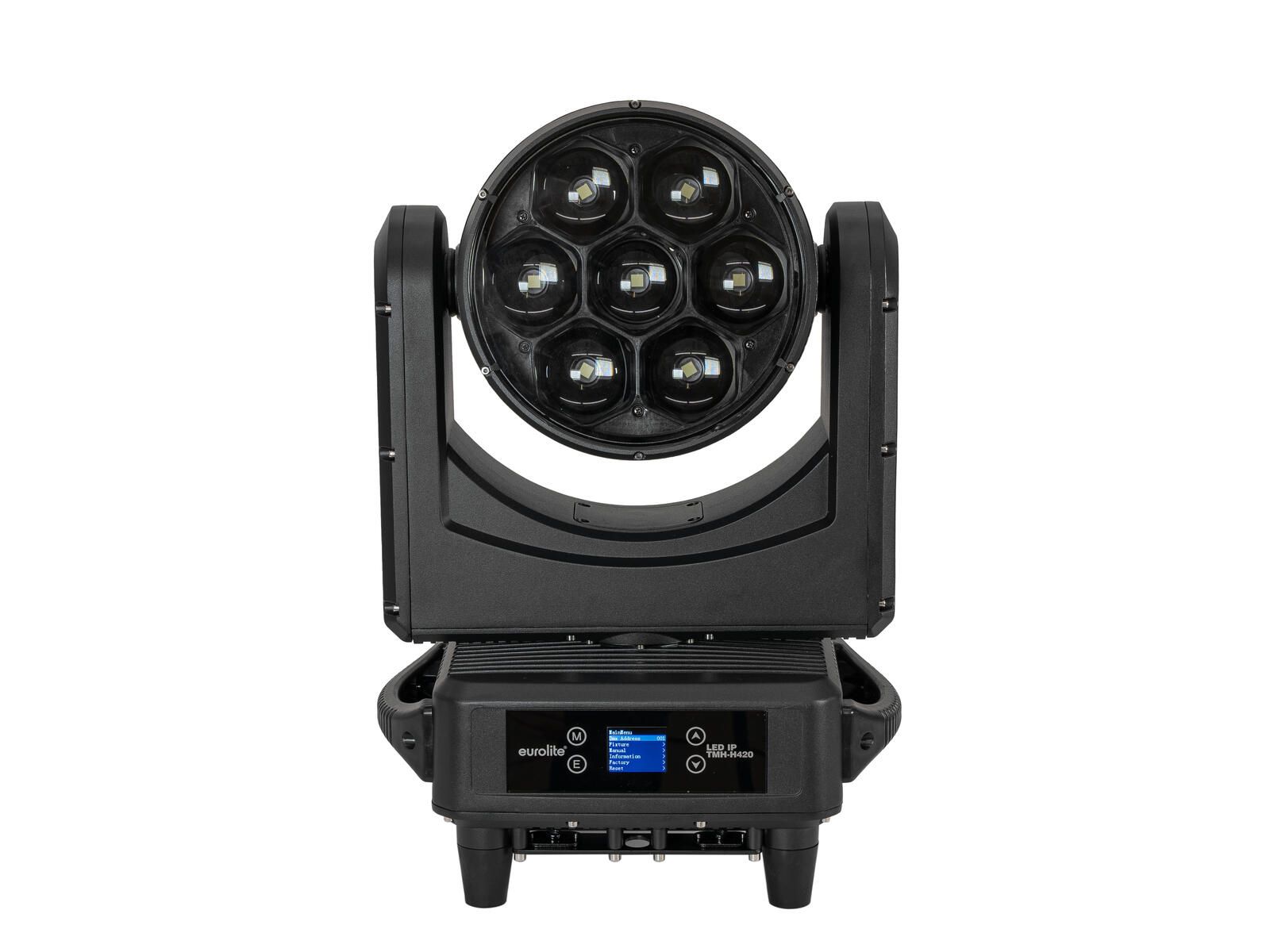

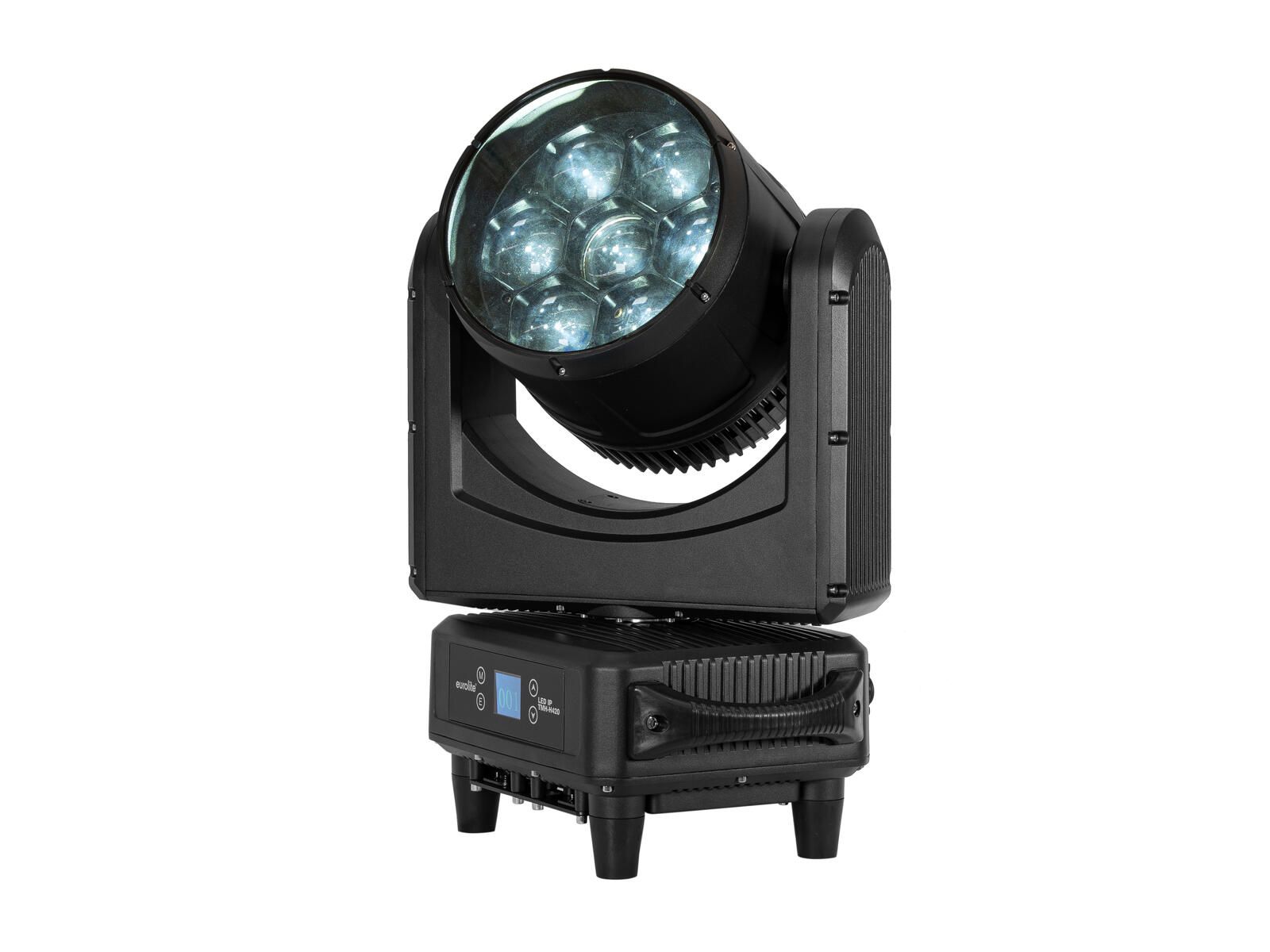

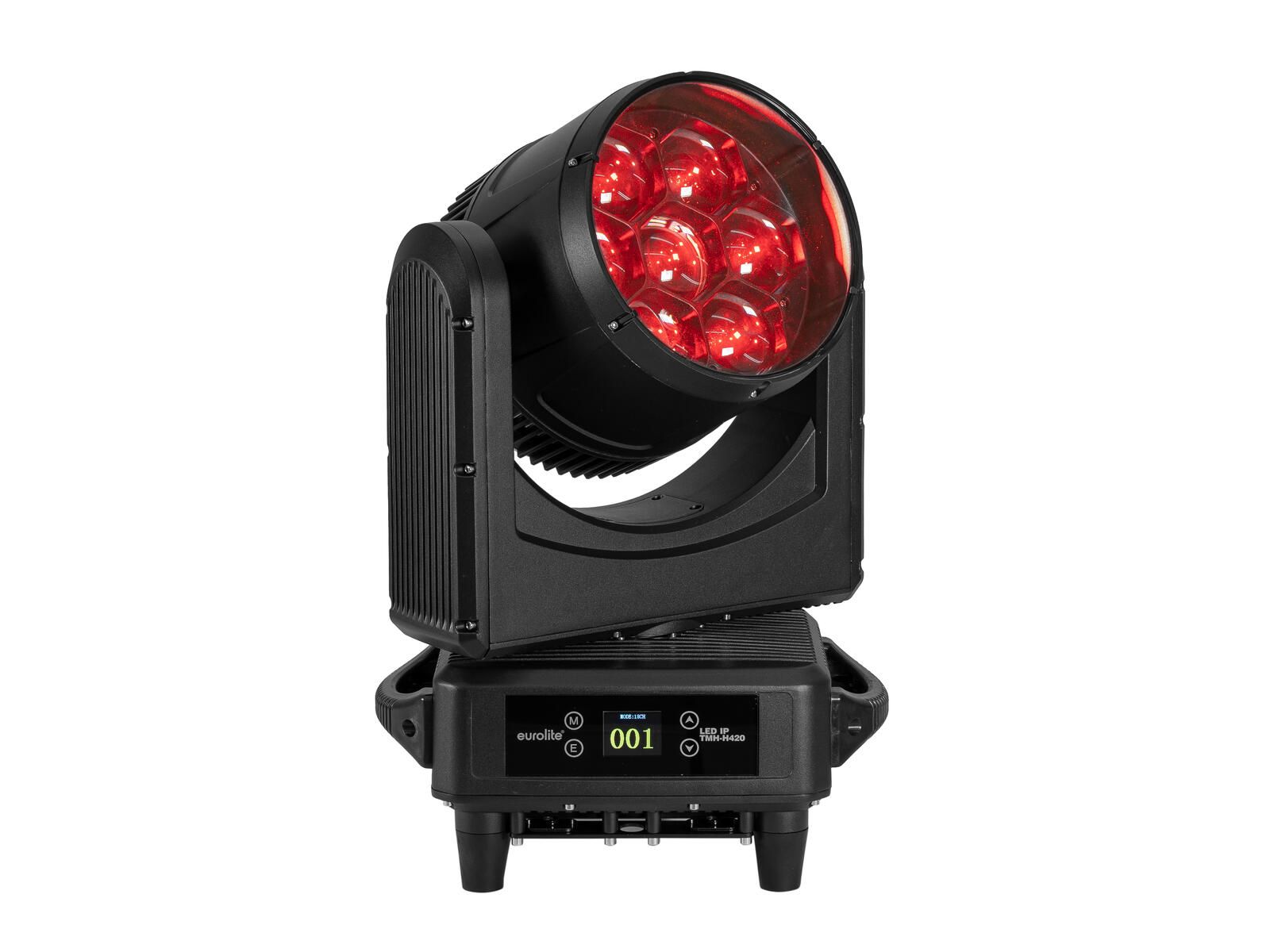

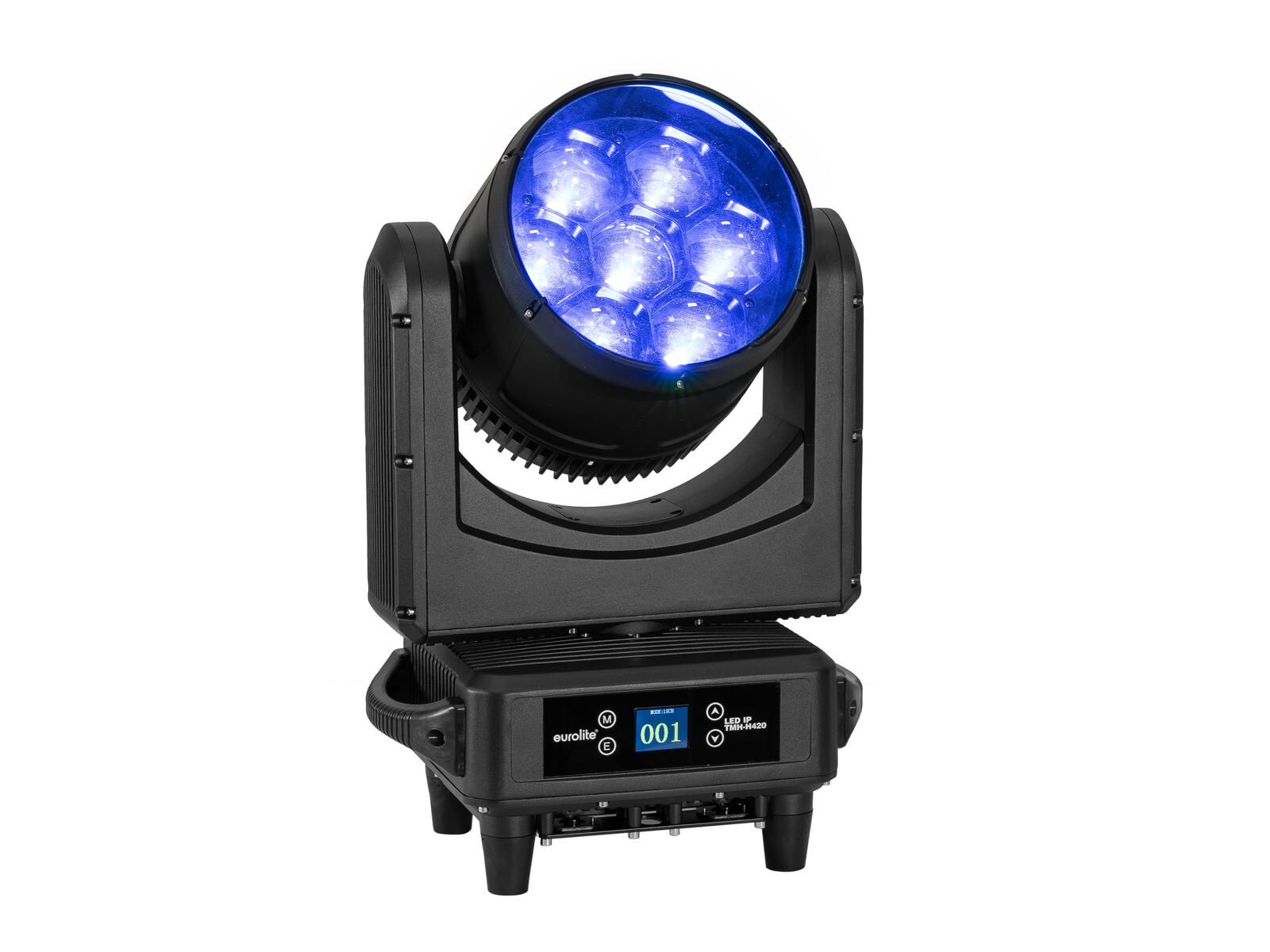

EUROLITE LED IP TMH-H420 Beam/Wash/Flower effect Weather-proof moving head with bright 7 x 60W RGBW LEDs, rotating flower effect and pixel control
EUROLITE LED IP TMH-H420 Beam/Wash/Flower effect Weather-proof moving head with bright 7 x 60W RGBW LEDs, rotating flower effect and pixel control
Features
Weather-proof moving head with bright 7 x 60W RGBW LEDs, rotating flower effect and pixel control
- 7 powerful LEDs 60 W SMD 6065 4in1 QCL RGBW (homogenous color mix)
LEDs controlled separately - Positioning within 540° PAN, 205° TILT
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Lens rotation; zoom motor driven
- Color blend stepless; colors preset; pulse-width modulation variable
- Flower effect; strobe effect; wash effect
- The device is cooled by low-noise cooling fan at the base; temperature-controlled fan at the Head
- Control via stand-alone; DMX; master/slave function
- Preprogrammed in Light Captain
- Flicker-free
- DMX fail mode (hold; zero values)
- With a beam angle of 2° - 55°
- With bracket with hinged hooks
- Multicolor LCD display
- 2 Rugged carrying handles
- 4 x rubber feet
- Mains input and output for power linking up to 4 units
- Built with SEETRONIC connector
- Suitable for outdoor use IP65
- With pressure compensation membrane
Package contents
- 1 x moving light, 1 x power cord, 1 x user manual, 1 x XLR cable, 2 x hooks
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 450 W |
| IP classification: | IP65 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IP T-Con (M) mounting version power supply cord with safety plug |
| Cable construction: | 3 x 1,5 mm² H07RN-F |
| Power output: | IP T-Con (F) mounting version |
| Fuse: | 5 x 20 mm, T 5 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 7 x 60 W SMD 6065 4in1 QCL RGBW (homogenous color mix) |
| Max. TILT movement: | 205° exact positioning (16 bit resolution) auto position correction (feedback) |
| Max. PAN movement: | 540° exact positioning (16 bit resolution) auto position correction (feedback) |
| Flash rate: | 1 - 20 Hz |
| Equipment: | Lens rotation; zoom motor driven |
| DMX channels: | 18; 26; 46 |
| DMX input: | 3-pin XLR (M) mounting version IP 5-pin XLR (M) mounting version IP |
| DMX output: | 3-pin XLR (F) mounting version IP 5-pin XLR (F) mounting version IP |
| Cooling: | 2 x low-noise cooling fan at the base 2 x temperature-controlled fan at the Head |
| Control: | Stand-alone; DMX; master/slave function |
| Preprogrammed in: | Light Captain |
| Projection: | Flicker-free |
| DMX fail mode: | Hold; zero values |
| Beam angle: | 2° - 55° |
| Beam angle (1/2 peak): | 2 - 40° |
| Beam angle (1/10 peak): | 6 - 55° |
| Illuminance in Lux (lx): | Wide all 1m: 12711 lx, 3m: 1637 lx, 6m: 502 lx Wide red (R) 1m: 1723 lx, 3m: 219 lx, 6m: 66 lx Wide green (G) 1m: 4408 lx, 3m: 567 lx, 6m: 174 lx Wide blue (B) 1m: 881 lx, 3m: 115 lx, 6m: 36 lx Wide cold white (CW) 1m: 6563 lx, 3m: 846 lx, 6m: 260 lx Narrow all 1m: 58151 lx, 3m: 56122 lx, 6m: 15091 lx Narrow red (R) 1m: 7843 lx, 3m: 7537 lx, 6m: 2014 lx Narrow green (G) 1m: 19776 lx, 3m: 19629 lx, 6m: 5183 lx Narrow blue (B) 1m: 2578 lx, 3m: 2723 lx, 6m: 987 lx Narrow cold white (CW) 1m: 32586 lx, 3m: 30257 lx, 6m: 7920 lx |
| Housing color: | Black |
| Attachment system: | 2x bracket with hinged hooks |
| Display type: | Multicolor LCD display |
| Carrying handle: | 2 pc/pcs |
| Transport aid: | 4 x rubber feet |
| Use of brands: | Built with SEETRONIC connector |
| Material: | Aluminum casting |
| Dimensions: | Width: 34,5 cm Depth: 23,5 cm Height: 52,0 cm |
| Weight: | 17,05 kg |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
