EUROLITE LED CLS-9 QCL RGB/WW 9x7W
EUROLITE LED CLS-9 QCL RGB/WW 9x7W

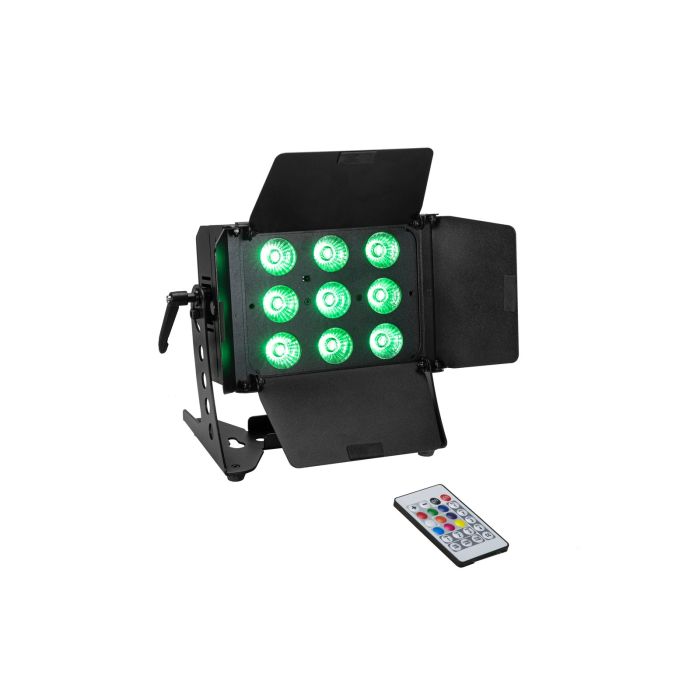

LED floodlight with RGB/WW color mixing, barn doors, IR remote control and frost filter
Features
LED floodlight with RGB/WW color mixing, barn doors, IR remote control and frost filter
Additional frost filter provides a wide, soft and homogeneous light
3 buttons on the remote control for saving your own color mixes
Mains input and output for power linking up to 8 units
9 powerful LEDs 7 W 4in1 QCL RGB/WW (homogenous color mix)
Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic; dimmer curves with adjustable response; white balance
Strobe effect
Can be operated in 3; 4; 6; 8; 11 CH mode
The device is cooled by passive convection cooling
Controlling by stand-alone; DMX; QuickDMX (optional); W-DMX by wireless solution (optional); CRMX by LumenRadio (optional); Master/slave function; Sound to light via Microphone; IR remote control
Preprogrammed in Light´J; Light Captain; EASY SHOW 2; EASY SHOW 3
Flicker-free
With a beam angle of 10°
With Mounting bracket
OLED display
Silent operation
Package contents
1 x device, 1 x user manual, 1 x power cord, 1 x diffusor cover, 1 x remote control, 1 x barndoor, 2 x knurled screw
Technical specifications
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 54 W
IP classification: IP20
Protection class: Protection class I
Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output: 1 x PowerCON (gray)
Lamp type: LED lamp
LED: 9 x 7 W 4in1 QCL RGB/WW (homogenous color mix)
Flash rate: 1 - 23 Hz
DMX channels: 3; 4; 6; 8; 11
DMX input: 1 x 3-pin XLR (M) mounting version
1 x 5-pin XLR (M) mounting version
DMX output: 1 x 3-pin XLR (F) mounting version
1 x 5-pin XLR (F) mounting version
Cooling: Passive convection cooling
Control: Stand-alone; DMX; QuickDMX (optional); W-DMX by wireless solution (optional); CRMX by LumenRadio (optional); Master/slave function; Sound to light via Microphone; IR remote control; Light´J; Light Captain; EASY SHOW 2; EASY SHOW 3
Beam angle: 10°
Beam angle (1/2 peak): 10°
Frost filter 18°
Beam angle (1/10 peak): 28°
Frost filter 47°
Housing color: Black
Attachment system: Mounting bracket
Display type: OLED display
Dimensions: Length: 27,1 cm
Width: 14,3 cm
Height: 21,3 cm
Weight: 3,20 kg
Noise classification: Class 0 (no noise at all)
Remote control
Battery: 1 x Button cell 3.0 V CR2032 lithium manganese built-in
Legal specifications
Special product: Not designed for household room illumination
Intended use: Show effect lighting
