EUROLITE LED BREAKDANCE Beam Effect
€ 370,87
€ 306,50
?
SKU
st50944324

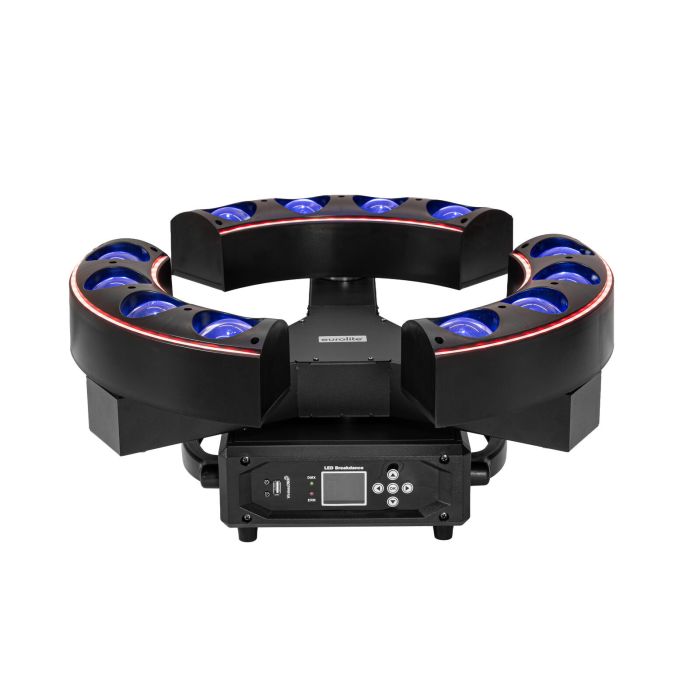

EUROLITE LED BREAKDANCE Beam Effect
EUROLITE LED BREAKDANCE Beam Effect
Spectacular RGBW lighting effect with 3 rotating arms, atmospheric effect & unlimited PAN

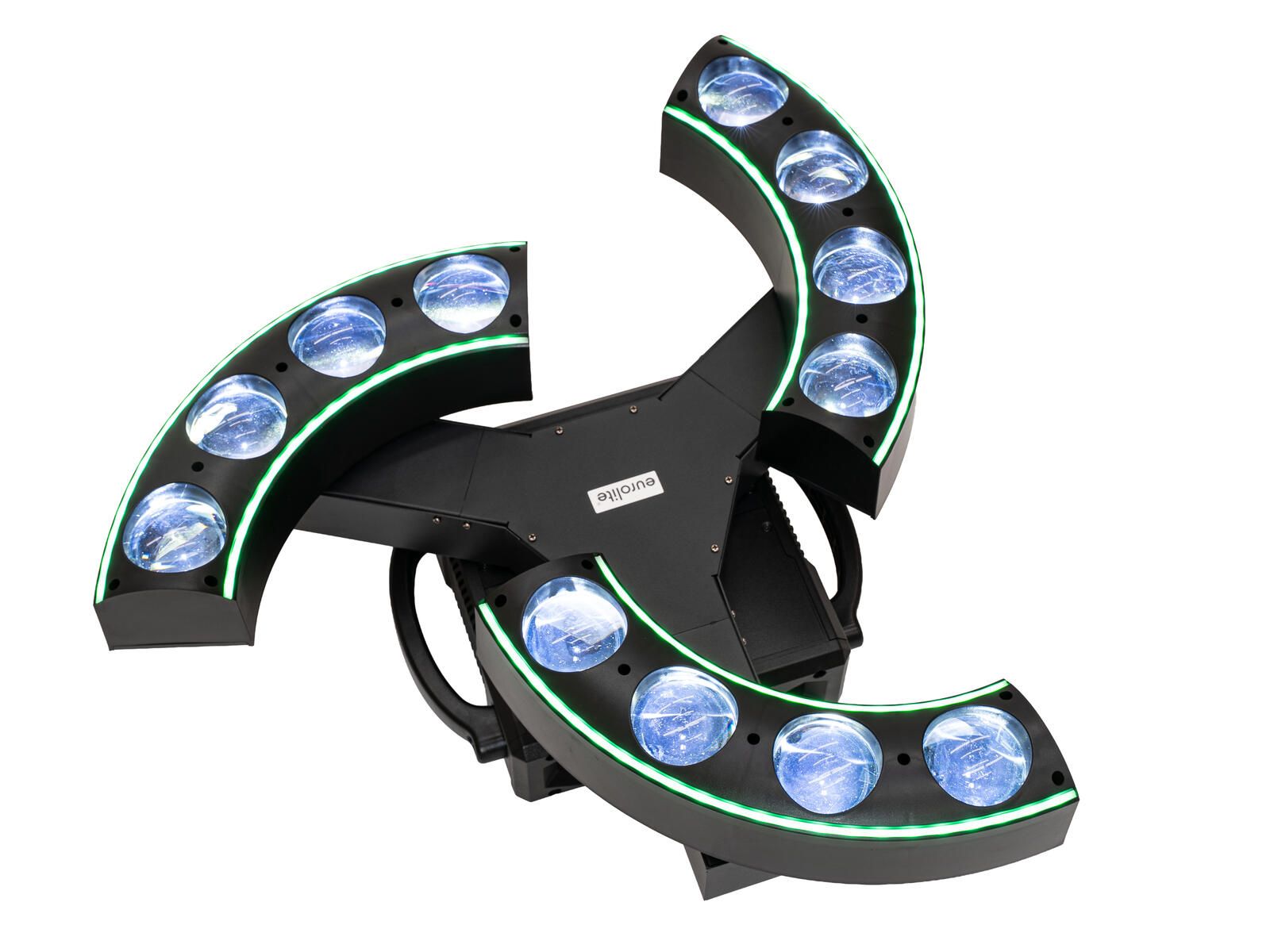

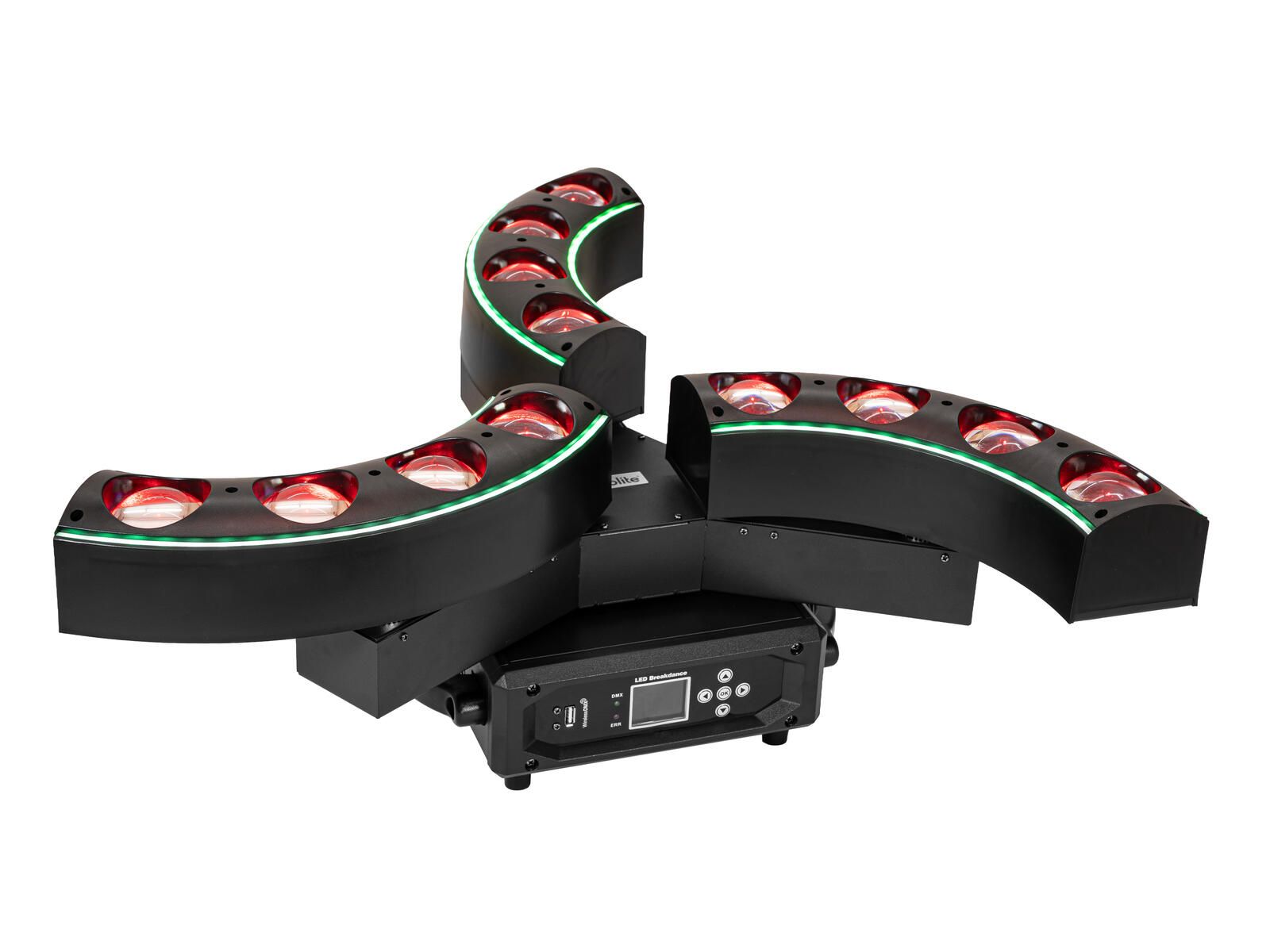

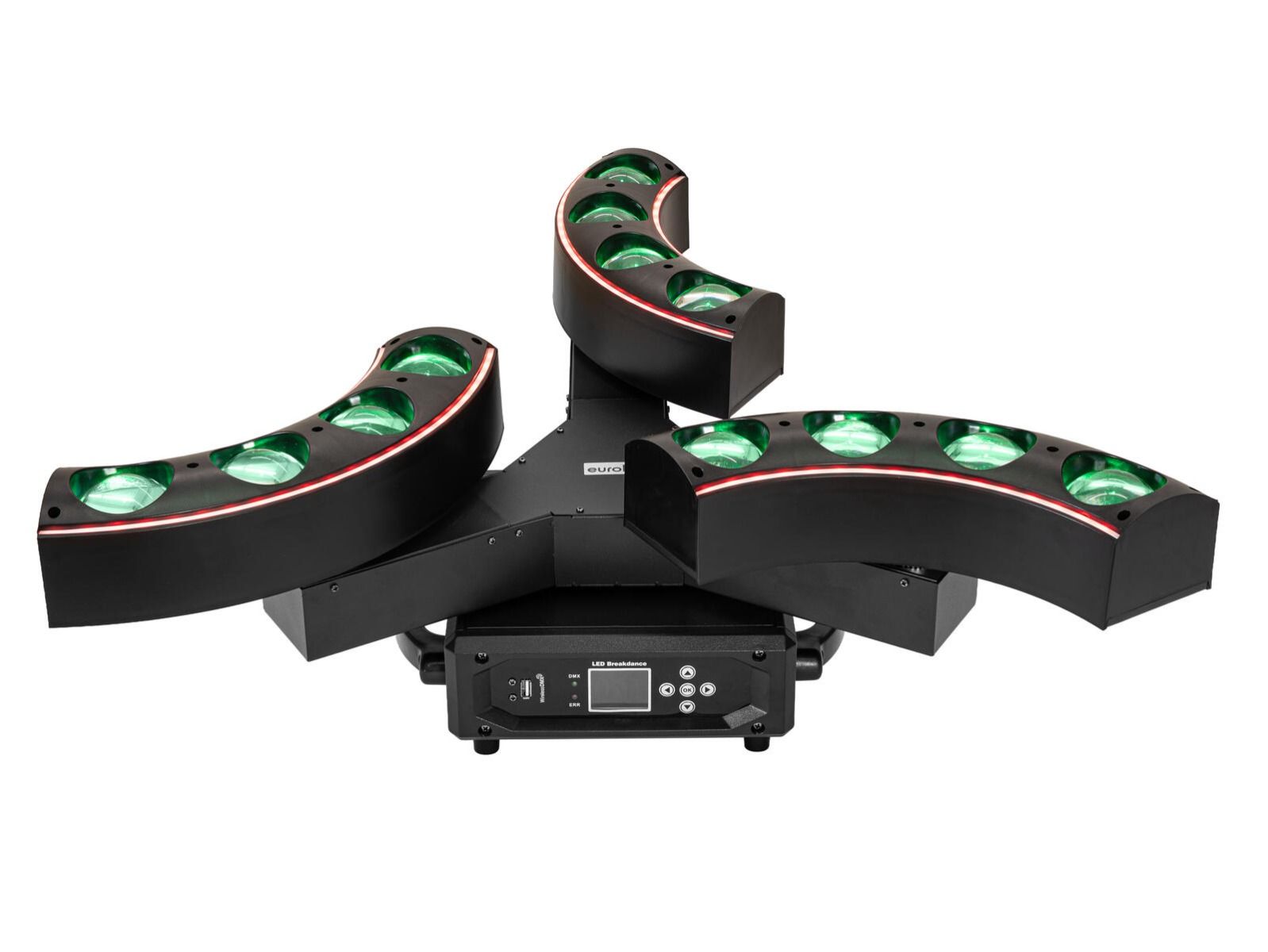

- 3 dynamically rotating arms with RGBW beam LEDs and atmospheric RGB lights
- Unlimited PAN rotation of the base and individual arms

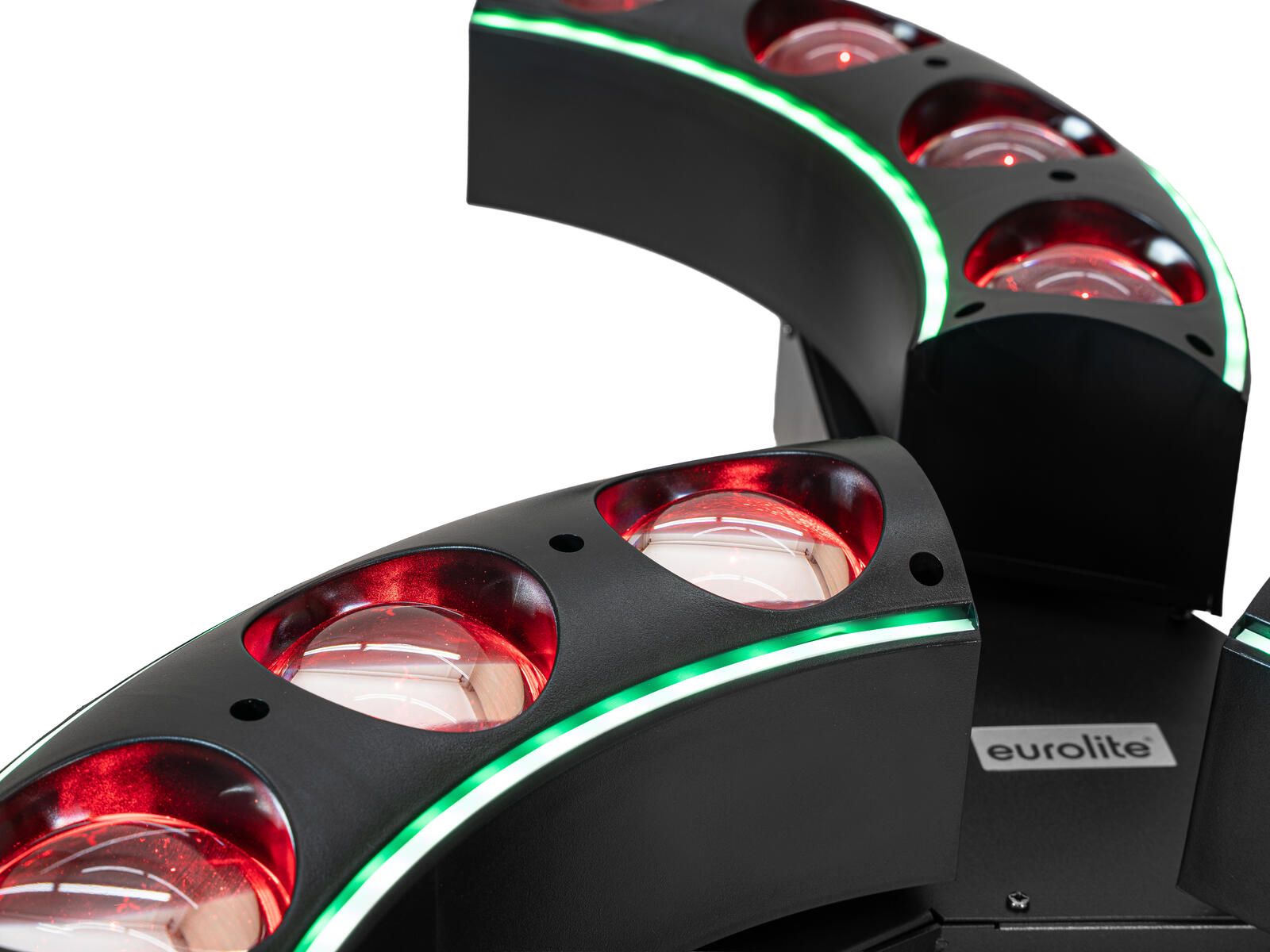

- 12 LEDs 10 W SMD 5050 4in1 RGBW
LEDs controlled separately - 117 LEDs 0.2 W SMD 5050 3in1 RGB (homogenous color mix)
- Positioning within 540° PAN,
- Exact positioning (16 bit resolution)
- With a beam angle of 1° beam
- Control via stand-alone; sound to light; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); master/slave function
- The device is cooled by cooling fan at the base
- Dimmer electronic; background color adjustable; Rotation direction adjustable; Rotation speed adjustable; color macros
- Flicker-free

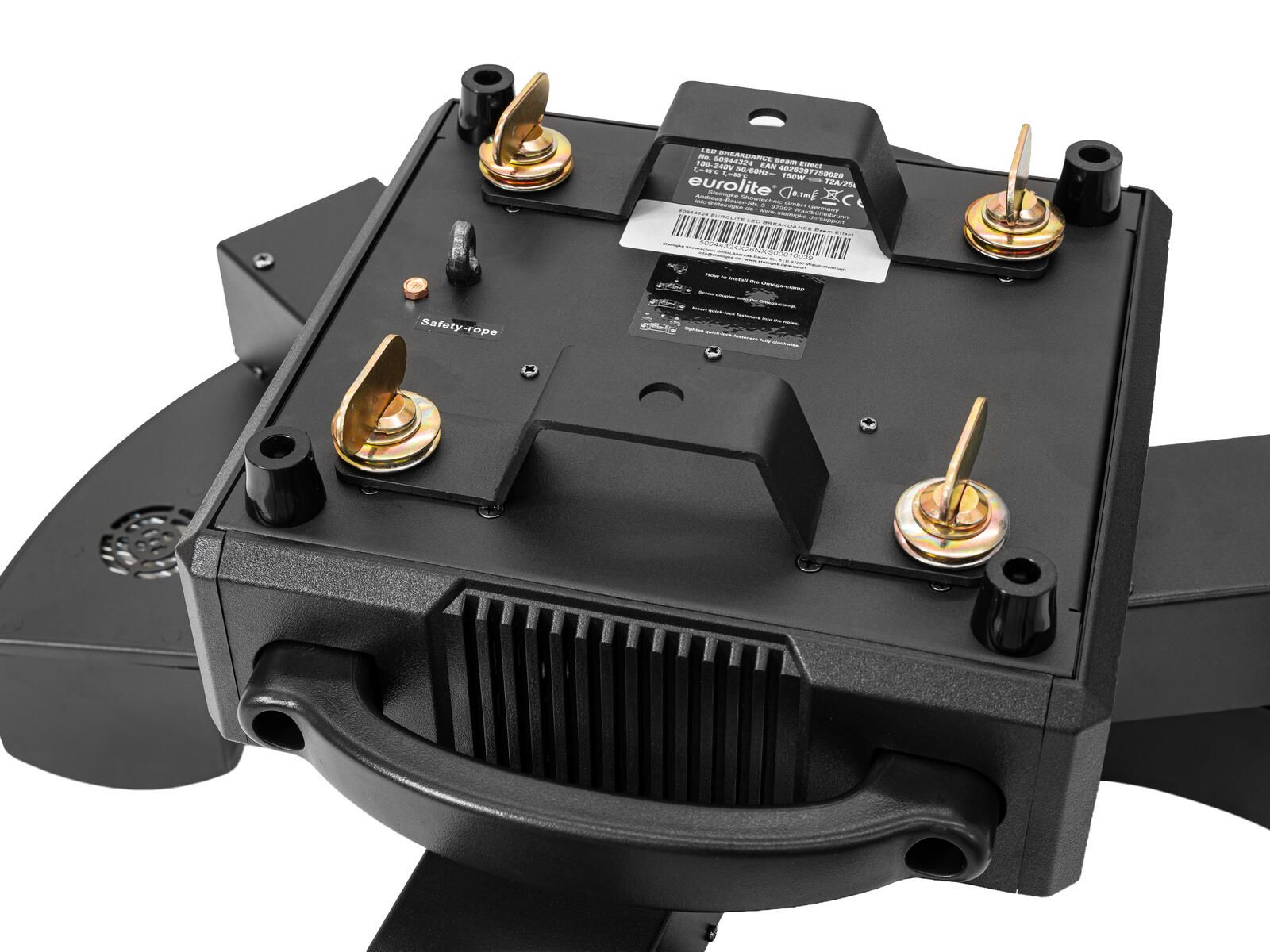

- With omega bracket
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; installation; restaurants, bars and hotels
- Application possibility: Suspended
- Can be operated in 32; 73 CH mode
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 150 W |
| Protection class: | Protection class I |

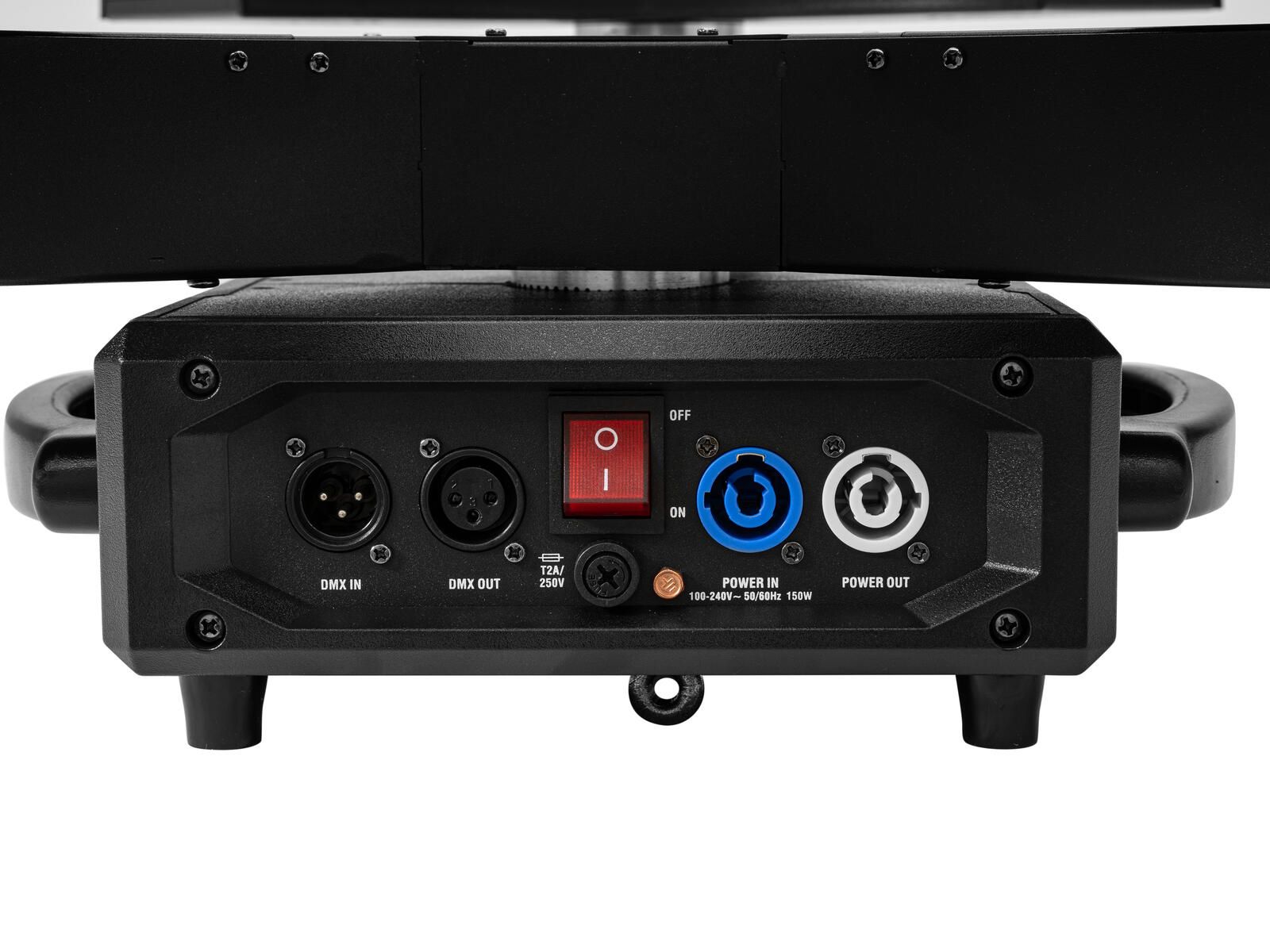

| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Cable construction: | 3 x 1.0 mm² H05VV-F |
| Power output: | P-Con (grey), mounting version |
| Fuse: | 5 x 20 mm, T 2 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 12 x 10 W SMD 5050 4in1 RGBW 117 x 0.2 W SMD 5050 3in1 RGB (homogenous color mix) |
| Max. PAN movement: | 540° exact positioning (16 bit resolution) plus infinity |
| Flash rate: | 2 - 25 Hz |
| DMX channels: | 32; 73 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | 1 x cooling fan at the base |
| Control: | Stand-alone; sound to light; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); master/slave function |
| Fixtures available for: | GDTF (GrandMA3) |
| Projection: | Flicker-free |
| PWM frequency: | 3000 Hz |
| DMX fail mode: | Zero values; hold |
| Beam angle: | 1° beam |
| Beam angle (1/2 peak): | Beam 1° monochrome |
| Beam angle (1/10 peak): | Beam 2° |
| Lamp life: | 20000 h |
| Housing color: | Black |
| Attachment system: | 2x omega bracket |

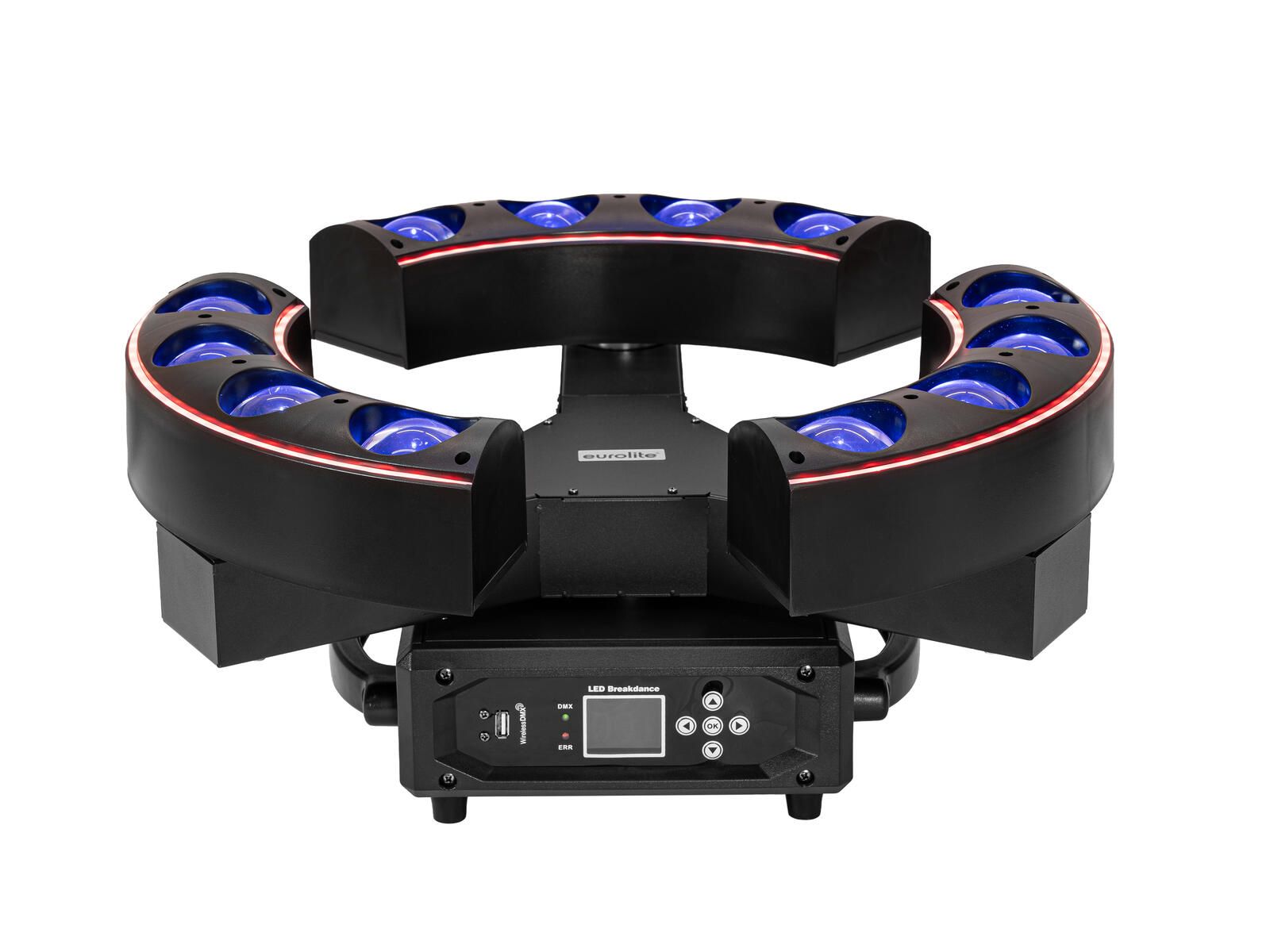

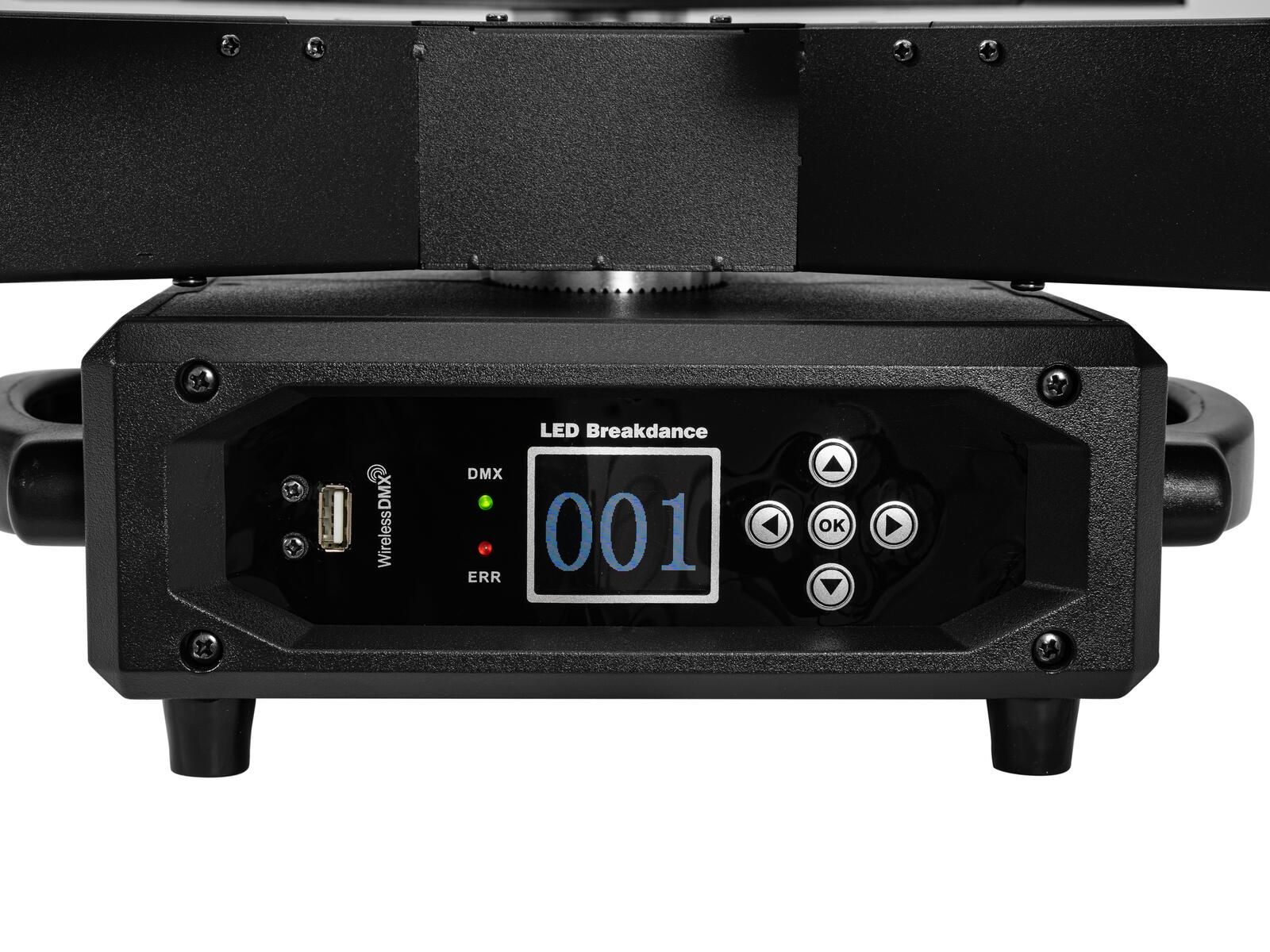

| Display type: | Multicolor LCD display |
| Control elements: | Power switch |
| Status LED: | DMX, fault |
| USB port: | Type A |
| Carrying handle: | 2 pc/pcs |
| Transport aid: | 4 x rubber feet |
| Diameter mounting holes: | 2 x Ø11mm |
| Material: | Metal |
| Dimensions: | Width: 49.67 cm Depth: 49.67 cm Height: 25.4 cm |
| Weight: | 9.90 kg |
| Noise classification: | Class 3 (clearly perceptible sounds) |
