EUROLITE EC-2 DMX Controller
€ 36,30
€ 30,00
?
SKU
st70064579
EUROLITE EC-2 DMX Controller
EUROLITE EC-2 DMX Controller Compact 2-channel DMX controller for fog machines, strobes, blinders and other stage lights

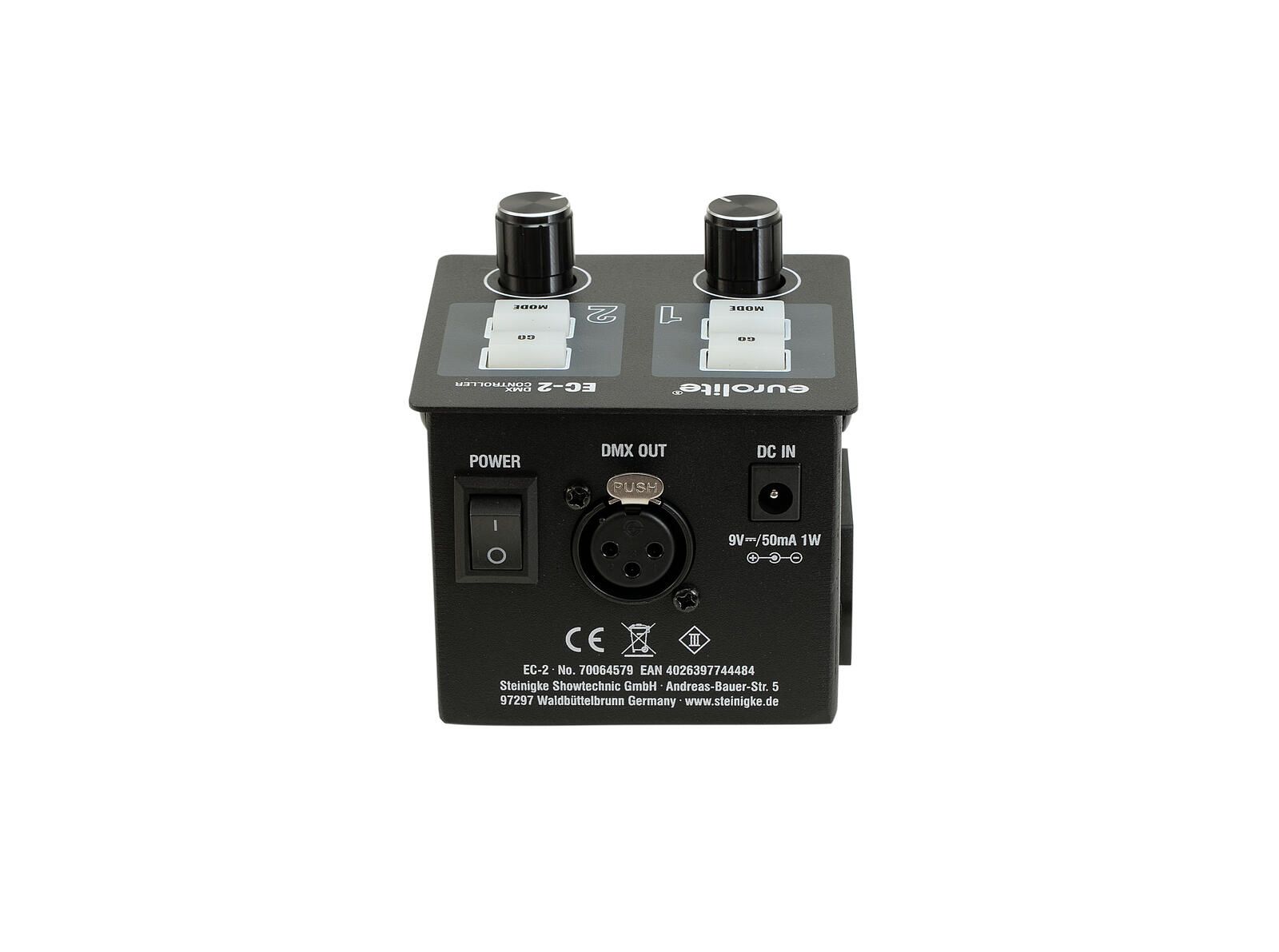

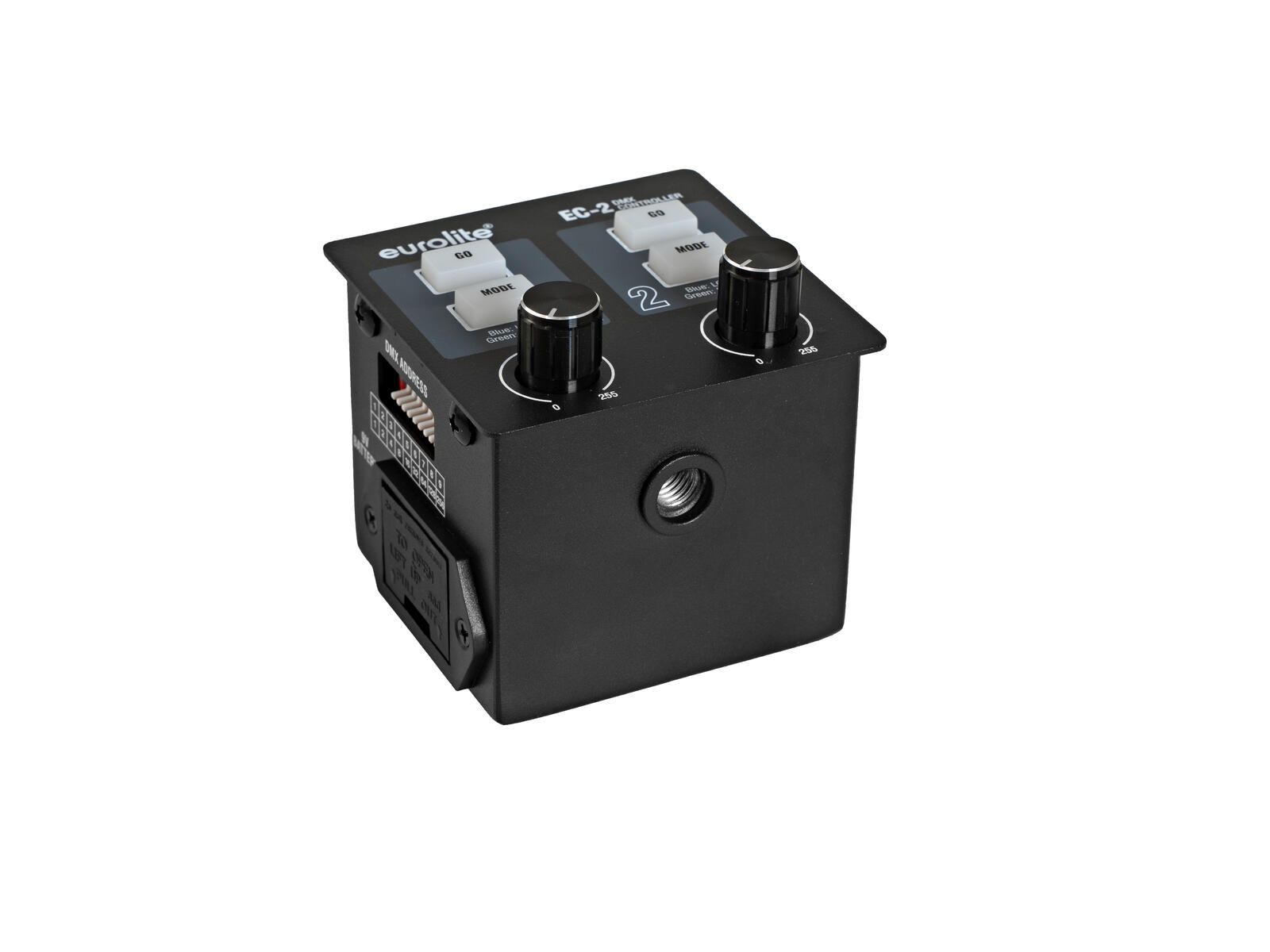

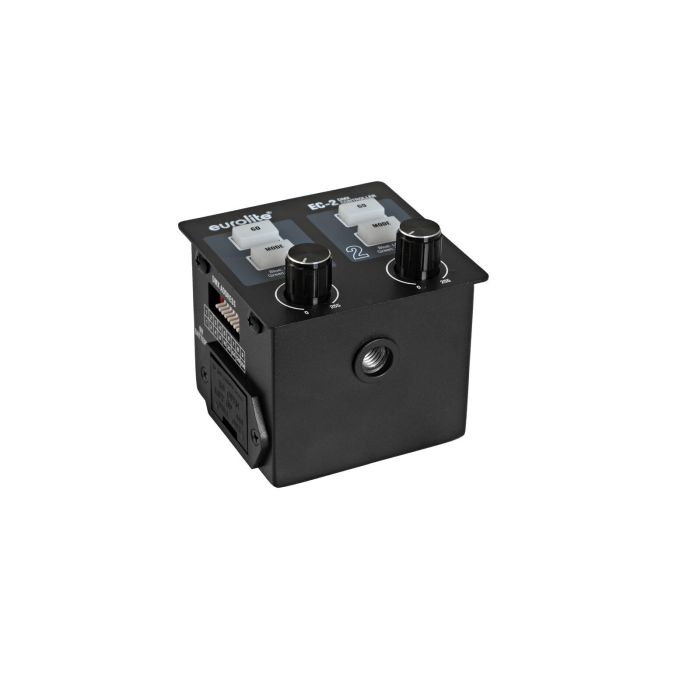

The EC-2 is a compact 2-channel DMX controller with 3-pin XLR output. It is used for easy operation of fog machines, strobes, blinders and other DMX-controlled devices on stage. Each channel has a backlit trigger and mode button as well as a control knob to set the DMX values. An M10 threaded insert enables attachment to a microphone stand, for example. Delivery includes a power adapter. Operation with a 9 V battery is also possible.
Features
Compact 2-channel DMX controller for fog machines, strobes, blinders and other stage lights
- Compact DMX controller for easy application

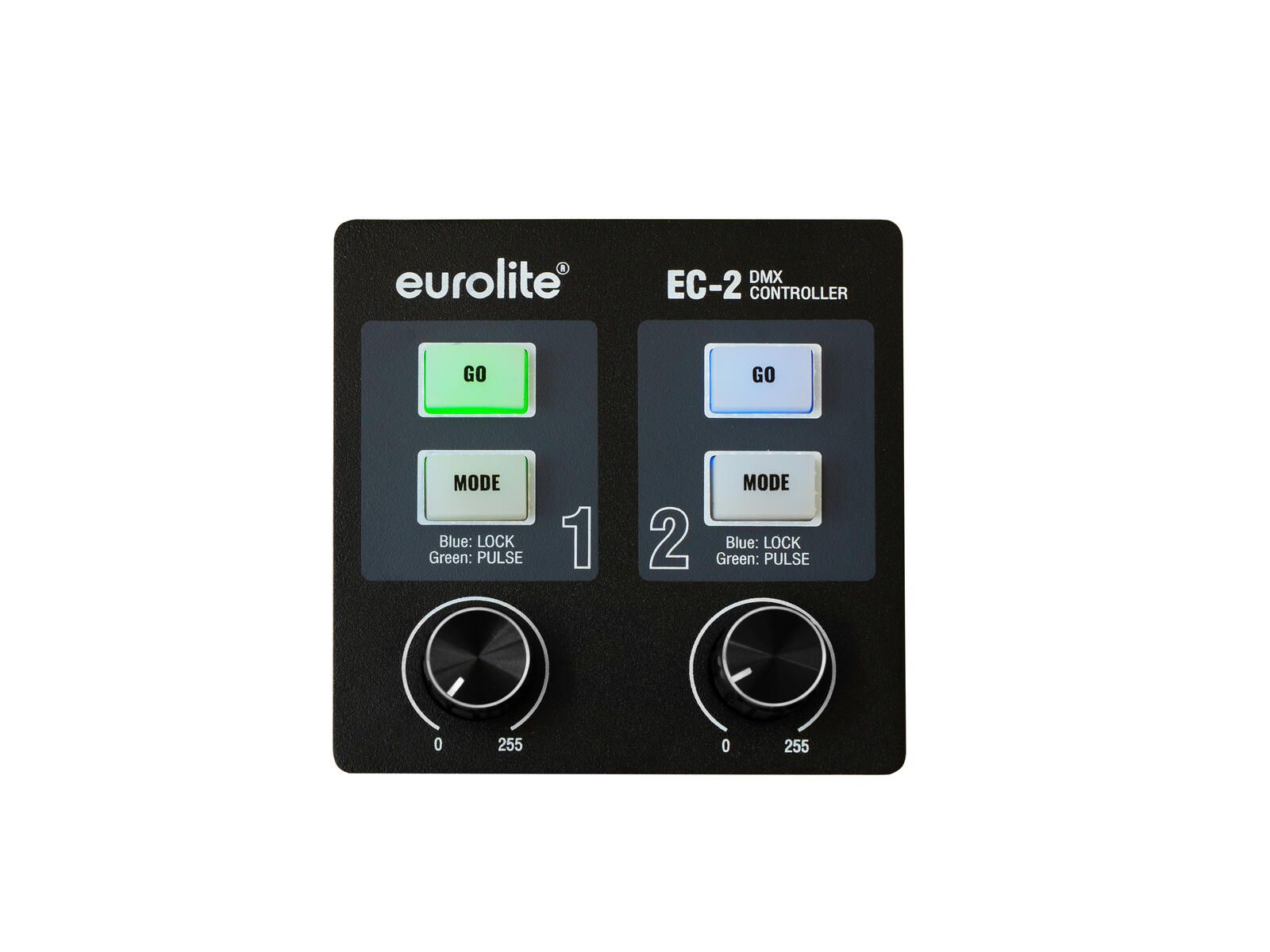

- Backlit trigger and mode button and control knob to set DMX values per channel
- Can transmit up to 2 DMX channels
- Powered by a battery/battery pack
- Desktop console housing
Package contents

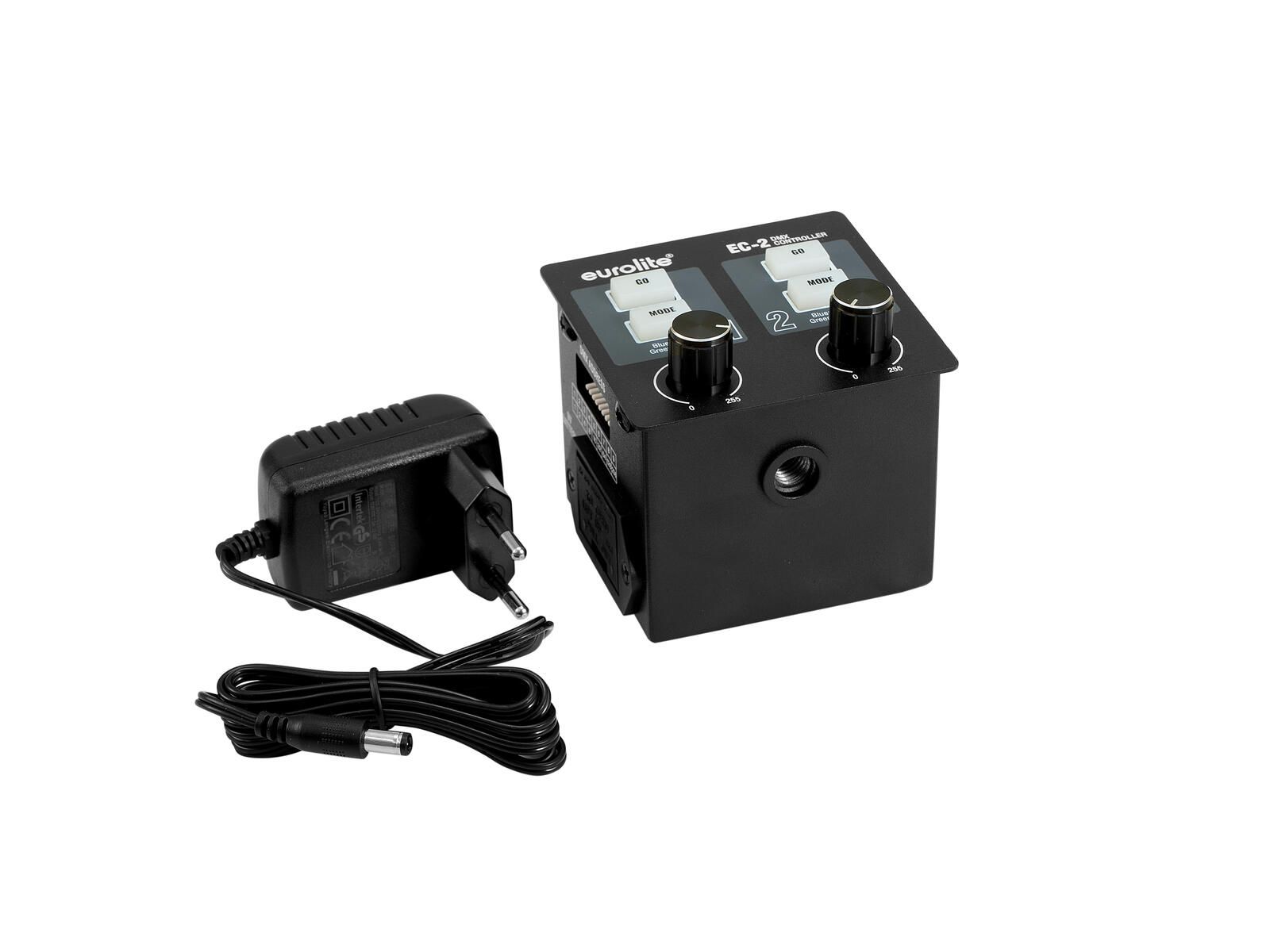

- 1 x controller, 1 x user manual, 1 x external mains adapter
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz 9V DC 50 mA |
| Pin configuration: | Inside + / outside - |
| Power consumption: | Approx. 1 W |
| IP classification: | IP20 |
| Protection class: | Protection class III |
| Power connection: | Mains input via coaxial power connector (M) |
| Battery: | 1 x 9.0 V E block (not included) |
| DMX channels: | Output 2 |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Housing color: | Black matte |
| Attachment system: | 1x M8 thread |
| Control elements: | Power switch |
| Material: | Metal, painted |
| Housing design: | Desktop console housing |
| Dimensions: | Length: 8 cm Width: 8 cm Height: 8,2 cm |
| Weight: | 0,42 kg |
