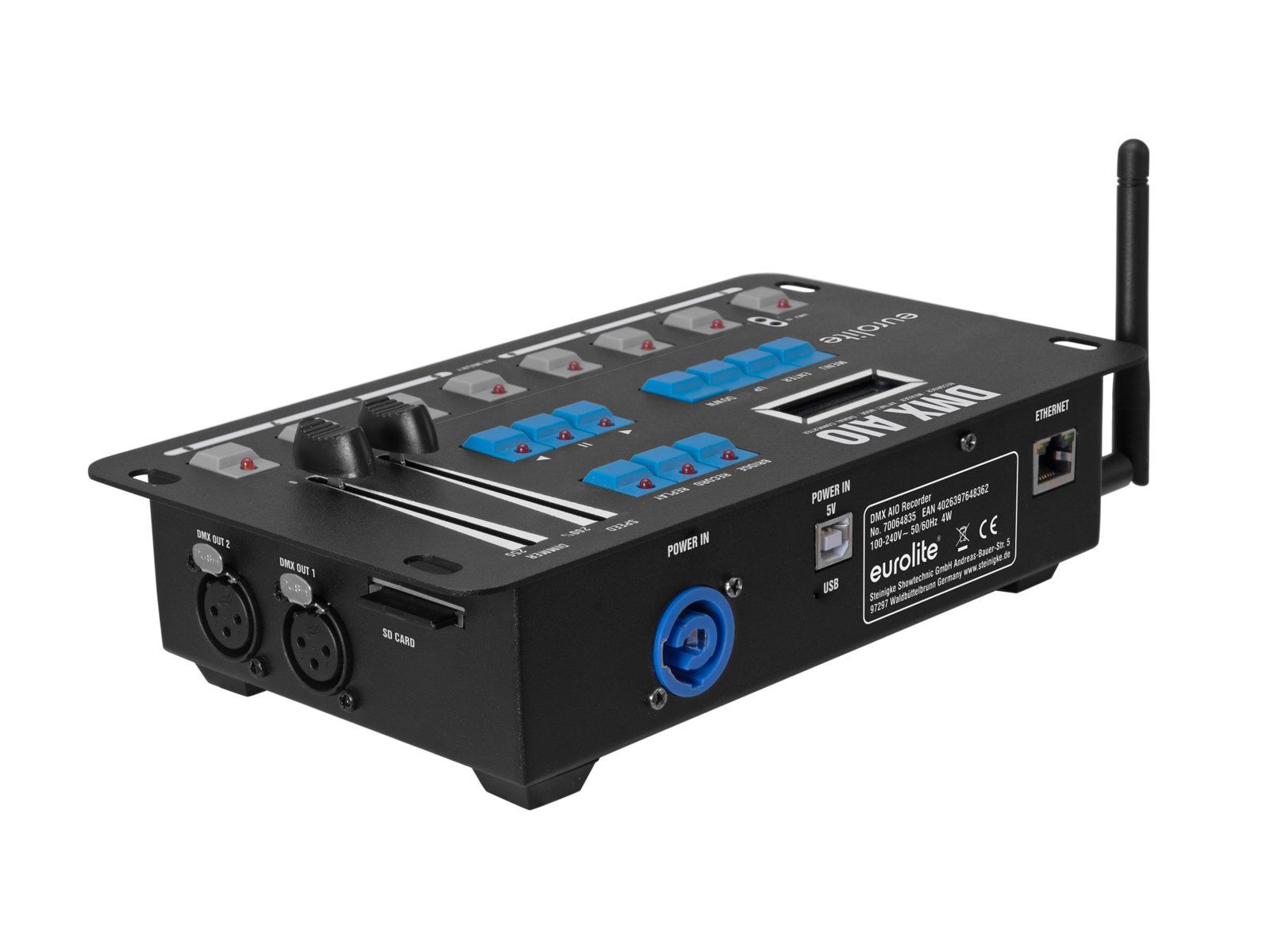

EUROLITE DMX AIO Recorder, Merger, Artnet Node, Signal Converter
€ 289,17
€ 238,98
?
SKU
st70064835
EUROLITE DMX AIO Recorder, Merger, Artnet Node, Signal Converter
EUROLITE DMX AIO Recorder, Merger, Artnet Node, Signal Converter
DMX recorder for 2 universes
Features
- Wireless DMX recorder and Art-Net node
- 2 DMX universes (1024 DMX channels)
- Real-time recording and playback of light shows via DMX or WiFi
- Records any Art-Net and DMX source
- Built-in access point
- Direct operation via Android and iOS apps (e. g. Aurora DMX, Photon, ArtNetDmxRemote)
- Art-Net in/out via WiFi or LAN
- 8 memory locations with up to 20 hours recording capacity each
- All recordings are stored on included 16 GB SD card
- 2 recording modes: time recording or step-by-step recording
- 2 playback modes: solo run or loop run
- Dimmer and speed fader
- DMX merger (2 in > 1 out) with HTP, LTP, override and backup modes
- DMX splitter (1 in > 2 out)
- Configuration via control panel with LCD
- Power supply via P-Con jack or USB port
- Rugged black metal housing
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz or 5 V via USB |
| DMX input: | 2 x 3-pin XLR plug |
| DMX output: | 2 x 3-pin XLR jack |
| Ethernet/LAN: | RJ45 |
| USB port: | USB 2.0, type B |
| Weight: | 1,17 kg |
| Length: | 22,7 cm |
| Width: | 13 cm |
| Height: | 7 cm |
| Power consumption: | 4 W |
