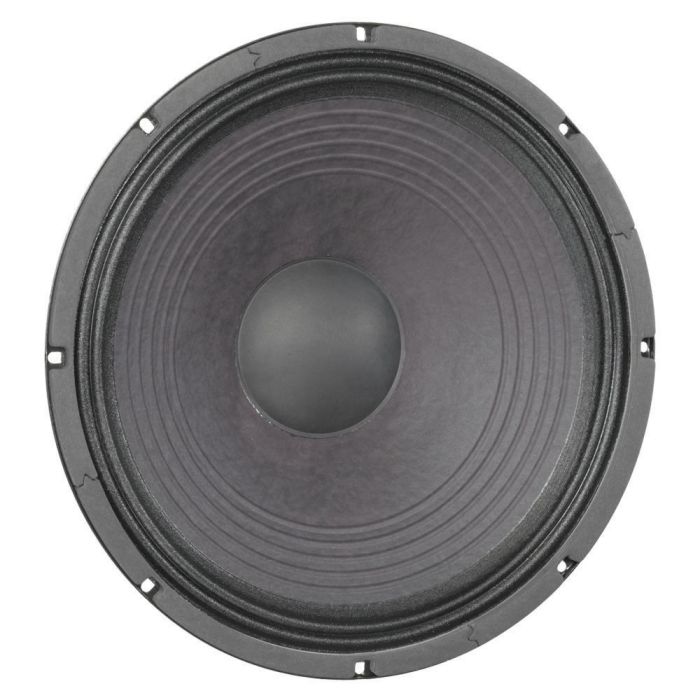

Eminence Delta 15 B 15" Speaker 400 W 16 Ohms

Eminence Delta 15 B 15" Speaker 400 W 16 Ohms
General

Product type

Loudspeaker Chassis

Type

PA

Nominal Diameter

15 "

Nominal Diameter

381 mm

Voice Coil

2.5 "

Voice Coil

63.5 mm

Overall diameter

384.8 mm

Pitch Circle Diameter

369.9 mm

Cut- out Measurement

352.3 mm

Diameter of fixing holes

6.4 mm

Depth

154 mm

Nominal Impedance

16 Ohm(s)

Nominal Load Capacity

400 W

maximum rated load

800 W

Sensitivity (1 W / 1 m)

100 dB

Frequency response

64 - 4000 Hz

Voice Coil Material

Aluminium

Magnet

Ferrite

Depth of the magnetic gap

9.53 mm
