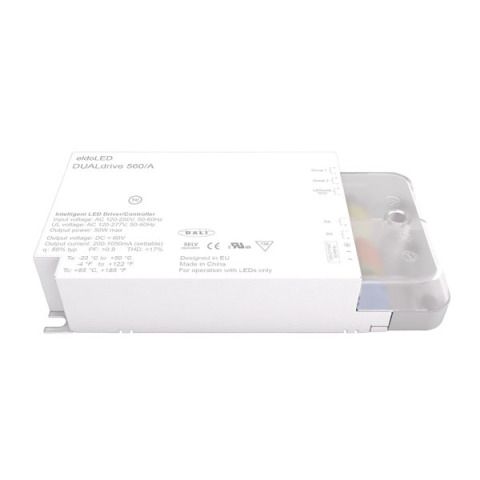

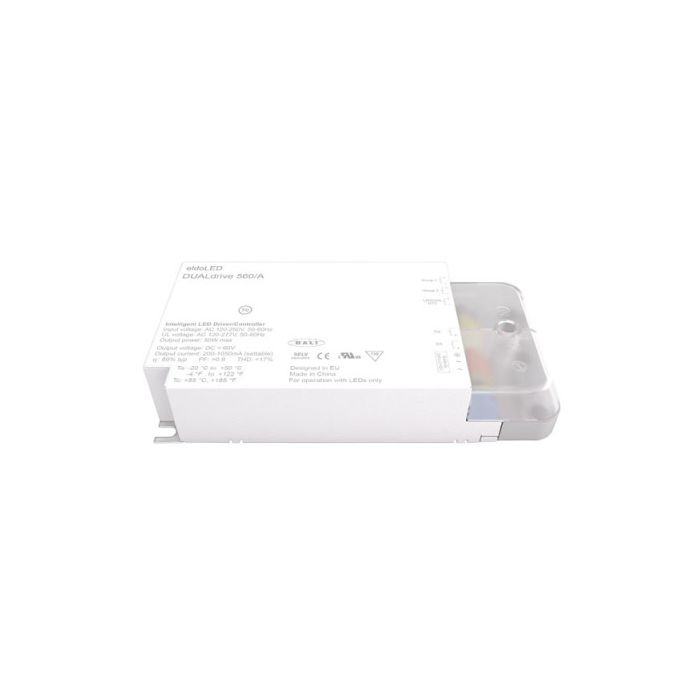

Eldoled DUALdrive AC 50 W Constant Current DL0560A1 Dali x2 VSA
€ 105,00
€ 86,78
?
SKU
A9950562
- Buy 2 for € 99,75 € 82,44 each and save 5%
- Buy 4 for € 94,50 € 78,10 each and save 10%
Eldoled DUALdrive AC 50 W Constant Current DL0560A1 Dali x2 VSA
Eldoled DUALdrive AC 50 W Constant Current DL0560A1 Dali x2 VSA
LED-driver continue stroom max. 50W
Hybrid HydraDrive: efficiënt, soepel
en flikkervrije dimming
DALI-compatibel, 2 afzonderlijk bestuurbare LED-outputs
Specifications
• Ingangsspanning: 120V~277V 50/60Hz
• Programmeerbare output: 2x 200mA-1050mA
• min./max. doorlaatspanning: 2x 2-55VDC

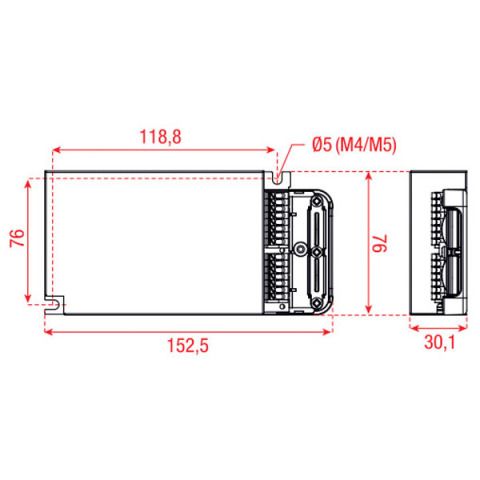

• Afmetingen L x B x H (mm): 152,5x76x30.1
• Gewicht: 0,372 Kg
• Ta-bereik: -20°C...+50°C / -4°F...+122°F
• Tc-max.: 85°C / 185°F
• Volledige dimregeling: 100% to 0%,
keuze uit lineaire of logaritmische dimcurve
• Maximaal (nominaal) vermogen beschikbaar over breed bereik LED-spanning (30-55V)
• NTC-interface voor robuust temperatuurbeheer
