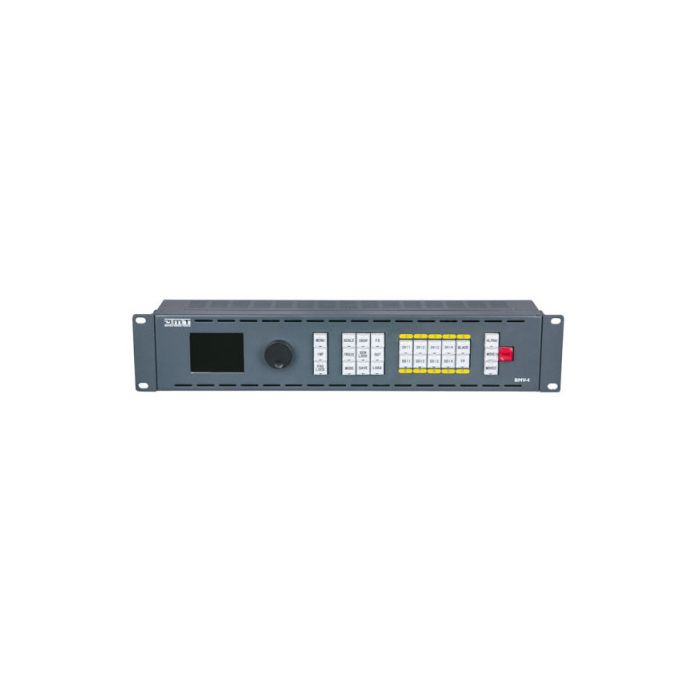

DMT BMV-4 Broadcast Multiviewer

DMT BMV-4 Broadcast MultiviewerThe BMV-4 Broadcast Multiviewer is a pure-hardware professional 8 way multi-screen video wall controller,which is capable of showing and displaying multi-dynamic pictures on multi-screens to realize the function of splicing multi-windows. It supports signal input, including SDI (SD/HD-SDI, 3G-SDI), high-definition digital signal (HDMI or high resolution DVI signal). Single output channel supports maximum resolution 2560x816@60Hz. It is specially designed for the needs of displaying multi-pictures with high quality, especially suitable for flexibly controlling various types of screens and resolutions. BMV-4 is ideal for the application in command centers, video conference, live switching and many more. Specifications DVI Input Number of Inputs: 8 4x SD/HD/3G SDI Inputs 4x DVI InputsConnector: Standard DVI-I socketSupported Resolution SMPTE:625/25 PAL, 525/29.97 NTSC, 625/50p PAL, 525/59.94p NTSC,480i60,576i50,720P23.97/24/25/29.97/30/50/59.94/60,1080i50/59.94/60,1080P23.97/24/25/29.97/30/50/59.94/60 VESA:800x600x60,1024x768x60,1024x768x75,1024x768x85,1280x720x50,1280x720x60,1280x768x60,1280x800x60,1280x102x60,1360x768x60,1366x768x60,1400x1050x60,1440x900x60,1600x1200x60,1680x1050x60, 1920x1080x50,1920x1080x60,1920x1200x60, 2048x1152x60,2560x816x60Signal Level TMDS pwl, single pixel input,165MHz bandwidthFormat Standard HDMI 1.3SDI Input Number of Inputs: 4Connector: BNCSupported Resolution SMPTE:625/25 PAL, 525/29.97 NTSC, 625/50p PAL, 525/59.94p NTSC, 480i60,576i50,720P23.97/24/25/29.97/30/50/59.94/ 60,1080i50/59.94/60,1080P23.97/24/25/29.97/30/50 /59.94/60 VESA:1280x720x50,1280x720x60,1920x1080x50, 1920x1080x60Transmission speed: 19.4Mbps~1.5GbpsSupported Standard ITU-R BT.656,ITU-R BT.601,SMPTE 259M, SMPTE 292, SMPTE 297 Balance Belden 1694A 100m self-adaptive 3G,200m self-adaptive 1.485G,350m self-adaptive 270Mbps.Preview SDI Output Number of Outputs: 1Connector: BNCSupported Resolution SMPTE:625/25 PAL, 525/29.97 NTSC, 625/50p PAL, 525/59.94p NTSC,720P60 VESA:1280x720x50,1280x720x60,1920x1080x50, 1920x1080x60Supported Standard ITU-R BT.656,ITU-R BT.601,SMPTE 259M, SMPTE 292, SMPTE 297Program SDI Output Number of Outputs: 1Connector: BNCSupported Resolution SMPTE:625/25 PAL, 525/29.97 NTSC, 625/50p PAL, 525/59.94p NTSC,720P23.97/24/25/29.97/30/50/59.94/60,1080i50/59.94/60,1080P23.97/24/25/29.97/30/50/59.94/60 VESA:1280x720x50,1280x720x60,1920x1080x50, 1920x1080x60Supported Resolution Preview DVI Output: ITU-R BT.656,ITU-R BT.601,SMPTE 259M, SMPTE 292, SMPTE 297Number of Outputs: 1Connector: Standard DVI-I socketSignal Level: TMDS pwl, 165MHz bandwidthSupported Resolution SMPTE:625/25 PAL, 525/29.97 NTSC, 625/50p PAL, 525/59.94p NTSC,720P60 VESA:1280x720x50,1280x720x60,1920x1080x50,1920x1080x60Program DVI Output Number of Outputs: 1Connector: Standard DVI-I socketSignal Level: TMDS pwl, 165MHz bandwidthSupported Resolution SMPTE:625/25 PAL, 525/29.97 NTSC, 625/50p PAL, 525/59.94p NTSC, 720P23.97/24/25/29.97/30/50/59.94/60,1080i50/59. 94/60,1080P23.97/24/25/29.97/30/50/59.94/60 VESA:800x600x60,1024x768x60,1024x768x75, 1280x720x50,1280x720x60,1280x768x60, 1280x800x60,1280x1024x60,1360x768x60, 1366x768x60,1400x1050x60,1440x900x60, 1600x1200x60,1680x1050x60,1920x1080x50, 1920x1080x60,1920x1200x60,2048x1152x60, 2560x816x60Extras Communication: USB,TCP/IP Power Supply: DC 12V Working Environment: 0°C~45°C Stored Environment: 10% to 90%
