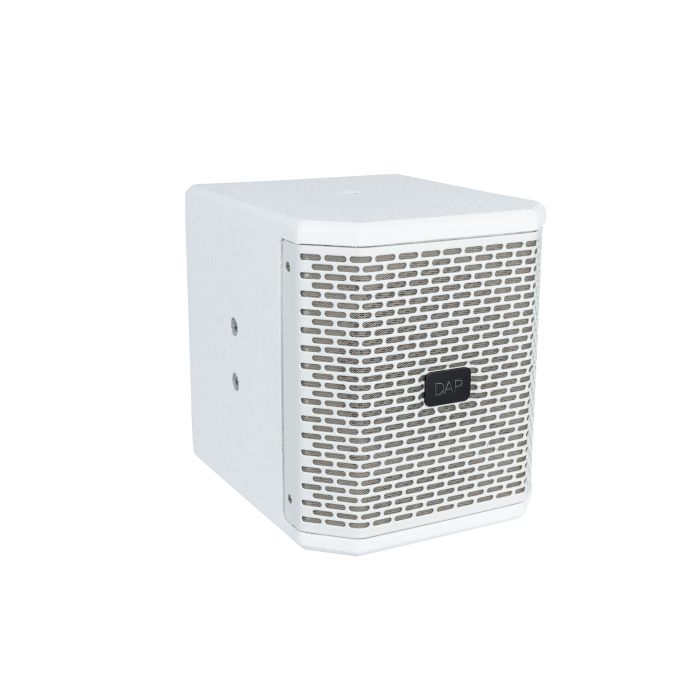

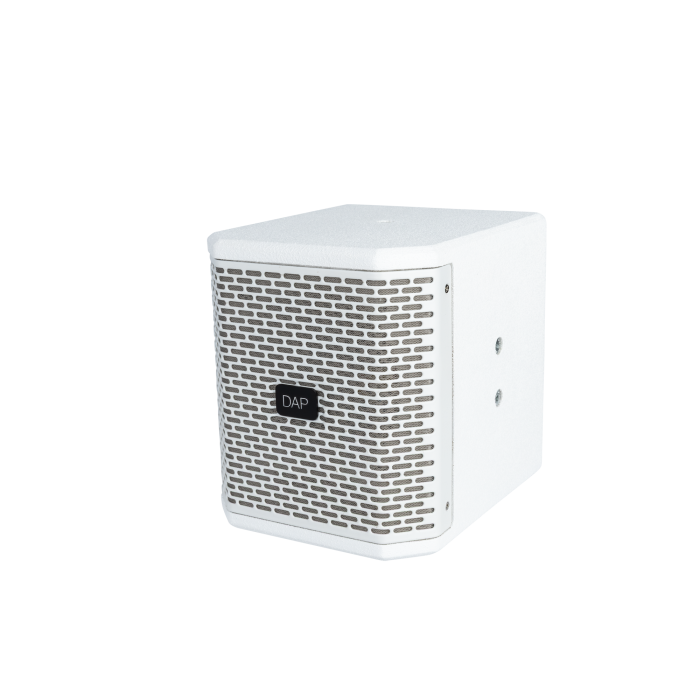

DAP Xi‑5C Passive 5” coaxial Installation speaker ( celestion ) - White

The DAP Xi‑5C is a compact, high-quality multi-purpose speaker designed for clear, consistent coverage in retail, hospitality, theatres, auditoriums, stage infill, live sound, and corporate environments. It uses a premium 5” Celestion coaxial driver that delivers a coherent point source with excellent intelligibility and smooth off‑axis response. Despite its small footprint, the Xi‑5C reaches up to 117 dB at 1 m with a frequency response of 80-20,000 Hz and a wide 100° dispersion, ensuring even coverage across the listening area. The internal crossover can be switched from passive to bi‑amp mode for maximum system control. It handles up to 150 W RMS (300 W peak). With a nominal 16‑ohm impedance, multiple speakers can be paralleled on a single amplifier channel in distributed setups.

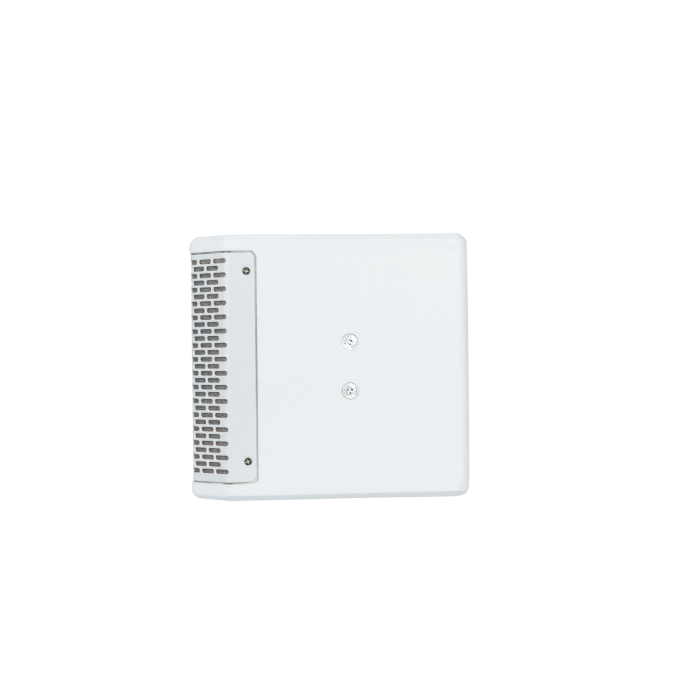

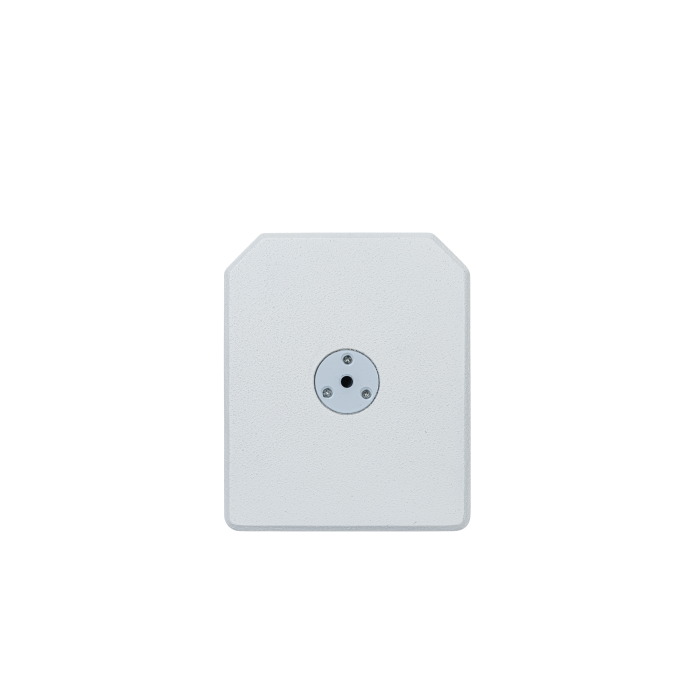

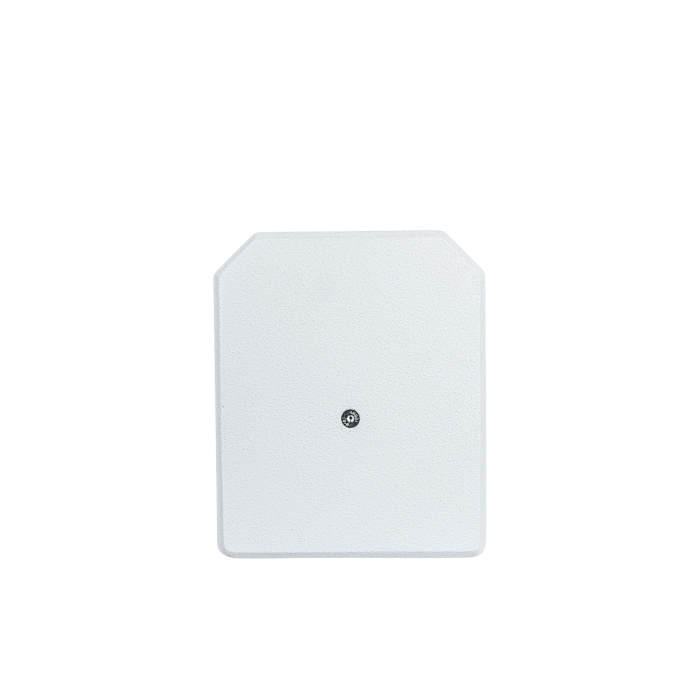

Installation is fast and reliable thanks to two linked 4-pole speaker connectors (supporting passive and bi-amp modes) for easy loop‑through and a 4‑pole terminal connector (passive mode only) with loop‑through for fixed wiring. A threaded M6 mounting point on top provides straightforward mounting options, the back features holes for the DAP Universal Speaker Bracket, and the sides have holes for the dedicated Hanging Bracket for Xi-5C. On the bottom side, an integrated 3/8” thread allows for mounting on a (microphone) stand. The robust black coating and steel screen grille ensure durability and a discreet look that blends into any interior.

Specifications

Inputs
RMS Input Power 150W
Peak Input Power 300W
Passive Input Connection Speaker Connector 4 pole , Terminal
Outputs Passive Output Connector
Speaker Connector 4 pole, Terminal

Audio Specifications
Speaker SystemCoaxial
Speaker Sensitivity (1W/1m) 89 dB
Speaker Impedance 16 Ω
Maximum SPL at 1m 117 dB
Frequency Response Minimum 80 Hz
Frequency Response Maximum 20000 Hz
Crossover Frequency (High) 2200 Hz
Woofer Diameter 5"
Woofer Voice Coil Diameter 1.5"
Woofer Magnet Type Ferrite
Compression Driver Diameter 1"
Compression Driver Magnet Type Neodymium
Dispersion Angle (Horizontal) 100°
Dispersion Angle (Vertical) 100°

Sound Editing
Crossover Filter Types Active filtered (Ext. filter needed), Passive filtered (Filter built-in)

Mechanical Specifications
Height (mm) 190mm (7.48″)
Width (mm) 165mm (6.496″)
Depth (mm) 200mm (7.874″)
Material\Wood
Weight 3.56 kg (7.848 lb)
IP Rating, IP20 (indoor use only)
Color White
Finish Painted

Product Properties
Pole Mount Optional 35mm pole mount
Rotatable Horn No
Useable as Monitor/Wedge No
Speaker Grille Material Steel
Thread 3/8

Rigging
Mounting Options Bracket, Ceiling, Stand, Wall
Rigging Options Flying
Rigging Eye Thread M6
