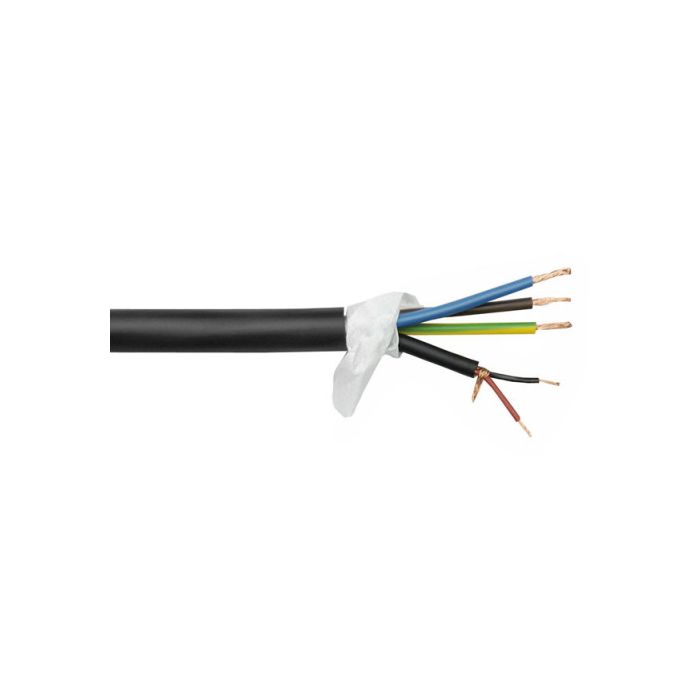

DAP PSC-211 Power/Signaal Kabel Zwart priis per meter

DAP PSC-211 Power/Signaal Kabel Zwart priis per meter

Specifications

500M on spool price p/m
Conductor drains Ø mm: OFC 20 x 0,10 (NF) & 3 x 1,5 (power)
Conductor insulation: PE red+black & PVC black (power)
Conductor insulation Ø: 1,3 mm (NF)
Filler material: paper
1st shield: twisted copper NF 96 x 0,10
2nd shield: -
Outer isolation: PVC 11mm, matte black
Conductor resistance: 80 Ohm/Km
Shield resistance: 30 Ohm/Km
Capacity Inner conductor: 60 pF/m
Cap. Inner conduct. Shield/Inner conduct.: 78 pF/m
Working temperature: -20~60 °C (min./max.)
Working Voltage overflash: 30V
Nom Impedance: 110 Ohm
