DAP Power Cable - REAN PowerG - 3x 1.5 mm² 0.75 mtr

100% compatible with Neutrik

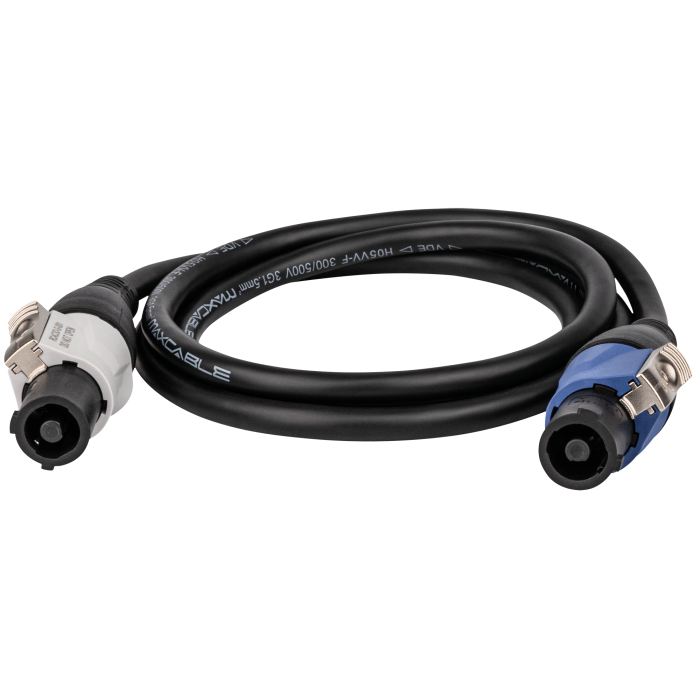

The FPR05 is an HO5VV-F power cable with a 3x 1.5 mm² core and REAN PowerG connectors.

It has a lockable, male REAN PowerG Power Pro True connector on one end and a lockable, female REAN PowerG Power Pro True connector on the other.

It's available in lengths of 0.75 m, 1,5 m, 3 m, 6 m, 10 m and 15 m.

Electrical Specifications and Connections

Rated Current (A) 16 A

Connector 1 PowerConnector G series (Blue)

Connector 2 PowerConnector G series (White)

Brand Connector 1 REAN

Brand Connector 2 REAN

Cable Type H05VV-F

Cable Length  0.75 mtr

Pins  3

Wire Connection  1.5 mm² (0.0023 inch²)

Wire Size 1.5 mm² (0.0023 inch²)

Maximum Wire Size AWG  16 AWG

Outer Isolation Type PVC

Mechanical Specifications

IP Rating IP20 (indoor use only)

Material Copper

Colour Black

Thermal Specifications

Maximum Ambient Temperature 60 °C (140 °F)

Minimum Ambient Temperature -10 °C (14 °F)

Product Properties

Conductors 3
