DAP PA-5500SA 1U Internet radio with 460 W Amp, BT 5.0, mic/line-in, and more
€ 524,99
€ 433,88
?
SKU
D6176
DAP PA-5500SA 1U Internet radio with 460 W Amp, BT 5.0, mic/line-in, and USB/MP3/network audio player
DAP PA-5500SA 1U Internet radio with 460 W Amp, BT 5.0, mic/line-in, and USB/MP3/network audio player
1U 19” Internet radio with 2x 250 W/8 Ω + 1x 250 W 100 V amp
Supports Wi-Fi/LAN streaming via Airplay and Android casting
USB port with AAC, AAC+, ALAC, APE, FLAC, MP3 and WAV support
BT 5.0 with aptX HD
Front auxiliary and mic-in and 5 rear line-ins

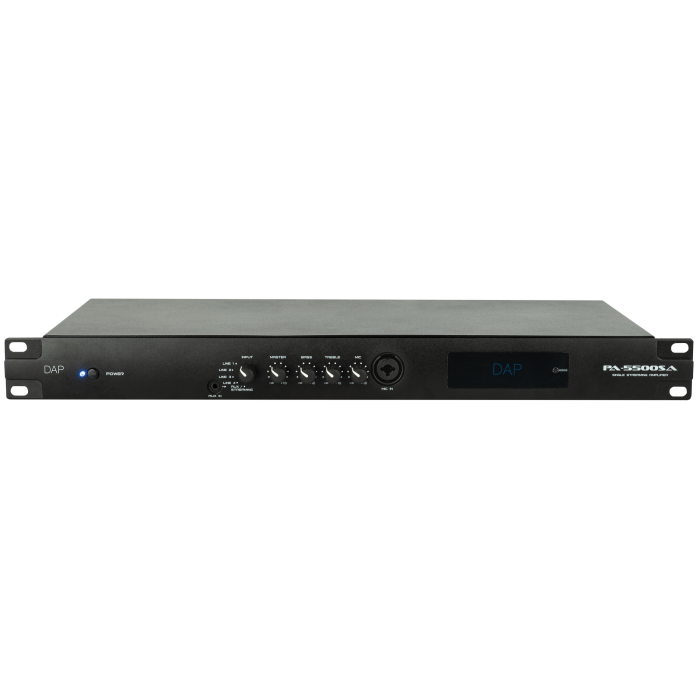

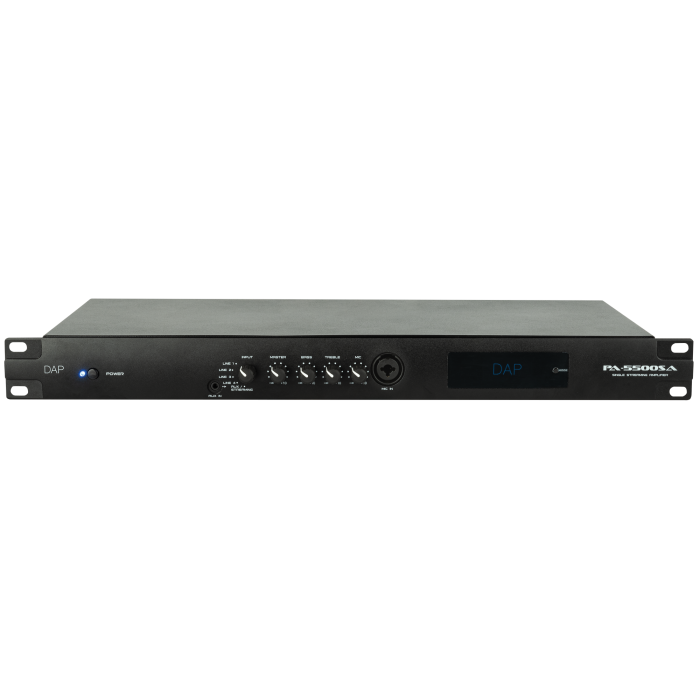

The DAP PA-5500SA is a 1U Internet radio with integrated 460W/100V amplifier and multimedia player.
It supports multiple (wireless) media sources such as LAN, Wi-Fi and USB with support for AAC, AAC+, ALAC, APE, FLAC, MP3 and WAV, has BT 5.0 with aptX HD support, 5 line inputs and a TRS/XLR combo input on the front for microphone and line signals.
It can also act as a Wi-Fi hotspot to which devices can cast. It's Class D amplifier delivers 2 x 240W into 8 ohms and can be bridged to deliver up to 240W at 100V.
The PA-5500SA has front panel controls for mode selection, master volume, microphone level, bass and treble, and an OLED screen displaying information. Advanced settings can be controlled via the included IR remote or the 4stream app, which supports Spotify, Tidal, TuneIn, Amazon music and more. 6 presets for (TuneIn) radio stations or (Spotify) playlists make selecting your favourite music source quick and eas
Specifications .
Outputs
Power Amplifier RMS Output 240 W
Power Amplifier Peak Output 460 W
Output per Channel into 8 ohms at 1 kHz 240 W
Bridge Output 100 V 240 W
Output Channels 2
Output Mode Bridge, Stereo
Output Connector 3-pin XLR, Terminal
Main Outputs 2
Main Output Connector Phoenix, RCA
Inputs
Mono Inputs 1
Mono Input Connector 3-pin XLR
Mono Input Gain Range 10 dB
Stereo Inputs 4
Stereo Input Connector RCA
Auxiliary Inputs 2
Auxiliary Input Connector RCA, TRS balanced 3.5 mm
Playback
Supported Audio Files AAC/AAC+ , ALAC, APE, FLAC, MP3, WAV
Supported Format exFAT, FAT16, FAT32
Maximum Storage Size 128 GB
Media Input/Output
USB-A USB Type 2.0
Playback Functions Up (Skip), Down (Skip), Play, Pause, Stop
Audio Specifications
THD Level < 0.1%
Signal-to-noise Ratio > 100 dB
Slew Rate 14 V/μs
Amp Technology Class D
Damping Factor 300 :1
Frequency Response Minimum 20 Hz
Frequency Response Maximum 20000 Hz
Phantom Power No
Wireless Specifications Bluetooth Version 5.0
Bluetooth Classification 2
Bluetooth Audio Profile aptX HD
Bluetooth Range 15 m (49.213 ft)
Carrier Frequency 2,4 GHz
Control and Programming
Control Mode App, Remote
Display OLED
Display Size 1.4 "
Electrical Specifications and Connections
Power Supply 220-240 V AC 50 Hz
SMPS No
Backup Power Supply No
Power Consumption 100 W
Power Connector In IEC
Data Connector In RJ45
Mechanical Specifications
Height (mm) 44 mm (1.732″)
Width (mm) 483 mm (19.016″)
Depth (mm) 210 mm (8.268″)
Flightcase Size 19"
Rack Units 1 U
Housing Steel
Colour Black
Finish Powder Coating
Weight 2.5 kg (5.512 lb)
IP Rating IP20 (indoor use only)
Product Properties
Electronic Protection
Clip limiter, DC voltage, High frequency, Overheat, Overload, Short circuit, Softstart, Under voltage
LED Indicators Power
Thermal Specifications
Maximum Ambient Temperature 45 °C (113 °F)
Included Items
Included Cables IEC cable
Included Remotes IR Remote battery not included
